Product Description

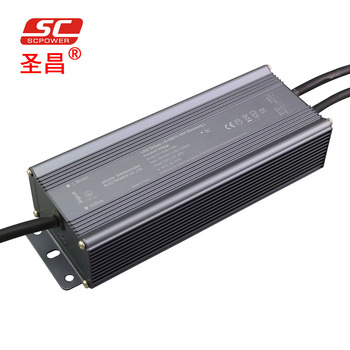

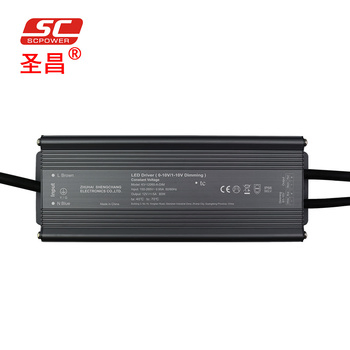

100V 110V 220V AC Constant Voltage 12V 24V 36V 48V 60W 80W 1.8A 2.5A 3.3A 5A DC Power Supply

Feature

· Output constant current.

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 87%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· Fully isolated plastic case with terminals IP60

· Class 2 power unit

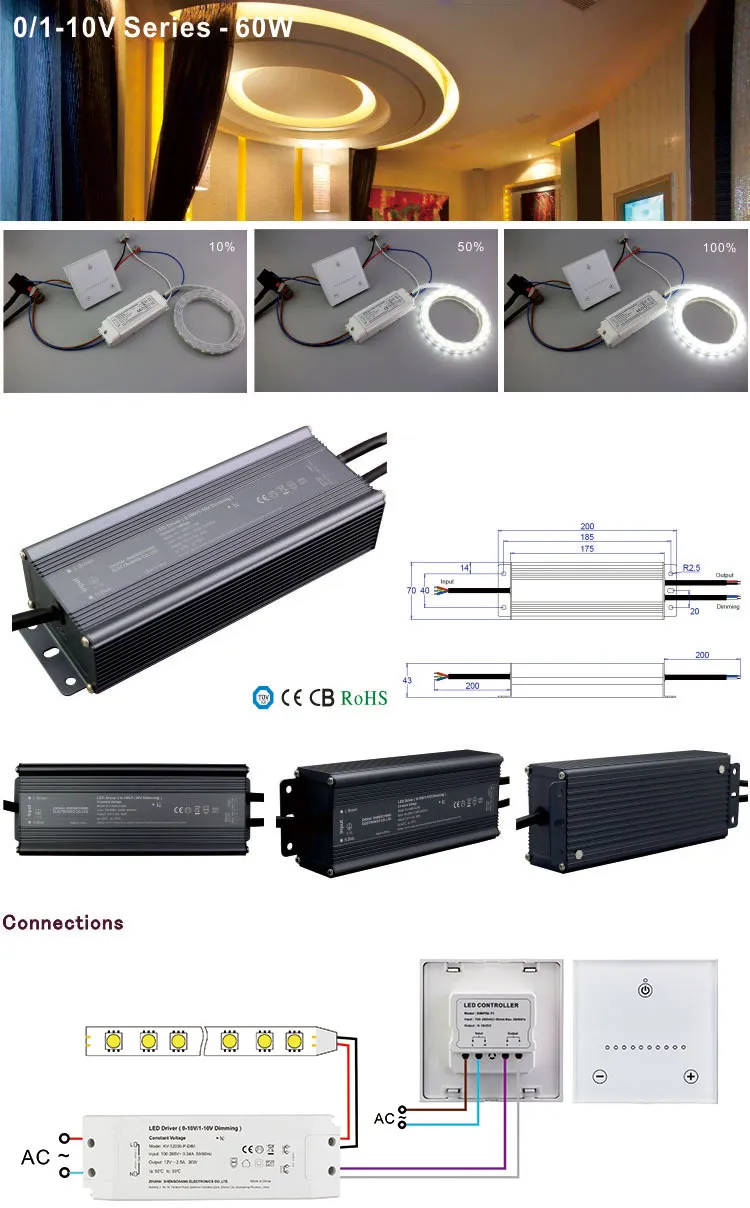

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

·Output constant voltage

Specification

Model		KV-12080-A-DIM	KV-24080-A-DIM	KV-36080-A-DIM	KV-48080-A-DIM
Output	DC Voltage	12V	24V	36V	48V
	Voltage Tolerance	±0.5V
	Rated current	0 - 6.6A	0 - 3.3 A	0 - 2.2A	0 - 1.67 A
	Rated power	80W
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.92/230VAC PF≥0.90/265VAC(Full loading)
	Efficiency(Typ.)	83%	85%	87%	87%
	AC Current(Max.)	0.88A	0.86A	0.84A	0.84A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over Current	≤1.2*Iout
	Over temperature	100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
Others	Net. Weight	1.1KG
	Size	2307046mm
	packing	329279176mm/10pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
