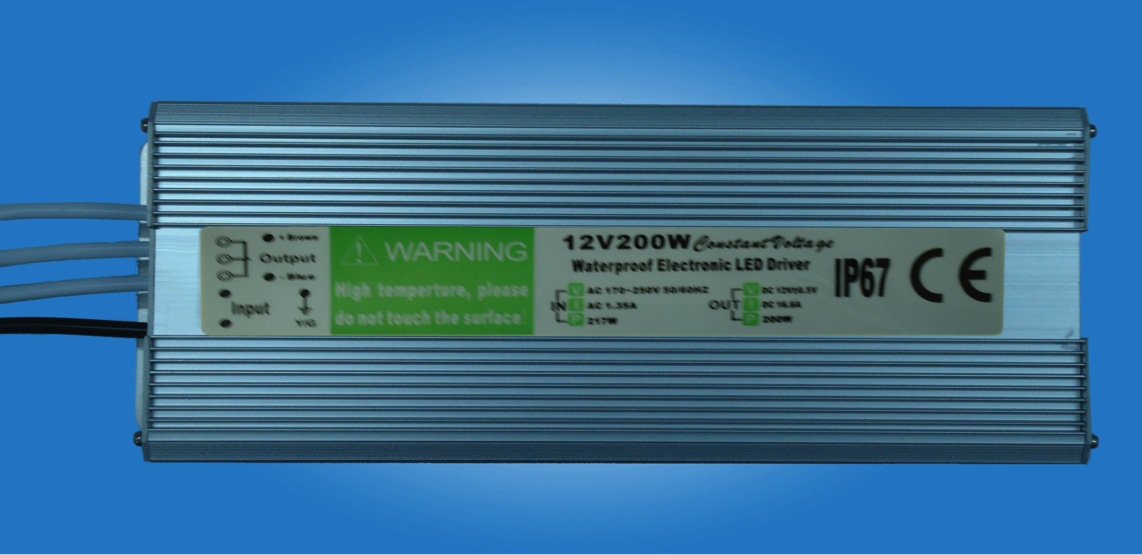

200 Watts Waterproof Constant Voltage LED Driver with Pfc

200 Watts Waterproof Constant Voltage LED Driver with PFC

Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
IP67 design for indoor or outdoor installations
Cooling by free air convection
100% full load burn-in test
High reliability
Suitable for LED lighting and moving sign applications
2 year warranty

Input:
Voltage Range: 85~260VAC
Frequency Range: 47 ~ 63Hz
Power Factor: PF>0.95/230VAC PF>0.98/170VAC at full load
Efficiency(Typ. ): 85%
Inrush Current(max. ): COLD START 60A/230VAC
Leakage Current: 0.25mA / 240VAC

Output:
Rated Current: 4200mA-16700mA
DC Voltage Range: 12_ 48VDC
Rated Power: 200W
RippleI & Noise (max. ): 150MVP-p
Voltage Tolerance: ± 5%
Line Regulation: ± 1%
Load Regulation: ± 2%
Setup, Rise Time: 2200ms, 80ms / 230VAC 2500ms, 80ms / 170VAC at full load
Hold Up Time (Typ. ): 60ms / 230VAC 30ms / 170VAC at full load

PROTECTION:
Current Limit: ± 5% rated output current
Protection type: Constant current limiting type
Over Voltage: Shut down and latch off o/p voltage, re-power on to recover
Over Temperature: 85ºC± 10ºC
Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT:
Working Temperature: -30 ~ +70ºC
Working Humidity: 20 ~ 90% RH non-condensing
Storage Temp., Humidity: -40 ~ +80ºC, 10 ~ 95% RH
TEMP. Coefficient: ± 0.03%/ºC (0 ~ 50 ºC)
Vibration: 10 ~ 500Hz, 2G 10min. /1cycle, period for 60min. Each along X, Y, Z axes

SAFETY:
Safety Standards: IEC 61347_ 2_ 11, IEC 61347_ 1, IEC 60529, IP67 approved
Withstand Voltage: I/P-O/P: 3000KVAC
Isolation Resistance: I/P-O/P: 100M Ohms/500VDC
EMI Conduction: Compliance to EN55015
Harmonic Current: Compliance to EN61000-3-2, -3
EMS Immunity: EN61547

OTHERS
MTBF: 50000Hours min. MIL-HDBK-217F (25ºC )
Dimension: 160*90*45 mm (L*W*H)
Weight: 1200g
