207*32*25mm 12VDC 3.33A LED Driver 40W Lps -C Series
207*32*25mm 12VDC 3.33A LED Driver 40W Lps-C SeriesBrief IntroductionSlimline design with fully sealed aluminum housingWaterproof IP67,suitable for any Working EnvironmentWith the newest topological structure,average efficiency up to 90%Short circuit,overload protectionSpecially for application with......
Send Inquiry
Product Description
207*32*25mm 12VDC 3.33A LED Driver 40W Lps-C Series
Brief Introduction
Slimline design with fully sealed aluminum housing
Waterproof IP67,suitable for any Working Environment
With the newest topological structure,average efficiency up to 90%
Short circuit,overload protection
Specially for application with narrow space,such as covelight,light box,channel letter..
100% burn-in test
| Model no. | LPS-12E40C |
|---|---|
| Input voltage | 185-264 VAC 50/60 Hz |
| Max. power | 40W |
| Output type | Constant voltage |
| Efficiency | 84% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 12VDC ± 5% |
| Output current | 3.4A max |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40 degree |
| Installation | Outdoor waterproof |
| IP rating | IP 67 |
| cooling | Free air convection |
| Certificates/standards | CE,RoHS,SAA,BIS,ISO9001 |

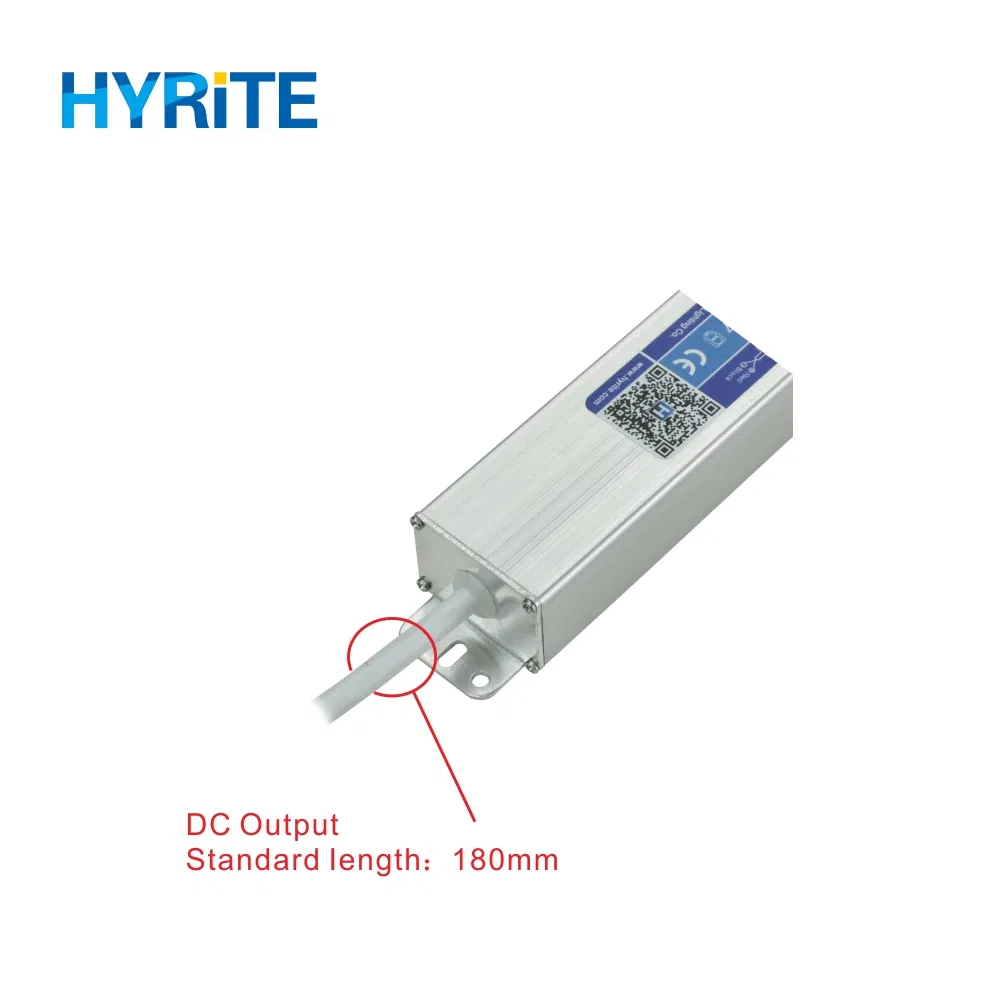

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm) |
| Dimensions(L*W*H) | 207*32*25 mm |
| Weight(kg) | 0.28kg |
| Packing information | 50 Pcs/ Carton, G.W 15KG carton size:410*245*170mm |

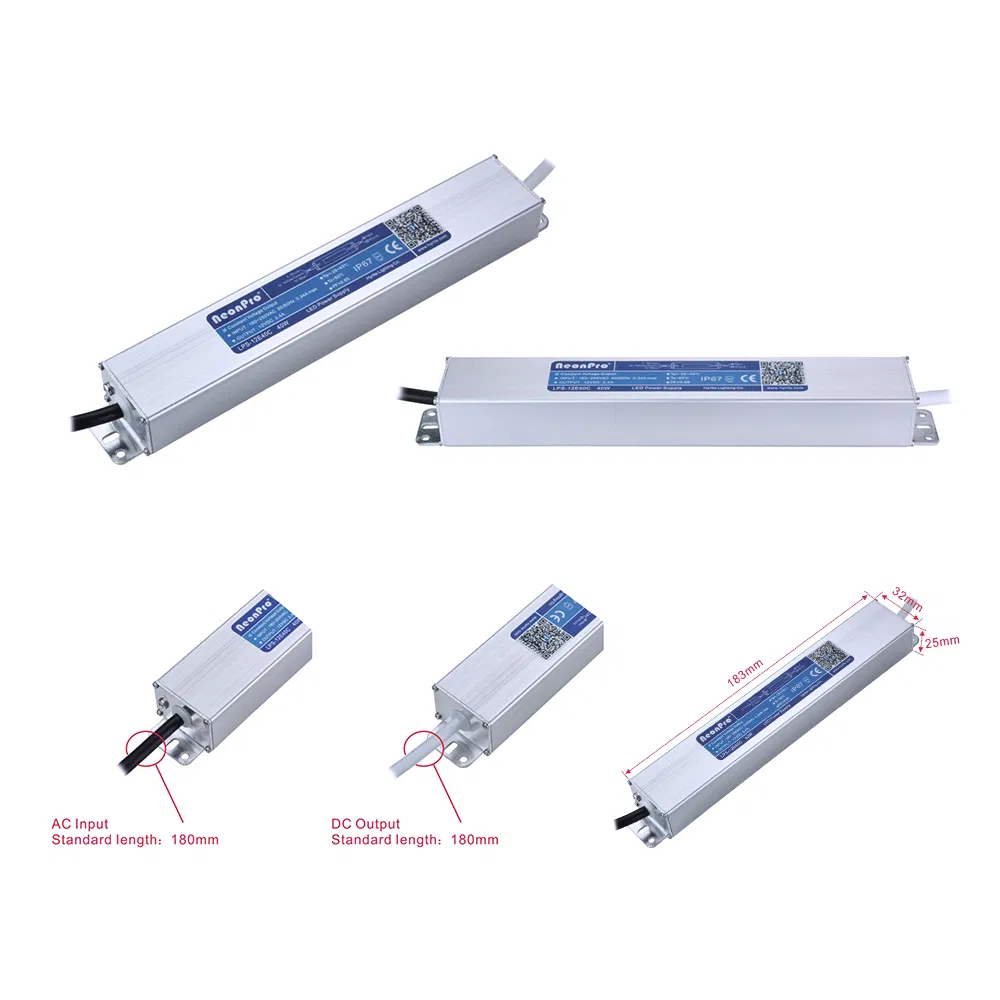

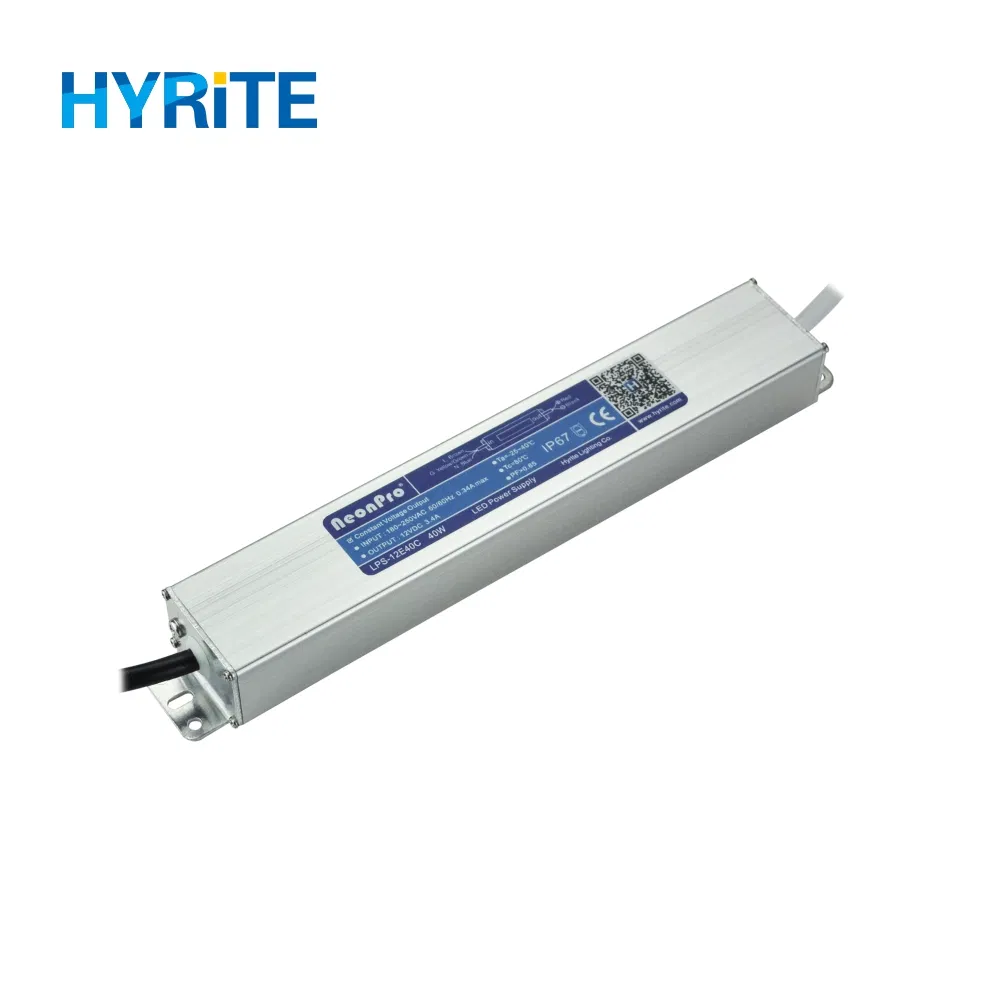

Product pictures

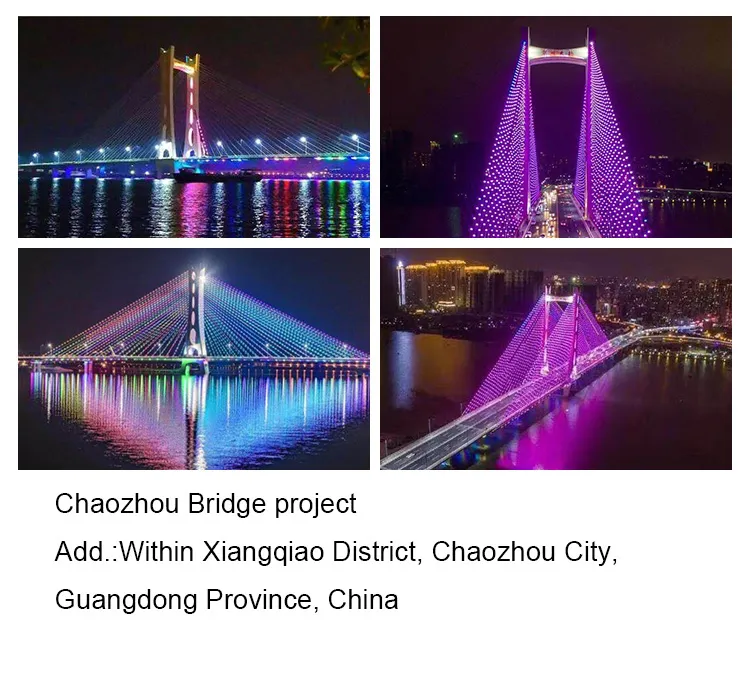

Applications

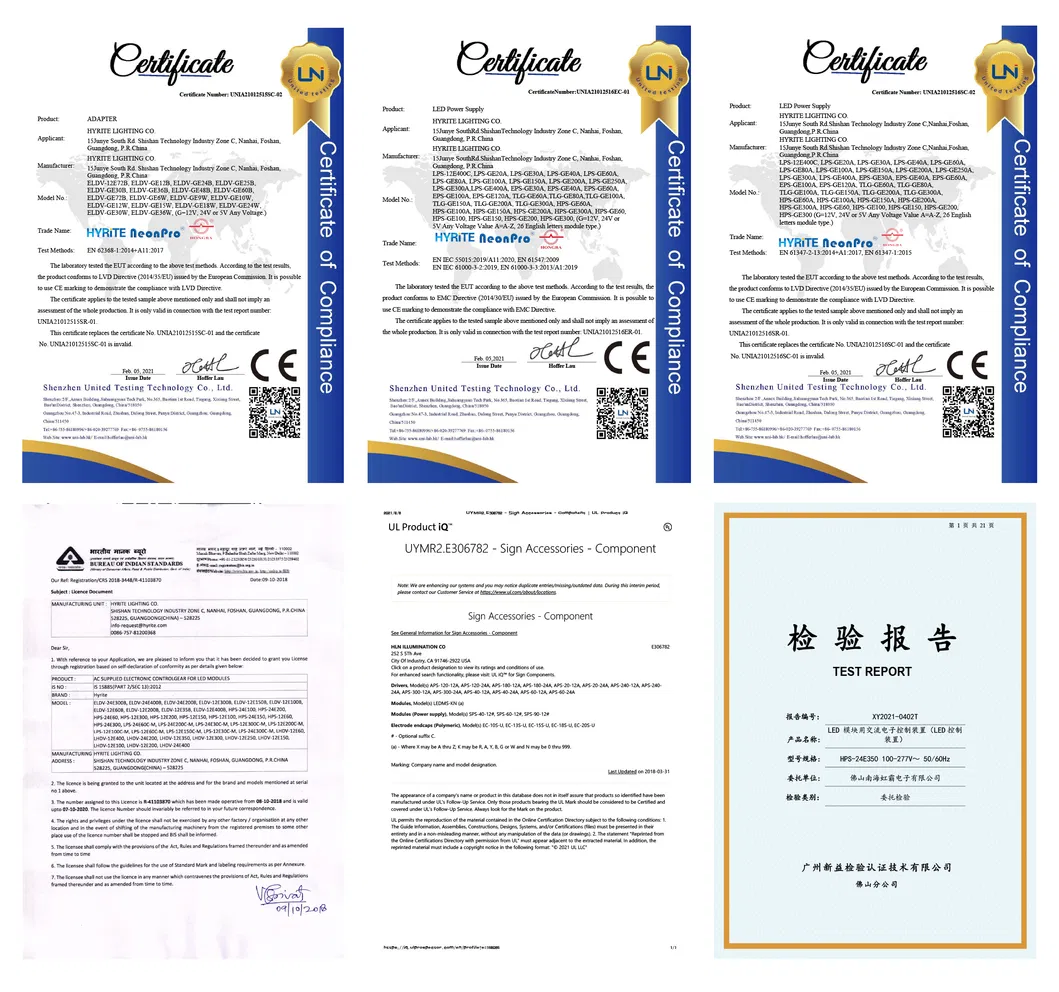

Certificates
Exhibitions
FAQ
Q1. Can I have a sample order for led driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.Q3. Do you have any MOQ limit for led driver order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for led driver?
A:1. please let us know your product's requirements2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on led driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
