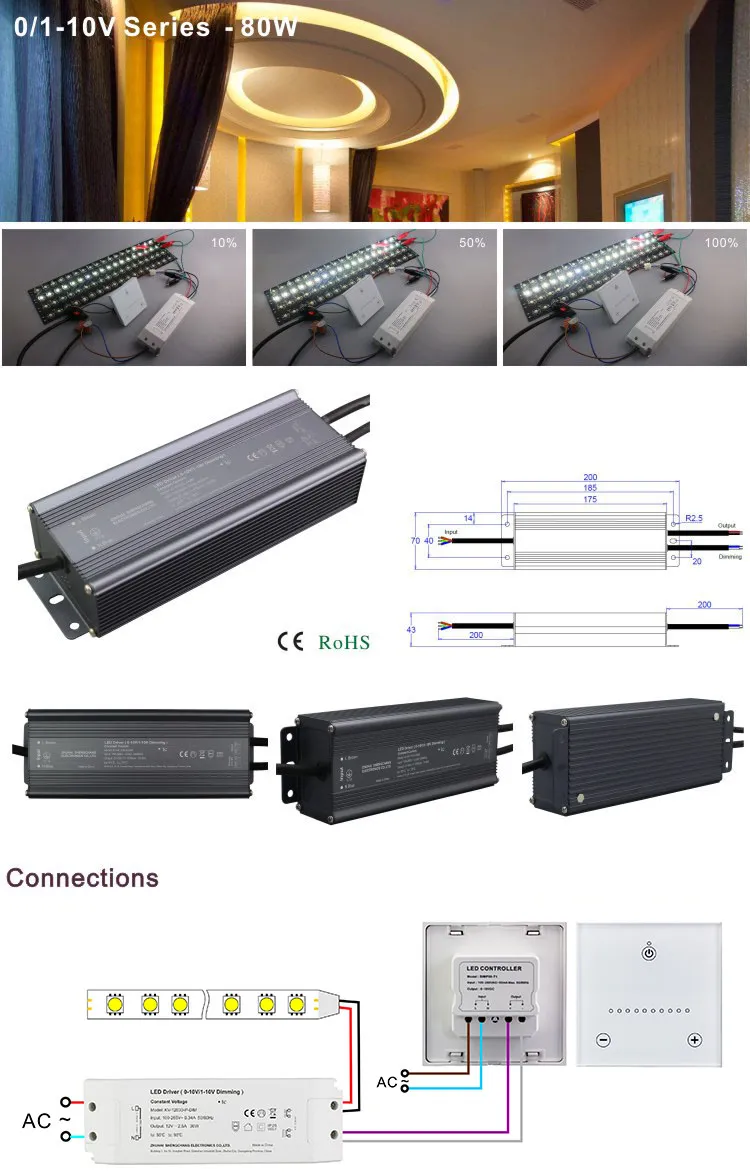

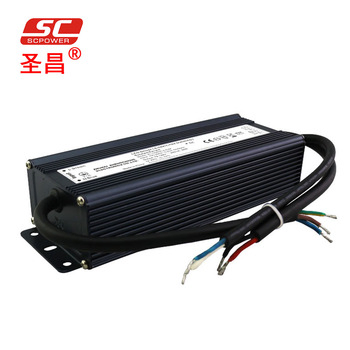

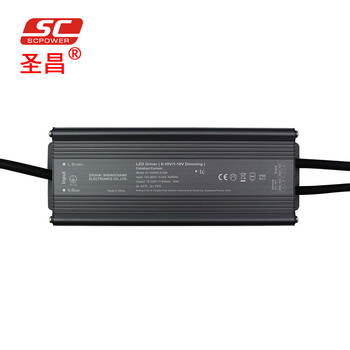

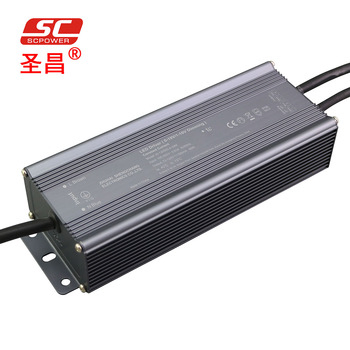

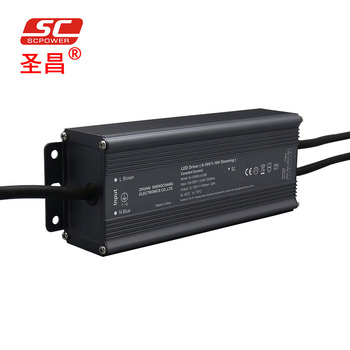

21V -36V 0-10V 1-10V Dimming Variable Driver 2100mA Constant Current LED Driver

Product Description

21v -36V 0-10V 1-10V dimming variable driver 2100ma constant current led driver

Feature

· Output constant current.

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 86%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

·IP66 design for indoor or outdoor installation

· Class 1 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

Specification

Model		KI-85900--A-DIM	KI-751050-A-DIM	KI-551400-A-DIM
Output	DC Current	900mA	1050mA	1400mA
	Current Tolerance	±5%
	Output voltage range	51-85V	45-75V	33-55V
	Rated power	76.5W	78.8W	77W
	Open circuit voltage(Max)	90V	80V	60V
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.90/230VAC PF≥0.88/265VAC(Full loading)
	Efficiency(Typ.)	86%	86%	86%
	AC Current(Max.)	0.83A	0.83A	0.81A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over temperature	100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
Environment	Working TEMP.	-40~+60ºC
	Working Humidity	20~95%RH non-condensing
	Storage TEMP.,Humidity	-40~+80ºC,10~95%RH
	TEMP.coefficient	±0.03%/ºC(0~50ºC)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Others	Net.Weight	0.95Kg
	Size	2007060mm(LWH)
	Packing	330280176mm 10PCS /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance:includes set up tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
