220VAC Neon Adapter 12kv 40mA Neon Power Supply
220VAC neon adapter 12kv 40mA neon power supply1. Specifications of Neon Power Supply.Innovative high reliability circuitry design with electronic magnetic flux leakage transformer inside an aluminum case..Symmetrical wave form output,zero mercury migration..High constant current output up to 40mA,g......
Send Inquiry
Product Description
220VAC neon adapter 12kv 40mA neon power supply
1. Specifications of Neon Power Supply
.Innovative high reliability circuitry design with electronic magnetic flux leakage transformer inside an aluminum case.
.Symmetrical wave form output,zero mercury migration.
.High constant current output up to 40mA,good for neon or cold cathode tubes.
.With substantial aluminum heat sink housing,designing for high ambient temperature area or poor convection applications.
.Fully sealed and waterproof,good for outdoor applications.
.Installation:Indoor or Outdoor

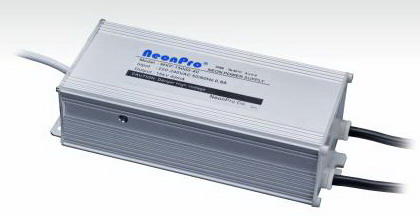

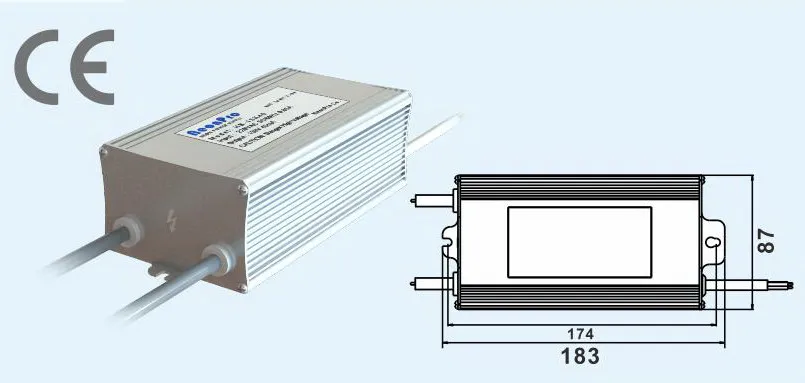

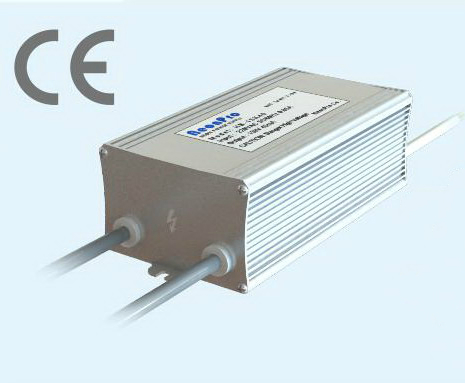

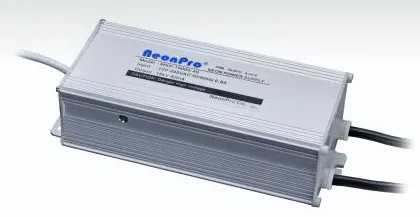

2. Detail pictures of Neon Power Supply

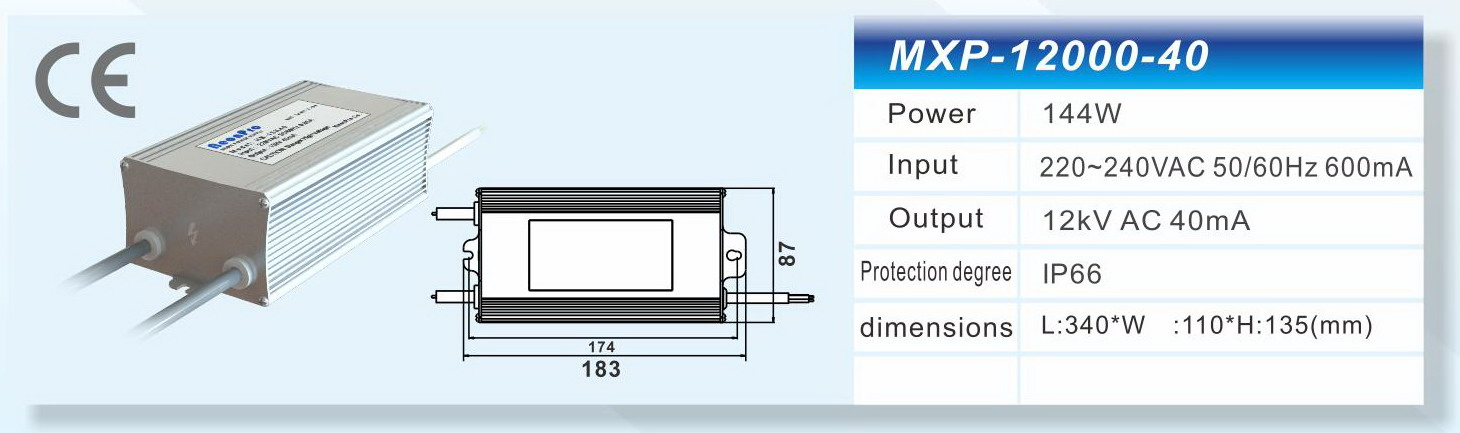

3. Important Parameter of Neon Power Supply
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations

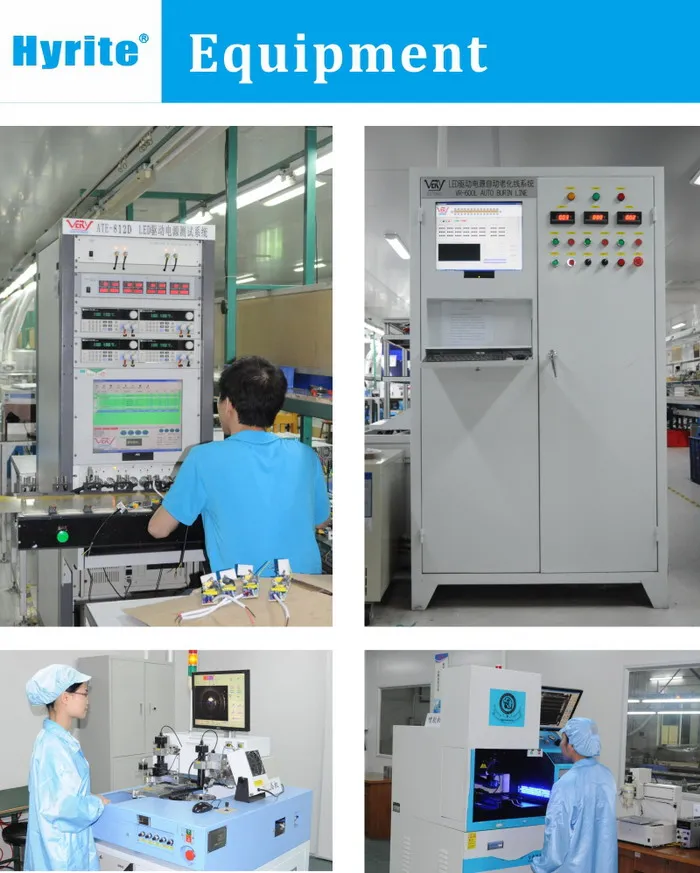

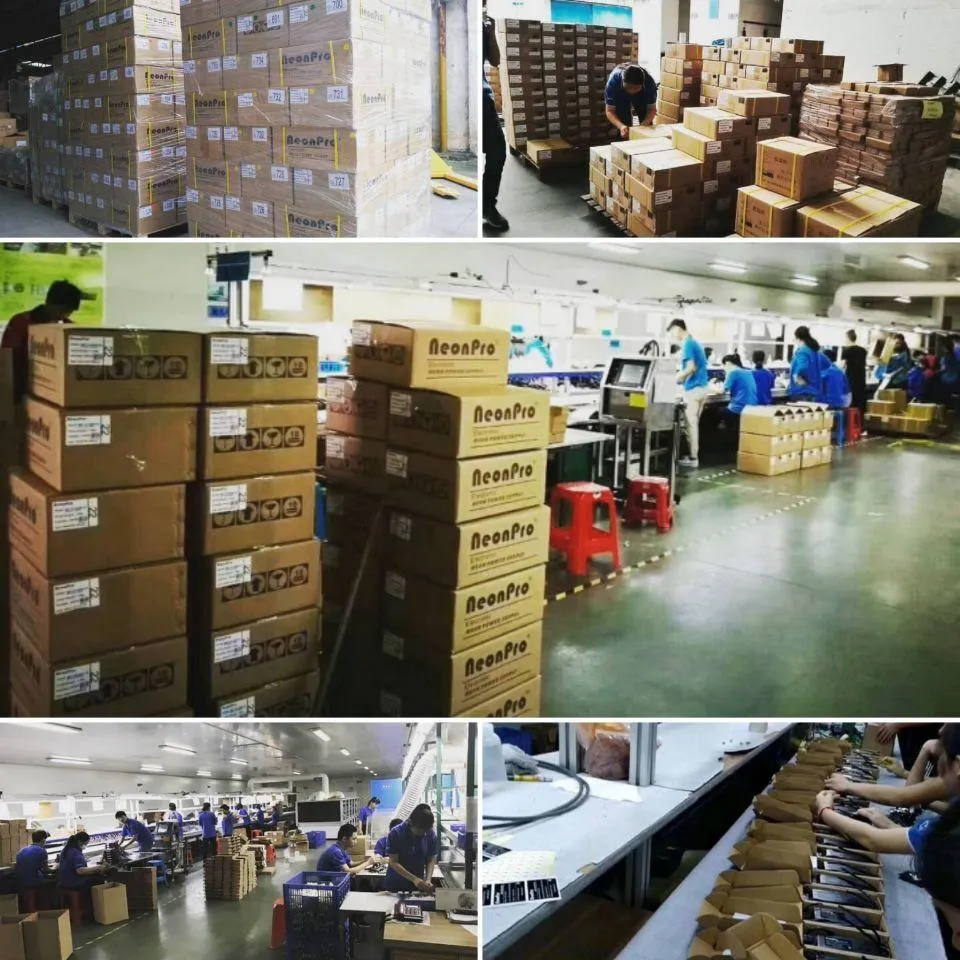

4. Production Lines & Exhibitons
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: 1. Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
1. Specifications of Neon Power Supply
.Innovative high reliability circuitry design with electronic magnetic flux leakage transformer inside an aluminum case.
.Symmetrical wave form output,zero mercury migration.
.High constant current output up to 40mA,good for neon or cold cathode tubes.
.With substantial aluminum heat sink housing,designing for high ambient temperature area or poor convection applications.
.Fully sealed and waterproof,good for outdoor applications.
.Installation:Indoor or Outdoor
| Model no. | MXP-12000-40 |
|---|---|
| Input voltage | 220V~240VAC 50/60Hz 600mA |
| Max. power | 12000V |
| Power | 144W |
| Power factor | PF>0.9,THD<38% |
| Efficiency | 88% |
| Output voltage | 12kvAC 40mA |
| Working frequency | 20-22KHz |
| Protection | Over Load/Open Circuit |
| Output cable | 0.5M |
| Operating temperature | -25~+40 ºC |
| Installation | Outdoor /Indoor |
| IP rating | IP66 |
| Cooling | Free air convection |
| Certificates/standards | CE,RoHS |
| Packing | 20pcs/ carton; 14KG; |
| Product Dimensions(L*W*H) | 340*110*135mm |
2. Detail pictures of Neon Power Supply
3. Important Parameter of Neon Power Supply
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
4. Production Lines & Exhibitons
FAQ
Q1. Can I have a sample order for Neon Power Supply?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for Neon Power Supply order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Neon Power Supply?
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on Neon Power Supply product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
2.During the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
