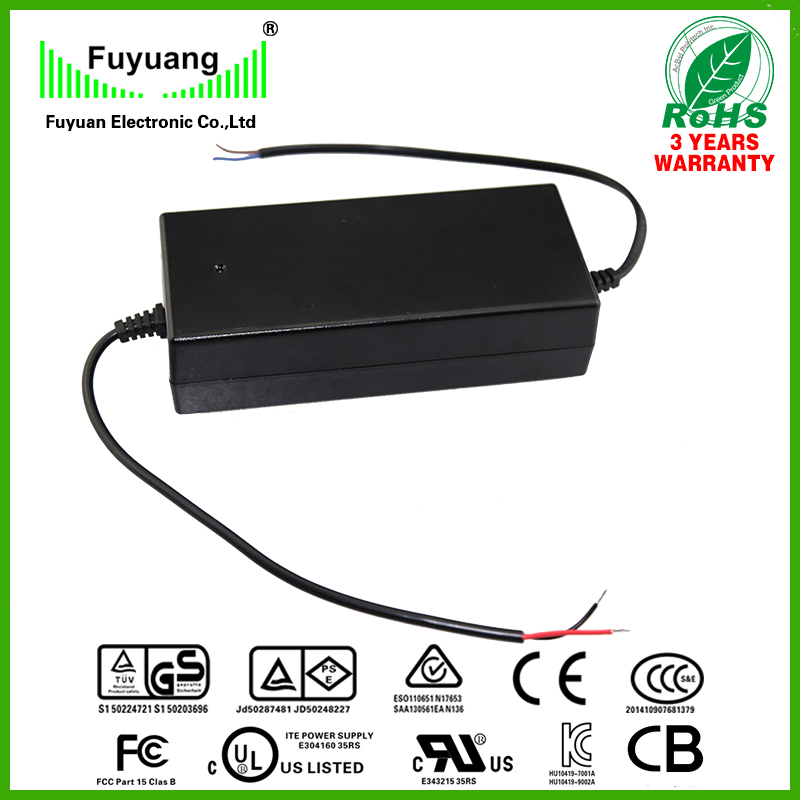

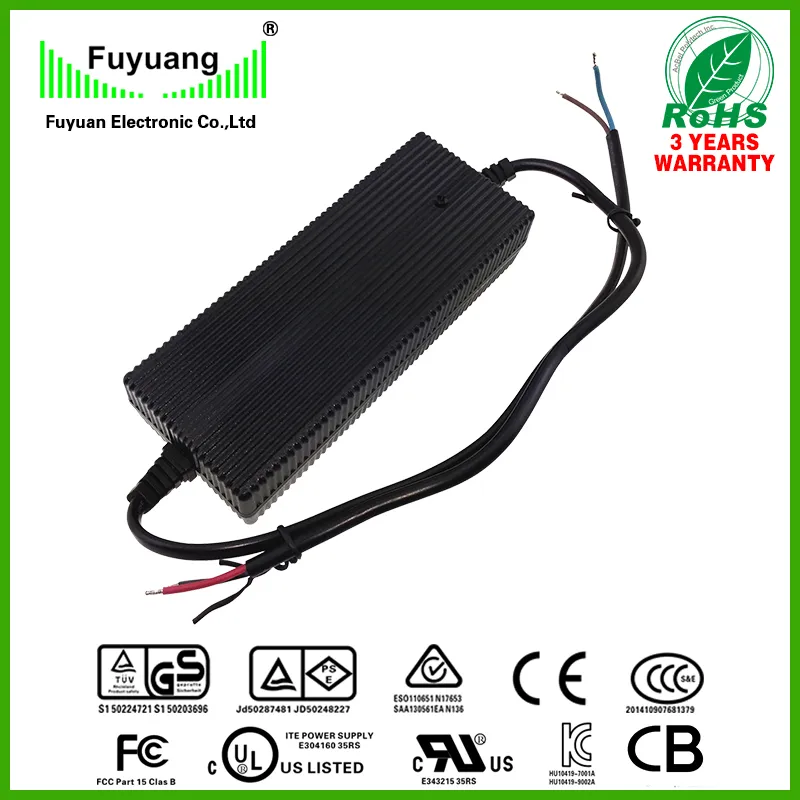

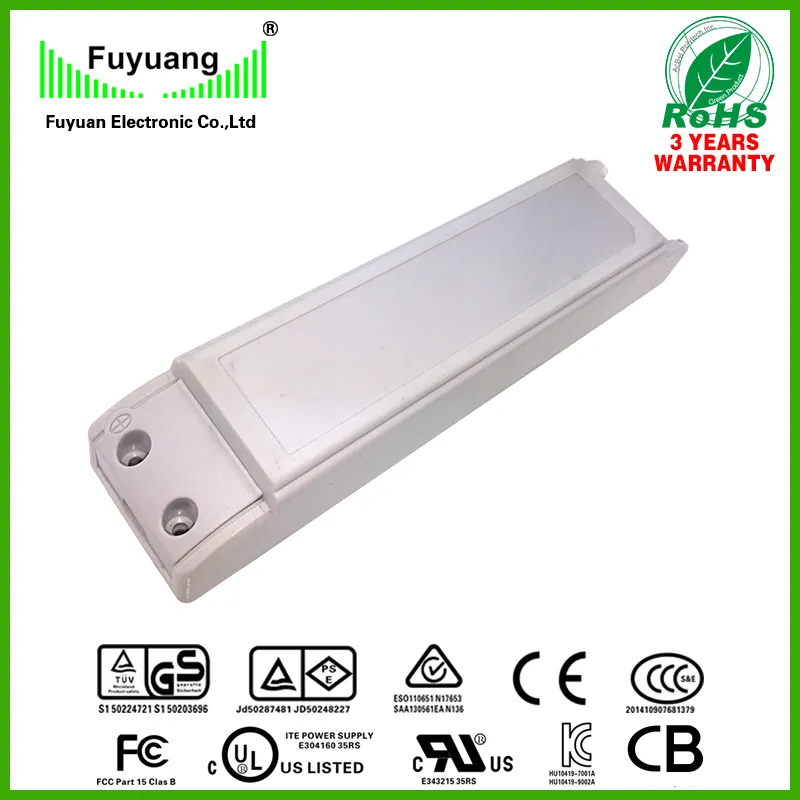

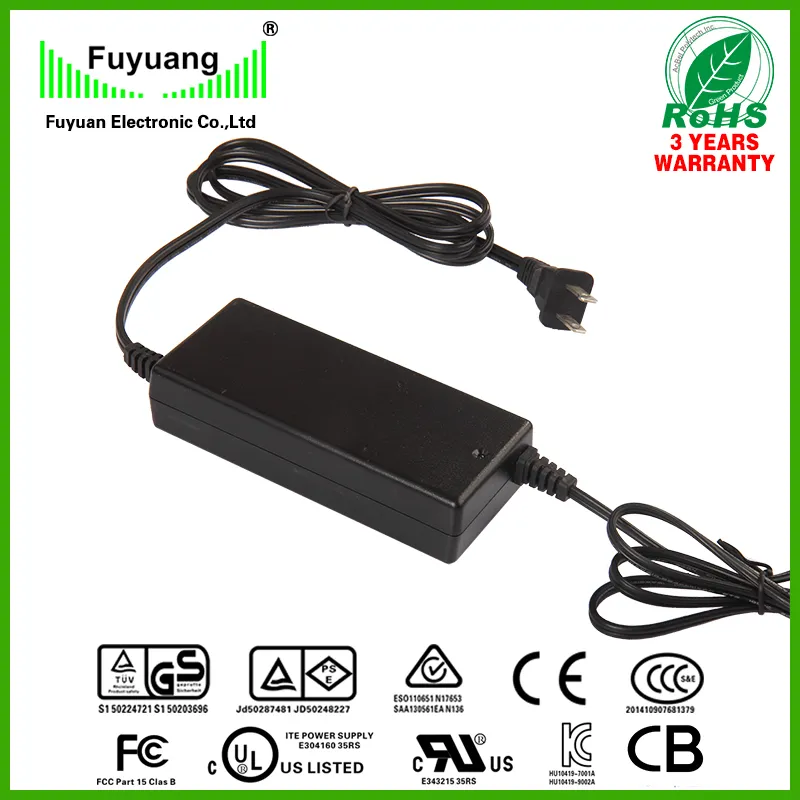

24V LED Driver 24V3a LED Power Supply (FY2403000)
Features/ FunctionsRegulated output with low ripplePower-on LED indicatorModified and custom designsConstant output currentComply with ENERGY STAR requirementsCertifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHSGeneral SpecificationsInput: 100-240VAC, 50/60HzOutput voltage: ......
Send Inquiry
Product Description
Features/ Functions
Regulated output with low ripple
Power-on LED indicator
Modified and custom designs
Constant output current
Comply with ENERGY STAR requirements
Certifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
General Specifications
Input: 100-240VAC, 50/60Hz
Output voltage: 24 VDC
Output current: 3000 mA
Ripple: 350 MVP-p Max.
Inrush current: Limited 15A for a cold start
No load standby power ≤ 0.5W
Efficiency: 85 % Min.
Operating temperature: -29ºC~+45.5ºC
Storage temperature: -40ºC~+75ºC
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25ºC
Case dimension: 133X58X31.5mm
AQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5
Regulated output with low ripple
Power-on LED indicator
Modified and custom designs
Constant output current
Comply with ENERGY STAR requirements
Certifications: UL, cUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
General Specifications
Input: 100-240VAC, 50/60Hz
Output voltage: 24 VDC
Output current: 3000 mA
Ripple: 350 MVP-p Max.
Inrush current: Limited 15A for a cold start
No load standby power ≤ 0.5W
Efficiency: 85 % Min.
Operating temperature: -29ºC~+45.5ºC
Storage temperature: -40ºC~+75ºC
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25ºC
Case dimension: 133X58X31.5mm
AQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5
