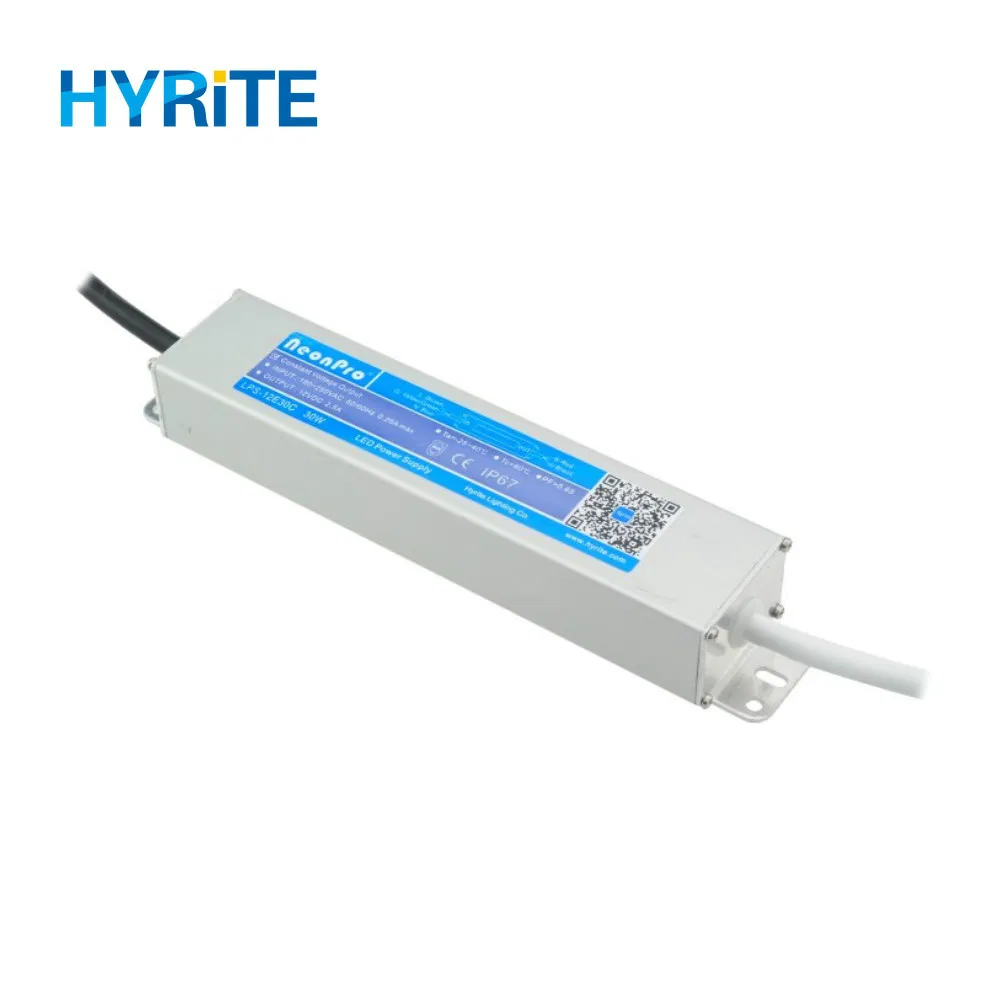

30W DC12V AC220V Constant Voltage LED Power Supply with Ce SAA
1.Brief Introduction of LED power supply
*Fully sealed & waterproof, IP67
*Constant voltage output
*High efficiency 90%
*Short circuit and overload protection
*100% burn-in test
*2 years warrenty
2.Technical Specification of LED power supply
| Model no. | LPS-12E30C |
|---|---|
| Input voltage | 185-264VAC 50/60 Hz |
| Max. power | 30 W max |
| Output type | Constant voltage |
| Efficiency | 85% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 12VDC ± 5% |
| Output current | 2.5A max |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40 ºC |
| Installation | Outdoor waterproof |
| IP rating | IP 67 |
| Cooling | Free air convection |
| Certificates/standards | CE,BIS,SAA,SASO |

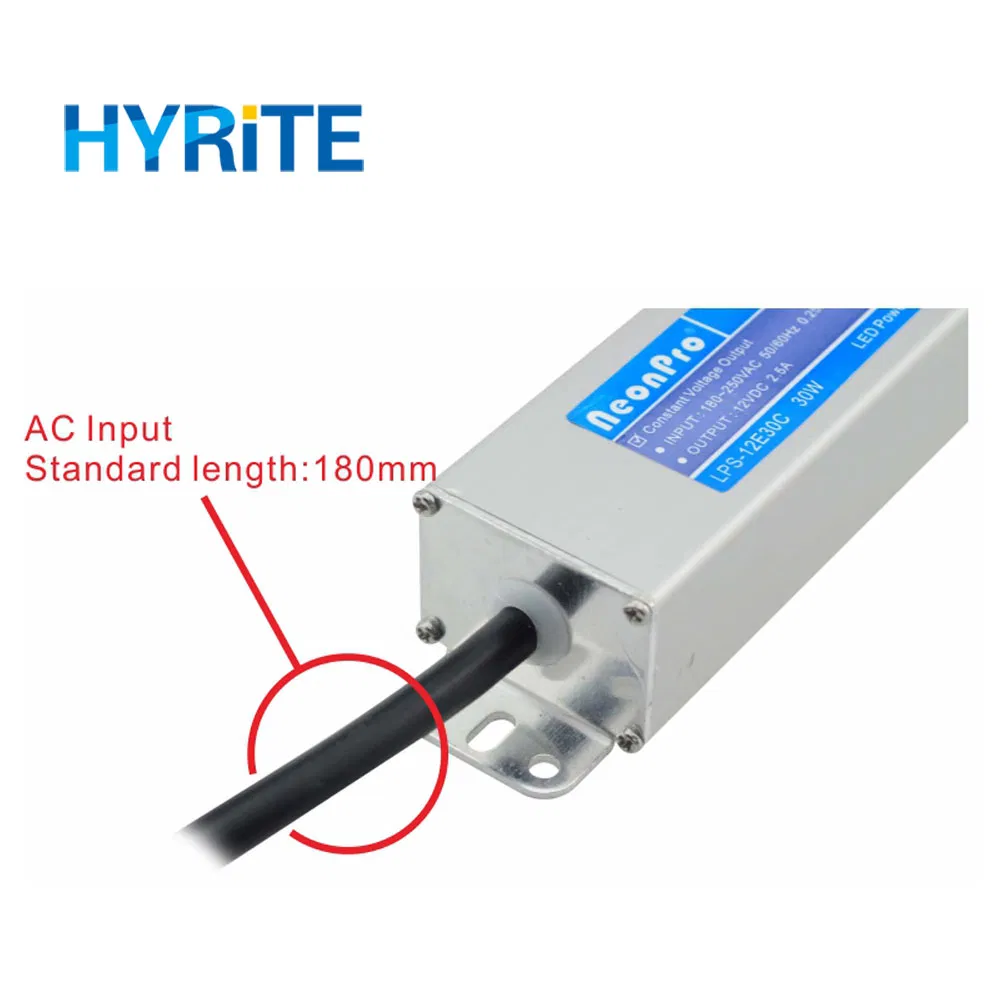

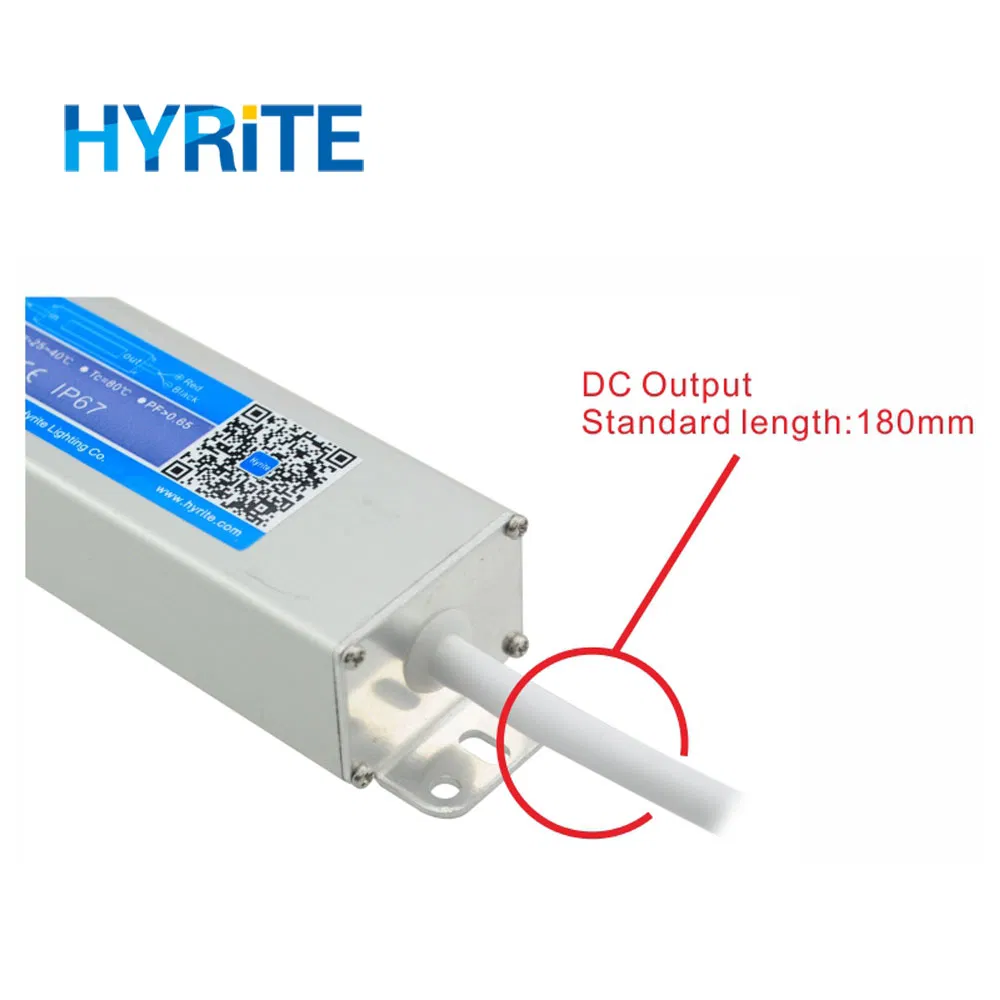

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |

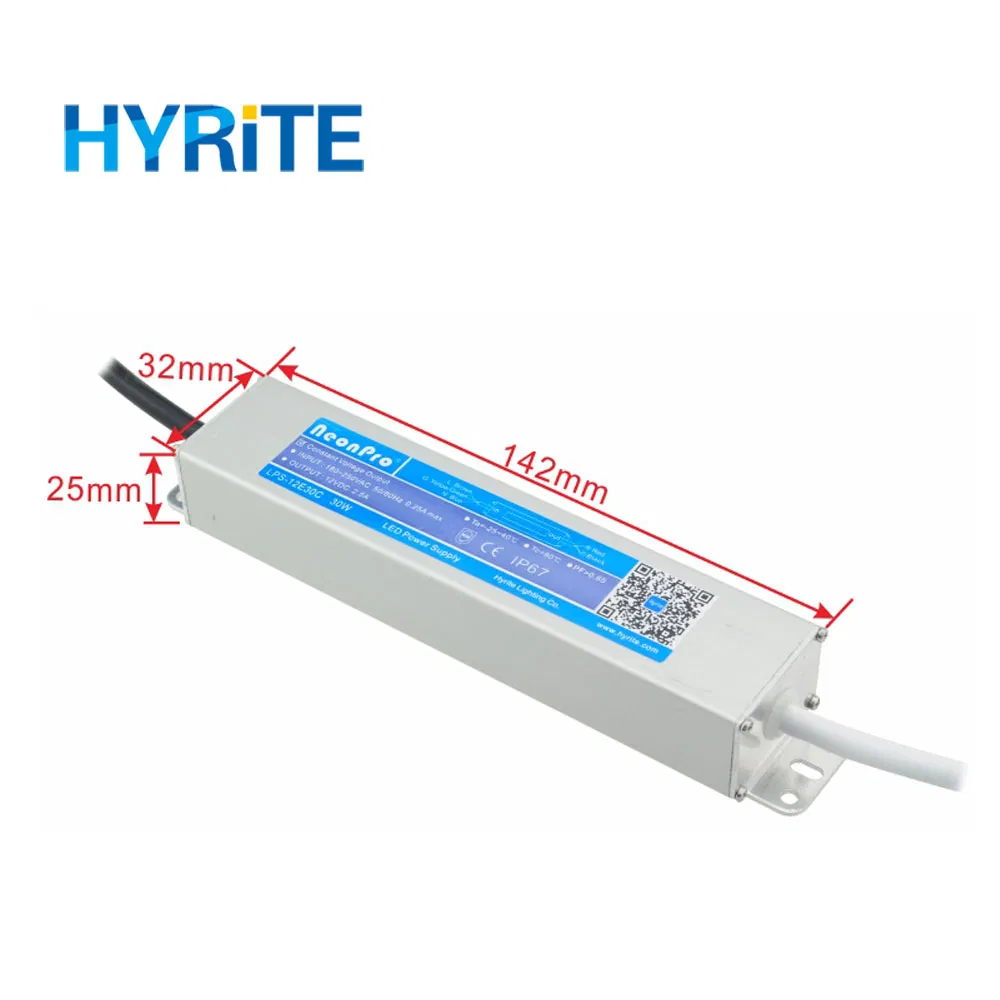

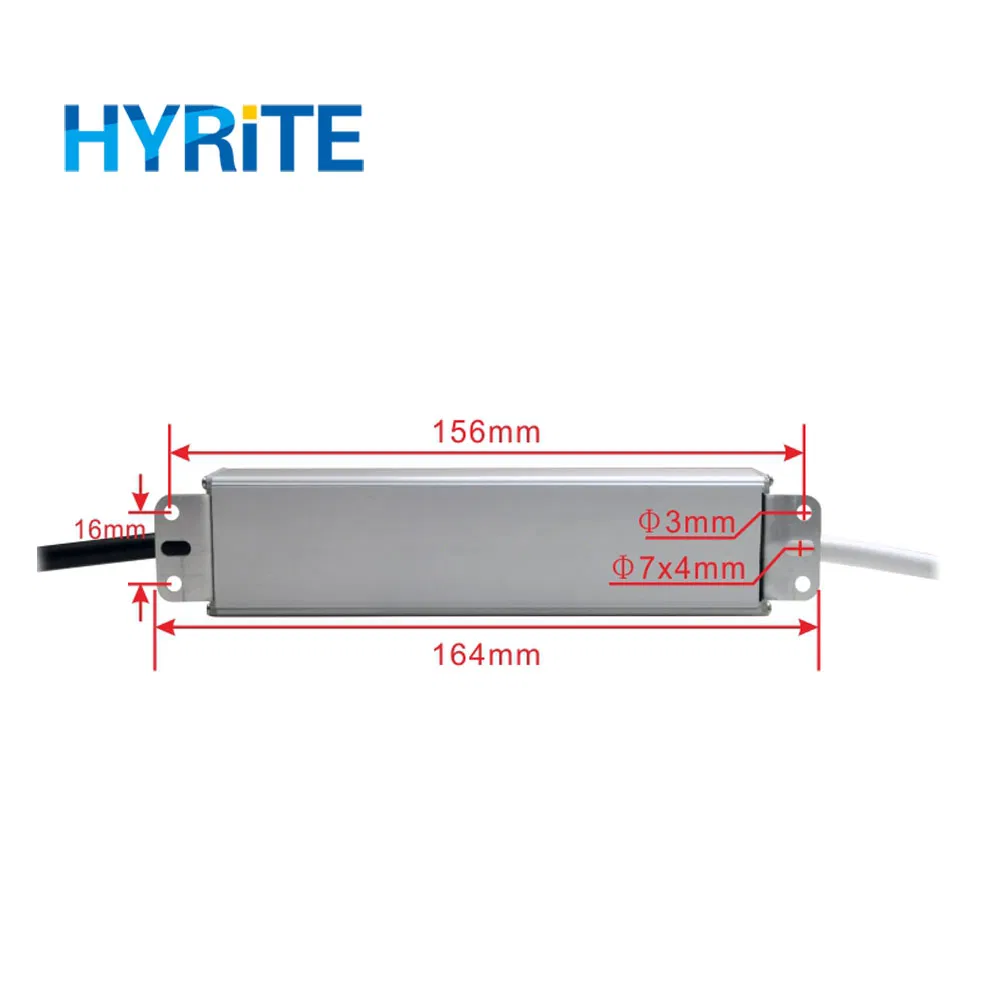

| Dimensions(L*W*H) | 164*32*25mm |
| Weight(kg) | 0.9500 |

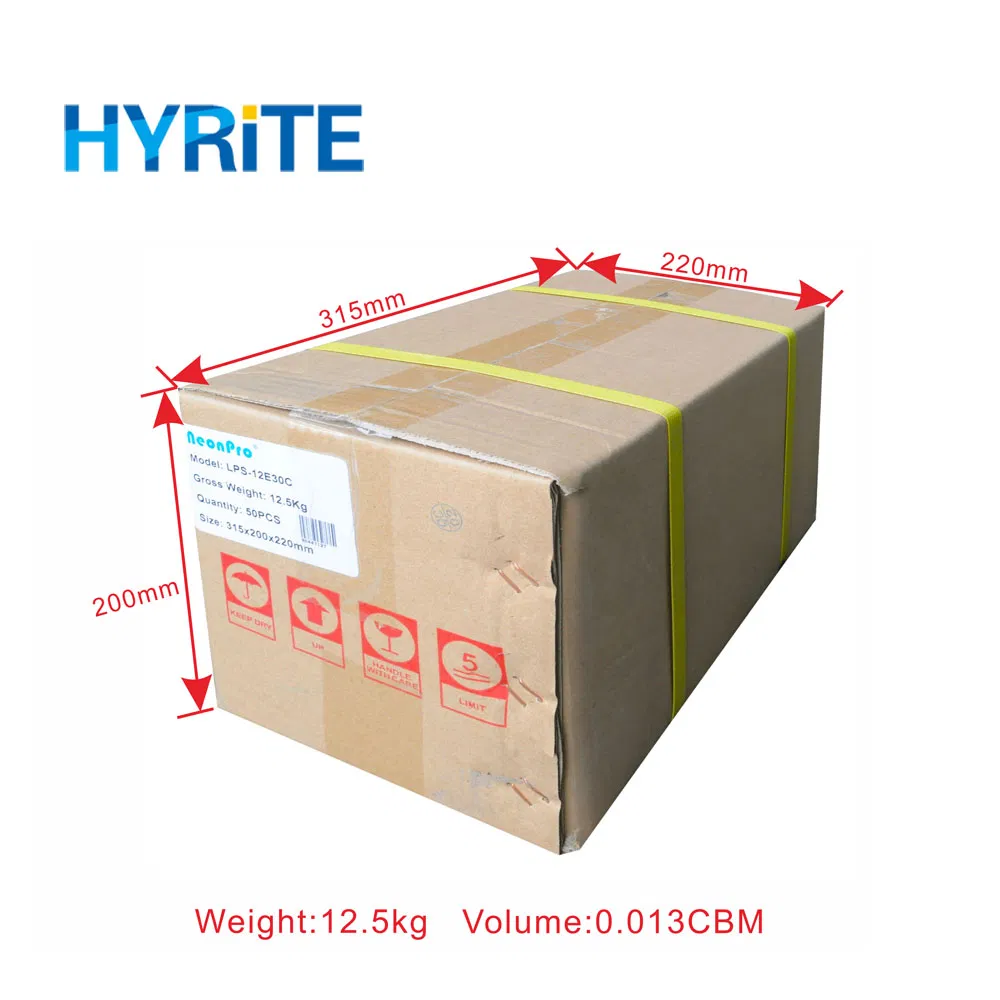

| Packing information | 50 Pcs/ Carton, G.W 9.5 KG |
3. Applications of LED power supply
LED light box and channel letter
LED neon light
LED bar
Wall washer & panel light
Other signage lightings

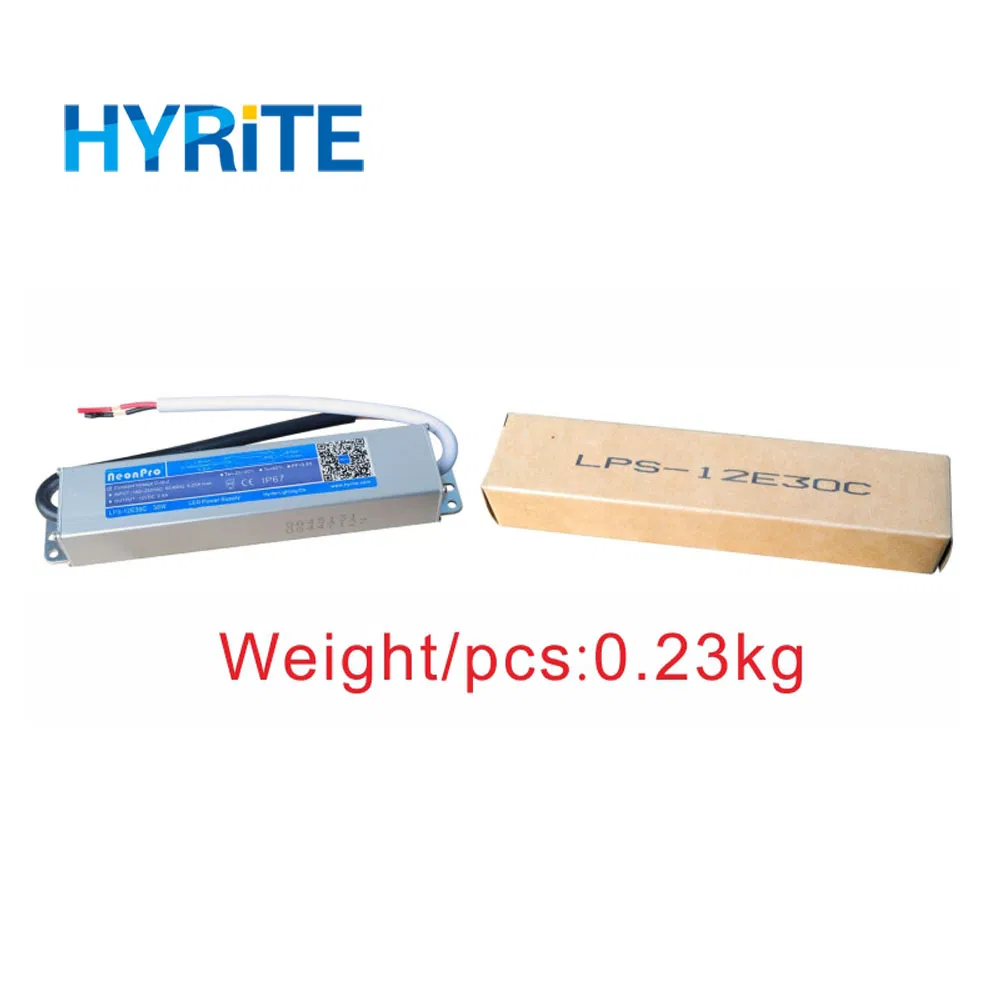

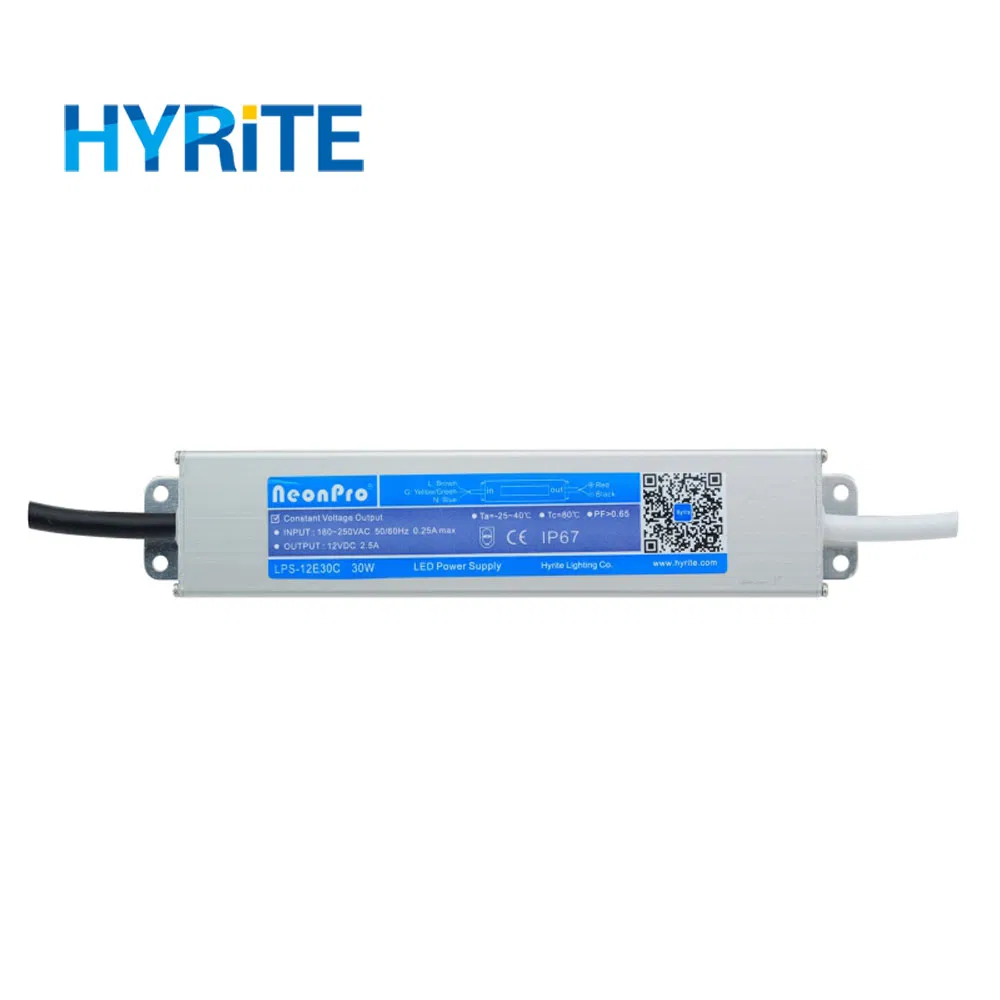

4.Product Details of LED power supply

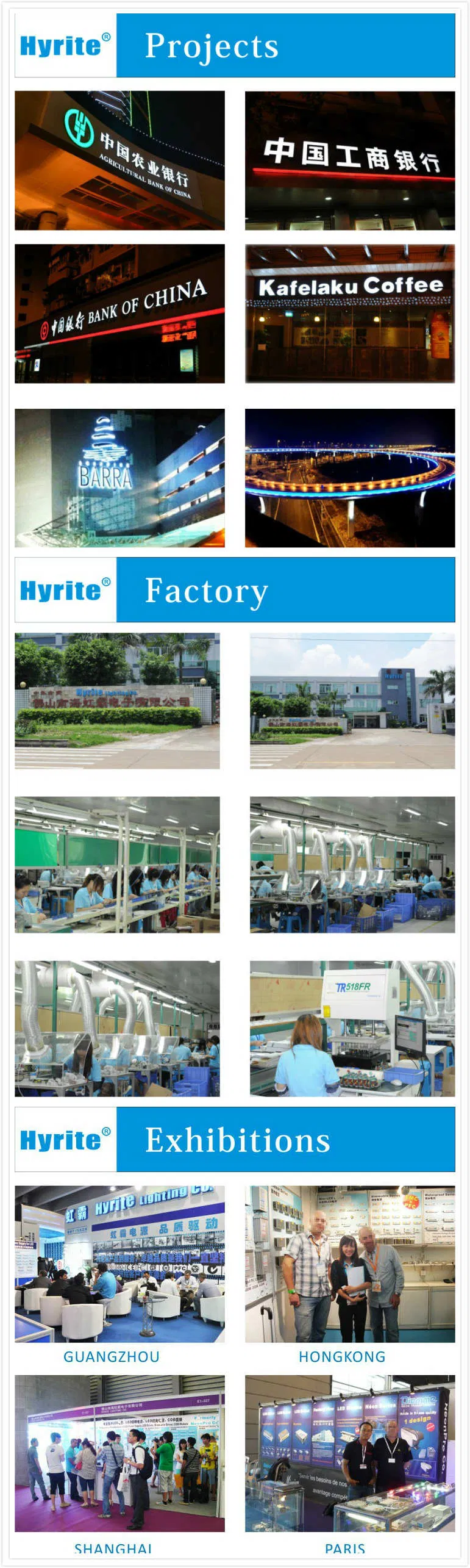

5.Projects & Workshop & Exhibitions
6. Factory profile:
Hyrite Lighting Co. was found in 1993,ISO9001:2015 certificated,with 10,000m2 clean workshop on 15,000m2 land in Guangdong, China,offices in USA and Europe.Hyrite has been dedicating itself to manufacturing switching power supply for signage and decorative lighting.
Our products passed UL,CSA,FCC,PFC,TUV,CE,C-Tick,EMC,CCC,SAA,SASO,BIS,etc.
Product Line: LED power supply,COB/SMD LED module,Neon power supply,electrode,with full range of certifications and wide range models to be used in different countries or areas.
Quality Control: DVT/DQT,IQC/IPQC/FQC,product 100% burn-in test (aging test),reliable resting labs,climatic environmental testing equipments.
Corporate Culture: Sincere,Optimistic,Creative,Mutually complementary.
Mission: To serve the needs of our clients in gaining a competitive advantage by harnessing technology.
