Product Description

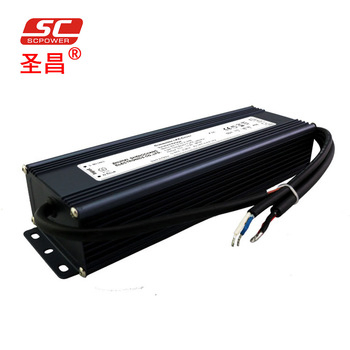

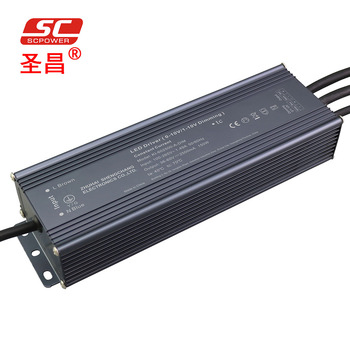

25v-42v 0-10v dimmable driver 3500ma constant current led driver

Feature

· Output constant current

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 88%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· IP66 design for indoor or outdoor installation

· Class 1 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

Specification

Model		KI-503100-A-DIM	KI-423500-A-DIM	KI-364200-A-DIM
Output	DC Current	3100mA	3500mA	4200mA
	Current Tolerance	±5%
	Output voltage range	30-50V	25-42V	22-36V
	Rated power	155W	147W	151W
	Open circuit voltage(Max)	55V	46V	40V
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC(Full loading)
	Efficiency(Typ.)	88%	88%	88%
	AC Current(Max.)	1.54A	1.46A	1.50A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over temperature	100ºC±10ºC, Shut down o/p voltage, recovers automatically after temp. goes down.
Others	Net.Weight	1.6Kg

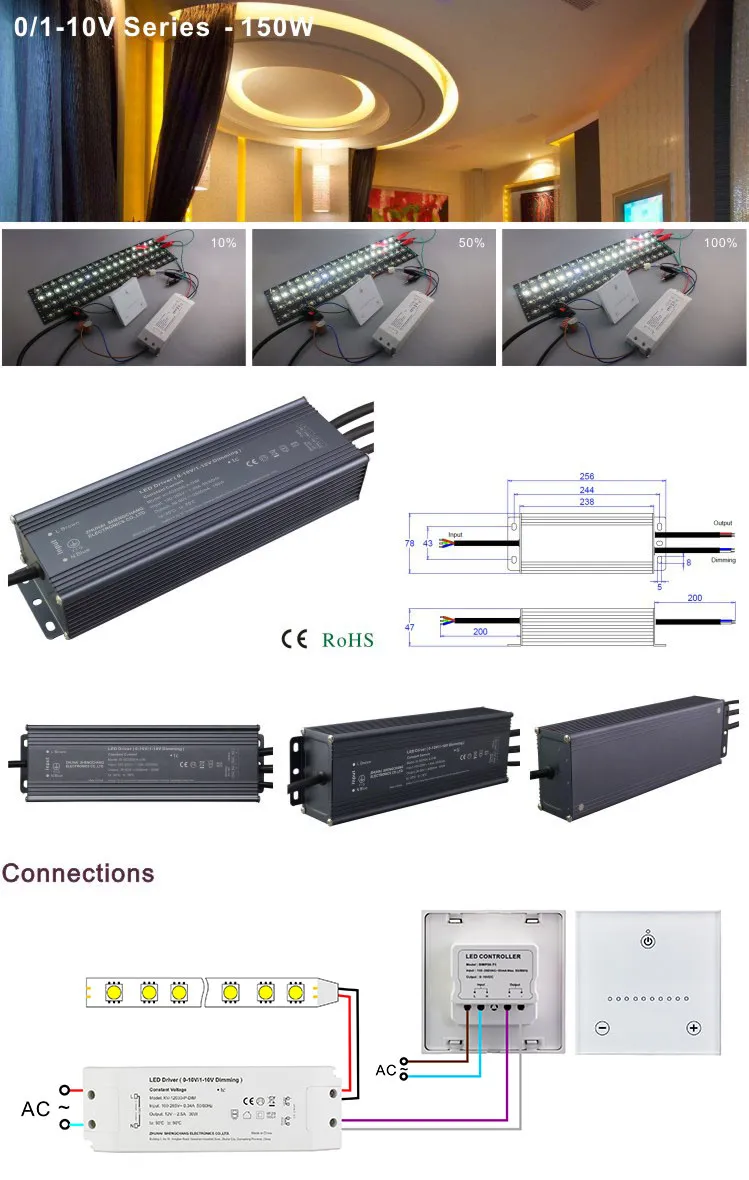

	Size	256/7847mm(LW*H)
	Packing	305295210mm 10PCS /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance:includes set up tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
