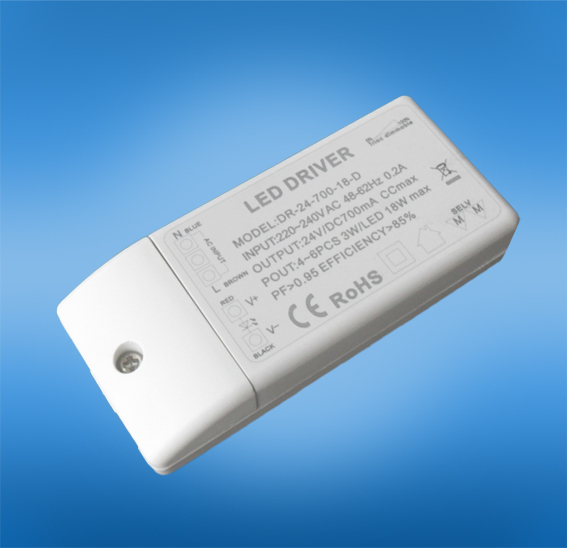

700mA 18-36VDC Triac Dimming LED Panel Light Driver

700ma 18-36vdc triac dimming led panel light driver
triac Dimmable/0-10V Dimmable/DALI Dimmable/Non-Dimmable
Constant Voltage Version also available:
Input Voltage(V/AC):110V/230V
Input Power(W):12W
Output Voltage(V/DC):12/24
Output Current(mA):1000/500
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

ETL approved from 12w to 100w:

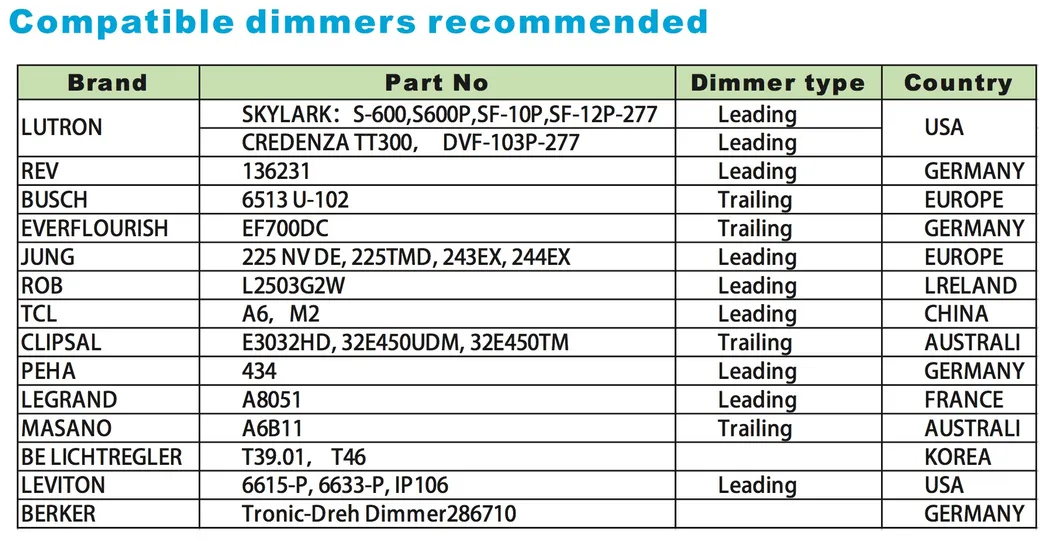

Competiable dimmers:




FAQ
 ----- IC
      We use Silergy, NSC and Fairchild

      -----capacitor
       We use Rubycon, berly,

      ---- Transformer
       All of our coils are use pure copper wire

       ---- PCB board
      Double glass fiber board (FR-4) has good heat dissipation effect

     ------High efficiency,save energy ,protected environment

      ? High stability and low ripple, increase light efficiency and decrease light attention
      ? Meet to safety standard and EMC
      ? Assure LED stability long lift and light efficiency by constant current
      ? Passed high ,low temperature testing.
      ? Integrity protection,over loading, over voltage ,over current
      ? 8Hrs and 100% full load burn-in test.

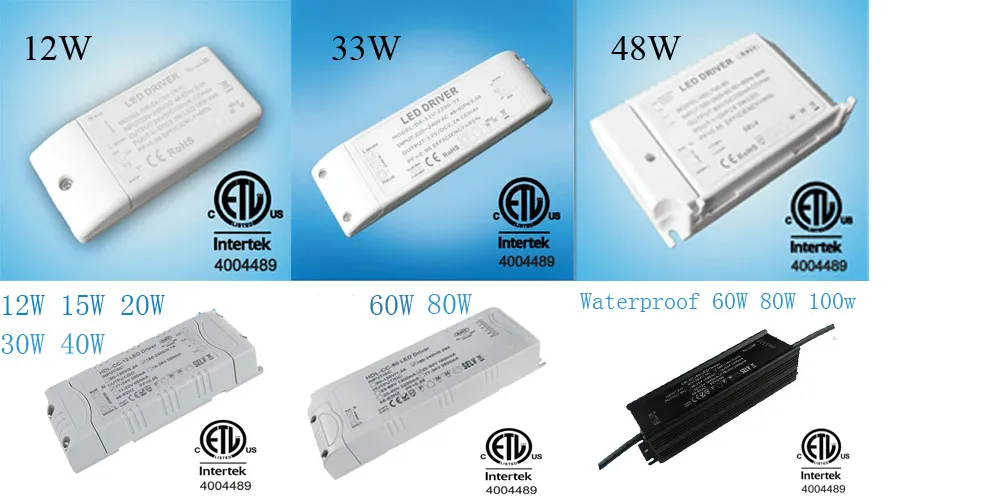

Products we can offer:
DALI DIMMABLE LED DRIVER 5W TO 300W
TRIAC DIMMABLE LED DRIVER 5W TO 200W
0-10V DIMMABLE LED DRIVER 5W TO 400w
Waterproof led driver up to 600w
