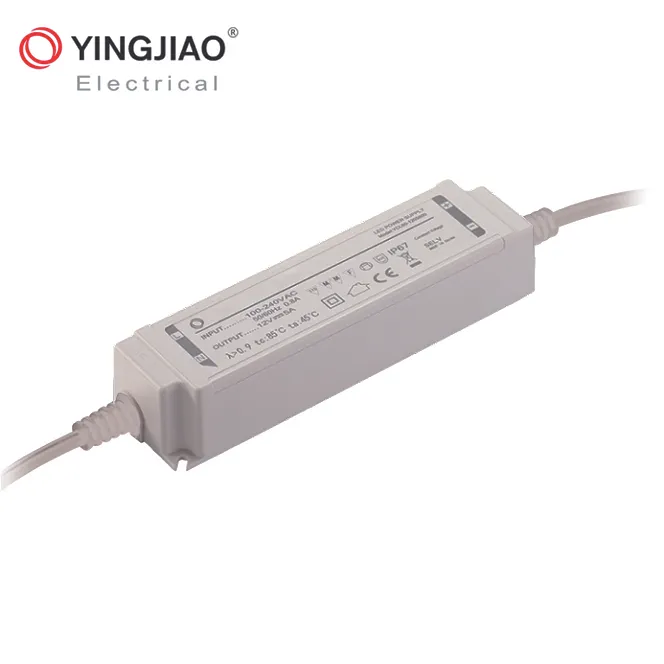

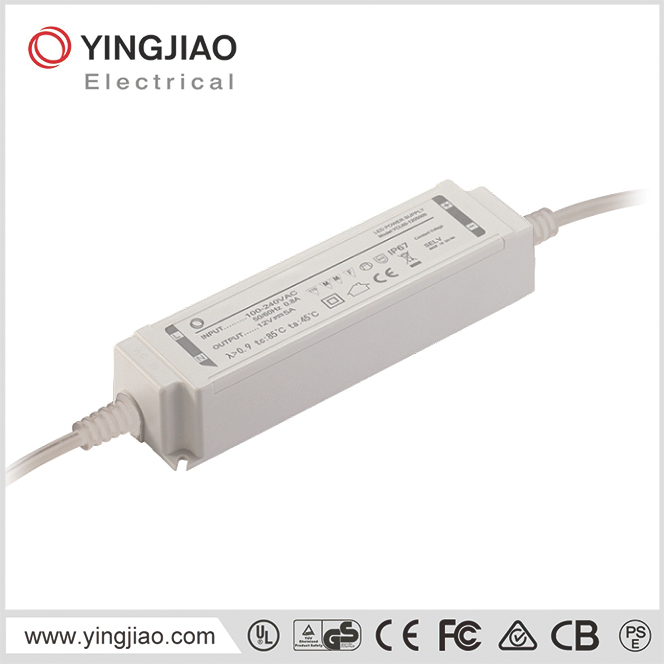

Competitive Price IP67 Constant Current LED Driver 700mA 1050mA 1400mA 2100mA 60W Power Supply for LED Lighting
Competitive Price IP67 Constant Current Led Driver 700mA 1050mA 1400mA 2100mA 60W Power Supply For Led LightingProduct DescriptionModel:YCL60 constant current seriesPower:60W max.Input:100-240VAC 50/60HzOutput Voltage:12-48VOutput Current:100MA-5000MAInrush Current:65 Amps max. at 230VAC/50Hz,full l......
Send Inquiry
Product Description
Competitive Price IP67 Constant Current Led Driver 700mA 1050mA 1400mA 2100mA 60W Power Supply For Led Lighting
Product Description
| Model: | YCL60 constant current series |
| Power: | 60W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 12-48V |
| Output Current: | 100MA-5000MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE ROHS EMC |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF | 100000 hours minimum at full load at 25 ambient |
| Life: | 3-5 years alternative |
| Dimension: | 163*43*33mm |
| Weight: | 250g |
| Packing: | 50PCS/CTN,37.5*20.5*32cm |
Details:
| Model: | YCL60-0850700 | YCL60-0571050 | YCL60-0211400 | YCL60-0282100 |
| Rated Current: | 700mA | 1050mA | 1400mA | 2100mA |
| Voltage Range: | 42-85V | 28-57V | 21-42V | 14-28V |
| Rated Power: | 60W | 60W | 60W | 60W |
| Ripple & Noise(max.): | <1% | <1% | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 90% | 90% | 90% | 90% |
| Setup,Rise time | 1 second max./40 MS max. | |||

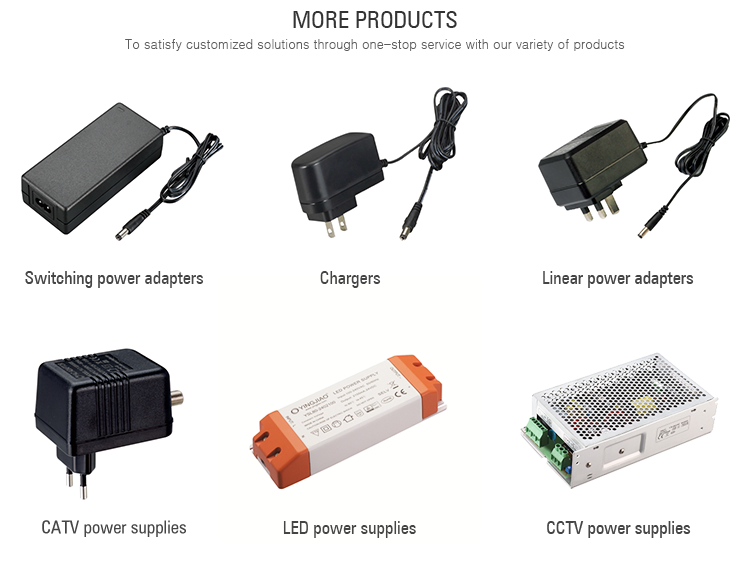

MORE PRODUCTS
ABOUT YINGJIAO

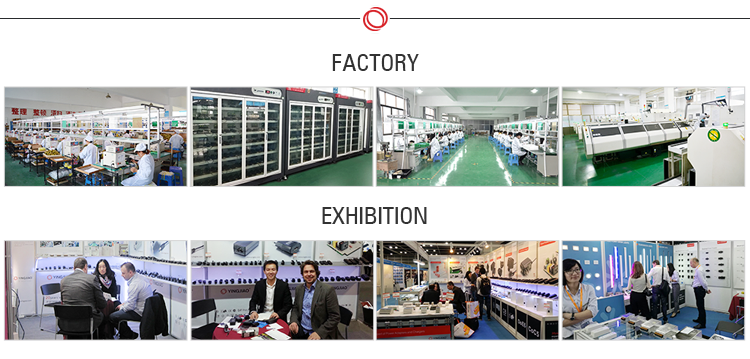

FACTORY&EXHIBITION
CERTIFICATE

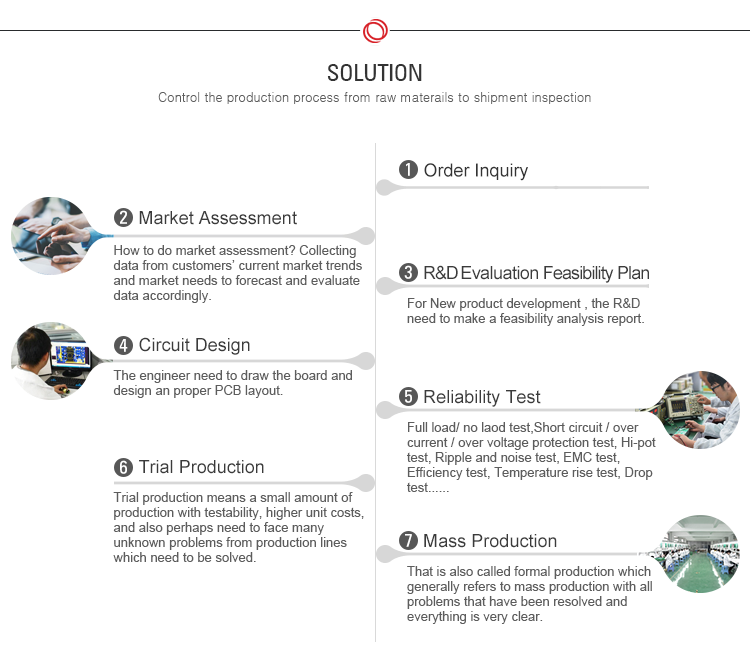

SOLUTION
