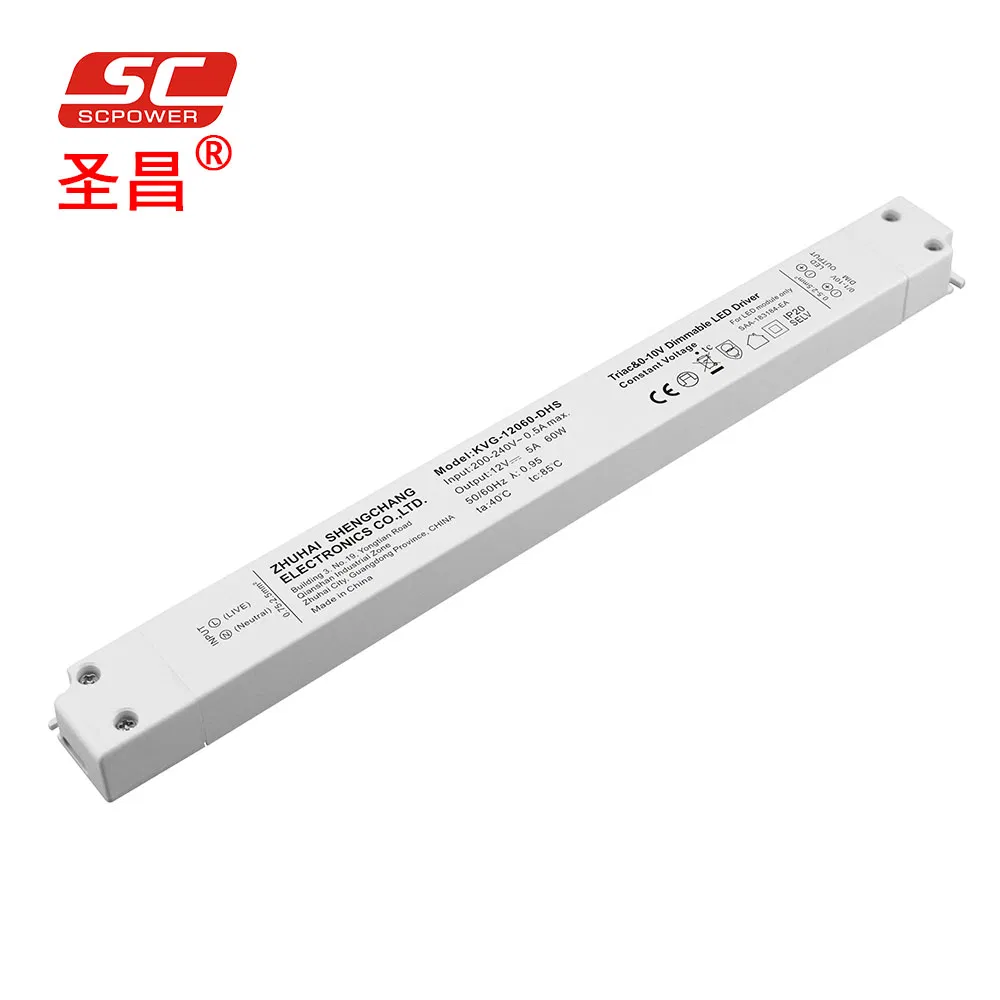

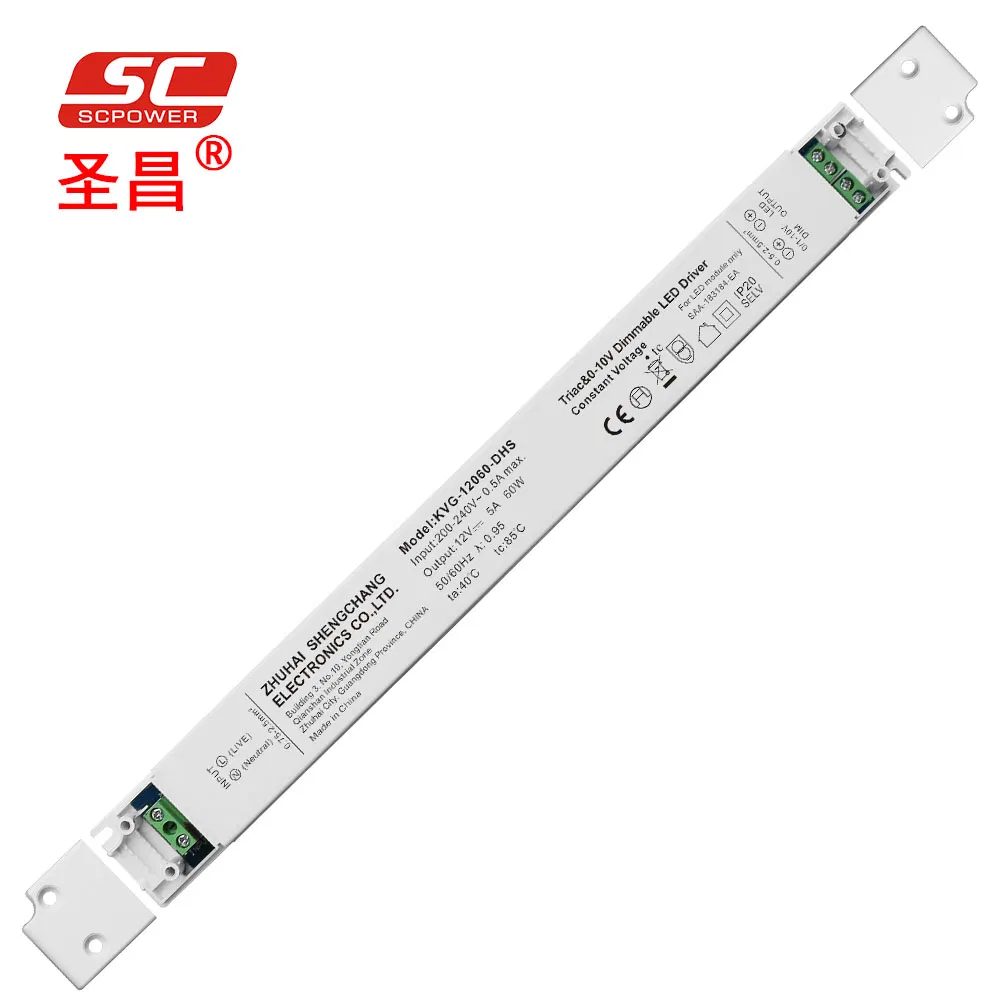

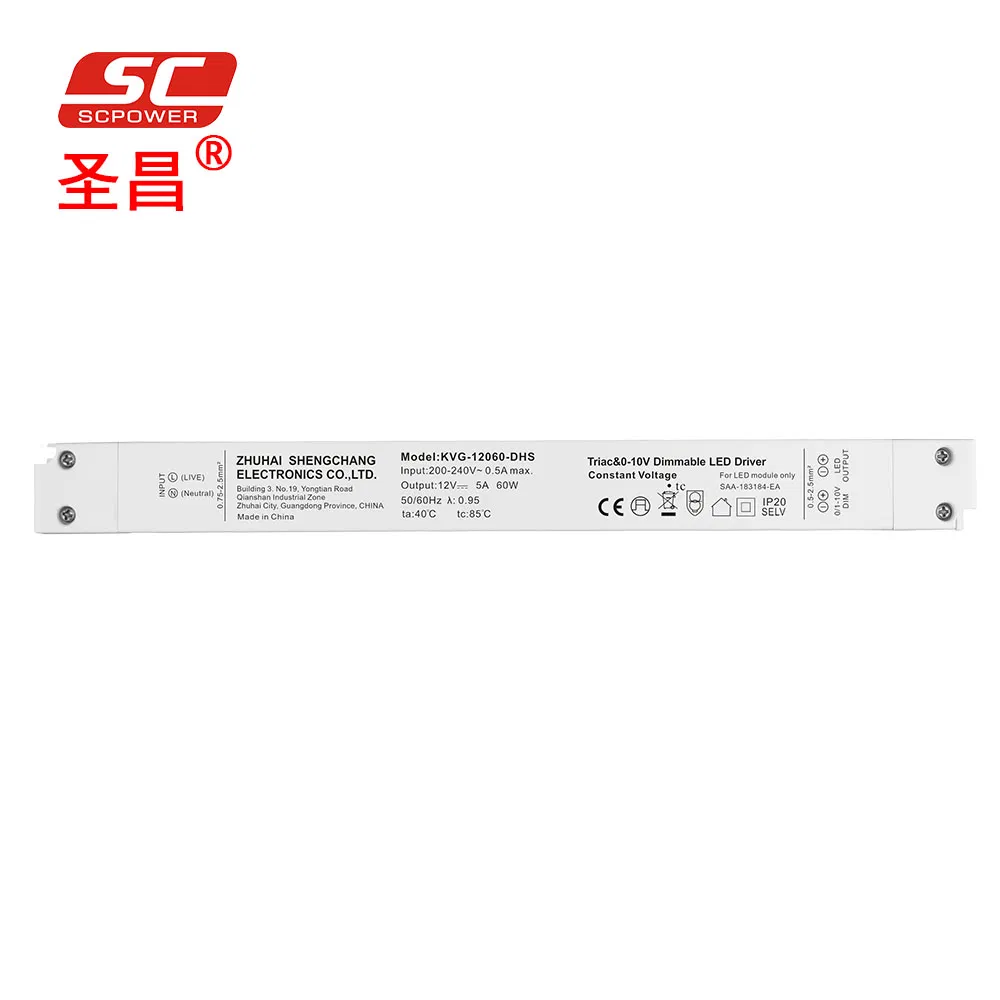

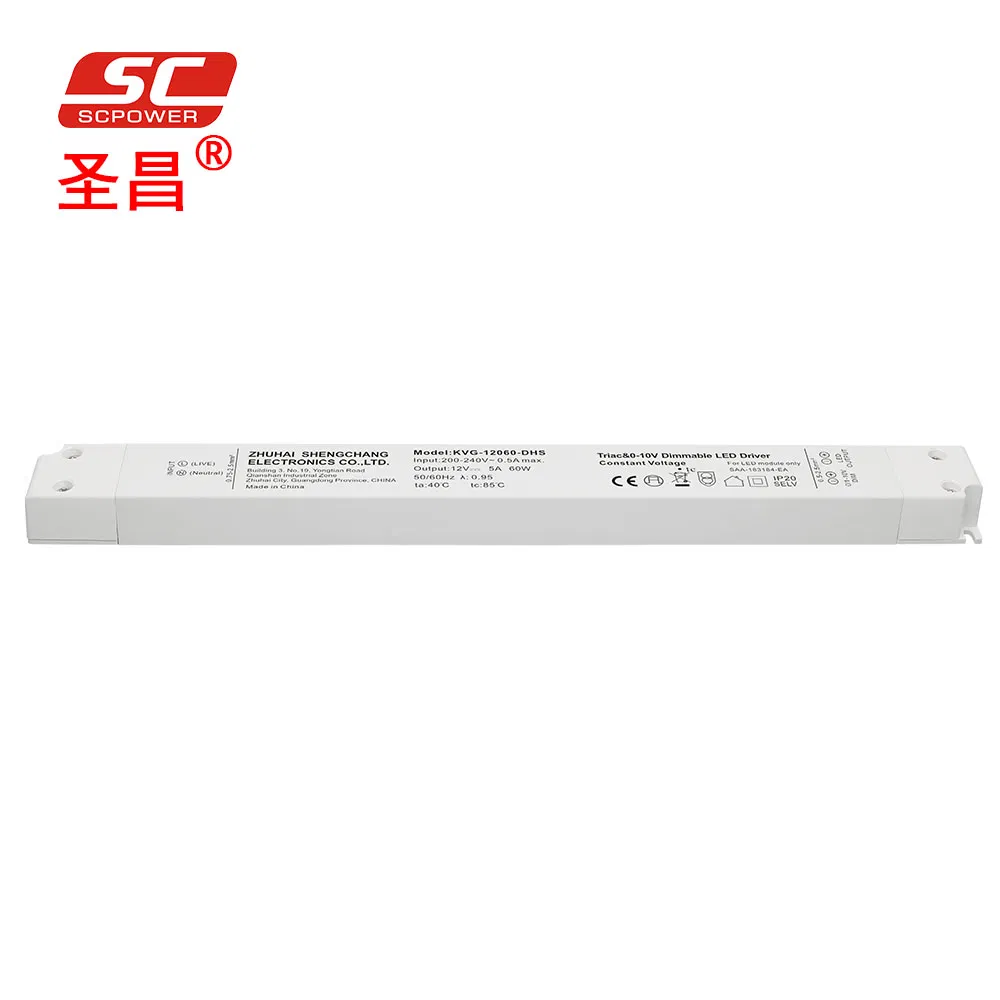

Custom-Made Available Adjustable 60W LED Power Supply Slimline LED Driver
Product DescriptionCustom-made Available Adjustable 60W LED Power Supply Slimline LED DriverFeatureOutput constant VoltageRange: 200-240VAC Built-in active PFC functionEfficiency up to 86% Protections: short circuit/over load/ over temperatureCooling by free air convectionIP20 design for indoor ins......
Send Inquiry
Product Description
Custom-made Available Adjustable 60W LED Power Supply Slimline LED Driver
Feature
Output constant Voltage
Range: 200-240VAC
Built-in active PFC function
Efficiency up to 86%
Protections: short circuit/over load/ over temperature
Cooling by free air convection
IP20 design for indoor installation
Dimming function:
Phase dimming: work with leading edge and trailing edge TRIAC dimmers
1-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range: 0-100% and suitable for intelligent LED lighting
Specification
| Model | KVG-12060-DHS | KVG-24060-DHS | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | 5A | 2.5A | |
| Rated power | 60W | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | PF≥0.96/230VAC | ||
| THD(Typ. ) @ full load | <20% | ||
| Efficiency(Typ.)@ full load | 83% | 86% | |
| AC Current(Max.) | 0.5A | 0.5A | |
| Inrush Current (Typ.) | 57.6A,50%,128us | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100ºC±10ºC | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80ºC,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/ºC(0 - 50ºC) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P : 100MΩ/500VDC/25ºC/70%RH | ||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
