Product Description

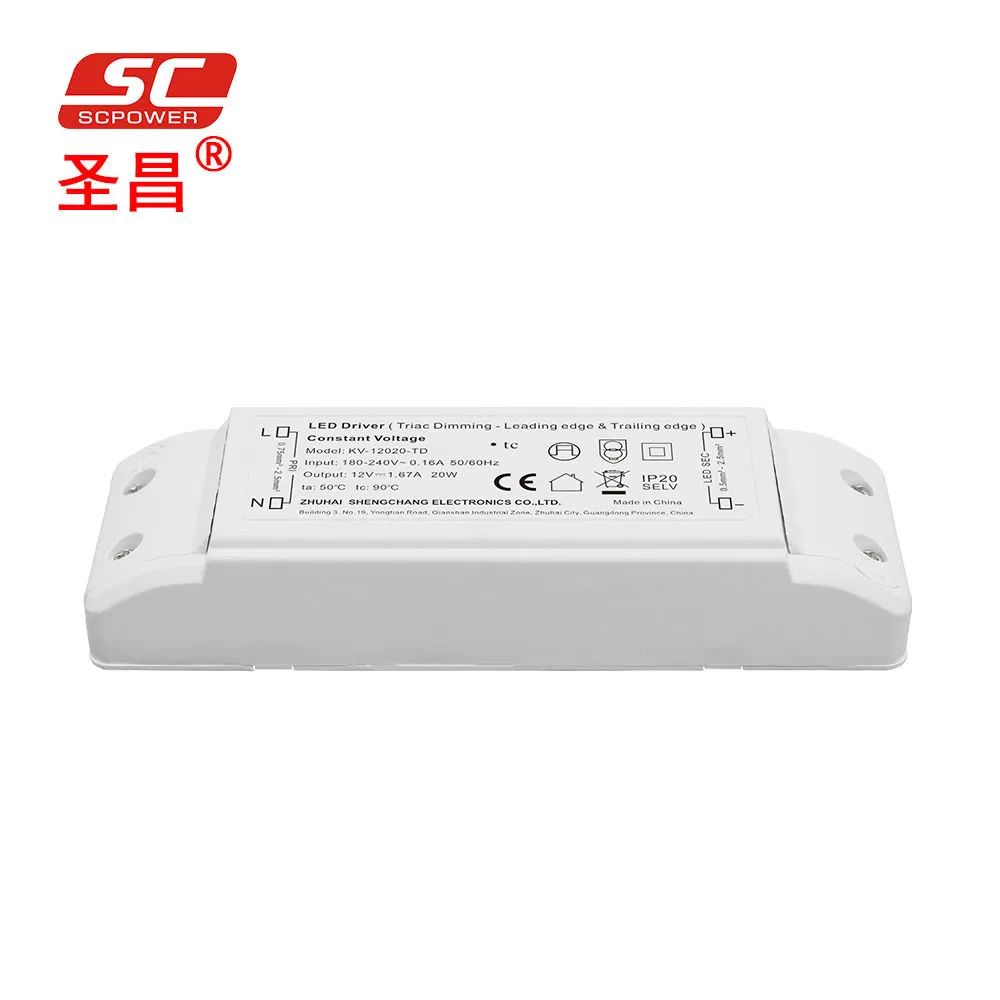

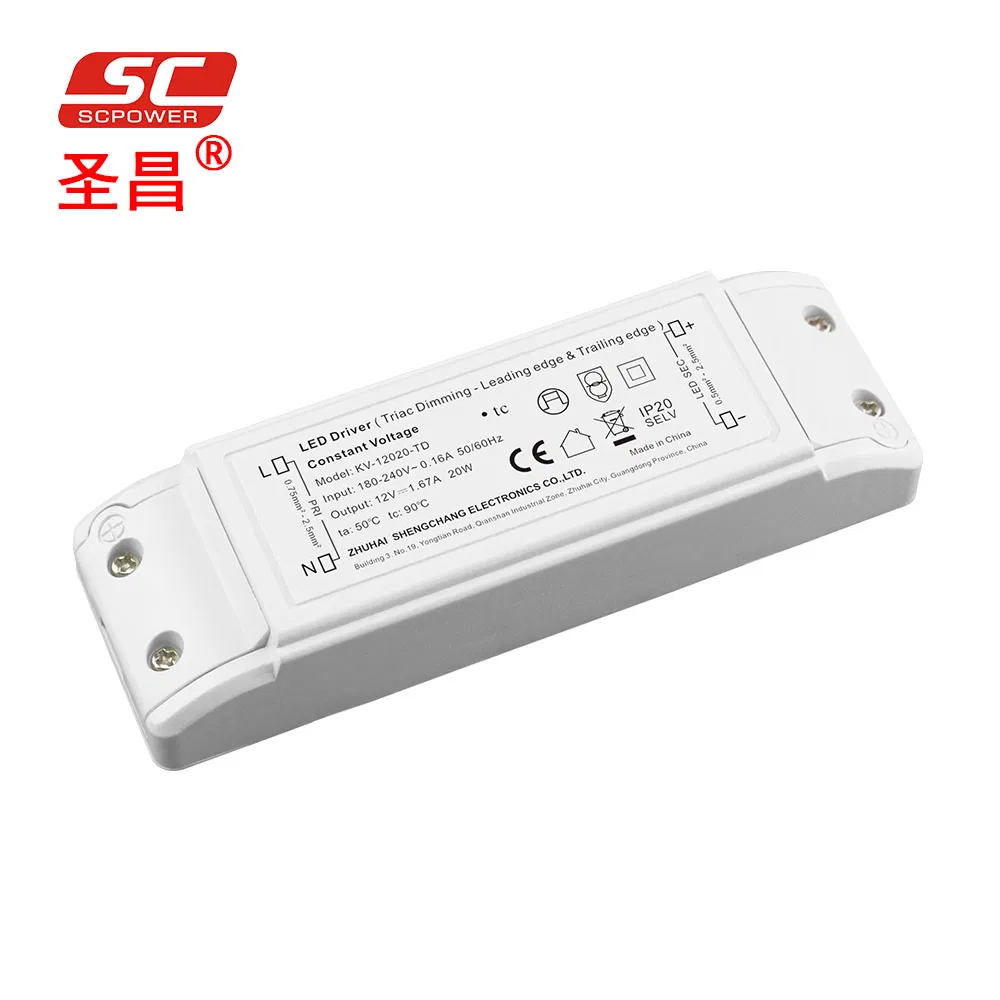

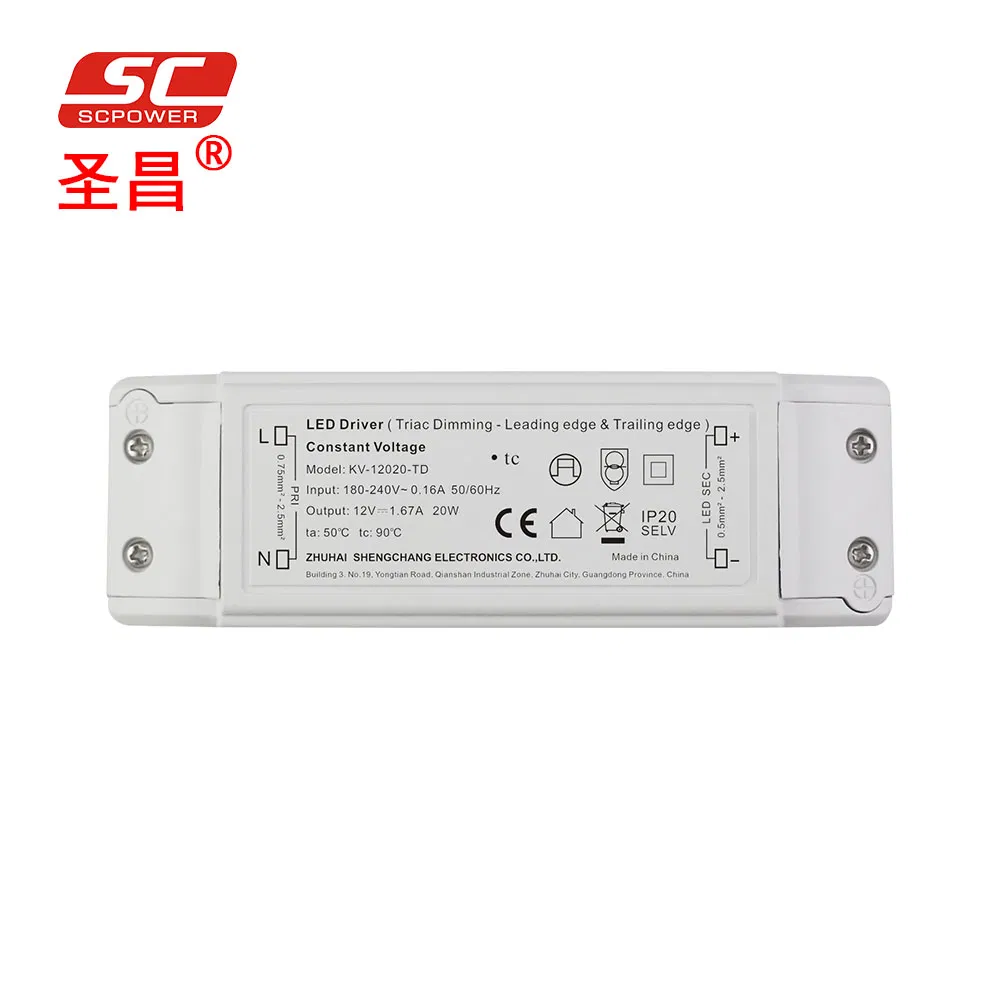

Good dimming effect 20W 48V 0.42A led triac dimmer driver IP20 with CE terminal
Feature
·Output constant voltage
·Range AC input :180-240VAC
·Built-in active PFC function
·High efficiency :up to 82%
·Protections:short circuit/over loading/over current

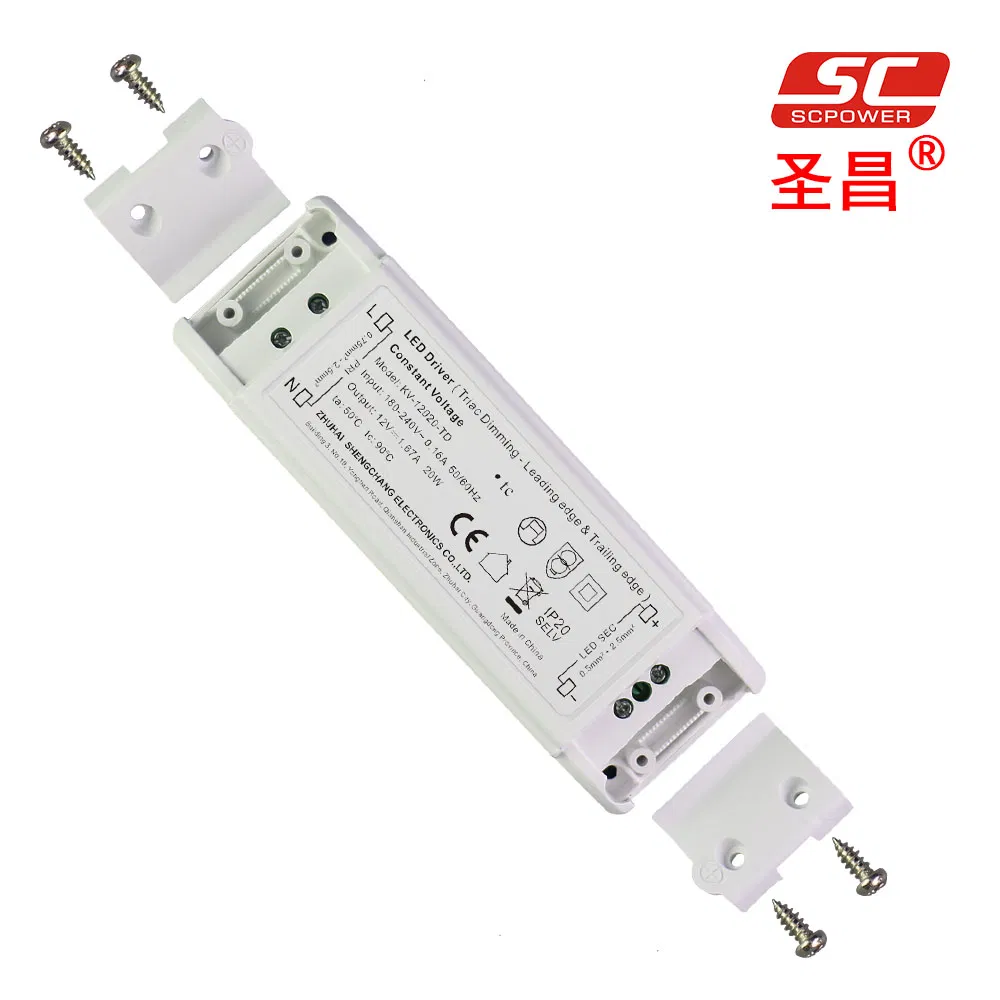

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Suitable for dry locations
Specification
Model | KV-12020-TD | KV-24020-TD | KV-36020-TD | KV-48020-TD | ||
Output | DC Voltage | 12V | 24V | 36V | 48V | |
Voltage Tolerance | ±0.5V | |||||
Rated current | 1.67A | 0.83A | 0.55A | 0.41A | ||
Rated power | 20W | |||||
Input | Voltage Range | 180-240VAC | ||||
Frequency Range | 47-63HZ | |||||
Power Factor | PF≥0.95/180VAC PF≥0.92/230VAC PF≥0.92/240VAC(Full loading) | |||||
Full Load Efficiency(Typ.) | 75% | 78% | 80% | 82% | ||
AC Current(Max.) | 0.16A | 0.15A | 0.15A | 0.15A | ||
Leakage current | <0.50mA | |||||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||||
Over Load | ≤120% | |||||
Over Circuit | ≤1.2 I * out | |||||
Protection Class: | II | |||||
Others | Net.Weight | 0.2Kg | ||||

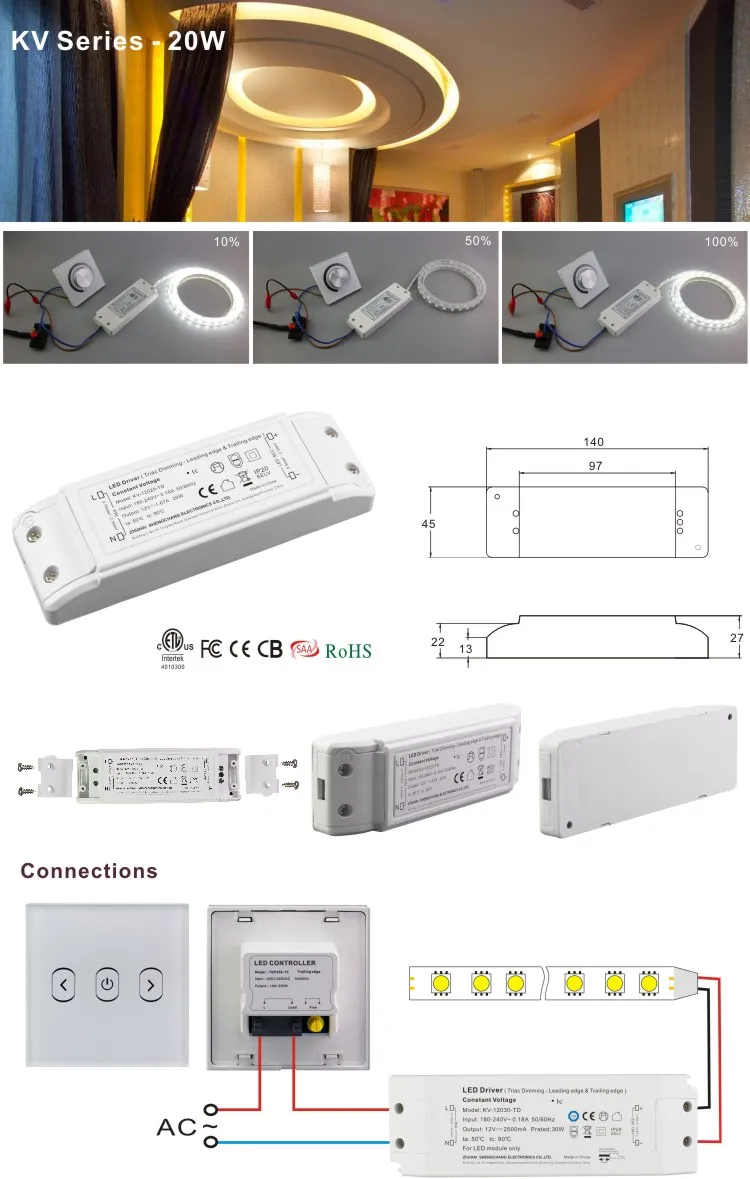

Size | 145*55*19.5mm(L*W*H) | |||||
packing | 160*60*23mm inner box 350*240*130mm/ 40PCS/ CTN | |||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
