IP66 Design Dali Push Dim Power Supply 700mA 800mA 36V Waterproof LED Driver

Product Description

IP66 design dali push dim power supply 700ma 800ma 36v waterproof led driver

Feature

·Output constant Voltage (NFC regulation)

·Range: 100-277VAC

·Built-in active PFC function

·Efficiency up to 88%

·Protections: short circuit/ over load/ over temperature

·IP66 waterproof design for indoor and outdoor installation

·Cooling by free air convection

·Dimming curve: Logarithmic (default) and Linear

·Dimming protocol: DALI Protocol IEC62386

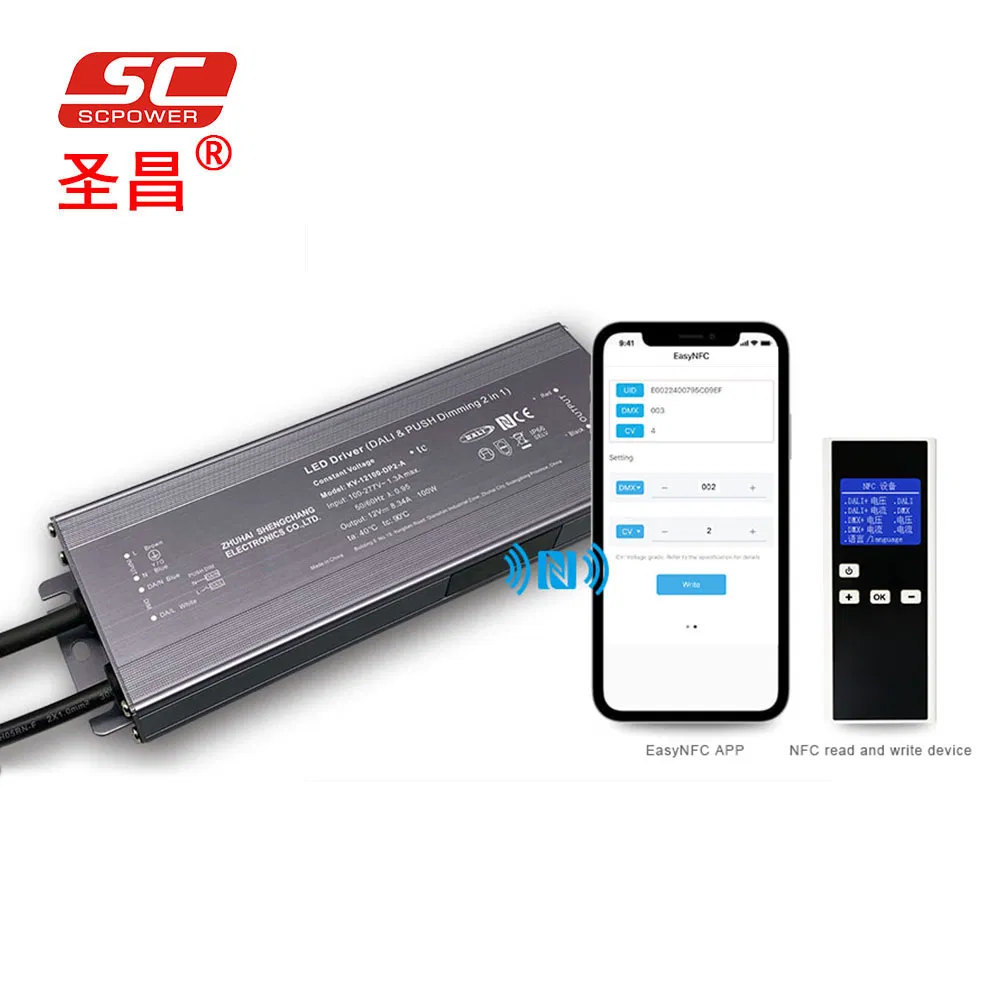

·NFC function to adjust output voltage and set address

·Dimming range: 0-100%, LED start at 0.1% possible

·Suitable for intelligent LED lighting

Specification

Model		KV-12100-DP2-A	KV-24100-DP2-A	KV-12100-DP2-A	KV-24100-DP2-A
Output	DC Voltage (NFC regulation)	11.2-13V	23-25V	34.4-38V	46.4-50V
	Voltage Tolerance	±0.2V
	Voltage Regulation	±0.5%
	Rated current	8.34A	4.17A	2.78A	2.08A
	Rated power	100W
	Load Regulation	±2%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VACF≥0.98
	THD(Typ.)@ full load	<10%
	Efficiency(Typ.)@ full load	86%@120VAC 89%@230VAC/277VAC
	AC Current(Max.)	1.3A
	Inrush Current (Typ.)	36.4A (Twidth 164us measured at 50% I peak, COLD START, 230VAC)
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recover automatically after fault condition is removed
	Over Load	≤120% ,hiccup mode, recover automatically after fault condition is removed
	Over temperature	100ºC±10ºC Reduce output voltage, recovers automatically after temperature goes down
	Protection Class	II
