Kvp- 12060 -Tdl ETL cETL Constant Voltage Driver 12V 60W T5a Riac Dimming LED Driver
Product DescriptionKVP-12060-TDL ETL cETL Constant Voltage driver 12V 60W T5A riac Dimming LED DriverFeatures:· Output constant voltage· Universal AC input: 100-130VAC· High efficiency :up to 87%· Protection:short circuit/over loading/over current/ Over te......
Send Inquiry
Product Description

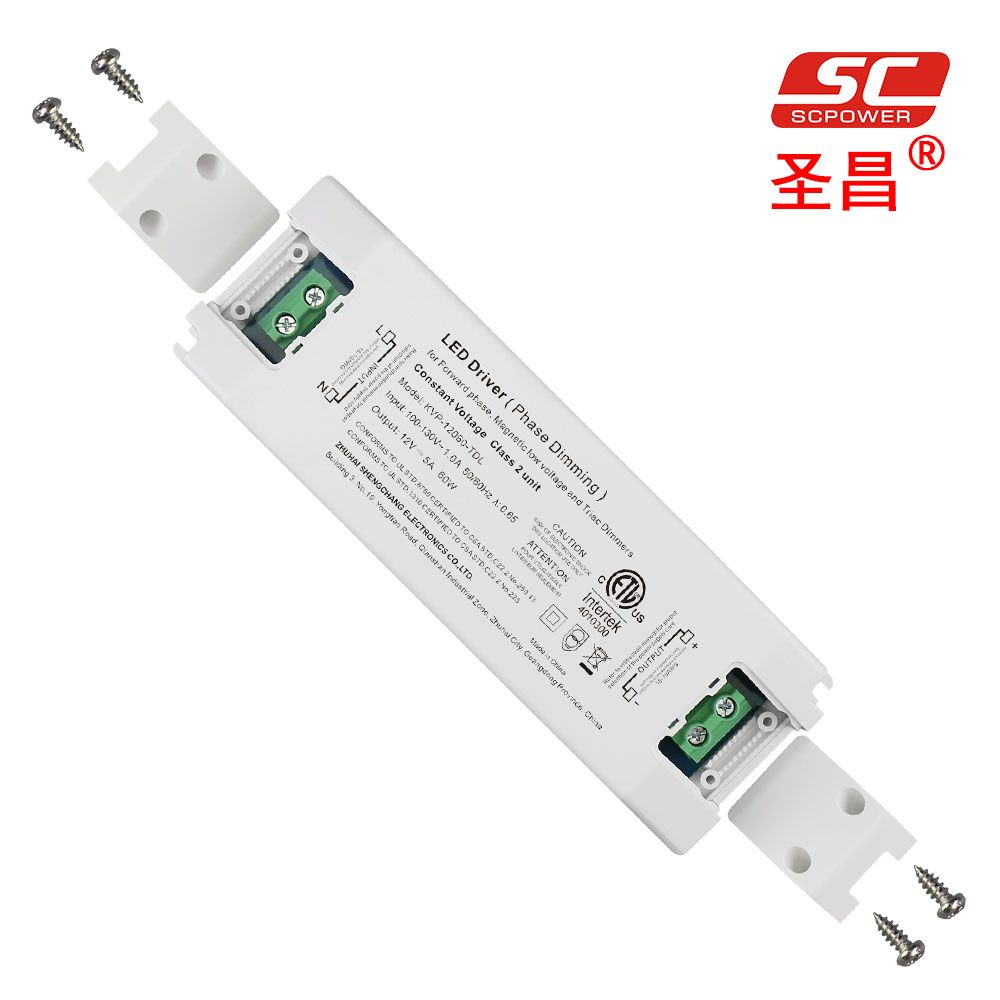

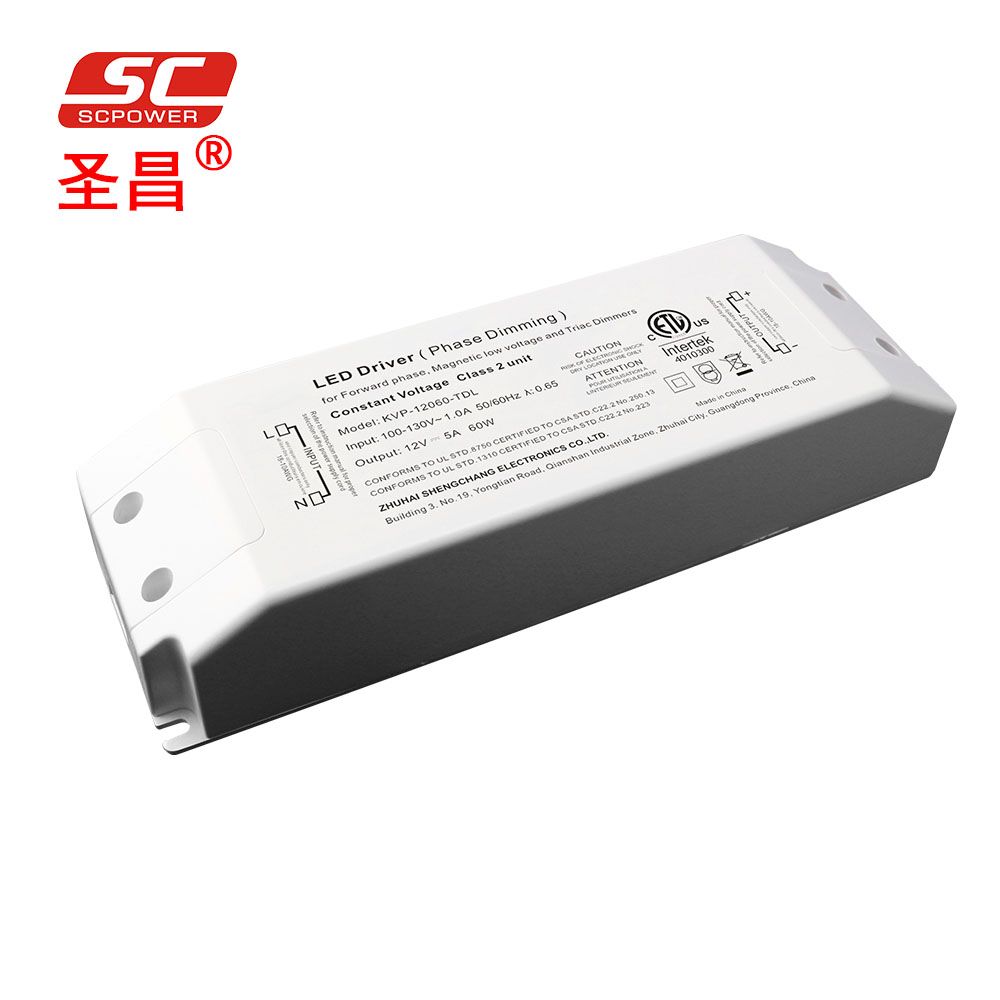

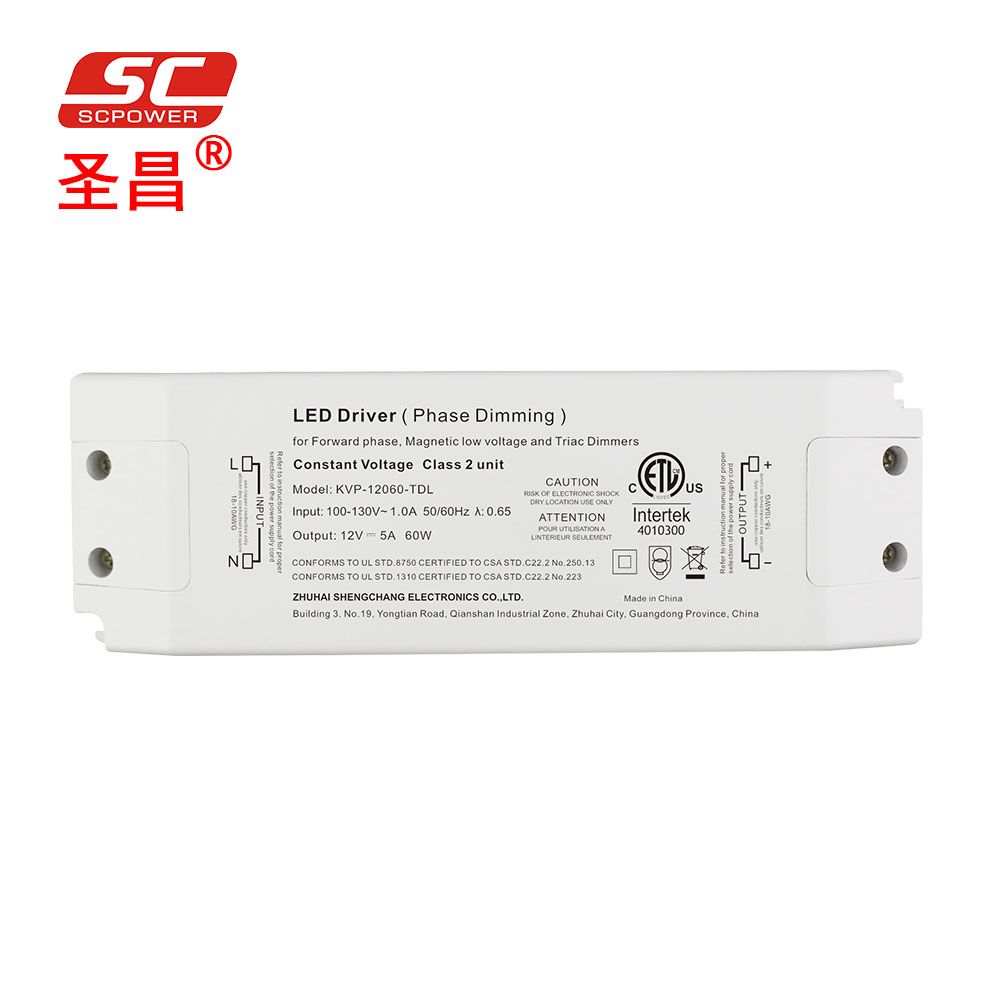

KVP-12060-TDL ETL cETL Constant Voltage driver 12V 60W T5A riac Dimming LED Driver
Features:
· Output constant voltage
· Universal AC input: 100-130VAC
· High efficiency :up to 87%
· Protection:short circuit/over loading/over current/ Over temperature
· Full protection plastic housing
· Easy installation
· Cooling by free air convection
· Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
· Strong compatibility, flicker-free dimming
· Suitable for LED lighting and moving sign applications and others
· Suitable for dry or damp location use, IP20
Specification
Model | KVP-12060-TDL | KVP-24060-TDL | |
Certificates | ETL,cETL,FCC | ETL,cETL,FCC | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 5A | 2.5A | |
Rated power | 60W | ||
Input | Voltage Range | 100-130VAC | |
Frequency Range | 47~63HZ | ||
Power Factor | 0.65(Full loading) | ||
Efficiency(Typ.) | 85% | 84% | |
AC Current(Max.) | 1.0A | 1.0A | |
Leakage current | <0.50mA/120VAC | ||
Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
Over Current | ≤1.2*I out | ||
Over Loading | ≤120% | ||
Over temperature | 100ºC±10ºC,Shut down o/p voltage,recover automatically after temperature goes down. | ||
Others | Net. Weight | 1.07kg=0.55(driver)+0. 52kg(J12-1) | |
Size | 350*77*37mm(L*W*H) | ||
Packing | 430*375*150mm 20PCS/CTN | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
