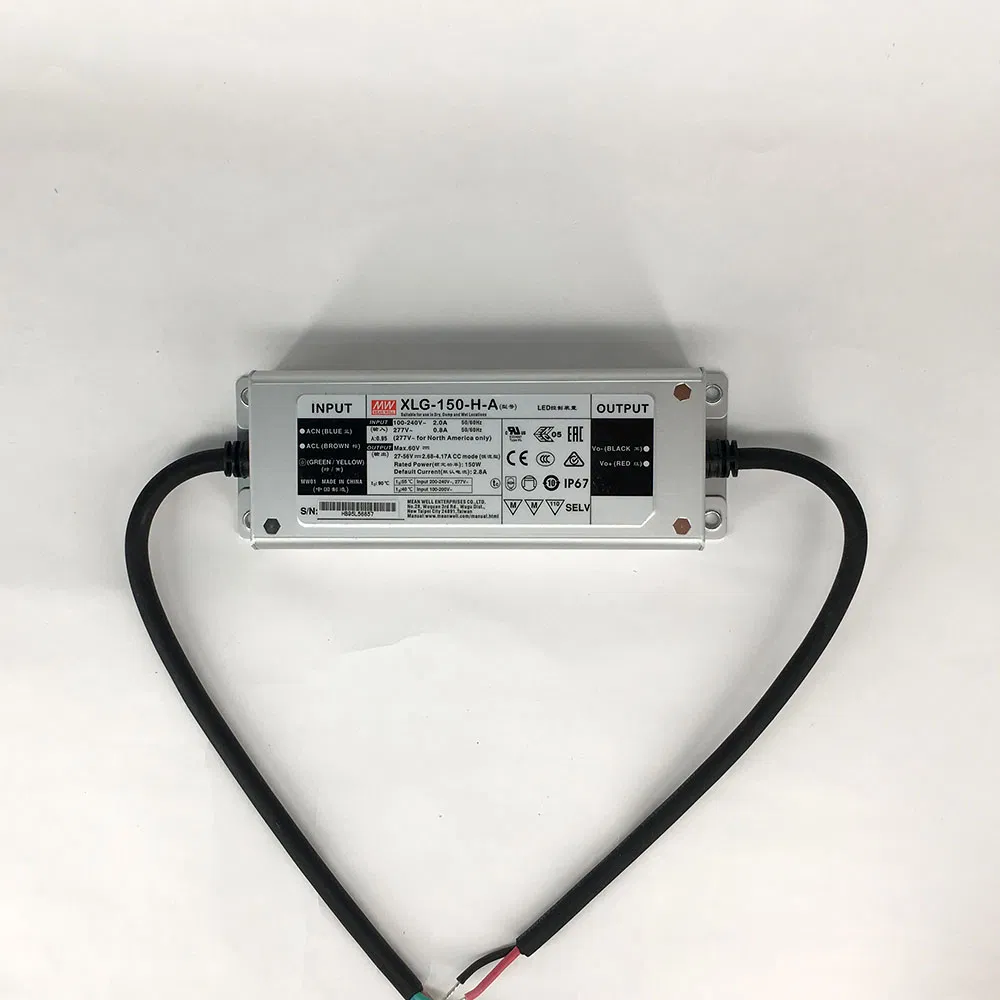

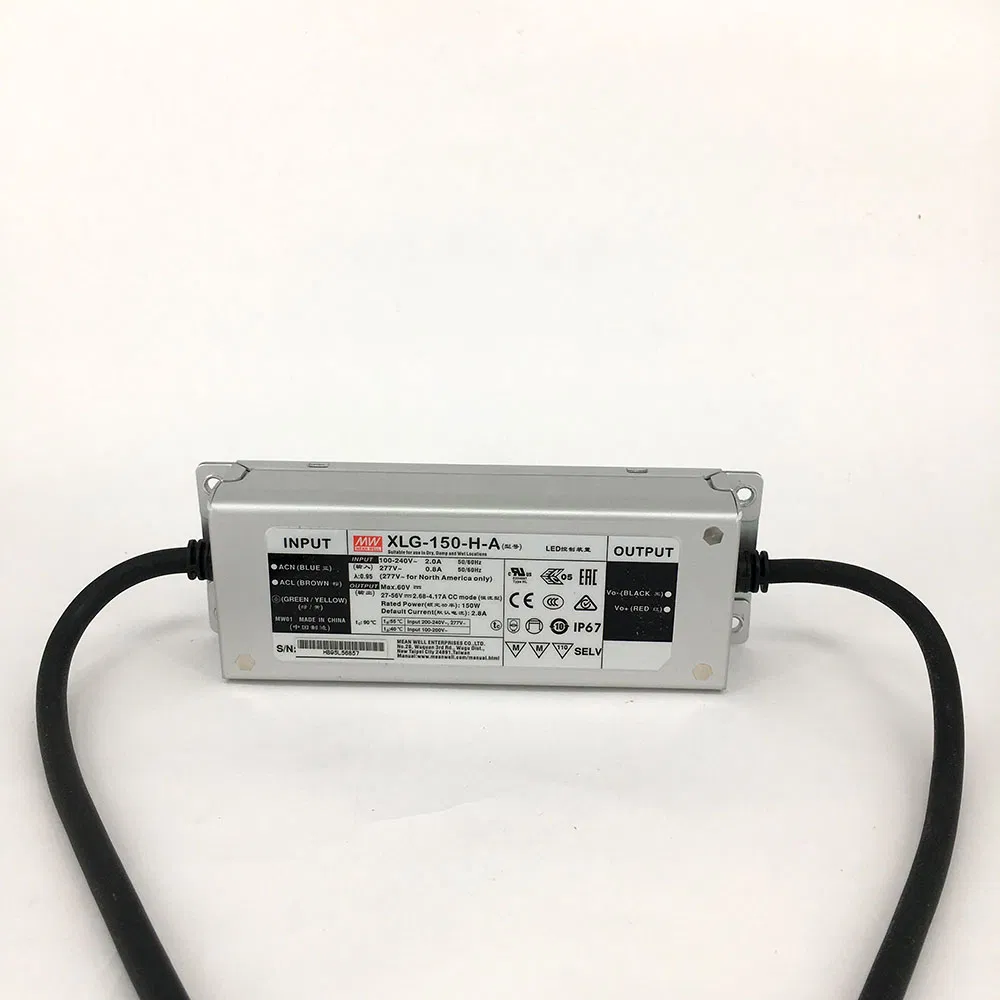

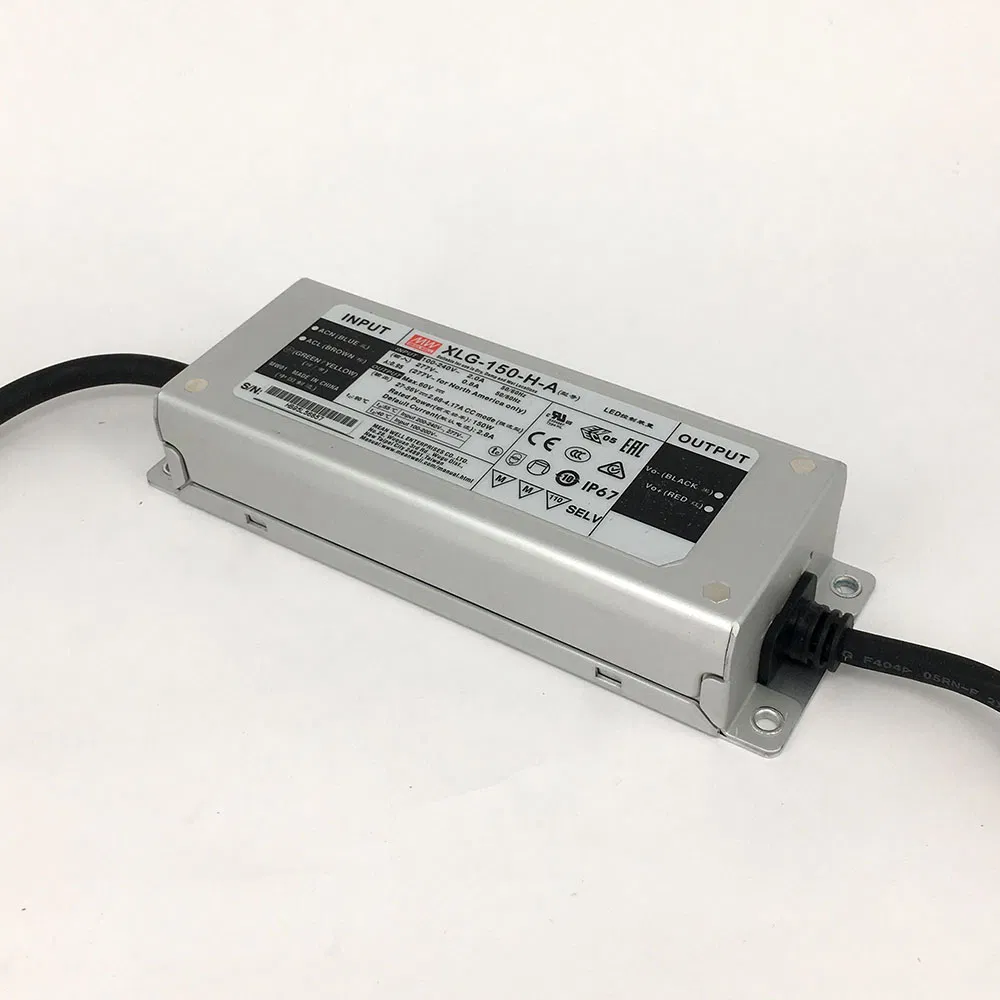

Meanwell 150W Constant Power Mode LED Driver XLG-150

Features

·Wide input range 100~305V AC( Class I)
·Full power output at 70~100% Constant power mode operation
·Metal case with IP67, suitable for outdoor application
·Surge protection with 6K V/4K V (10K V/6K V optional)
·3 in 1 dimming function (Dim to off and Isolation design)
·India EESL version, can survive input voltage stress of 440Vacfor 48 hours
·Protection functions: OVP/SCP/OCP/OTP
·Life time >50,000 hrs. and 5 years warranty

Applications

·Skyscraper lighting
·Street lighting
·Floodlight Lighting
·Stage lighting
·Fishing lighting
·Horticulture lighting
·Type HL for use in class I, Division 2

Description

XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode. XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for - 40ºC~+90ºC case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-150 is designed with the latest version of IEC61347/GB7000.1- 2015 and UL8750 international safety regulations. The output and dimming lines are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system safety durng installation.

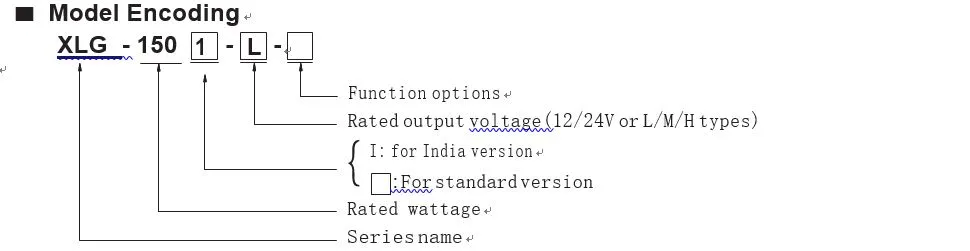

Model Encoding

Meanwell 150W Constant Power Mode LED Driver Xlg-150

Type	Function	Note
Blank	Io and Vo fixed.(For harsh environment)	By request
A	Io adjustable via built-in potentiometer	In Stock
AB	Io adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)	In Stock

MODEL			XLG-150-12		XLG-150-24
OUTPUT	DC VOLTAGE		12V		24V
	CONSTANT CURRENT REGION Note.2		8.4~ 12V		16.8~ 24V
	RATED CURRENT		12.5A		6.25A
	RATED POWER		150W		150W
	RIPPLE & NOISE (max.) Note.3		150mVp-p		240mVp-p
	CURRENT ADJ. RANGE		Adjustable for A-Type only (via the built-in potentiometer)
			6.5~ 12.5A		3.2~ 6.25A
	VOLTAGE TOLERANCE Note.4		±3.0%		±2.0%
	LINE REGULATION		±0.5%		±0.5%
	LOAD REGULATION		±2%		±1%
	SETUP, RISE TIME Note.6		500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
	HOLD UP TIME (Typ.)		10ms/ 230VAC 10ms/ 115VAC
INPUT	VOLTAGE RANGE	Note.5	100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR		PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load
	TOTAL HARMONIC DISTORTION		THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC)
	EFFICIENCY (Typ.)		91.5%		93%
	AC CURRENT		1.8A / 115VAC	1.0A / 230VAC 0.8A/277VAC
	INRUSH CURRENT(Typ.)		COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER		4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
	NO LOAD POWER CONSUMPTION		No load power consumption <0.5W for A-Type
PROTECTION	OVER CURRENT		95 ~ 108%
			Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT		Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		13.5 ~ 18V		27 ~ 34V
			Shut down output voltage, re-power on to recover
	INPUT OVER VOLTAGE Note.7		320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage)
			can survive input voltage stress of 440Vac for 48 hours
	OVER TEMPERATURE		Shut down output voltage, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.		Tcase=-40 ~ +90ºC (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.		Tcase=+90ºC
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +90ºC, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.06%/ºC (0 ~ 60ºC)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS		UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved
	WITHSTAND VOLTAGE		I/P-O/P:4.2KVAC	I/P-FG:2.1KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/ 70% RH
	EMC EMISSION		Compliance to EN55015,EN61000-3-2 Class C (@load>=50%) ; EN61000-3-3;
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV)(10K/6KV option)
OTHERS	MTBF		K hrs min.	Telcordia SR-332 (Bellcore) ; Khrs min.	MIL-HDBK-217F (25ºC)
	DIMENSION		1806335.5mm (LWH)
	PACKING		0.8Kg;16pcs / 13.4Kg /0.67CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25ºC of ambient temperature. Please refer to "DRIVING METHODS OF LED MODULE". Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance : includes set up tolerance, line regulation and load regulation. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. 7.Only for XLG-150 I series The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000m(6500ft). Please refer to the warranty statement on MEAN WELL's website This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70ºC or less. 12.Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information. 13.For any application note and IP water proof function installation caution, please refer our user manual before using.
