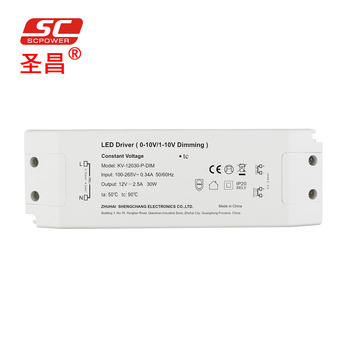

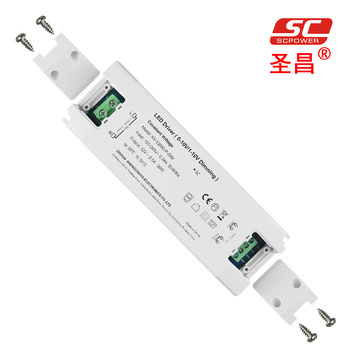

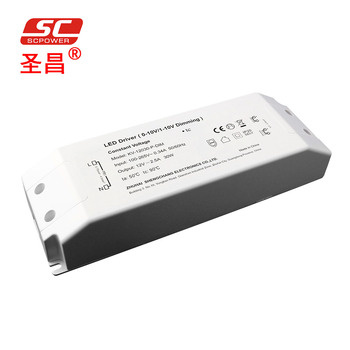

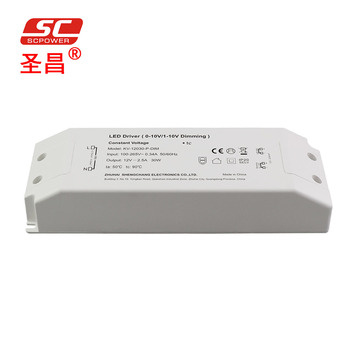

Sc 36W 12 Volt 0-1-10V LED Light Switch Ajustable Driver for 12V LED Lights Using with SAA CE RoHS

Product Description

SC 36W 12 volt 0-1-10V led light switch ajustable driver for 12v led lights using with SAA CE rohs

Feature

· Output constant voltage

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 86%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· Fully isolated plastic case with terminals IP20

· Class 2 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

Specification

Model		KV-12036-P-DIM	KV-24036-P-DIM	KV-36036-P-DIM	KV-48036-P-DIM
Output	DC Voltage	12V	24V	36V	48V
	Voltage Tolerance	±0.5V
	Rated current	0 - 3 A A	0 -1.5A	0 - 1A	0 - 0.75A
	Rated power	36W
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.90/230VAC PF≥0.90/265VAC(Full loading)
	Efficiency(Typ.)	83%	85%	86%	86%
	AC Current(Max.)	0.48A	0.48A	0.48A	0.48A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over Current	≤1.2*Iout
Environment	Working TEMP.	-40~+60ºC
	Working Humidity	20~90%RH non-condensing
	Storage TEMP.,Humidity	-40~+80ºC,10~95%RH
	TEMP.coefficient	±0.03%/ºC(0~50ºC)
	Vibration	10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC
	Isolation resistance	I/P-O/P:100M Ohms/500VDC/25ºC/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥60%load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A
Others	Net.Weight	0.55Kg
	Size	1806035mm(LWH)
	Packing	355215215mm 20PCS
Notes	All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. Tolerance:includes set up tolerance,line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
