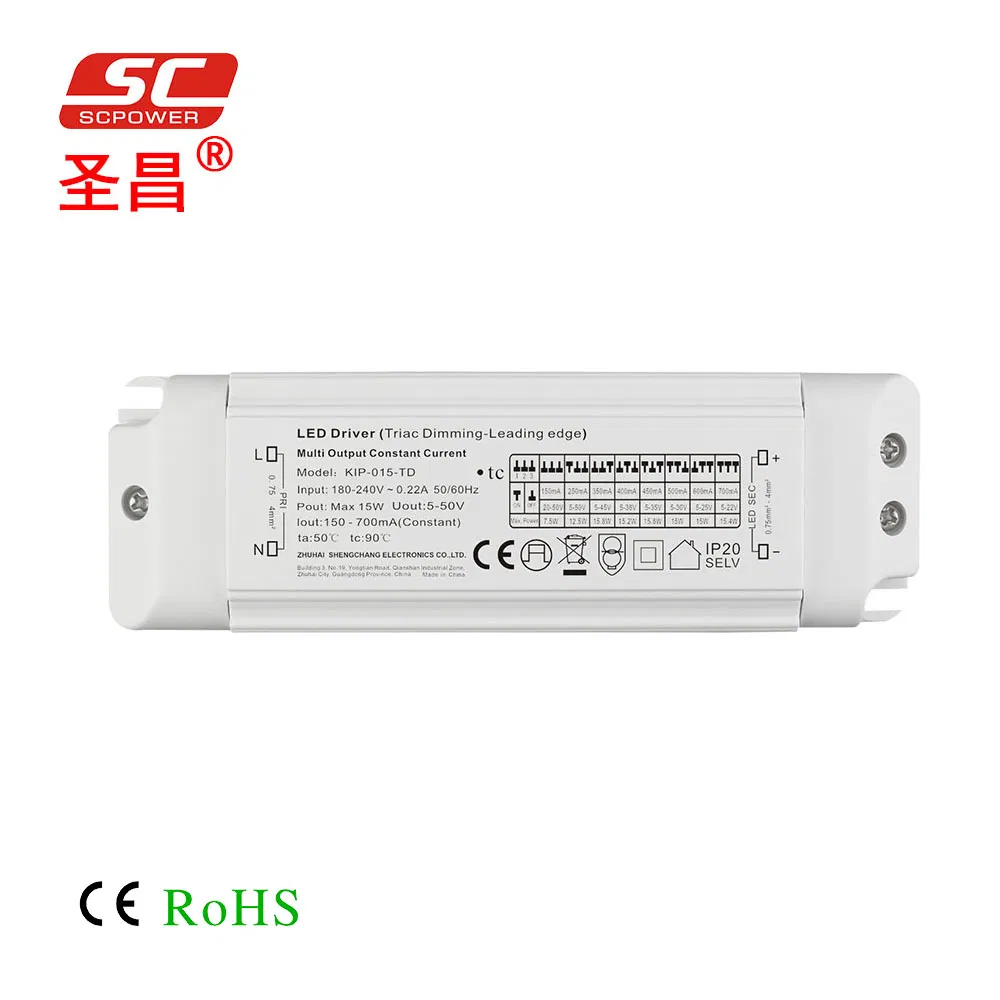

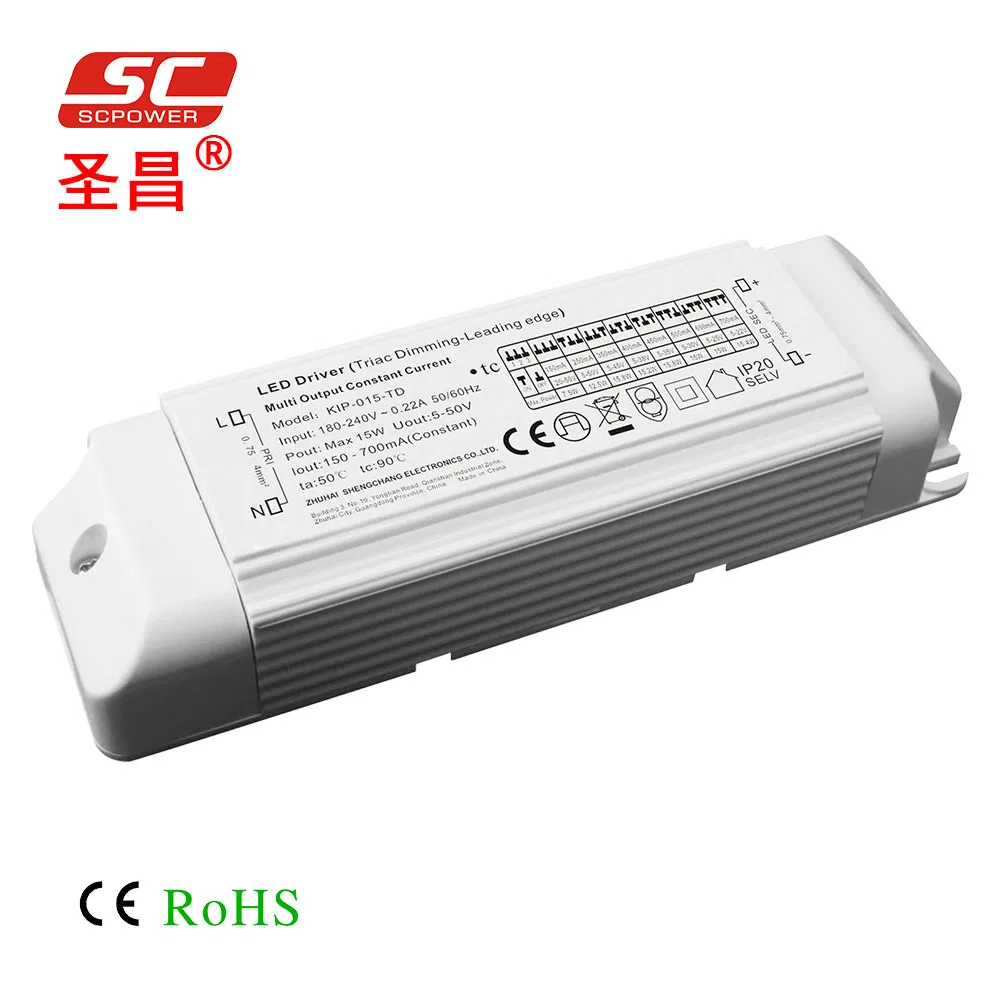

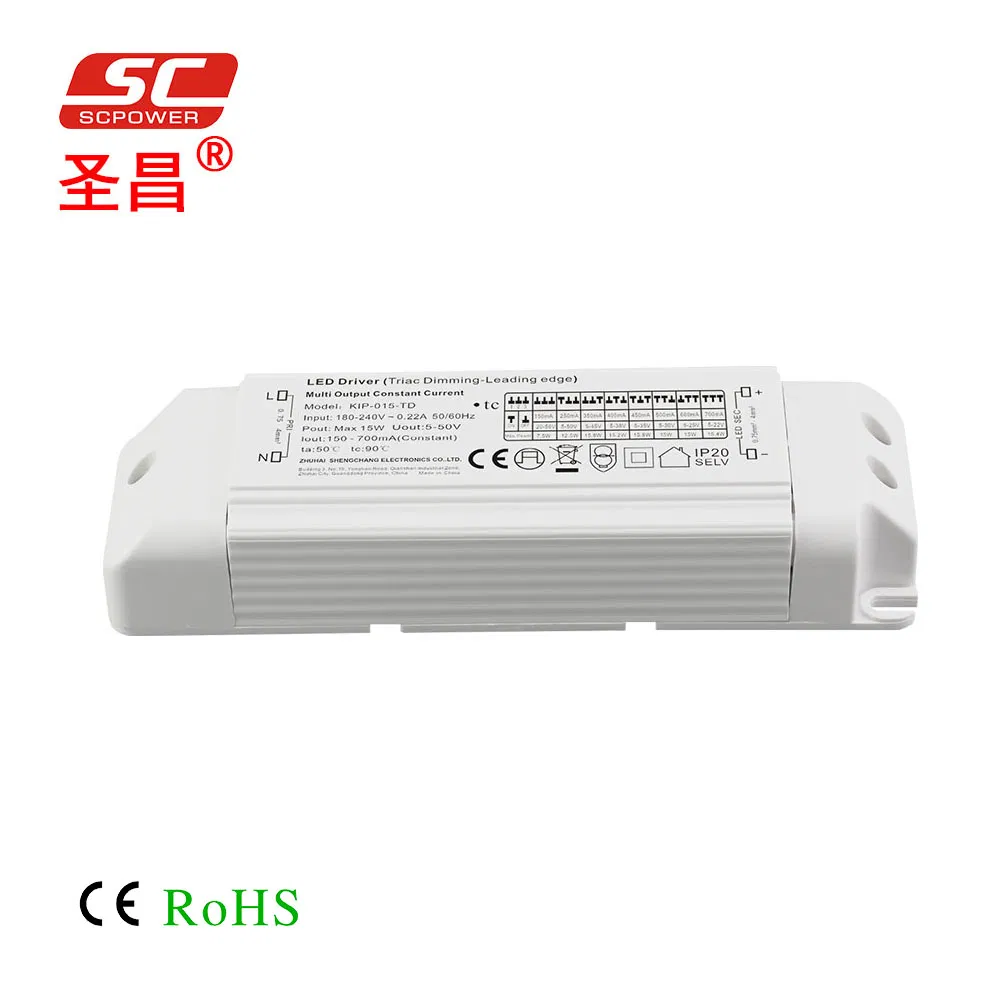

Sc Power 150mA 250mA 350mA 400mA 450mA 500mA 600mA 700mA 15W DC All-in-One Dimmable Constant Current LED Driver
Product DescriptionSC POWER 150mA 250mA 350mA 400mA 450mA 500mA 600mA 700mA 15W DC All-in-one Dimmable Constant Current LED DriverFeatures:·Output constant current·Range AC input :180-240VAC ·Efficiency 77% Max·Protections: short circuit/over load/ over ......
Send Inquiry
Product Description
SC POWER 150mA 250mA 350mA 400mA 450mA 500mA 600mA 700mA 15W DC All-in-one Dimmable Constant Current LED Driver
Features:
·Output constant current
·Range AC input :180-240VAC
·Efficiency 77% Max
·Protections: short circuit/over load/ over current/

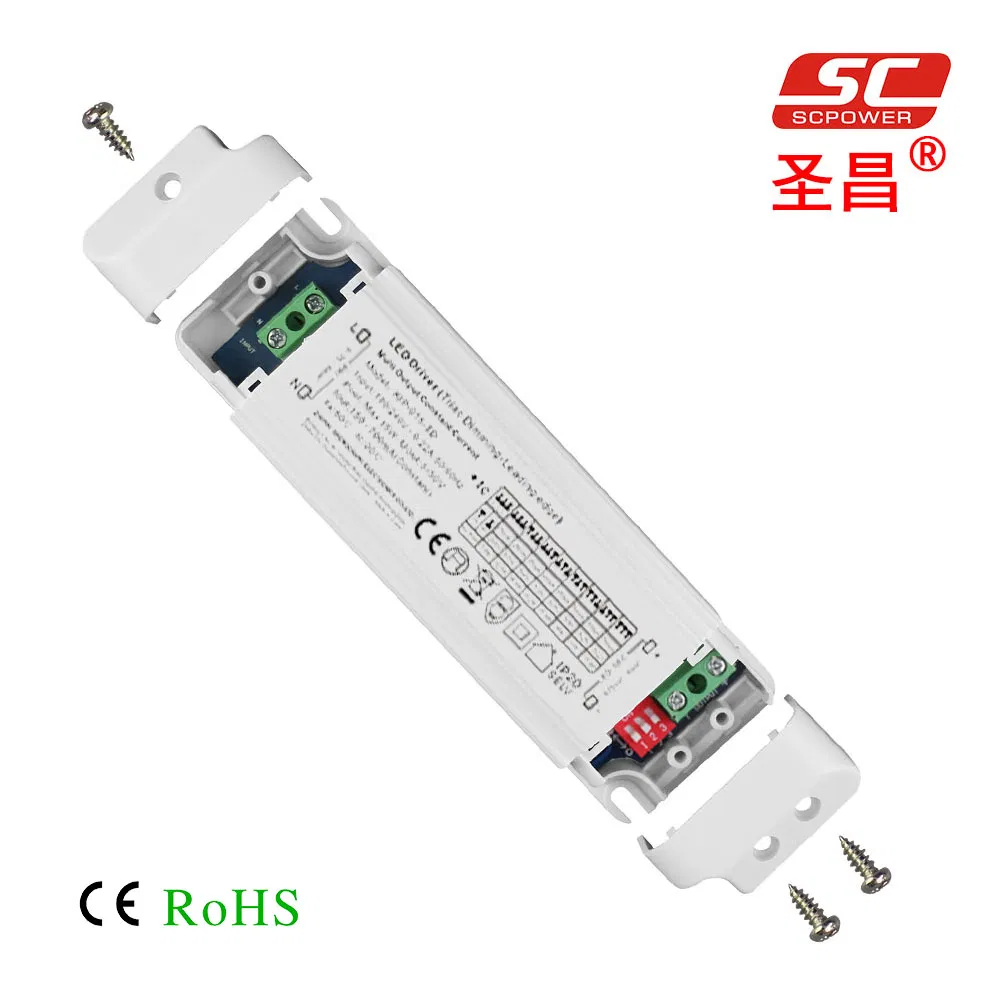

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Dimming function: Triac dimmable Phase cut dimmable
·Strong compatibility, flicker-free dimming
· Suitable for LED lighting and moving sign applications
·Suitable for dry locations
Specification:
| Model | KIP-015-TD | |||||||||
| Output | Rated current | 700mA | 600mA | 500mA | 450mA | 400mA | 350mA | 250mA | 150mA | |
| Current Tolerance | ±5% | ±5% | ±6% | ±6% | ±6% | ±8% | ±10% | ±10% | ||
| DC Voltage | 5-22V | 5-25V | 5-30V | 5-35V | 5-38V | 5-45V | 5-50V | 20-50V | ||
| Rated power | 15.4W | 15W | 15W | 15.7W | 15.2W | 15.7W | 12.5W | 7.5W | ||
| Input | Rated Input Voltage | 180-240VAC | ||||||||
| Rated Frequency: | 47-63HZ | |||||||||
| Power Factor (full load)@180VAC | PF≥0.5A | PF≥0.553A | PF≥0.554A | PF≥0.561A | PF≥0.564A | PF≥0.571A | PF≥0.57A | PF≥0.576A | ||
| Full Load Efficiency(Typ.) | 74.3% | 75.1% | 75.6% | 76.1% | 76.2% | 76.2% | 74.2% | 66.3% | ||
| AC Current(Max.) | <0.23A | |||||||||
| Inrush Current (Typ.) | 15A/Twidth=270us | |||||||||
| Leakage current | <0.50mA | |||||||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| Output No-Load Voltage | 52-60V | |||||||||
| Over Load | ≤ 120% | |||||||||
| Protection Class: | II | |||||||||
Environ- ment | Working TEMP. | -40-+60ºC | ||||||||
| Working Humidity | 20-95%RH,non-condensing | |||||||||
| Storage TEM. Humidity | -40-+80ºC,10-95%RH | |||||||||
| TEMP. coefficient | ±0.03%/ºC(0-50ºC) | |||||||||
| Vibration | 10-500Hz,5G 10min./1 cycle,period for 60min.each along X,Y,Z axes | |||||||||
Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 | ||||||||
| Withstand voltage | I/P-O/P:3.75KVAC | |||||||||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25ºC/70%RH | |||||||||
| Others | Weight | 0.19Kg | ||||||||

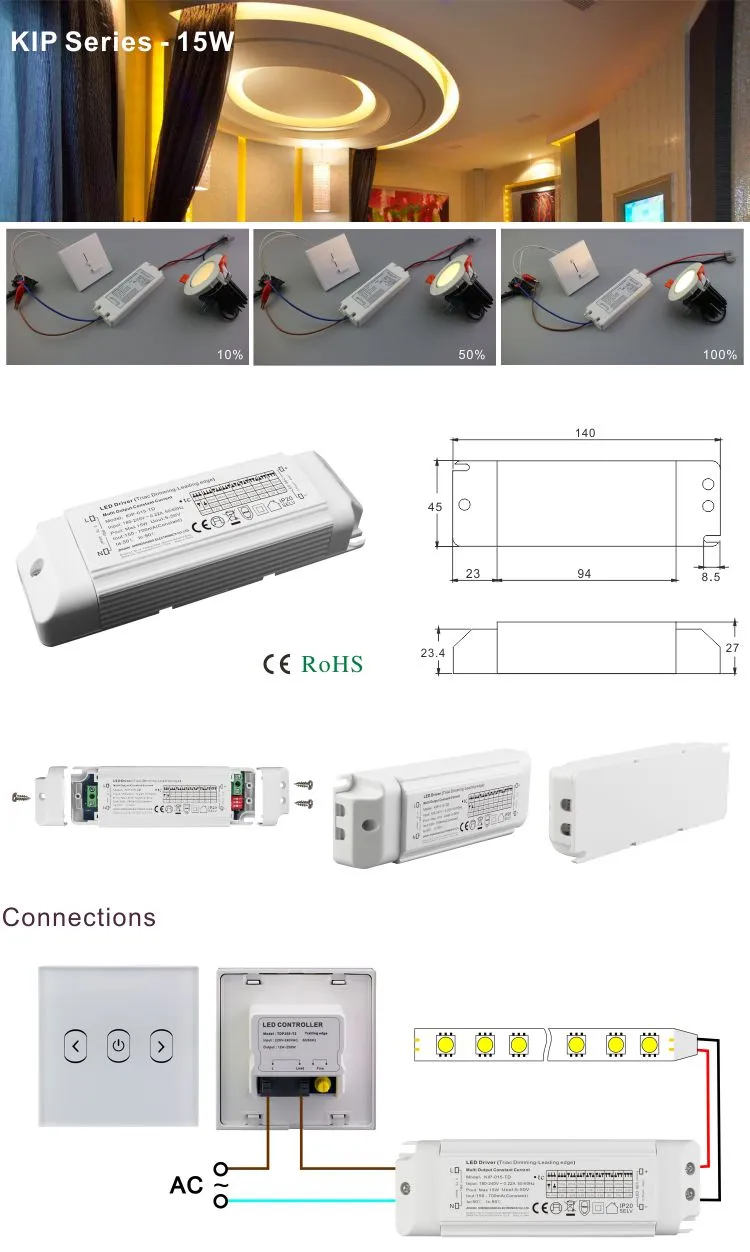

| Size | 140*45*27mm(L*W*H) | |||||||||
| packing | 145*50*36mm for inner box 320*280*215mm(50PCS/CTN ) for outer carton | |||||||||
| Notes |
| |||||||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
