China Slimline Indoor IP20 12V 24V 48W LED Power Supply

Product Description

Slimline Indoor IP20 12V 24V 48W LED Power Supply

1. Features of IP20 Indoor 12VDC Controlador LED Driver
-Super Slim body, special design for application with narrow space.
-Constant Voltage output.
-For Indoor use only.

2. Technical Specification of IP20 Indoor 12VDC Controlador LED Driver

Model no.	TL-12E48
Input voltage	185-264 VAC
Power	48W
Output type	Constant voltage
Efficiency	88%
Output voltage	12V; 24V DC ± 5%
Output current	4A; 2A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Certificates/standards	CE

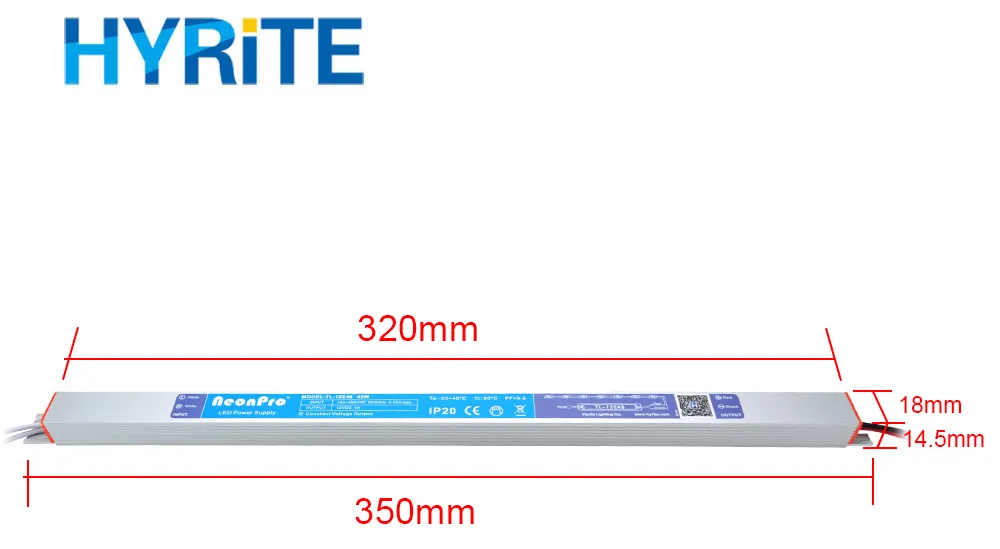

*Dimensions(LWH)*	3501814.5 mm
Weight(kg)	0.0700
Packing information	100 Pcs/ Carton, G.W 7KG

3. Application of IP20 Indoor 12VDC Controlador LED Driver
Slim LED Light box
Display cabinet lighting
Covelight, channel letter
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

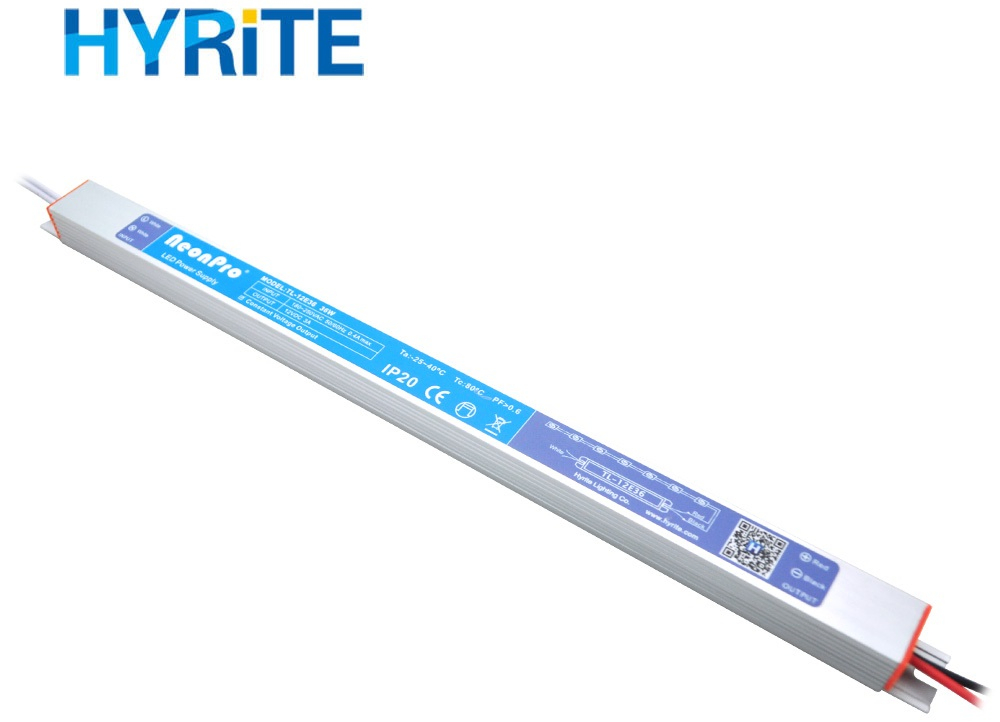

4. Product Pictures of long slim 12VDC Controlador LED Driver

Features of 12VDC Controlador LED Driver:

1. Super slim body, special design for application with narrow space.

2. Suitable for slim LED light box, display cabinet lighting.

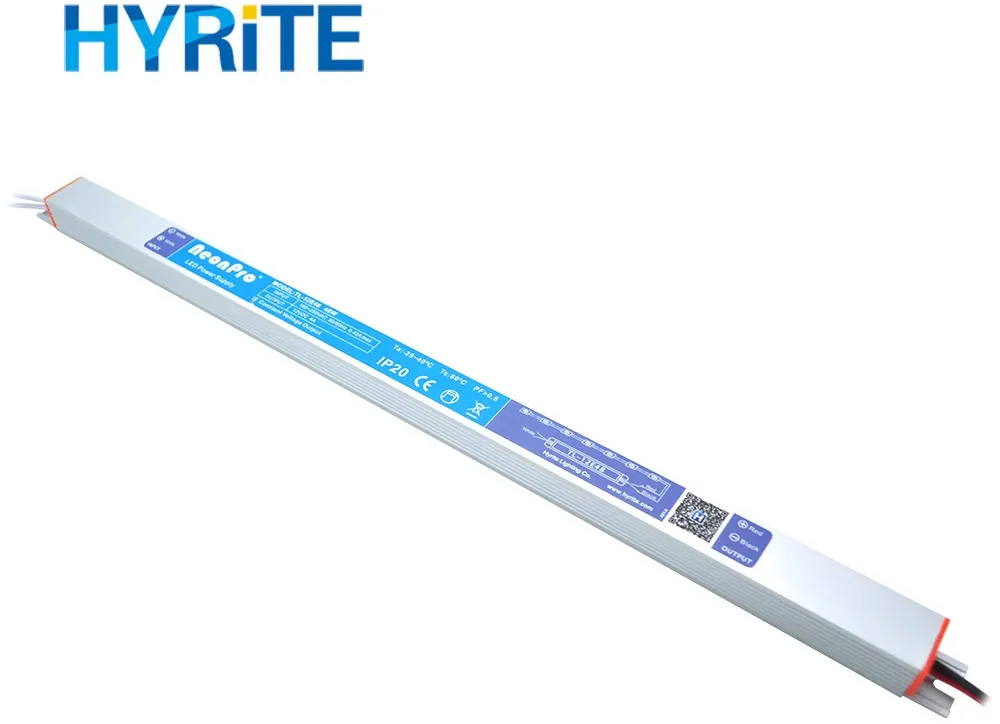

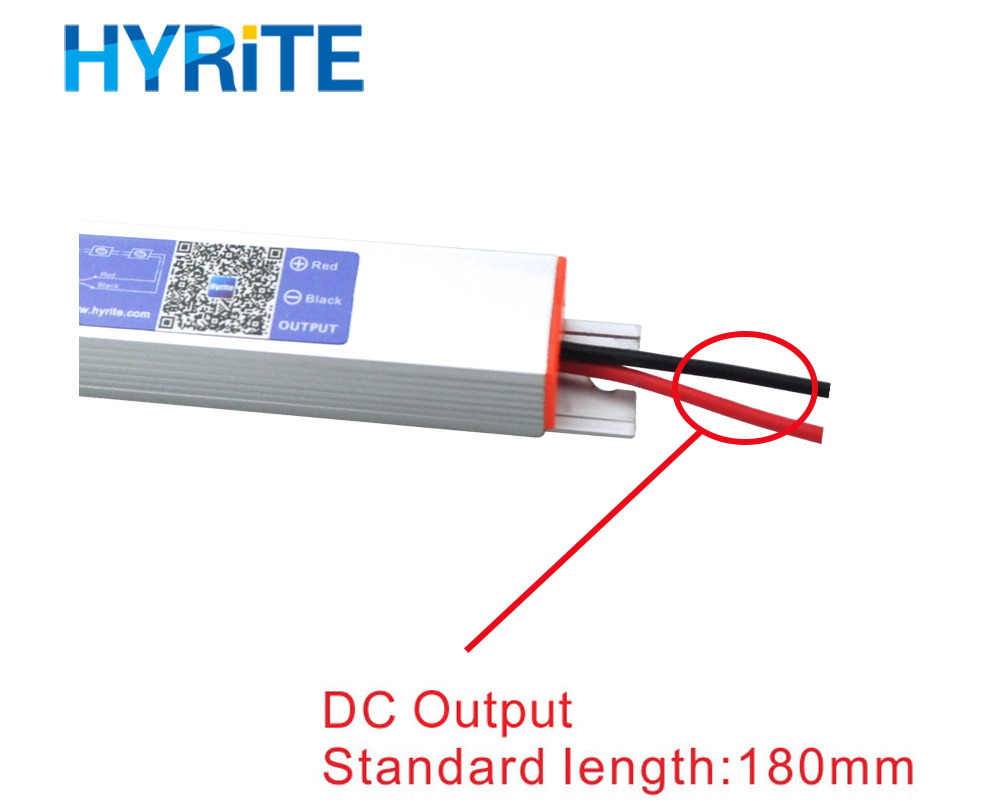

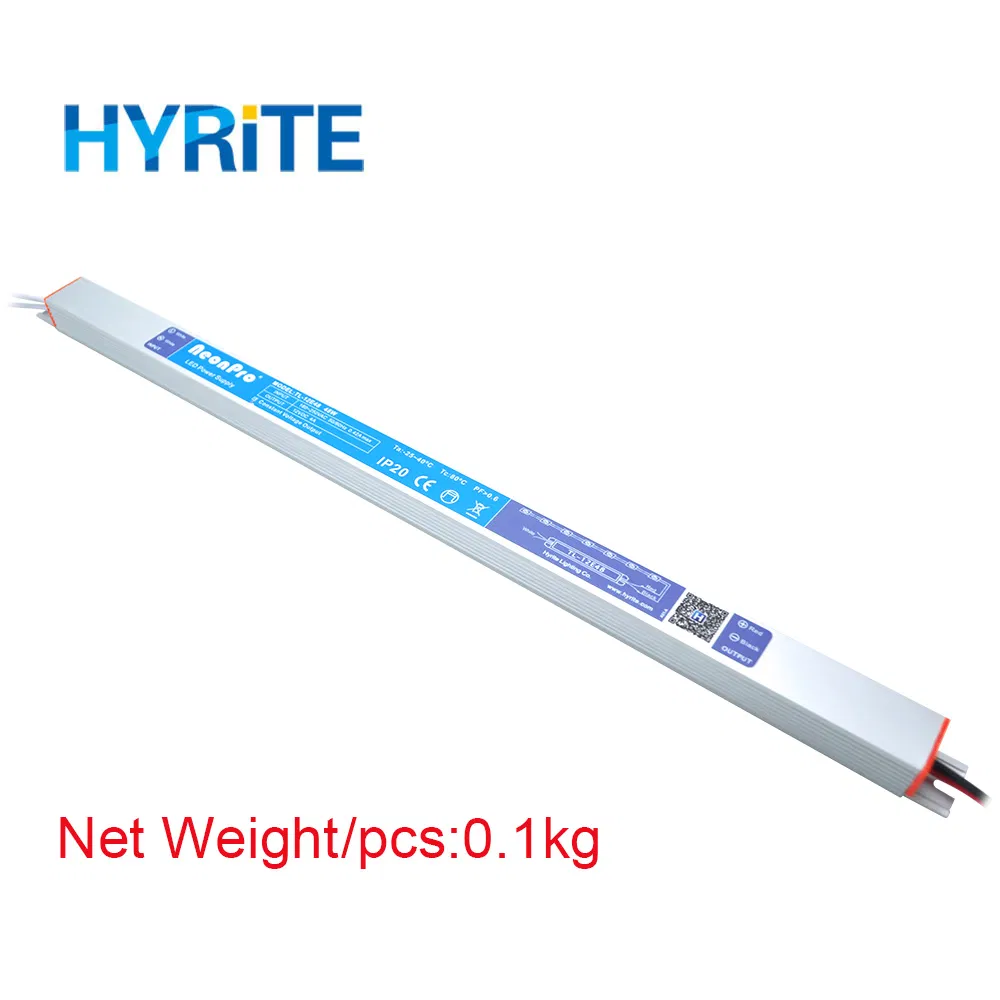

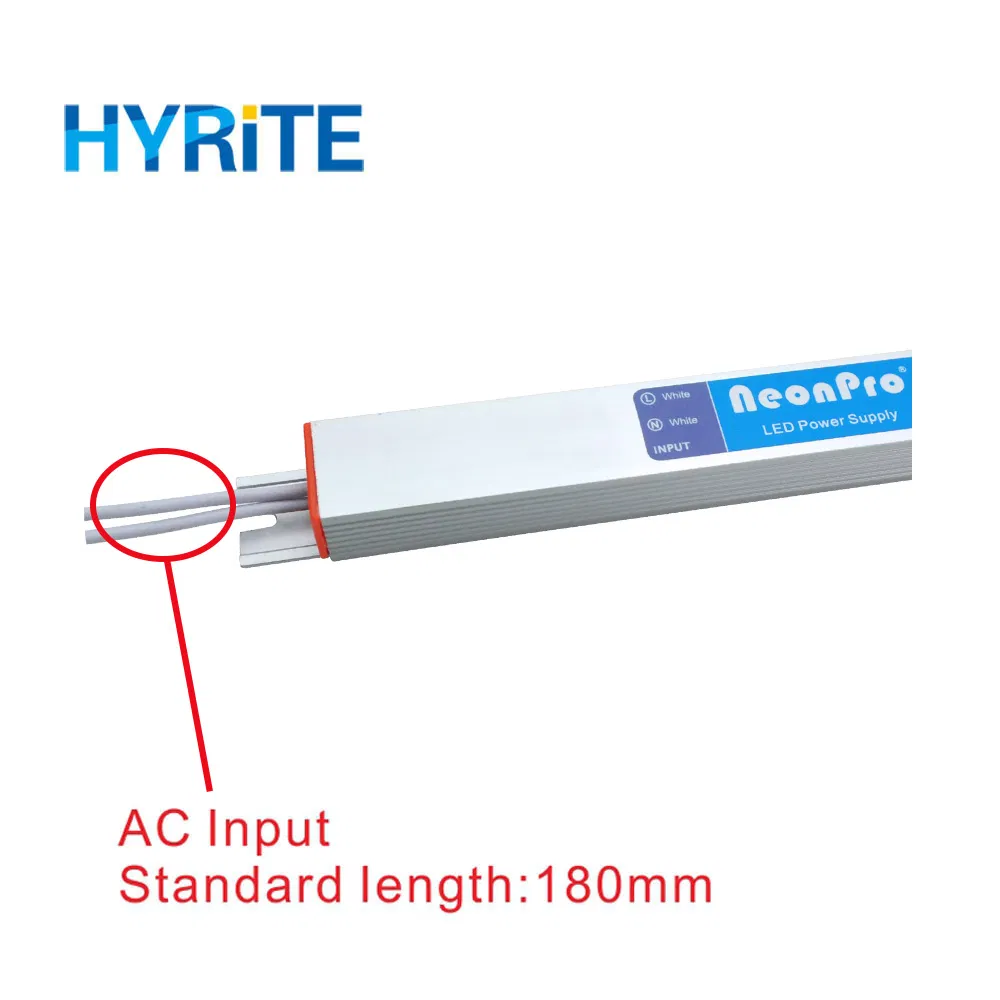

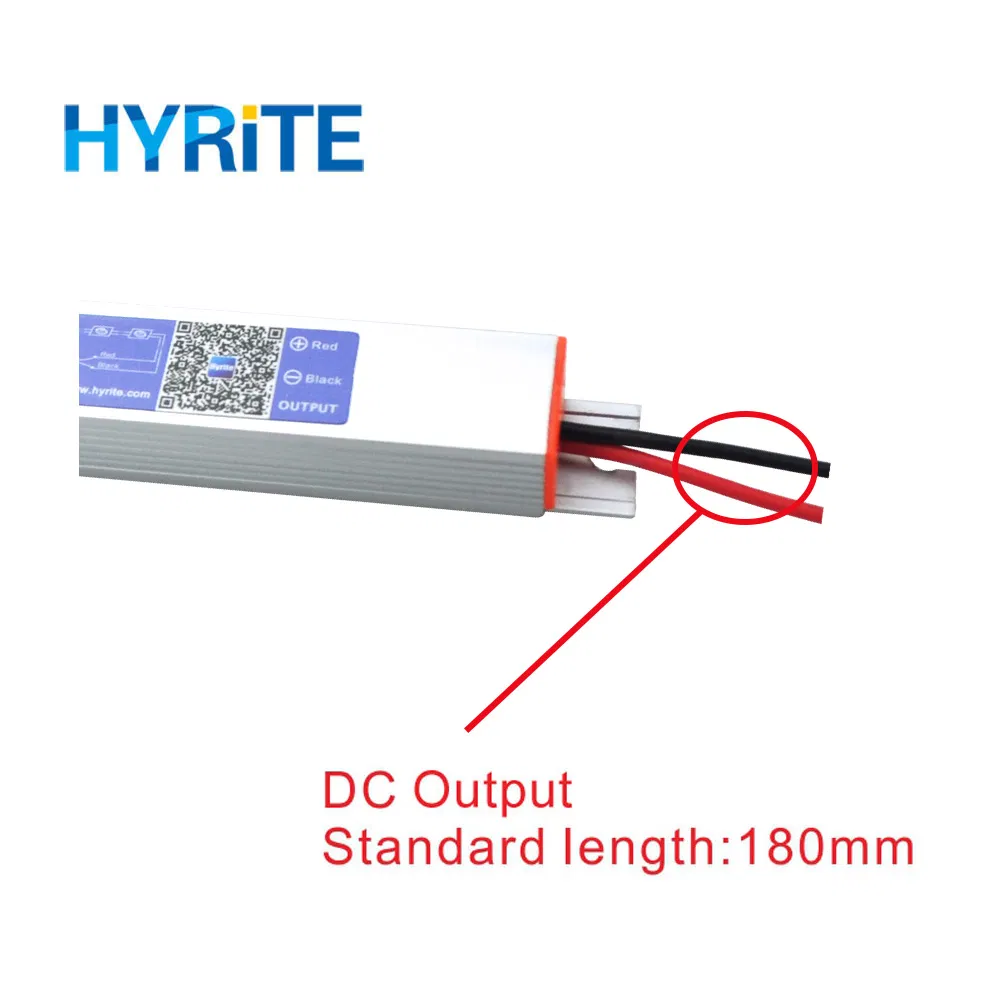

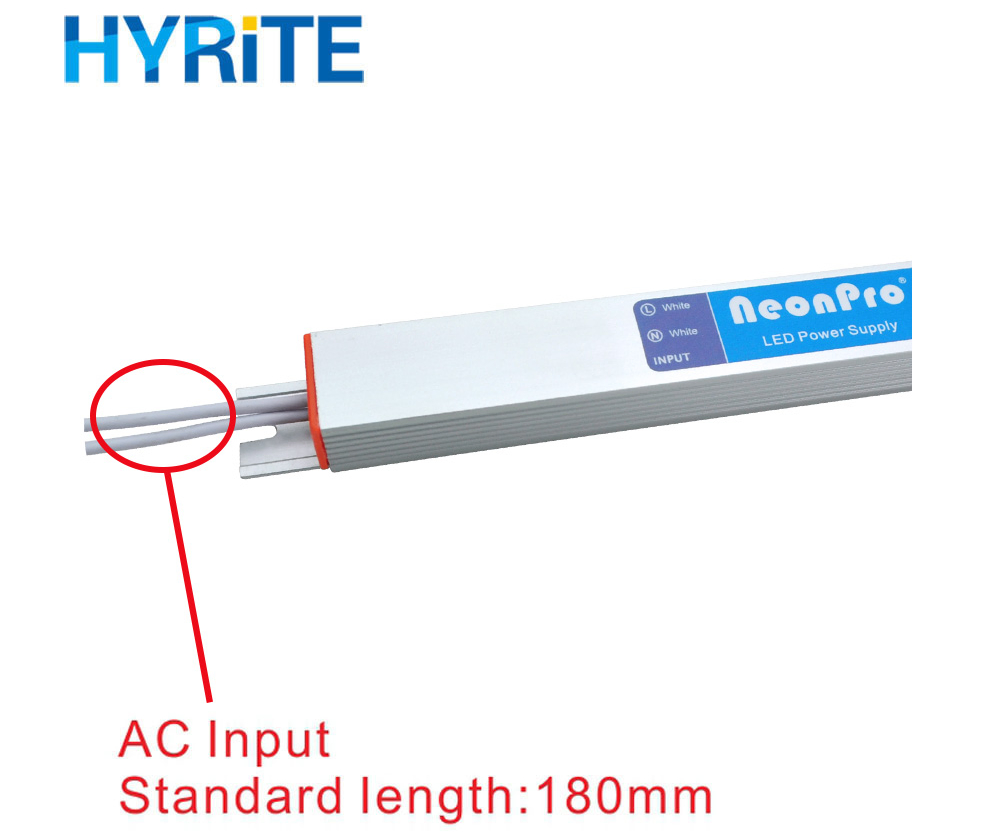

5. Product Pictures of long slim 12VDC Controlador LED Driver
Slimline Indoor IP20 12V 24V 48W LED Power Supply

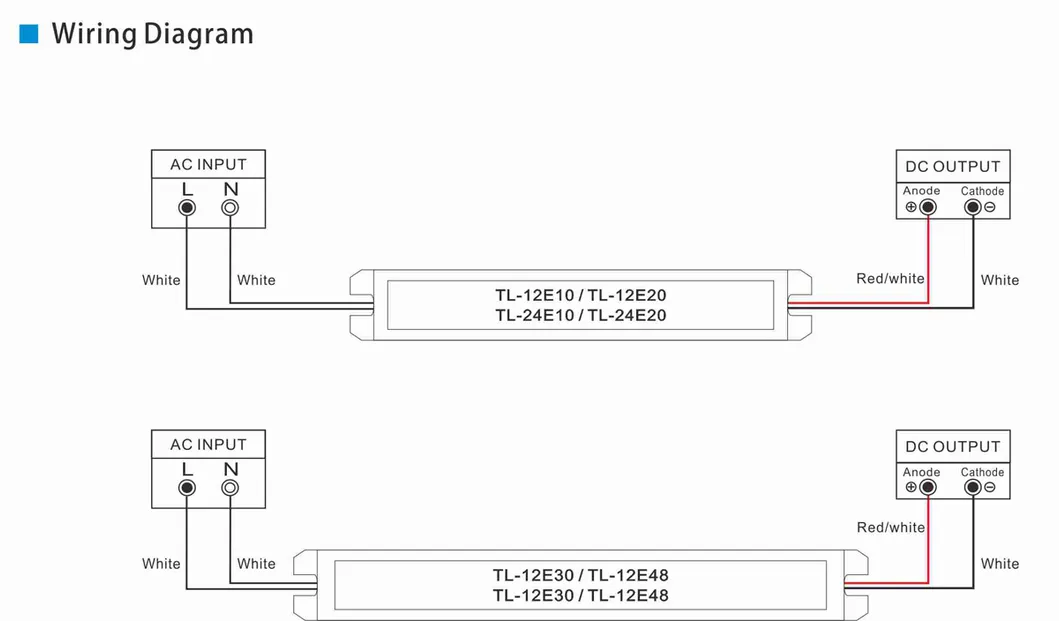

6. Wiring Diagram of long slim Conductor De LED Driver
Slimline Indoor IP20 12V 24V 48W LED Power Supply

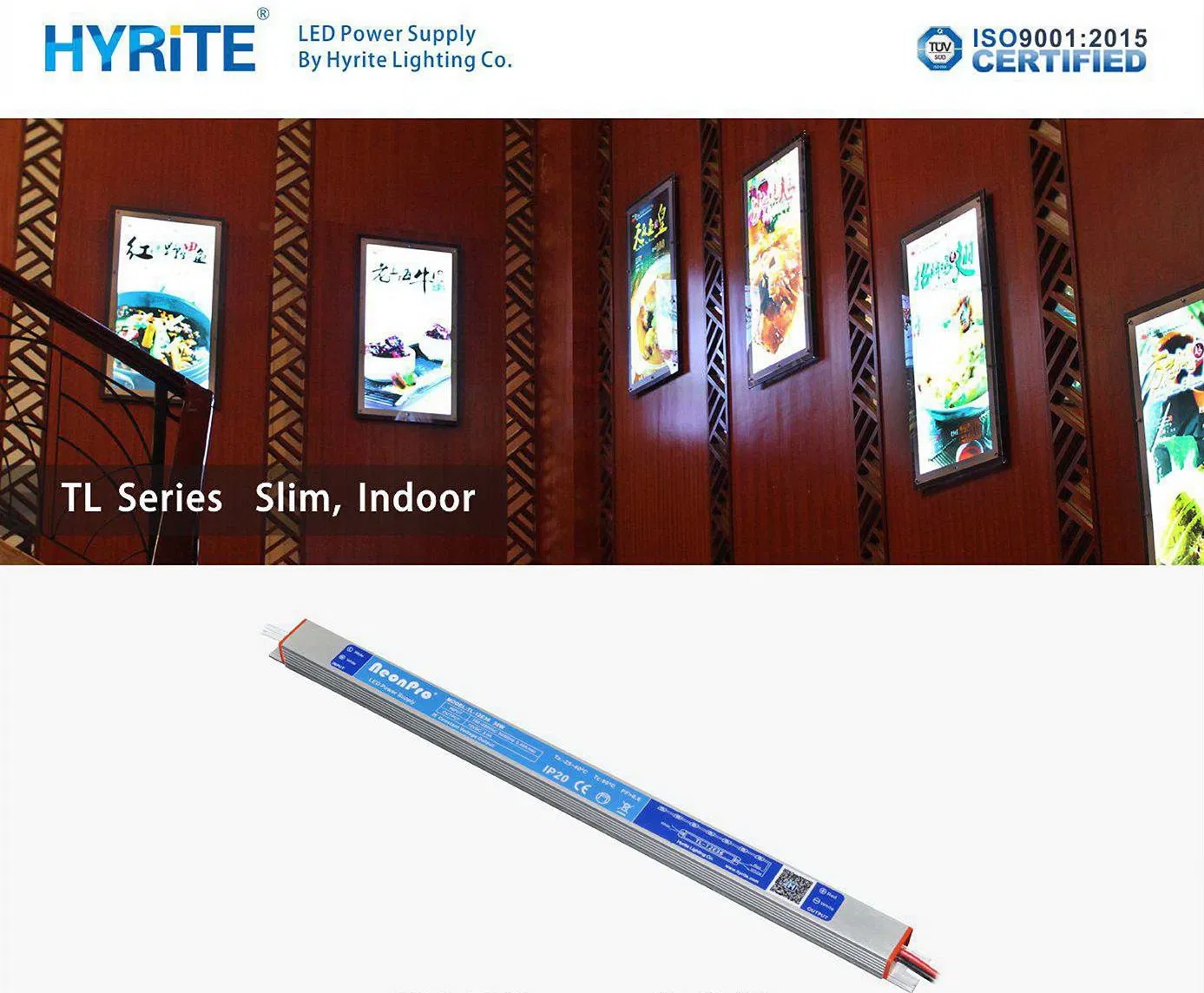

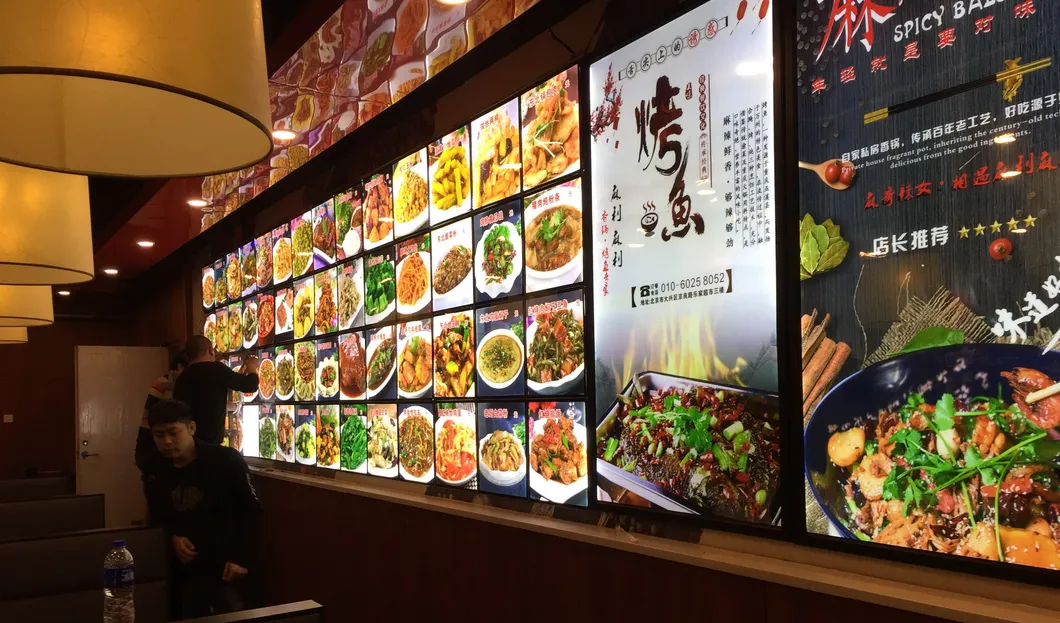

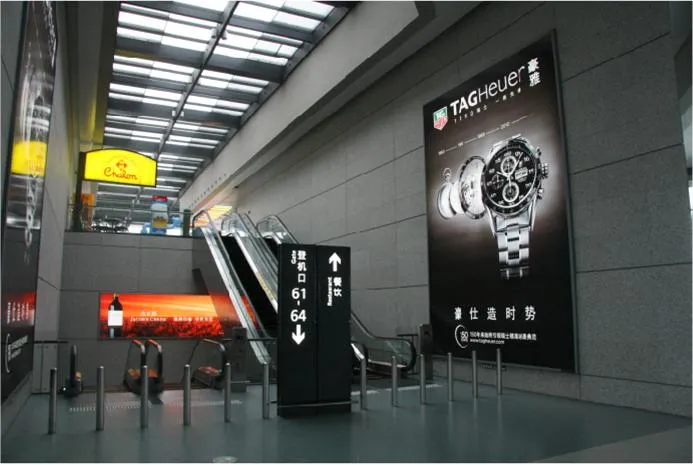

7. Product Applications of long slim 12VDC Controlador LED Driver
Slimline Indoor IP20 12V 24V 48W LED Power Supply

Our main products includes:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA BIS
-IP45 Rainproof constant voltage LED power supply with CE UL BIS
-IP20 Indoor constant voltage LED power supply with CE BIS
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

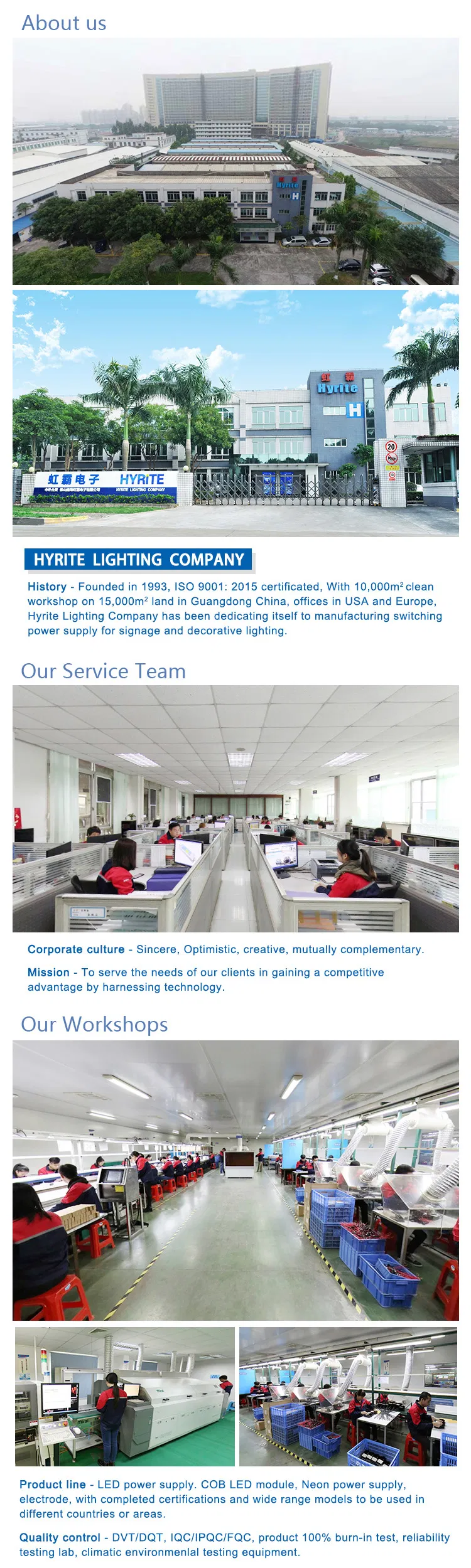

8. Production Pictures of long slim 12VDC Controlador LED Driver
Slimline Indoor IP20 12V 24V 48W LED Power Supply

9. RFQ of long slim 12VDC Controlador LED Driver
Q1. Can I have a sample order for 12VDC Controlador LED Driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time for 12VDC Controlador LED Driver?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.

Q3. Do you have any MOQ limit for 12VDC Controlador LED Driver order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the 12VDC Controlador LED Driver and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for 12VDC Controlador LED Driver?
A:1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.

Q6. Is it OK to print my logo on 12VDC Controlador LED Driver?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: How to deal with the faulty for 12VDC Controlador LED Driver?
A: 1. Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2. During the guarantee period, we will send new one with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
