Product Description

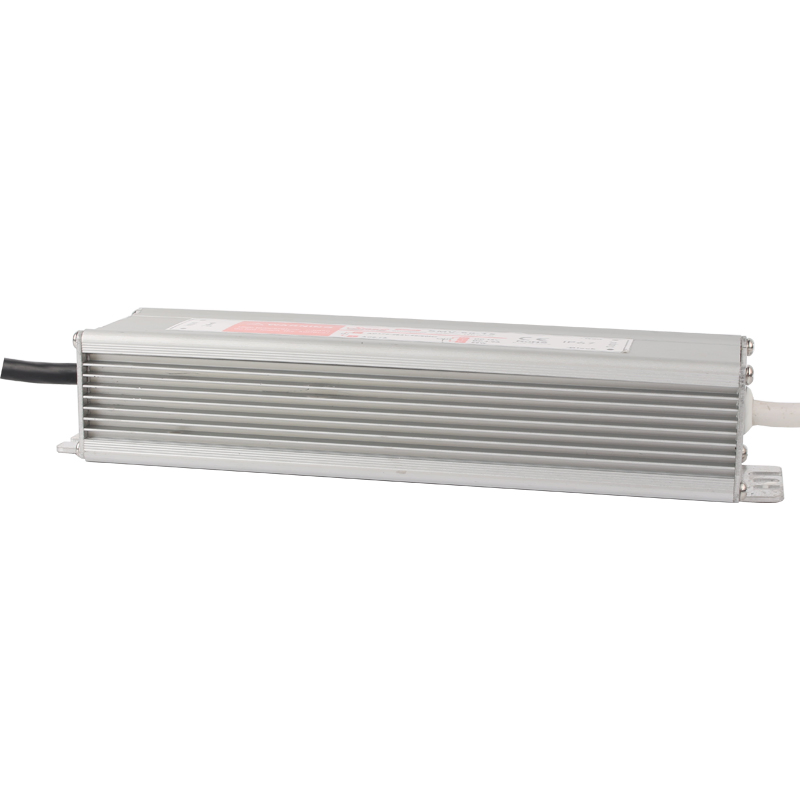

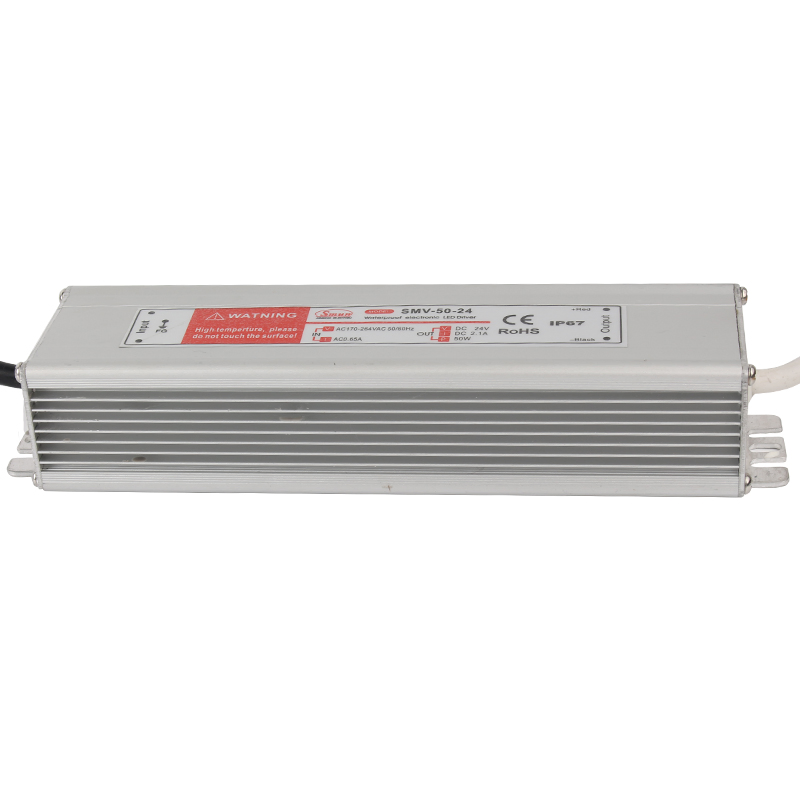

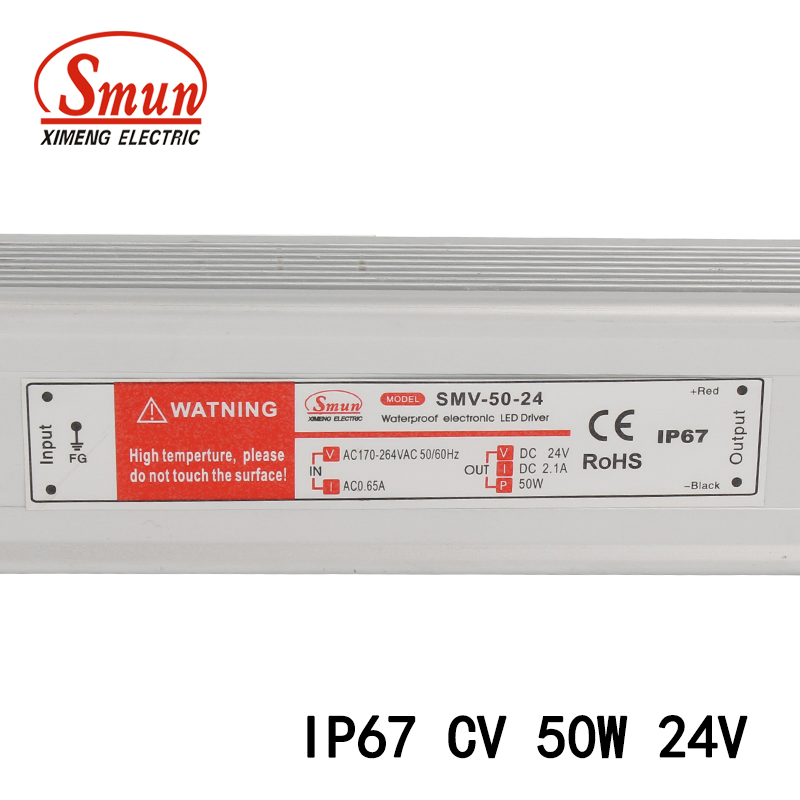

Smv-50-24 50W 24VDC 2A IP68 Waterproof Constant Voltage Power Supply

Model		SMV-50-12	SMV-50-15	SMV-50-24	SMV-50-48
Output	DC output Voltage	12V	15V	24V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	4.2A	3.3A	2A	1A
	Related Power	50w	50w	50w	50w
	Wave&Noise	50mVp-p	50mVp-p	50mVp-p	100mVp-p
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	170-264VAC 47-63HZ
	Input Current	0.65A/230VAC
	Efficiency	75%	80%	82%	85%
	AC inrush current	Cold start current 36A /230VAC
	Leakage current	<0.5mA/240VAC

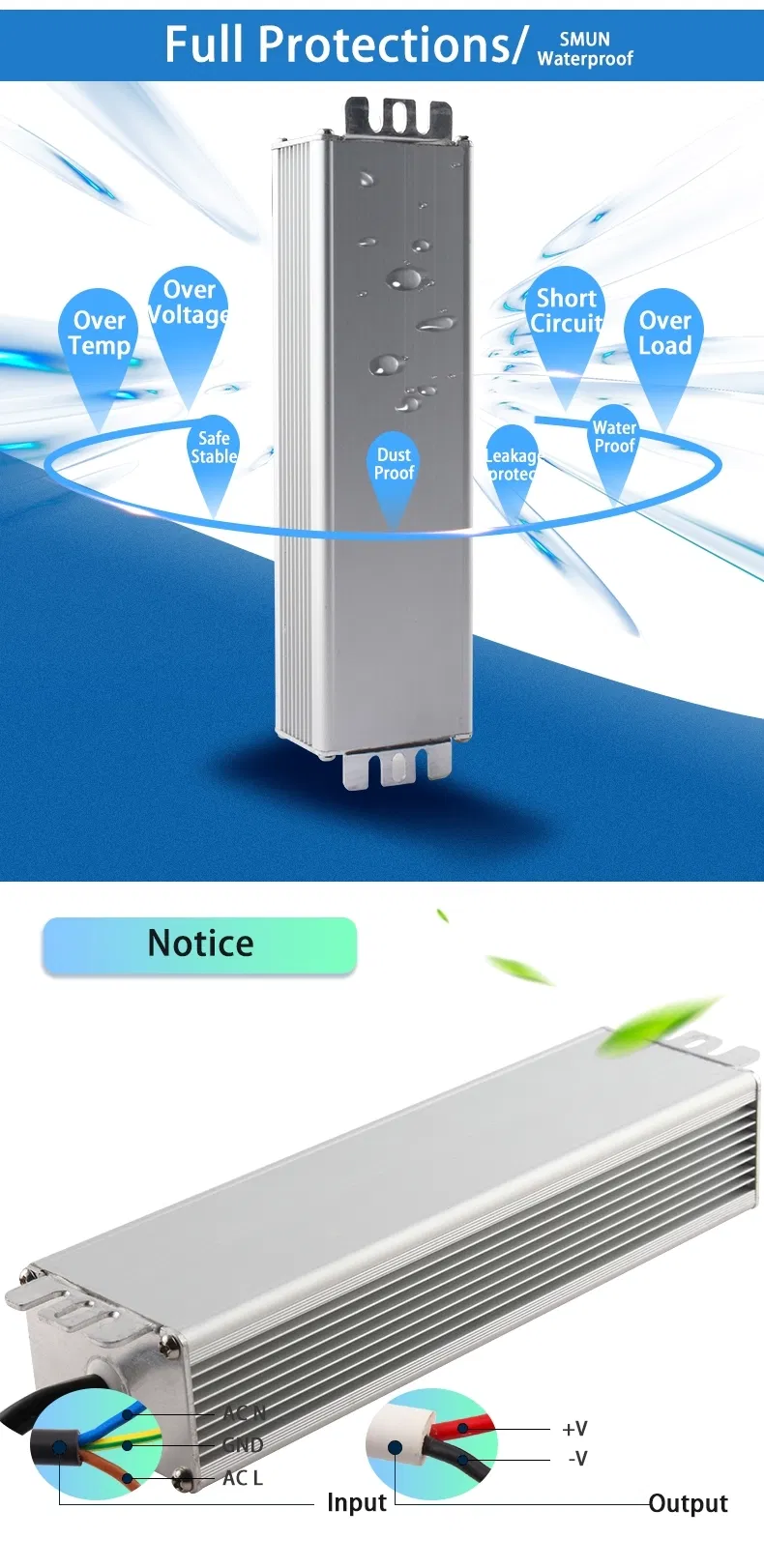

Protection	Overload	Related output power 105-135% start overload protection
		Protection type: hiccup mode, recovery after restart power
	Over voltage	Reted output power 135-150% start over voltage protection
		Protection type: hiccup mode, recovery after restart power
	Over temperature	When temp of transistor inner is over 150, start over temp protection
		pretect mode:cutoff output,auto-recover after temperature become normal
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
	Withstand vibration	10-500Hz,2G 10min/Ccle, period for 60min, each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA
	Isolation resistance	I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC
Standard	Safety standard	Fit UL1012 IP67
	EMC standard	Fit EN55022 CLASSA

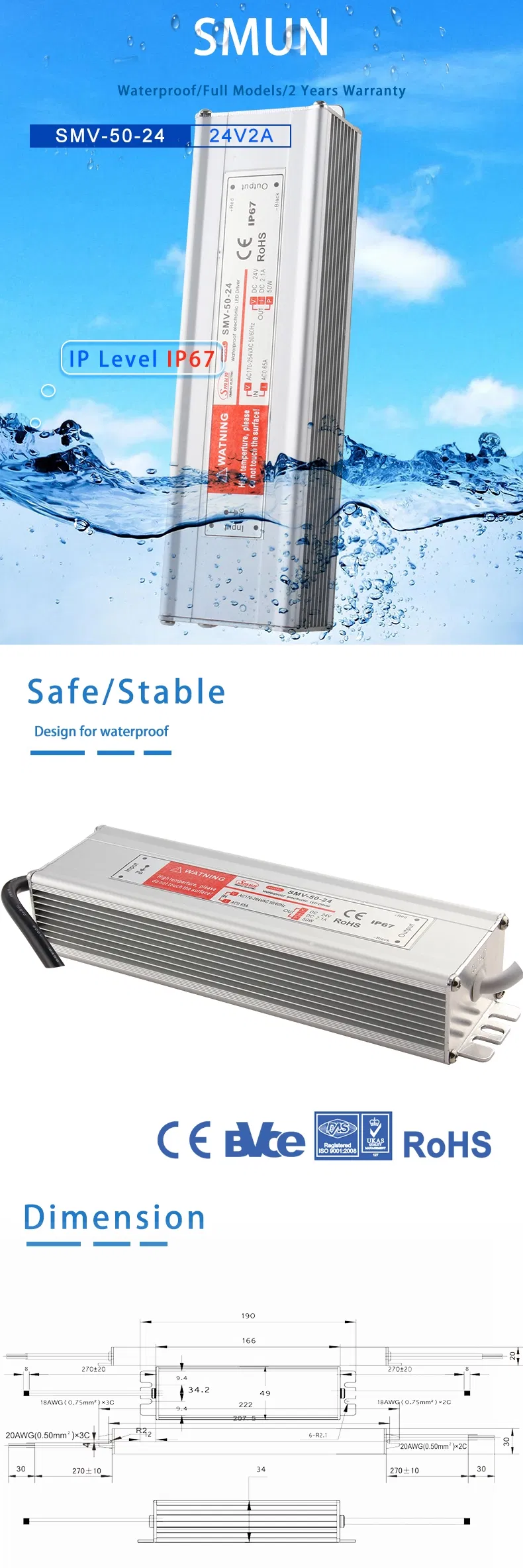

Size	size	L190W48H34mm
	Package	0.78kg, 30 pcs/23.5kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
