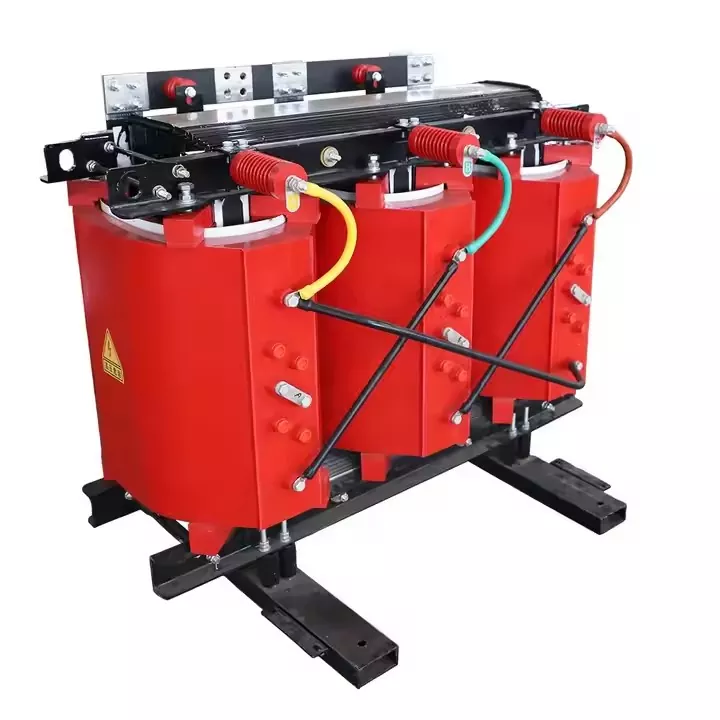

Can a 10kV 500kVA Cast Resin Dry-Type Transformer Replace an Oil-Filled Unit Directly

For facility managers and electrical engineers facing aging oil-filled distribution transformers, the question is no longer theoretical. The 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer has emerged as a formidable alternative, but "direct replacement" involves far more than bolting new terminals to old cables. At Lugao Power, we have executed over 200 dry-type retrofits across commercial high-rises, data centers, and industrial plants. This blog dissects the technical, safety, and economic realities of swapping oil for cast resin—without oversimplifying the engineering challenge.

Core Technical Differences at a Glance

The table reveals an immediate conclusion: direct physical swapping is possible, but the system design must adapt. The 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer weighs 15–20% more than an equivalent oil unit due to copper windings and epoxy mass, yet it occupies a smaller footprint because it eliminates oil conservators and radiators.

Five Critical Compatibility Checks Before Replacement

1. Impedance Matching (Z%) – Existing protection relay settings and short-circuit calculations rely on the old transformer's impedance (typically 5–6% for oil). The cast resin unit from Lugao Power offers 6–8% impedance. A mismatch alters fault current levels—recalculate relay coordination.

2. Cable Termination – Oil units use bushing terminals at top or side; cast resin models often feature bottom-entry or front-facing cable boxes. Verify lug sizes and bending radii. Lugao Power provides optional copper or aluminium terminal adapters for seamless retrofits.

3. Cooling Clearance – Oil transformers tolerate enclosed spaces with minimal airflow. Dry-type units demand 300–500 mm free air circulation on all sides. Without this, the 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer derates by 8–10% per 10°C above 40°C ambient.

4. Earthing System – Cast resin transformers have higher capacitive leakage current due to epoxy permittivity. Upgrade the neutral earthing resistor (NER) sizing to avoid transient overvoltages.

5. Noise Level – Oil dampens core vibration; dry-type emits 55–65 dBA at 1 metre. If the transformer sits near offices, specify acoustic enclosures—Lugao Power offers silencer panels reducing noise to ≤50 dBA.

Operational Efficiency: Real-World Data

At 75% average loading—typical for commercial buildings—the 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer delivers 0.8% higher efficiency, translating to €1,050 annual savings per unit. Over a 25-year service life, that single metric justifies the premium price of cast resin technology.

FAQ – Common Questions About the 10kV 500kVA Cast Resin Dry-Type Transformer

Q1: Can I run the 10kV 500kVA cast resin dry-type transformer at 100% continuous load without forced cooling?
A: Yes, but with conditions. The transformer is rated for continuous 100% load in ambient temperatures up to 40°C (per IEC 60076-11). However, winding hot-spot temperature must remain below 155°C for Class F insulation. At 100% load, natural convection (AN) keeps the temperature rise within 100°K over ambient. If your site exceeds 40°C or has poor ventilation, the unit will self-derate. Lugao Power recommends forced-air cooling (AF) fans for 100% load in tropical climates—this boosts capacity to 120% while extending insulation life by 8–10 years.

Q2: How do I test partial discharge (PD) levels after installation, and what values are acceptable?
A: PD testing is mandatory per IEEE C57.124. Use a coupling capacitor and a PD detector calibrated to 5 pC sensitivity. For a new 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer, the acceptable PD level at 1.1 × rated voltage (11 kV) is ≤10 pC. After installation, perform a sweep frequency response analysis (SFRA) to benchmark winding movement. Lugao Power provides factory PD reports with each unit, and we recommend field PD testing at 6-month intervals for the first year, then annually. Any PD spike above 50 pC indicates voids or delamination—immediate inspection is required.

Q3: What is the payback period if I replace a 15-year-old oil transformer with this cast resin model?
A: Calculate three direct benefits: (a) energy savings – at 75% load, €1,050/year as shown above; (b) maintenance reduction – oil filtration/testing costs ~€600/year versus dry-type visual inspection ~€150/year, saving €450/year; (c) insurance premium reduction – many underwriters offer 12–18% lower fire-risk premiums for dry-type, roughly €300/year on a €2M policy. Total annual benefit ≈ €1,800. The installed cost of a Lugao Power 10kV 500kVA unit is approximately €14,500–€16,500 (depending on enclosure and fans). Payback = €15,500 / €1,800 ≈ 8.6 years. Since the transformer's design life is 30+ years, the net positive return exceeds 20 years of free operation.

The Verdict: Direct Replacement – Yes, But With Engineering Rigour

A 10kV 500kVA Efficient 3-Phase Cast Resin Dry-Type Transformer can physically replace an oil-filled unit in the same footprint if you address impedance, cooling, earthing, and terminations. It is not a "plug-and-play" exchange, but the safety, environmental, and efficiency gains are undeniable. Lugao Power supplies complete retrofit kits including floor mounting rails, flexible copper links, and digital temperature monitors that interface with your existing SCADA.
