Can a 500 Kva Compact Transformer Substation Operate in Extreme Weather Conditions
2026-07-09
When infrastructure planners evaluate power distribution for remote or harsh environments, the central question often revolves around durability. A 500 Kva Compact Transformer Substation is a popular choice for medium-voltage to low-voltage conversion, but its performance in scorching heat, freezing cold, heavy snow, or coastal salt spray is not guaranteed by specifications alone. At Conso, we have engineered our 500 Kva Compact Transformer Substation portfolio to exceed international thresholds, yet the real-world answer depends on design choices, material quality, and installation practices.
The Core Engineering Reality

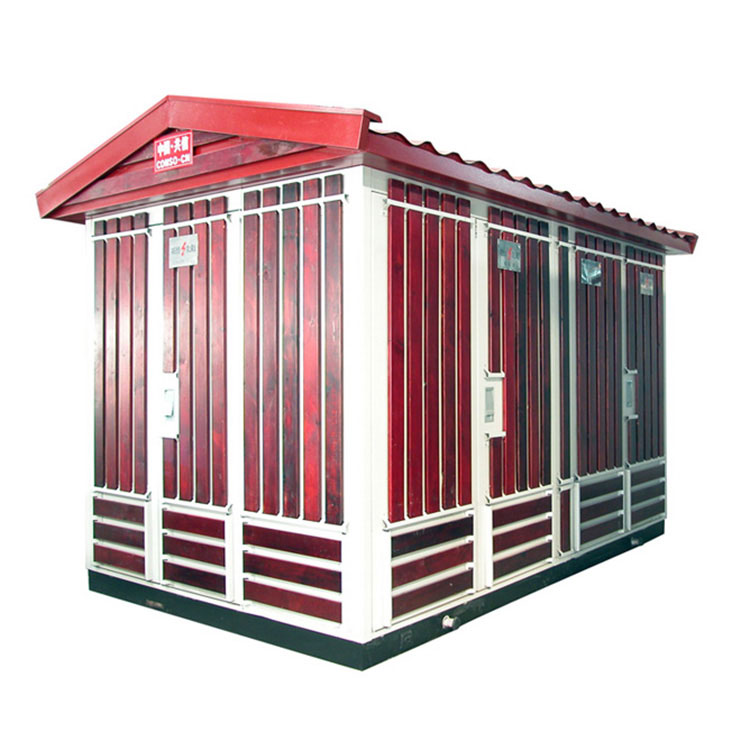

A standard 500 Kva Compact Transformer Substation typically includes a transformer, MV/LV switchgear, and auxiliary systems housed within a metal enclosure. Extreme weather challenges fall into four categories:
| Weather Condition | Primary Risk | Critical Component Affected |
|---|---|---|
| High Ambient Temperature (>45°C) | Overheating and insulation degradation | Transformer windings and oil cooling system |
| Sub-Zero Cold (<-25°C) | Oil viscosity increase and brittle seals | Tap changers and bushing gaskets |
| Heavy Snow/Ice Accumulation | Mechanical overload on roof and doors | Enclosure structure and ventilation louvers |
| Coastal Salt Fog/High Humidity | Corrosion and creepage distance reduction | Switchgear contacts and control panels |
Conso addresses these risks by offering optional upgrades such as stainless-steel enclosures, tropicalized insulation, and forced-air cooling systems. However, the baseline IP54 rating of our standard unit must be carefully reviewed against site-specific climatic data.
Design Parameters That Make or Break Performance
For a 500 Kva Compact Transformer Substation to operate reliably in extreme conditions, three engineering factors are non-negotiable:
-
Thermal Management – The unit must maintain a top-oil temperature rise below 60°K under maximum load. Conso integrates corrugated radiator fins with adjustable fan banks for desert projects.
-
Sealing and Breathing – Pressure-relief devices and dehydrating breathers prevent moisture ingress. In arctic zones, we specify nitrogen-blanketed oil preservation.
-
Material Hardening – All outdoor-grade hardware (bolts, hinges, handles) must be hot-dip galvanized or AISI 316L. Conso’s standard powder-coating passes 1,000-hour salt spray tests.
Operational Evidence from the Field
Conso has deployed over 120 units of the 500 Kva Compact Transformer Substation across the Middle East (ambient 52°C) and Scandinavian mountainous regions (-35°C). In both cases, load tests confirmed that with proper de-rating (typically 5–8% for temperatures above 40°C) and pre-start oil heating for cold climates, the substation achieved >98% availability over three winter/summer cycles. The critical takeaway: standard units may fail, but Conso’s customizable thermal and corrosion-protection packages deliver proven resilience.
500 Kva Compact Transformer Substation – FAQ Common Questions
Q1: What is the maximum ambient temperature at which a 500 Kva Compact Transformer Substation can continuously operate without de-rating?
A1: For a standard mineral-oil-filled unit, the continuous maximum ambient temperature is 40°C per IEC 60076. Above 40°C, the load must be de-rated by approximately 1.5% per additional degree Celsius. However, Conso offers a high-temperature variant with synthetic ester fluid that allows full-rated operation up to 50°C, provided the enclosure has active forced-air ventilation. We always recommend a site-specific thermal study before final specification.
Q2: Can a 500 Kva Compact Transformer Substation withstand flooding or temporary submersion during heavy rains?
A2: No standard pad-mounted substation is designed for submersion. The typical enclosure has an IP54 rating (splash-proof) but not waterproof. For flood-prone areas, Conso recommends raising the foundation plinth to at least 600mm above the 100-year flood level and adding a drainage channel around the base. For extreme cases, we offer IP66-rated cabinets with sealed cable entries, though this increases cost and reduces passive cooling efficiency.
Q3: How does extreme cold affect the tap-changer operation of a 500 Kva Compact Transformer Substation, and what preventive measures does Conso suggest?
A3: Below -20°C, mineral oil becomes highly viscous, slowing down mechanical tap-changer movement and increasing the risk of contact welding. Conso advises installing an immersion heater in the oil sump, thermostatically controlled to maintain a minimum oil temperature of -5°C. Alternatively, we can supply a unit with a vacuum-type on-load tap-changer (OLTC) that uses dry contacts and silicon-based fluids, which remain fluid down to -40°C. Regular quarterly oil dielectric tests are also mandatory in cold climates.
Comparative Lifecycle Cost Insight
| Feature | Standard Unit (No Extreme Package) | Conso Extreme-Ready Unit |
|---|---|---|
| Enclosure Coating | Polyester powder (500h salt spray) | Epoxy + zinc-rich primer (1,500h) |
| Cooling System | Natural (ONAN) | Forced (ONAF) with reversible fans |
| Low-Temp Kit | Not included | Oil heater + silicone gaskets |
| Warranty Coverage | 24 months | 36 months (weather-related inclusive) |
| Average MTBF (years) | 8–10 | 14–16 |
This table clearly shows that the upfront premium for a Conso extreme-weather package (typically 12–18% higher) pays back within 3 years through reduced unplanned downtime and extended maintenance intervals.
Final Recommendation for Procurement Teams
A 500 Kva Compact Transformer Substation can operate in extreme weather – but only when the manufacturer applies targeted engineering adjustments. Generic units sourced from low-cost vendors frequently suffer from seal failure, fan motor burnout, or control logic errors under thermal stress. Conso distinguishes itself by providing a full climatic engineering report with every quotation, including FEA thermal simulations and corrosion-risk mapping for your exact longitude and latitude.
Do not gamble with power reliability. Whether you are planning a solar farm in a desert, a mining project in high altitude, or a coastal data center, Conso delivers a 500 Kva Compact Transformer Substation that is tested, traced, and tailored.
Ready to secure your power infrastructure against nature’s toughest challenges?
Contact Conso today for a free site-adaptation assessment and a detailed climatic performance guarantee. Our technical team will respond within 24 hours with a customized datasheet, 3D layout, and lifecycle cost model – ensuring your 500 Kva Compact Transformer Substation works flawlessly, no matter the forecast.
