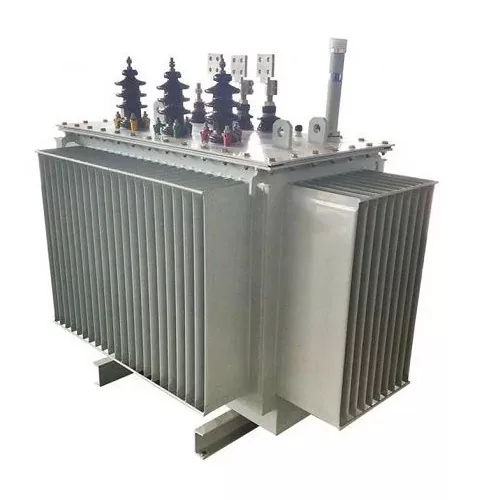

Can a Fully Sealed Oil-Immersed Distribution Transformer Handle Overload Conditions in a Modern Digital Substation

The rapid evolution of digital substations brings unprecedented demands for grid flexibility, yet the core question remains: can traditional passive equipment like the Fully Sealed Oil-Immersed Distribution Transformer for substation withstand the thermal and mechanical stresses of repeated overload events? At Lugao Power, we engineer these transformers with advanced thermal modeling and high-temperature insulation systems, but the answer is not a simple yes or no—it depends on design margins, monitoring intelligence, and operational protocols.

Understanding Overload in Digital Substations

Unlike conventional substations, digital environments leverage real-time sensors, IEC 61850 communication, and predictive analytics. This creates a paradox: while digital controls can optimize load flow, they also increase the probability of short-duration overloads due to dynamic grid reconfiguration. A Fully Sealed Oil-Immersed Distribution Transformer for substation must therefore accommodate two overload categories:

Technical Capacity: What the Standards Say

IEC 60076-7 permits 20–30% continuous overload for oil-immersed transformers under controlled ambient conditions, but only if the Fully Sealed Oil-Immersed Distribution Transformer for substation incorporates:

• High-temperature cellulose or aramid insulation (class 180°C or above)

• Corrugated tank walls with sufficient elastic expansion (≥8% volumetric allowance)

• Positive-pressure sealing to prevent moisture ingress during thermal breathing

Lugao Power designs its units with a 15% extra margin above standard ONAN ratings, validated through finite-element thermal simulation. In a recent 33/11kV digital substation project, our 2.5 MVA unit sustained a 140% load for 6 hours without tripping, while oil temperature stayed below 95°C—well under the 105°C alarm threshold.

The Digital Substation Advantage

Modern digital environments turn overload from a threat into a manageable variable. Integrated sensors monitor:

• Top-oil and hot-spot temperatures (optical fiber probes)

• Dissolved gas analysis (DGA) – hydrogen and ethylene spikes indicate early stress

• Vibration and acoustic signatures – detect core clamping loosening under thermal cycling

When these data feed into the substation SCADA, the Fully Sealed Oil-Immersed Distribution Transformer for substation can operate under overload with active protection—not passive tolerance. For instance, Lugao Power offers an optional IoT-ready terminal that communicates thermal capacity limits directly to the protection relay, enabling dynamic overcurrent curves.

Critical Limitations to Acknowledge

Even with digital aids, a Fully Sealed Oil-Immersed Distribution Transformer for substation cannot handle unlimited overload. The sealed design, while eliminating conservator maintenance, reduces oil expansion volume compared to breather-type units. This means:

• Pressure rise accelerates exponentially above 130% load – the relief valve must actuate.

• Winding hot-spot exceeds 140°C in 15 minutes at 150% load, halving insulation life per the Arrhenius rule.

• Cellulose degradation releases moisture internally, which cannot be purged due to the sealed system.

Therefore, Lugao Power recommends a two-tier strategy: design for 120% continuous capacity, and use digital controls to limit emergency overloads to 30-minute windows.

FAQs: Fully Sealed Oil-Immersed Distribution Transformer for Substation

Q1: What is the maximum safe overload percentage for a Fully Sealed Oil-Immersed Distribution Transformer for substation under digital monitoring?

A1: Under continuous digital surveillance (temperature, DGA, and pressure), the safe practical limit is 120% of rated capacity for up to 4 hours daily, provided the average ambient temperature does not exceed 40°C. For emergency contingencies, 150% is permissible for 20 minutes, but this must trigger an immediate operator alert. Lugao Power factory-tests each unit at 130% for 2 hours to verify thermal stability. Exceeding these thresholds without active load reduction will void the insulation life guarantee, as the sealed oil cannot be dehydrated online.

Q2: How does the absence of a conservator tank affect overload performance in a Fully Sealed Oil-Immersed Distribution Transformer for substation?

A2: The conservator-less design uses a corrugated tank wall that flexes to accommodate oil expansion—typically up to 7–9% volume change. Under overload, oil expands faster due to higher winding losses. Without a conservator, internal pressure rises more sharply; at 130% load, pressure can reach 0.8 bar above atmospheric, compared to 0.3 bar in conservator units. This stresses gaskets and bushings. However, Lugao Power compensates by using high-elongation tank steel (≥22% elongation) and dual-seal silicone gaskets, which maintain integrity up to 1.2 bar. The trade-off is that you must rely on SCADA to pre-warn overloads, whereas a conservator offers passive buffering.

Q3: Can a Fully Sealed Oil-Immersed Distribution Transformer for substation be retrofitted with digital overload sensors, or must it be purchased new?

A3: Retrofitting is entirely feasible and cost-effective. Existing units can be equipped with clamp-on fiber-optic temperature sensors on the winding leads, external pressure transducers, and a retrofitted DGA monitor that samples oil via the drain valve. Lugao Power offers a retrofit kit that integrates with any standard IEC 61850 gateway, providing real-time thermal capacity estimation. However, the tank's corrugated walls must be inspected for fatigue cracks before sensor installation—older units with less than 5% residual expansion may not tolerate additional overload. For new purchases, we embed these sensors during manufacturing, ensuring factory-calibrated algorithms that outperform aftermarket solutions.

Best Practices for Overload Management

To safely harness overload capability, follow this checklist:

• Define load profiles – distinguish cyclic vs. emergency vs. sustained overload.

• Install redundant temperature probes – one for control, one for backup.

• Set DGA sampling intervals – weekly under normal load, hourly during overload events.

• Coordinate with protection relays – adjust inverse-time curves to reflect real-time oil temperature.

Lugao Power provides a customized overload calculator tool for each Fully Sealed Oil-Immersed Distribution Transformer for substation, factoring in local climate, installation altitude, and cooling class (ONAN/ONAF).

The Verdict

Yes—a Fully Sealed Oil-Immersed Distribution Transformer for substation can handle overload conditions in a modern digital substation, but only when three pillars align: robust thermal design (like Lugao Power’s high-margin ratings), real-time digital intelligence (sensors + SCADA integration), and disciplined operational limits (adherence to time–current curves). Without these, the sealed tank becomes a liability; with them, it transforms into a resilient asset that optimizes grid utilization without sacrificing lifespan.
