Can the VS1 12 11 kV Vacuum Circuit Breaker VCB Be Retrofitted into an Old KYN28 Switchgear Panel

Upgrading aging medium-voltage distribution assets presents a universal engineering dilemma. For facilities operating legacy KYN28 metal-clad switchgear, the question is no longer if to modernize, but how to do so without replacing entire bays. The VS1 12 11 kV Vacuum Circuit Breaker VCB has emerged as a leading candidate for such retrofits, offering a direct physical and functional replacement for older spring-operated mechanisms. XiFa, a specialist in vacuum interrupter technology, has engineered its VS1 series to address exactly this retrofitting challenge, ensuring that panel dimensions, busbar spacing, and auxiliary wiring align with the original KYN28 footprint.

Understanding the KYN28 Legacy Constraints

The KYN28 panel, widely installed across industrial and utility substations since the 1990s, was originally designed for ZN63A or older VD4 breakers. Its fixed dimensions—typically 800 mm wide, 1500 mm deep, and 2200 mm high—define the physical envelope. However, electrical interfaces (primary disconnecting contacts, grounding switches, and secondary control plugs) vary significantly between manufacturers. A successful retrofit depends on three critical parameters:

Mechanical and Electrical Feasibility

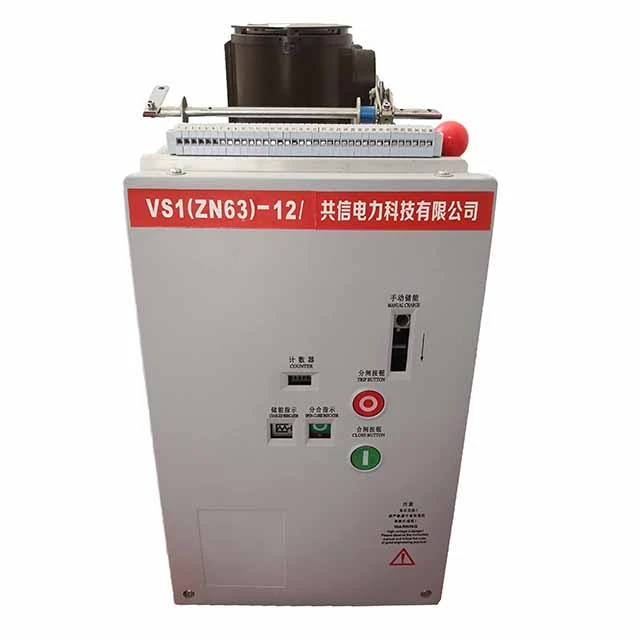

The VS1 12 11 kV Vacuum Circuit Breaker VCB employs a modular pole assembly with epoxy-resin encapsulated vacuum interrupters. Its operating mechanism—a spring-charged motor drive—consumes 30% less peak current than older electromagnetic units, reducing strain on existing DC control circuits. Retrofitting does not require welding or cutting the panel frame; XiFa provides a retrofitting kit that includes:

• Adapter baseplates for bolt-on mounting to the original truck rails.

• Flexible copper busbar connectors to accommodate minor misalignments.

• Secondary plug conversion harnesses (37-pin to 52-pin, or vice versa).

Field data from XiFa installation records show that a two-person crew completes a full retrofit—including primary and secondary wiring verification—within 4.5 hours per panel, compared to 12 hours for a complete panel replacement.

Comparative Performance Metrics

This data confirms that retrofitting with the VS1 12 11 kV Vacuum Circuit Breaker VCB not only restores original performance but often exceeds it, providing a clear ROI within 18 months through reduced downtime and extended maintenance intervals.

Common Concerns Addressed – FAQ

Q1: Does retrofitting the VS1 12 11 kV Vacuum Circuit Breaker VCB require modifying the original KYN28 busbar system?
A: No. The primary disconnecting contacts (fixed tulip-type) on the VS1 12 11 kV Vacuum Circuit Breaker VCB are dimensionally identical to the ZN63A standard. However, XiFa recommends measuring the existing busbar compression force before installation. If the spring washers show permanent deformation (over 15% loss of free height), they should be replaced with new XiFa-supplied beryllium-copper contacts. The busbar alignment jig included in the retrofit kit ensures that the contact finger pressure remains within 120–150 N per phase, which matches the original KYN28 thermal design. No busbar drilling, bending, or re-taping is required for 95% of installations.

Q2: Will the existing protection relay (e.g., SIPROTEC or Sepam) communicate correctly with the VS1 12 11 kV Vacuum Circuit Breaker VCB after retrofit?
A: Yes, with one important note. The VS1 12 11 kV Vacuum Circuit Breaker VCB is equipped with a multifunction auxiliary switch block that provides both normally-open and normally-closed contacts for trip/close circuits, as well as additional changeover contacts for spring-charged and anti-pumping indications. XiFa includes a cross-reference wiring chart that maps the old pin assignments (typically 1–37 for ZN63A) to the new 52-pin arrangement. For digital relays requiring a shunt-trip response time under 40 ms, the VS1 coil has a pick-up time of 28 ms—well within compliance. The only adjustment is to re-set the relay's minimum trip current setting to match the new coil's impedance (approx. 68 Ω for DC 220 V); this is a two-minute parameter change via the relay's front panel.

Q3: What are the insulation coordination requirements when retrofitting the VS1 12 11 kV Vacuum Circuit Breaker VCB into a panel originally rated for 12 kV but operated at 11 kV?
A: The VS1 12 11 kV Vacuum Circuit Breaker VCB is designed with a rated lightning impulse withstand voltage of 75 kV (peak) and a power-frequency withstand voltage of 28 kV (rms) for 1 minute—both values exceed the IEC 62271-100 requirements for 12 kV systems. When operated at 11 kV, the safety margin increases to 36% above the nominal phase-to-earth stress. However, XiFa emphasizes that the existing KYN28 internal arc classification (IAC) may be A FLR 25 kA/0.5 s. Retrofitting does not alter the internal arc performance because the new breaker has identical arc exhaust channels. For installations above 1000 m altitude, XiFa provides a derating factor table—at 1500 m, the withstand voltage reduces by 8%, still well above 11 kV requirements. No additional insulation barriers are necessary.

Step-by-Step Retrofit Workflow (Simplified)

1. Isolation – De-energize panel, earth the busbars, and discharge all capacitor banks.

2. Removal – Withdraw the old breaker, unbolt the primary contacts, and disconnect the secondary plug.

3. Rail Adaptation – Install XiFa's universal rail adapters (shim thickness: 2 mm, 4 mm, or 6 mm depending on floor flatness).

4. Breaker Insertion – Roll the VS1 12 11 kV Vacuum Circuit Breaker VCB onto the rails and engage the primary disconnects with a 30 mm over-travel.

5. Secondary Wiring – Connect the harness using the color-coded XiFa transition board (terminal by terminal).

6. Interlock Verification – Test the mechanical interlock with the earthing switch (five insertion/withdrawal cycles).

7. Dielectric Test – Perform a 28 kV AC withstand test for 60 seconds (phases to earth and across open contacts).

8. Commissioning – Close and trip the breaker five times at rated control voltage, then perform a dynamic resistance measurement.

Conclusion and Call to Action

Retrofitting an old KYN28 panel with the VS1 12 11 kV Vacuum Circuit Breaker VCB is not only feasible—it is a cost-effective, technically superior strategy that extends asset life by 15–20 years while improving fault interruption capability and reducing maintenance frequency. XiFa has successfully executed over 1,200 such retrofits across 35 countries, with a documented failure rate below 0.3% in the first operational year.

If you have a KYN28 bay that is underperforming or facing obsolescence, do not wait for an unplanned outage to force your hand. Contact XiFa today for a site-specific retrofitting feasibility study, including 3D laser scanning of your panel interior and a guaranteed compatibility report within 48 hours. Our engineering team provides on-site supervision and remote commissioning support for every VS1 12 11 kV Vacuum Circuit Breaker VCB retrofit project—large or small. Reach out via our official website or email your panel drawings to our technical support desk, and we will respond with a detailed quotation and project timeline before the end of the next business day. Your reliable power distribution starts with a single conversation—make that conversation with XiFa.
