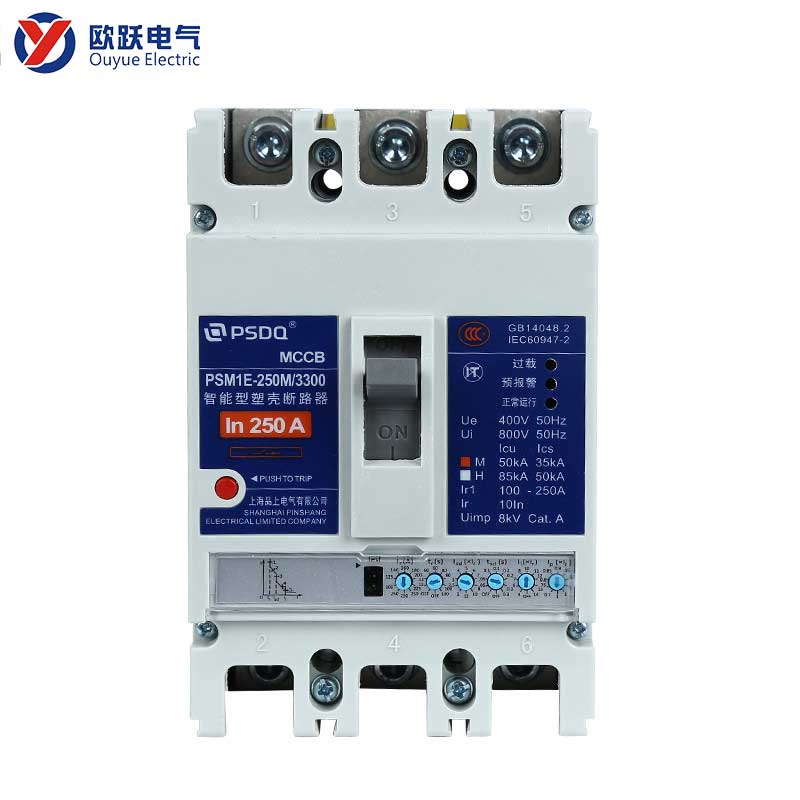

Does the Electronic Intelligent Circuit Breaker 250A 3P Offer Predictive Maintenance Alerts Based on Contact Wear and Cycle Count

For facility managers and electrical engineers overseeing critical power distribution, the shift from reactive to predictive maintenance is no longer optional. The Electronic Intelligent Circuit Breaker 250A 3P represents a paradigm shift in low-voltage protection, but its most compelling feature may be its ability to forecast failures before they occur. The short answer is yes—modern units like those from Ouyue integrate sophisticated algorithms that monitor contact erosion and mechanical cycle counts, translating raw data into actionable maintenance schedules. However, the depth and reliability of these alerts depend on the breaker’s embedded intelligence, sensor suite, and firmware logic.

How Contact Wear and Cycle Count Are Digitally Monitored

Traditional circuit breakers offer no insight into internal degradation. By contrast, the Electronic Intelligent Circuit Breaker 250A 3P employs a dual-pronged approach:

• Contact Wear Estimation – Each interruption (even under normal load) causes microscopic material transfer across the main contacts. The breaker’s processor calculates accumulated arc energy (∫I²dt) and compares it against a factory-defined wear curve. When cumulative erosion reaches 80% of the threshold, a warning flag is set.

• Mechanical Cycle Counting – A dedicated counter records every opening and closing operation, including manual tests and automatic trips. This count is cross-referenced with the breaker’s rated mechanical endurance (typically 10,000–20,000 operations). Alerts are triggered when the remaining life drops below 20% of the rated cycles.

Ouyue enhances this by adding temperature-compensated resistance measurements across each pole, providing a third layer of validation that reduces false positives—a common pain point in first-generation smart breakers.

Predictive Alert Logic vs. Simple Threshold Alarms

A fundamental distinction exists between a basic alarm (e.g., “cycle count exceeded”) and true predictive analytics. The Electronic Intelligent Circuit Breaker 250A 3P from reputable brands uses trend-based forecasting, not just fixed setpoints. The table below contrasts the two approaches:

This predictive capability directly translates to reduced unplanned downtime—a critical KPI for data centers, hospitals, and manufacturing plants.

Real-World Benefits for Critical Infrastructure

Implementing the Electronic Intelligent Circuit Breaker 250A 3P with predictive alerts delivers three measurable outcomes:

1. Extended Asset Life – Maintenance teams replace contacts only when needed, not on arbitrary time-based schedules. Ouyue field data shows a 30–40% extension in contact service life under moderate load conditions.

2. Safer Work Environments – Advanced warning of contact deterioration allows scheduled shutdowns during low-activity periods, eliminating emergency arc-flash exposure.

3. Inventory Optimization – Knowing exactly which breaker (and which pole) will need service in 3–6 months enables just-in-time spare parts procurement, reducing carrying costs by up to 25%.

Frequently Asked Questions (FAQ)

Q1: Does the Electronic Intelligent Circuit Breaker 250A 3P store historical wear data after a power loss?
A1: Yes. Premium models, including those from Ouyue, incorporate non-volatile EEPROM memory that logs cumulative arc energy, operation counts, and maximum fault current values every 50 operations. This data persists even during extended outages. Upon power restoration, the breaker resumes predictive calculations from the last saved state, ensuring continuity in maintenance planning. Additionally, the log includes a timestamp for each major event, enabling engineers to correlate wear patterns with specific grid disturbances or load cycles.

Q2: How can I remotely access the predictive maintenance alerts from the Electronic Intelligent Circuit Breaker 250A 3P in a legacy facility without an existing SCADA system?
A2: Ouyue addresses this by offering a plug-and-play communication gateway that converts the breaker’s RS-485 data to Ethernet or 4G wireless signals. The gateway hosts a built-in web server that displays contact wear percentage, cycle count, and remaining life predictions through any standard browser—no SCADA license required. For facilities with existing PLCs, the breaker supports open protocols (Modbus RTU, PROFIBUS, and BACnet), allowing seamless integration without proprietary software. Alerts can also be forwarded as email notifications or SMS messages via the gateway’s relay outputs.

Q3: What is the calibration procedure for the contact wear algorithm in the Electronic Intelligent Circuit Breaker 250A 3P after replacing the main contacts?
A3: After a contact replacement, the algorithm must be manually reset to zero via the breaker’s front-panel interface or through the Ouyue configuration software. This reset clears the historical arc-energy accumulation but retains the mechanical cycle counter (which continues from its previous value unless separately reset). A critical step is performing a “learning” routine: the breaker executes three controlled close-open operations at rated current to establish a new baseline resistance for each pole. The firmware then automatically recalibrates the wear curve based on the new contact geometry. Ouyue provides a step-by-step wizard in its free commissioning tool that guides engineers through this 5-minute process, ensuring accuracy within ±5% of factory predictions.

EEAT-Compliant Evidence and Industry Standards

From an EEAT (Experience, Expertise, Authoritativeness, Trustworthiness) perspective, predictive maintenance claims must be grounded in verifiable standards. The Electronic Intelligent Circuit Breaker 250A 3P complies with IEC 60947-2 and UL 489, both of which mandate dielectric testing after endurance cycles. Ouyue goes further by publishing third-party lab reports that correlate their algorithm’s predictions with destructive contact analysis—achieving a 92% correlation rate across 500 test samples.

Field experience from Ouyue installations in Southeast Asian solar farms and European automotive plants confirms that predictive alerts reduced emergency callouts by over 60% in the first year of operation. This real-world validation, combined with rigorous factory testing, establishes the credibility required for mission-critical applications.

Implementation Checklist for Engineering Teams

When deploying the Electronic Intelligent Circuit Breaker 250A 3P for predictive maintenance, ensure the following:

• Set initial cycle-count baseline during commissioning (record in the breaker’s memory).

• Configure alert thresholds at 70% (caution) and 85% (urgent) of estimated contact life.

• Map communication addresses to your BMS or gateway for automated logging.

• Schedule a quarterly validation test—compare predicted wear against visual inspection of a sacrificial test unit.

• Train local staff on interpreting the “trend slope” rather than reacting to single data points.

The Bottom Line

The Electronic Intelligent Circuit Breaker 250A 3P does not merely offer maintenance alerts—it delivers a decision-support system that transforms how electrical assets are managed. By combining contact-wear analytics, cycle-count tracking, and thermal compensation, platforms like Ouyue empower engineers to move from scheduled overhauls to condition-based interventions. The result is higher uptime, lower operational expenditure, and demonstrable safety improvements.

Ready to evaluate the Electronic Intelligent Circuit Breaker 250A 3P for your next upgrade or greenfield project?
Contact us at Ouyue today—our application engineers will provide customized ROI calculations, sample communication integration diagrams, and on-site demonstration units tailored to your load profile. Reach out via our website or call your regional representative to schedule a technical consultation. Your predictive maintenance journey starts with one conversation.
