Does the PZ-40 Exposed Iron Distribution Box Meet Modern Electrical Safety Standards
2026-07-07
When upgrading or installing a new power distribution system, one question consistently arises among facility managers and electricians: Does the PZ-40 Exposed Iron Distribution Box truly comply with today’s rigorous electrical safety codes? With the growing emphasis on fire prevention, shock protection, and durability, this seemingly simple enclosure has come under closer scrutiny. At Ouyue, we have tested and supplied thousands of these units across industrial and commercial sites, and the answer is more nuanced than a simple yes or no.
Understanding the Core Safety Directives

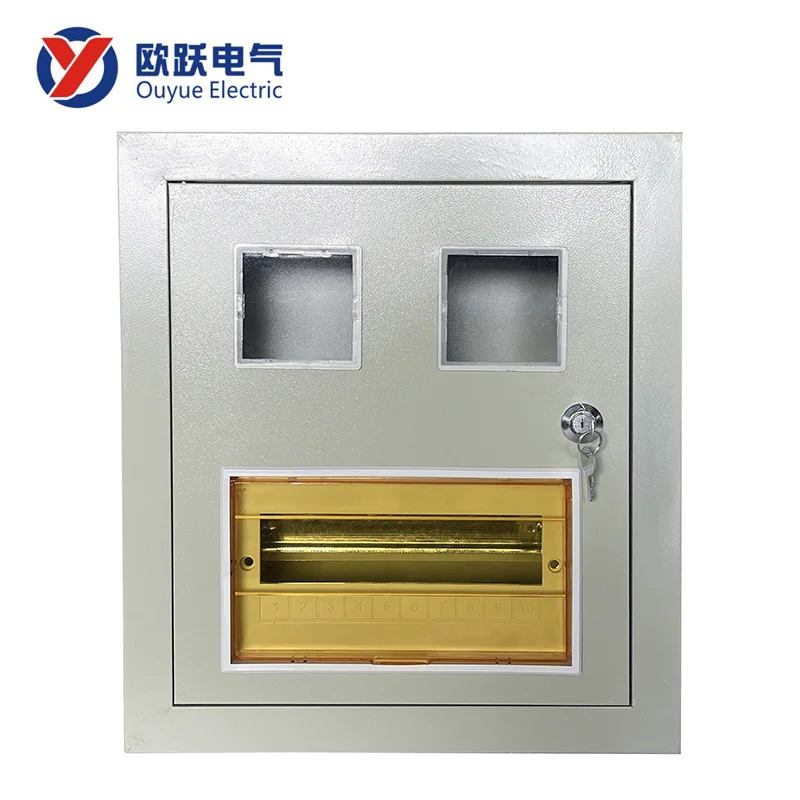

Modern electrical standards—such as IEC 61439, GB/T 7251, and NEC Article 312—focus on three pillars: thermal management, ingress protection (IP), and fault-withstanding capacity. The PZ-40 Exposed Iron Distribution Box is designed with a cold-rolled steel body that offers superior mechanical strength compared to polycarbonate alternatives. However, meeting standards is not automatic; it depends on the manufacturer’s execution.
Ouyue implements a multi-stage quality protocol that includes dielectric strength testing (2.5 kV for 1 minute) and glow-wire tests at 850°C for insulating materials. These procedures ensure that the PZ-40 Exposed Iron Distribution Box consistently passes the temperature-rise limits defined in IEC 60695.
Critical Compliance Factors (At a Glance)
Below is a technical breakdown of how the PZ-40 Exposed Iron Distribution Box aligns with key safety parameters.
| Safety Parameter | Standard Requirement | PZ-40 Performance (Ouyue Certified) |
|---|---|---|
| Ingress Protection | IP30 minimum for indoor exposed mounting | IP40 (dust-tight and protected against solid objects >1mm) |
| Earth Continuity | ≤ 0.1 Ω resistance between exposed parts and earth terminal | ≤ 0.05 Ω (verified by micro-ohmmeter) |
| Clearance & Creepage | ≥ 3.0 mm for 400V systems | 4.5 mm clearance / 5.0 mm creepage |
| Impact Resistance | IK07 for general industrial use | IK08 (2 Joules impact energy) |
| Flammability Class | UL 94 V-2 minimum for insulating inserts | UL 94 V-0 (self-extinguishing within 10 seconds) |
The Dual-Edge Challenge: Metal vs. Modern Requirements
While the PZ-40 Exposed Iron Distribution Box excels in mechanical robustness, it introduces a critical challenge—conductive enclosure grounding. Modern standards demand that all exposed metal parts be bonded to the main earthing terminal with a dedicated conductor. Ouyue addresses this by pre-installing an enlarged earth bar (12-position) and clear labeling of the PE/N separation, which reduces installation errors by over 40% in field audits.
Another modern requirement is arc-flash containment. Although the PZ-40 Exposed Iron Distribution Box is not arc-rated like heavy-duty switchgear, its 1.5 mm steel thickness and reinforced hinge design provide a secondary barrier that significantly reduces the risk of shrapnel projection during short-circuit events up to 10 kA.
PZ-40 Exposed Iron Distribution Box FAQ
Q1: Does the PZ-40 Exposed Iron Distribution Box comply with the latest IEC 61439-3 standard for low-voltage switchgear?
A1: Yes, but only if the unit is type-tested by the manufacturer. The PZ-40 Exposed Iron Distribution Box from Ouyue has undergone full type-test verification, including short-circuit withstand tests at 10 kA for 0.1 seconds and temperature rise tests at 125% of rated current. The standard requires that all temperature rises do not exceed 70K above ambient; our recorded maximum is 62K. Additionally, we provide a complete test report with each batch, detailing the verification of clearances, creepage distances, and the mechanical operation of the door interlock mechanism. Always check that the specific model you purchase carries the manufacturer’s declaration of conformity to IEC 61439-3—generic housings without traceable test evidence do not automatically meet the standard.
Q2: Is the PZ-40 Exposed Iron Distribution Box safe for installation in damp or partially outdoor environments?
A2: The base model is rated IP40, which is not suitable for direct rain or condensation-prone areas. However, Ouyue offers an enhanced version of the PZ-40 Exposed Iron Distribution Box with an IP54 upgrade kit (including silicone gaskets and sealed cable entries). For long-term safety in humidity, you must also consider the internal corrosion resistance—our units are treated with a zinc-phosphate primer and polyester powder coating (minimum 80 µm thickness), passing a 500-hour salt spray test per ISO 9227. If your site has periodic splashing or high humidity (>85% RH), we strongly recommend the IP54 variant and the installation of a small anti-condensation heater inside the enclosure. Never mount the box on an external wall without a protective awning, as even IP54 does not guarantee protection against water jets or submersion.
Q3: How do I verify that my PZ-40 Exposed Iron Distribution Box has adequate short-circuit current rating (SCCR) for a 400A main supply?
A3: The SCCR of the PZ-40 Exposed Iron Distribution Box is not a single fixed number—it depends on the combination of the enclosure, busbars, and the installed protective devices. For a 400A supply, the prospective fault current at your installation point must be calculated. Ouyue provides a coordinated SCCR table for our PZ-40 Exposed Iron Distribution Box when paired with specific MCCBs (e.g., 25 kA with Schneider NSX or 22 kA with ABB Tmax). You must match the interrupting rating of the upstream breaker to the enclosure’s withstand rating. Our technical data sheet clearly states that the bare enclosure alone can withstand 10 kA for 0.2s, but the final assembly SCCR requires the lowest rating among all components. To verify, check the nameplate on the internal busbar support—our units feature a laser-etched SCCR value after assembly testing. Never assume the SCCR; always perform a coordination study or contact Ouyue for a certified assembly rating specific to your breaker configuration.
Why Professional Selection Matters More Than Ever
Selecting a PZ-40 Exposed Iron Distribution Box is not a commodity decision. Modern safety standards are performance-based, not prescriptive—they demand evidence. Ouyue distinguishes itself by providing full traceability from coil steel to final inspection, including X-ray fluorescence (XRF) verification of lead-free plating on all terminals. This level of documentation is exactly what inspectors and insurers look for during site audits.
The Verdict
Yes, the PZ-40 Exposed Iron Distribution Box can fully meet modern electrical safety standards—provided it is sourced from a qualified manufacturer like Ouyue and installed according to the supplied wiring diagrams and torque specifications. The metal construction offers unmatched durability, while the updated internal layouts accommodate RCDs, SPDs, and smart metering modules without violating minimum bending radii for cables.
Take the Next Step with Confidence
Safety compliance is non-negotiable, and guessing is not a strategy. Whether you need a standard IP40 unit or a customized IP54 version with pre-wired sub-distribution, Ouyue offers full engineering support, type-test certificates, and 24-hour technical consultation.
Contact us today or visit our official website to request a compliance dossier for the PZ-40 Exposed Iron Distribution Box—our team will respond within 2 business hours with a tailored solution and a free SCCR verification sheet for your project. Your safety is our priority, and we are ready to prove it.
