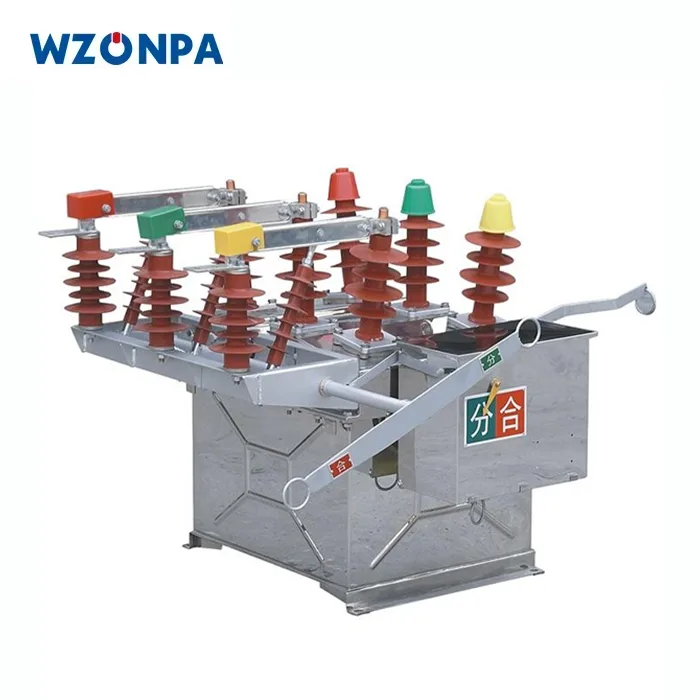

How Are Vacuum Circuit Breakers Tested for Reliability and Safety
2026-01-19
Ensuring the uninterrupted flow of electricity while guaranteeing absolute safety demands components of the highest caliber. Vacuum Circuit Breakers are critical guardians in medium-voltage power networks, and their flawless operation is non-negotiable. At Wzonpa, we understand that this reliability isn't accidental; it is the direct result of rigorous, standardized testing that validates every unit before deployment. This blog outlines the core tests that guarantee the reliability and safety of these essential devices.
The testing protocol for Vacuum Circuit Breakers is comprehensive, designed to simulate decades of operational stress within a controlled environment. Key tests include:
-
Dielectric Withstand Test: Verifies the insulation integrity by applying high voltage across contacts to ensure no current leaks.
-
Contact Resistance Test: Measures the resistance at the main contacts using a micro-ohmmeter; low resistance is crucial for efficiency and preventing overheating.
-
Mechanical Endurance Test: Simulates years of operation by performing thousands of open-close cycles to validate the mechanism's robustness.
-
Short-Circuit Breaking Test: The most critical test, performed in high-power labs, where the breaker must successfully interrupt a massive fault current.
A summary of key routine maintenance checks is presented below:
| Test Parameter | Purpose | Standard Reference |
|---|---|---|
| Insulation Resistance | Assess health of insulating components | IEC 62271-1 |
| Contact Timing | Verify open/close speed and synchronization | IEC 62271-100 |
| Vacuum Integrity | Check for loss of vacuum in the interrupter bottle | Manufacturer Spec |
Vacuum Circuit Breakers FAQ
What is the most critical test for a Vacuum Circuit Breaker?
The short-circuit breaking test is paramount. It proves the breaker's ability to safely interrupt a massive fault current, which is its primary safety function. This test validates the design of the vacuum interrupter and the operating mechanism under extreme electromagnetic stress.
How often should Vacuum Circuit Breakers be tested?
Routine maintenance tests like contact resistance and mechanical operation should be performed every 3-5 years, or as per the manufacturer's guidelines and service history. However, after any severe fault interruption, immediate inspection and testing are recommended to ensure no latent damage exists.
Can the vacuum level inside the interrupter be tested on-site?
Yes, a standard high-potential (Hi-Pot) test is a reliable indirect method. By applying a specified AC or DC voltage across the open contacts, technicians can ascertain the insulation strength, which directly correlates with an acceptable vacuum level. A collapse in withstand voltage indicates a loss of vacuum.
Trust in your protection system begins with validated performance. The rigorous testing behind every Wzonpa Vacuum Circuit Breaker ensures not just compliance, but exceptional longevity and safety for your electrical infrastructure.
Contact us today to discuss your specific requirements and learn how Wzonpa's rigorously tested and reliable Vacuum Circuit Breaker solutions can secure your operations.
