How Can a Low Voltage Shunt Capacitor Improve Industrial Power Efficiency?

In modern industrial and commercial electrical systems, maintaining stable power quality and reducing unnecessary operating costs are essential for efficient production. A Low Voltage Shunt Capacitor is a practical solution for improving power factor, compensating reactive power, and optimizing the performance of low-voltage distribution networks. By supplying reactive power locally, it helps reduce the additional current required from the power supply, relieve the burden on electrical equipment, and improve overall distribution efficiency. For manufacturers, electrical contractors, panel builders, and power distribution solution providers, selecting a suitable capacitor is an important step toward building a more reliable and cost-effective electrical system.

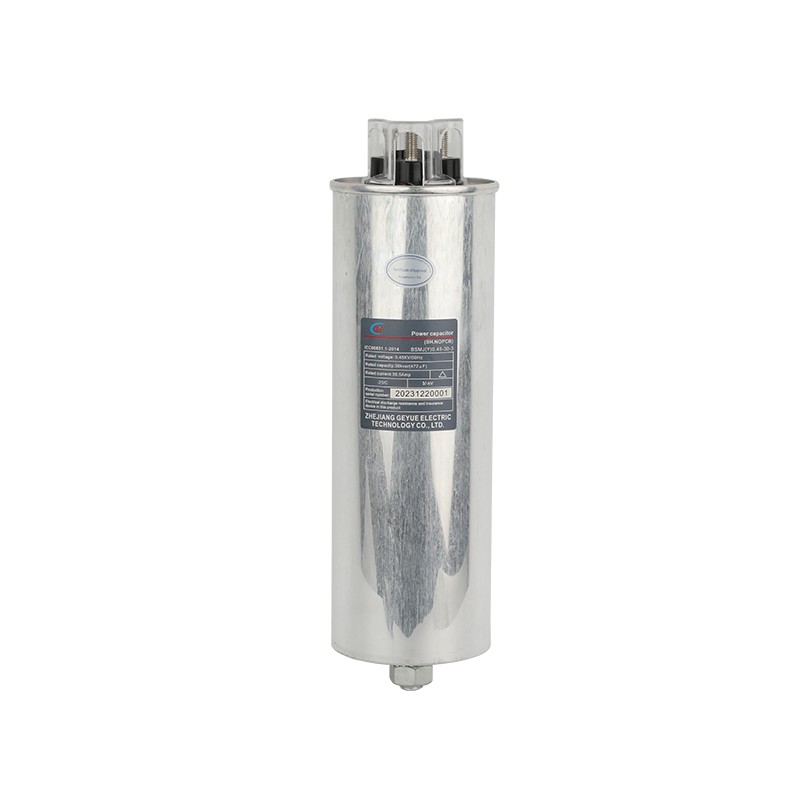

What Is a Low Voltage Shunt Capacitor?

A Low Voltage Shunt Capacitor is an electrical component connected in parallel with an electrical load or distribution bus. Its primary function is to provide capacitive reactive power that compensates for the inductive reactive power consumed by equipment such as motors, transformers, pumps, and compressors.

Many industrial loads operate with a lagging power factor because they require magnetic fields to function. Without adequate compensation, the electrical network must deliver additional reactive current, increasing the load on cables, transformers, and switchgear.

By installing a properly rated Low Voltage Shunt Capacitor, facilities can improve power factor and make better use of their existing electrical infrastructure.

Why Is Power Factor Correction Important?

Power factor affects how efficiently an electrical system uses its supplied capacity. A low power factor means that more apparent power is required to deliver the same amount of useful active power.

For industrial buyers, this can lead to higher current, increased electrical losses, reduced distribution capacity, and potential utility charges depending on the local electricity tariff.

A Low Voltage Shunt Capacitor helps address these problems through several important functions:

• Reactive power compensation: Supplies leading reactive power to offset part of the reactive demand from inductive loads.

• Power factor improvement: Helps bring the installation's power factor closer to its target.

• Reduced distribution losses: Lower current can reduce resistive losses in cables and transformers.

• Voltage support: Helps reduce voltage drops associated with reactive current in suitable installations.

• Capacity optimization: Frees up some electrical capacity in existing distribution equipment.

These benefits depend on appropriate capacitor sizing, installation conditions, and the characteristics of the connected loads.

How Does a Low Voltage Shunt Capacitor Work?

When inductive equipment operates, its current typically lags behind the supply voltage. A capacitor draws a leading current, allowing it to compensate for part of the inductive reactive current.

The result is a reduction in the reactive power that must be supplied by the upstream electrical network.

In practice, the compensation process generally involves three steps:

1. Evaluate the electrical load. Measure the existing power factor, active power demand, operating patterns, and reactive power requirements.

2. Select the compensation capacity. Determine the required capacitance or reactive power rating in accordance with the target power factor and system voltage.

3. Install and control the capacitor. Connect the capacitor using suitable switching and protective equipment, with fixed or automatic compensation selected according to load variations.

For installations with changing demand, an automatic power factor correction system can switch capacitor stages in and out as required. This helps prevent excessive compensation when the facility operates at a low load.

Where Are Low Voltage Shunt Capacitors Used?

Low Voltage Shunt Capacitors are widely used in electrical distribution systems where inductive loads create significant reactive power demand.

Their flexibility makes them suitable for various low-voltage applications, provided that the capacitor rating, operating environment, and protection arrangements match the installation requirements.

What Should Buyers Consider When Selecting a Capacitor?

Choosing the right Low Voltage Shunt Capacitor requires more than comparing prices. Electrical performance, operating conditions, compatibility, and long-term reliability should all be considered.

1. Rated Voltage and Frequency

The rated voltage must match the intended electrical system. Buyers should also confirm the operating frequency and ensure that the selected product is suitable for the application.

2. Reactive Power Rating

Capacitor capacity is commonly expressed in kilovars (kvar). An undersized capacitor may not achieve the desired power factor, while an oversized unit may cause overcompensation and excessive voltage under certain operating conditions.

3. Harmonic Conditions

Variable-frequency drives, rectifiers, and other nonlinear loads can generate harmonics. These harmonics may overload capacitors or create resonance problems. Where harmonic distortion is significant, an engineering assessment may indicate the need for detuned reactors or harmonic-filtering solutions.

4. Switching and Protection

Appropriate switching devices, overcurrent protection, discharge arrangements, and installation practices are essential for safe operation. Automatic compensation systems may require specialized capacitor-duty switching equipment.

5. Environmental Conditions

Ambient temperature, ventilation, humidity, installation space, and expected operating cycles should be considered when evaluating service life and maintenance requirements.

How Can Zhejiang Geyue Electric Technology Co., Ltd. Support Your Needs?

For electrical equipment distributors, control panel manufacturers, industrial users, and project contractors, choosing a suitable supplier is an important part of power quality management.

Zhejiang Geyue Electric Technology Co., Ltd. is a company to consider when sourcing low-voltage power factor correction products. Buyers evaluating its solutions should review the available product specifications, rated voltage, reactive power capacity, applicable standards, and compatibility with their electrical systems.

When comparing suppliers, procurement teams should pay particular attention to:

• Product specifications and application suitability.

• Quality control and relevant compliance documentation.

• Technical assistance with product selection.

• Compatibility with capacitor banks and automatic compensation equipment.

• Delivery arrangements and after-sales support.

A well-matched Low Voltage Shunt Capacitor can contribute to more efficient electrical distribution, better utilization of installed equipment, and improved management of reactive power costs.

Conclusion: Invest in More Efficient Power Distribution

A Low Voltage Shunt Capacitor plays an important role in industrial power factor correction by supplying reactive power locally and reducing unnecessary reactive current in the upstream network. When correctly selected and installed, it can improve power factor, reduce distribution losses, support voltage performance, and release valuable electrical capacity.

However, effective compensation requires accurate load assessment, suitable capacitor sizing, and careful consideration of harmonics, switching, and protection.

If you are looking for reliable low-voltage power factor correction solutions for your industrial or commercial application, contact us at Zhejiang Geyue Electric Technology Co., Ltd. to discuss your requirements, evaluate suitable product specifications, and identify a solution that supports your power quality and operational efficiency goals.
