How Can a PT Isolated High Voltage Handcart Improve Power Distribution Safety?

In modern power distribution systems, accurate voltage monitoring and reliable electrical isolation are essential for safe and stable operation. A PT Isolated High Voltage Handcart combines voltage transformer technology with a movable handcart structure, allowing it to perform voltage measurement, isolation, monitoring, and protection functions within high-voltage switchgear. For substations, power plants, industrial facilities, and other demanding electrical environments, this equipment can provide a practical way to improve operational convenience while supporting safer power distribution. Shanghai Zikai Electric Co., Ltd. develops and supplies high-voltage electrical equipment for different power distribution applications and markets.

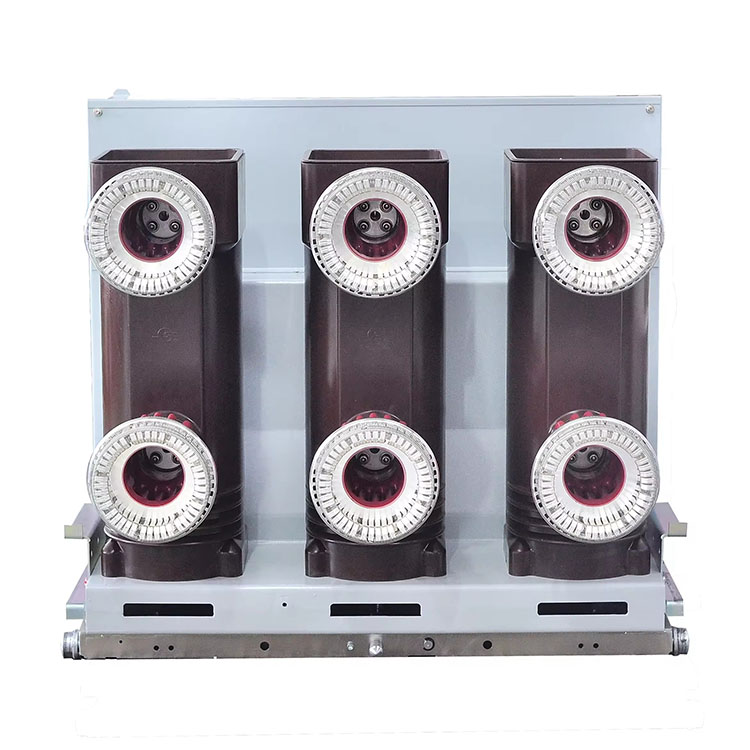

What Is a PT Isolated High Voltage Handcart?

A PT Isolated High Voltage Handcart is a high-voltage electrical device designed to work inside compatible switchgear. The "PT" refers to a potential transformer, which is used to transform high system voltage into a lower, measurable voltage for monitoring, metering, control, and protection systems.

The handcart structure adds an important practical advantage. Instead of treating the voltage transformer as a completely fixed component, the equipment can be moved into or out of the switchgear according to the operating and maintenance requirements. This design can simplify equipment inspection, replacement, and servicing.

The equipment is therefore more than a voltage measurement component. It forms part of the overall electrical protection and isolation arrangement, helping operators obtain reliable voltage information while maintaining appropriate separation from high-voltage components.

Why Is This Equipment Important?

High-voltage power systems require accurate electrical information and dependable isolation. A small problem in voltage detection can affect protection logic, metering accuracy, system monitoring, or equipment operation.

A PT Isolated High Voltage Handcart can support several important functions:

• Voltage measurement: Provides voltage signals for monitoring and measurement systems.

• Electrical isolation: Helps establish the necessary separation between electrical sections during appropriate operating conditions.

• System protection: Supplies voltage information required by protection and control equipment.

• Maintenance convenience: The handcart structure facilitates installation, inspection, removal, and replacement.

• Operational flexibility: A movable configuration can make switchgear maintenance and equipment management more efficient.

For this reason, selecting an appropriately designed handcart is important for both electrical performance and long-term equipment management.

How Does a PT Isolated High Voltage Handcart Work?

The working principle combines voltage transformation with mechanical movement and isolation.

First, the potential transformer detects the high voltage in the power system and transforms it to a suitable secondary voltage. This lower voltage can then be used by meters, monitoring devices, protection systems, and control equipment.

Second, the insulated structure provides separation between high-voltage components and accessible areas. Proper insulation materials and mechanical construction are essential because the equipment must withstand electrical stress during normal operation.

Third, the handcart mechanism allows the assembly to be positioned within the switchgear according to the designed operating configuration. During maintenance or replacement, the movable structure can make equipment handling more convenient.

The actual operating method should always follow the switchgear manufacturer's instructions, electrical safety procedures, and applicable technical requirements.

What Effects Can It Bring to Power Distribution Systems?

A properly selected PT Isolated High Voltage Handcart can produce several practical benefits.

More Convenient Maintenance

Maintenance teams need to inspect electrical equipment regularly. A handcart-based design can make removal and installation more manageable, reducing unnecessary handling work and supporting more organized maintenance procedures.

Reliable Voltage Monitoring

Voltage information is fundamental to power system monitoring. The PT section provides transformed voltage signals that can be used by measuring, control, and protection equipment.

Improved Equipment Integration

The handcart can be designed to match the corresponding high-voltage switchgear. This integrated approach helps create a more coordinated electrical system rather than relying on individually installed components.

Better Operational Management

When voltage measurement, isolation, and movable construction are combined into one solution, operators can manage switchgear maintenance and equipment replacement more efficiently.

PT Isolated High Voltage Handcart: Key Considerations

When purchasing high-voltage handcart equipment, buyers should consider more than the product name. Electrical compatibility, insulation performance, mechanical structure, and application conditions all influence the final selection.

For example, ZIKAI's published PT Isolated High Voltage Handcart specifications include a 40.5 kV rated voltage, 50 Hz rated frequency, and defined power-frequency and lightning impulse withstand levels. Actual specifications should be selected according to the project requirements rather than assuming one configuration fits every application.

Where Can It Be Used?

A PT Isolated High Voltage Handcart can be applied in various high-voltage power distribution environments.

Substations:
It can provide voltage signals for monitoring, measurement, and protection systems in substations.

Power Plants:
The equipment can help monitor electrical voltage associated with generator and distribution systems.

Industrial Facilities:
Factories and large industrial enterprises often require dependable power distribution and electrical protection. A suitable handcart can become part of the high-voltage switchgear system.

Mining and Infrastructure Projects:
Mining operations, transportation infrastructure, ports, and other large facilities can require specialized high-voltage distribution equipment. Zikai's electrical products are positioned for applications including industrial and mining facilities, transportation, petrochemical and metallurgy projects, residential communities, and ports.

Why Choose Shanghai Zikai Electric Co., Ltd.?

Shanghai Zikai Electric Co., Ltd. was established in 2015 and focuses on the research, development, production, and sales of high-end electrical equipment. Its product portfolio includes vacuum circuit breakers, load switches, high-voltage isolation switches, lightning arresters, high-voltage grounding switches, switchgear, and other power distribution products.

For buyers looking for a PT Isolated High Voltage Handcart, supplier capability is particularly important because the equipment must match the electrical and mechanical requirements of the target switchgear.

Zikai emphasizes R&D, manufacturing, technical services, and application-oriented electrical solutions. Its official company information also states that its products have been exported to more than 100 countries and regions and that it has cooperated with more than 200 enterprises.

This combination of product development, manufacturing capability, and project experience allows buyers to discuss voltage levels, switchgear compatibility, operating environments, and customized requirements with a dedicated electrical equipment supplier.

How Should Buyers Select the Right Solution?

Before placing an order, purchasing teams should confirm several technical details:

1. System voltage and frequency

2. Required PT transformation ratio and accuracy

3. Switchgear model and available installation space

4. Required insulation and withstand performance

5. Environmental conditions

6. Mechanical interlocking and operating requirements

7. Testing, certification, and documentation requirements

8. Installation, commissioning, and after-sales support

This technical confirmation helps prevent compatibility problems and ensures that the selected handcart is suitable for the intended power distribution system.

Conclusion

A PT Isolated High Voltage Handcart plays an important role in modern high-voltage switchgear by combining voltage transformation, electrical isolation, monitoring support, and a practical movable structure. Its value is not limited to voltage measurement. When properly selected and integrated, it can contribute to safer operation, easier maintenance, reliable monitoring, and more efficient equipment management.

For power utilities, substations, industrial plants, infrastructure projects, and other high-voltage applications, choosing the right configuration is essential. Shanghai Zikai Electric Co., Ltd. provides high-voltage electrical equipment and technical solutions for customers with different power distribution requirements.

If you are looking for a reliable PT Isolated High Voltage Handcart for your power distribution project, discuss your voltage level, switchgear configuration, operating environment, and technical requirements with Shanghai Zikai Electric Co., Ltd. Contact us to explore a suitable high-voltage solution for your application.
