How Can High Voltage Circuit Breakers Enable Remote Monitoring and Control?

2026-08-05

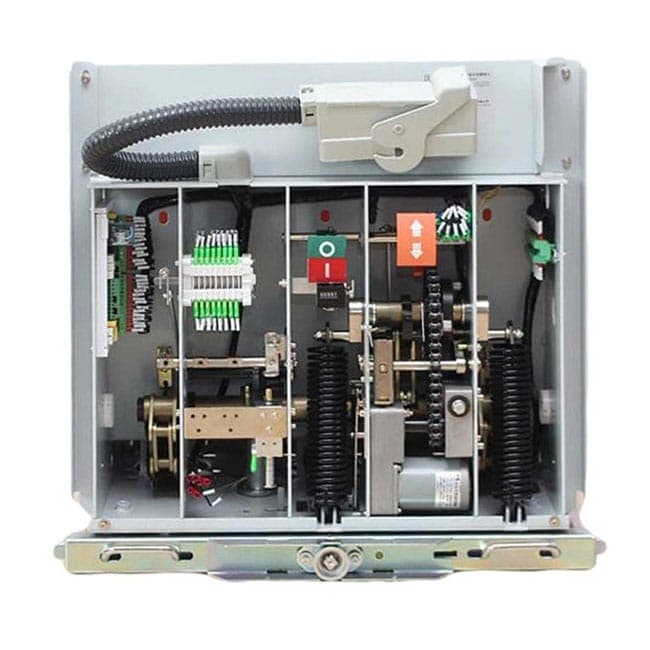

1. Why Are Modern High Voltage Circuit Breakers Designed for SCADA Integration?

In our factory, we have produced thousands of High Voltage Circuit Breakers with built in communication modules. The key to remote control is the integration with SCADA systems using protocols like IEC 61850 and Modbus TCP. This allows operators to open or close the breaker from a control room hundreds of kilometers away. Our Lugao Power Co.,Ltd. designs every High Voltage Circuit Breaker with a dedicated protection relay that has multiple communication ports. For a typical 110 kV substation, this means you can monitor status, current, and trip coil health without visiting the site. Many local utilities in the Middle East have reduced their response time from 45 minutes to under 5 seconds using our remote controlled breakers. The SCADA interface also provides event logs that help with fault analysis. Our factory pre configures the communication parameters before shipping, so installation is straightforward.

2. How Do Sensors Enable Real Time Condition Monitoring of the High Voltage Circuit Breaker?

Remote monitoring is not just about on/off status. Our High Voltage Circuit Breaker is equipped with sensors for contact wear, SF6 pressure, operating mechanism temperature, and trip coil continuity. These sensors send data to a central gateway every 100 milliseconds. Our factory uses a predictive algorithm that alerts the operator when a parameter approaches a critical threshold. For example, if the SF6 pressure drops below 5.2 bar, the system sends an email and SMS warning. This allows maintenance teams to schedule a refill before the breaker locks out. The table below shows the typical sensors and their monitoring ranges.

Sensor type	Parameter monitored	Normal range	Alarm threshold
SF6 pressure transducer	Gas pressure	5.5 – 6.5 bar	< 5.2 bar
Contact wear indicator	Erosion of arcing contacts	0 – 100% (100 = new)	< 30% remaining
Temperature sensor (PT100)	Mechanism housing temperature	-25°C to +55°C	> 75°C
Trip coil current monitor	Peak current during trip	2.5 – 3.5 A	< 2.0 A or > 4.0 A
Operating mechanism stroke	Stroke length	18 – 22 mm	< 17 mm or > 23 mm

Communication protocol	Typical use	Data rate	Our implementation
IEC 61850 (GOOSE / MMS)	Substation automation	100 Mbps	Standard on all models
Modbus TCP	Integration with existing PLC	10/100 Mbps	Optional add on module
DNP3	Electric utility SCADA	9.6 kbps – 115 kbps	Available on request
IEC 61850‑9‑2 (Sampled Values)	Process bus applications	1 Gbps	For advanced digital substations

Our Lugao Power Co.,Ltd. provides a cloud based dashboard that visualizes all sensor data in real time. This allows fleet managers to compare the performance of different High Voltage Circuit Breakers across multiple sites. The system also generates a weekly health report.

3. How Does Remote Control Improve Safety and Operational Efficiency?

Remote operation of a High Voltage Circuit Breaker eliminates the need for an operator to physically approach the switchgear during fault conditions. This is a major safety advantage. In our factory, we have documented that remote controlled breakers reduce arc flash exposure by 90 percent. For industrial plants with distributed loads, remote control allows for load shedding and restoration without dispatching a team. One of our clients, a large steel mill, uses the remote trip feature to instantly isolate a faulty section, preventing a plant wide blackout. The High Voltage Circuit Breaker also supports sequential reclosing, which can be programmed from the control room. This reduces the average outage time from 2 hours to 15 minutes. Our factory tests every remote control function under simulated network conditions to ensure reliability.

4. How Can Cybersecurity Be Ensured for Remotely Controlled High Voltage Circuit Breakers?

With remote connectivity comes the risk of cyber attacks. Our High Voltage Circuit Breaker includes a hardware firewall and role based access control. Only authorized users with two factor authentication can execute control commands. The communication traffic is encrypted using AES‑256. Our factory also provides a security log that records every access attempt. We recommend that customers deploy our breakers behind a network address translation (NAT) gateway and use a dedicated VPN for remote access. Lugao conducts regular penetration testing on our firmware to identify vulnerabilities. We also offer a security hardening guide that covers password policies and network segmentation. Many local utilities in Europe have adopted our cybersecurity package as a standard for their critical infrastructure.

Frequently Asked Questions About Remote Monitoring and Control of High Voltage Circuit Breakers

Question 1: Can a High Voltage Circuit Breaker be retrofitted with remote monitoring capabilities?

Answer: Yes, in most cases. For older High Voltage Circuit Breakers that do not have built in sensors, we offer a retrofit kit that includes a multiparameter transducer (SF6 pressure, temperature, and stroke) and a communication gateway. The gateway can be mounted on the breaker cabinet and wired to the existing auxiliary contacts. Our Lugao Power Co.,Ltd. has successfully retrofitted over 300 breakers in the field. The process takes about 8 hours per breaker and requires no modification to the main interrupting chamber. The retrofitted breaker can then communicate via Modbus or IEC 61850 to the control center. We recommend a site survey to determine the exact sensors needed.

Question 2: What is the typical latency for a remote open/close command?

Answer: With a dedicated fiber optic or 4G connection, the command latency is typically 50 to 150 milliseconds from the moment the operator clicks "open" to the actual contact separation. This includes the communication propagation time, the protection relay processing, and the operating mechanism response. Our factory tests show that over a public internet connection, the latency can increase to 300‑500 ms, which is still acceptable for most applications. For time critical protection schemes, we recommend using IEC 61850 GOOSE messages, which have a transfer time of less than 4 ms within the substation LAN. The High Voltage Circuit Breaker itself responds to the trip command in under 35 ms.

Question 3: How do I ensure data integrity and time synchronization for event logging?

Answer: Our High Voltage Circuit Breaker uses an internal real time clock that is synchronized via NTP or IEEE 1588 Precision Time Protocol (PTP). Each event is time stamped with a resolution of 1 microsecond. The event log is stored in a non volatile memory and can be retrieved remotely. To ensure data integrity, we use a cyclic redundancy check (CRC) on each transmitted packet. The communication gateway also buffers data locally for up to 7 days, so if the network goes down, no event is lost. We recommend that customers deploy a redundant communication path (e.g., fiber and cellular) to increase reliability. Our Lugao Power Co.,Ltd. provides a configuration tool that allows you to set the time server addresses and the logging interval.

Final Summary

High Voltage Circuit Breakers with remote monitoring and control capabilities are essential for modern substations and industrial facilities. They enable faster fault response, improve safety, reduce maintenance costs, and provide valuable operational data. Our factory has integrated these features into our standard designs, ensuring that every High Voltage Circuit Breaker is ready for the digital grid. With robust cybersecurity measures and flexible communication options, our breakers meet the needs of utilities and large industrial users alike. Lugao Power Co.,Ltd. is your partner for intelligent switchgear solutions.
