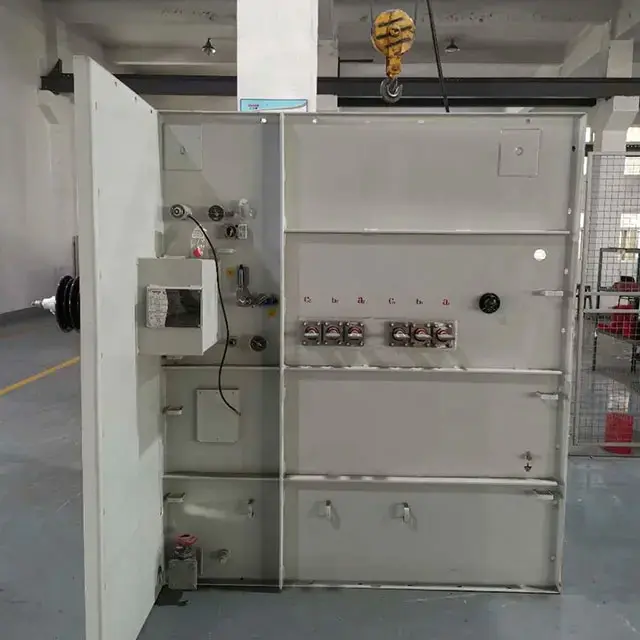

How Can Photovoltaic Transformers Help in Integrating Solar Power With the Grid
2025-10-10
As solar power becomes a major electricity source, connecting it reliably to the grid is a key challenge. The Photovoltaic Transformer is a critical component in this process, acting as the essential link between a solar farm and the public utility network.
What Role Does a Photovoltaic Transformer Play in Grid Integration
A Photovoltaic Transformer does more than just step up voltage. It ensures the solar-generated power is compatible with the grid's strict requirements. Its primary functions include
-
Voltage Transformation: It steps up the low voltage from the solar inverters to the high voltage needed for efficient long-distance transmission.
-
Grid Stability: It provides electrical isolation, protecting both the solar farm and the grid from faults and harmonics.
-
Power Quality: Advanced designs help manage reactive power and maintain a stable voltage profile, which is crucial for grid reliability.
How Do SGOB's Technical Specifications Ensure Superior Grid Integration
At SGOB, our SGOB GridMax Transformer series is engineered specifically for seamless grid integration. Key parameters are optimized for this purpose
-
Low Losses: High-grade core and copper windings minimize energy loss, maximizing the power delivered to the grid.
-
Precise Impedance: Carefully calibrated impedance to limit short-circuit currents and ensure stable grid operation.
-
Robust Insulation: A class-leading insulation system withstands frequent thermal cycling and harsh environmental conditions.
Technical Specifications of SGOB GridMax Series
| Parameter | Value | Benefit for Grid Integration |
|---|---|---|
| Rated Power | Up to 5000 kVA | Supports utility-scale solar projects. |
| Efficiency | Up to 99.7% | Maximizes energy yield and revenue. |
| Impulse Withstand | High BIL Ratings | Enhances resilience against grid-side voltage surges. |
| IP Rating | IP55 | Ensures reliable operation in all outdoor conditions. |
Your Photovoltaic Transformer FAQ Common Problems
What is the key difference between a standard transformer and a photovoltaic transformer
A standard transformer is designed for relatively constant power flow. A Photovoltaic Transformer is built to handle the intermittent and variable nature of solar power, with superior resistance to thermal cycling and harmonics from inverters.
Why is efficiency so critical in a grid-tie photovoltaic transformer
Every percentage point of loss in efficiency represents a significant amount of uncaptured solar energy over the plant's lifetime. High-efficiency models from SGOB ensure more clean power reaches the grid, improving the project's financial return and environmental impact.
How do these transformers contribute to overall grid stability
They provide a stable and reliable interface. By transforming voltage efficiently and providing electrical isolation, they prevent disturbances from the solar farm from affecting the grid and protect the farm from grid-side faults, ensuring consistent power delivery.
Choosing the right partner for your grid integration components is vital. SGOB brings proven expertise and robust technology to ensure your solar project connects seamlessly and profitably.
Contact us today to discuss your project requirements and receive a detailed technical datasheet for our SGOB GridMax Transformers.
