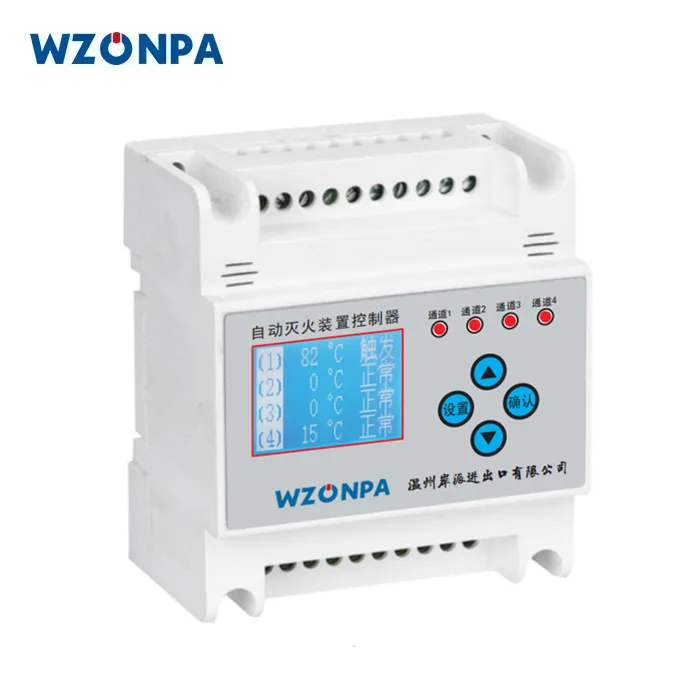

How Can You Test an Automatic Fire Extinguishing System Controller Without Triggering Discharge
2026-04-27
Testing an Automatic Fire Extinguishing System Controller is essential for safety compliance, but many facility managers fear accidental discharge. A mistaken activation can damage equipment, halt operations, and create hazards. The good news is that professional testing methods exist to verify every function without releasing suppression agents. Wzonpa provides advanced controllers designed with safe test modes, and this guide explains exactly how to perform non-discharge testing step by step.
Safe Testing Methods for Your Automatic Fire Extinguishing System Controller
The following techniques allow full verification without agent release:
| Test Method | What It Verifies | Risk Level |
|---|---|---|
| Electrical Bypass Mode | Control panel inputs, outputs, and logic | None |
| Simulated Detector Signals | Detection circuit and alarm response | None |
| Manual Release Lockout | Manual pull station function with agent disabled | Low |
| Loop Resistance Measurement | Wiring integrity and end-of-line resistors | None |
Step-by-Step Non-Discharge Testing Procedure
-
Enable test mode – On a Wzonpa controller, press and hold the “Test” button for five seconds. The display will show “Test Mode Active – Discharge Disabled.”
-
Isolate the release circuit – Remove the firing line from the solenoid or actuator and connect a test lamp or resistor load.
-
Simulate a fire signal – Use a calibrated signal generator or approved detector simulator to trigger the detection zone.
-
Verify alarm sequencing – The Automatic Fire Extinguishing System Controller should sound alarms, illuminate LEDs, and activate auxiliary relays without opening the agent cylinder.
-
Check time delays – Measure the pre-discharge delay using a stopwatch against the programmed value (typically 10–30 seconds).
-
Reset and log – Press reset, confirm the system returns to standby, and record all results.
Automatic Fire Extinguishing System Controller FAQ – Common Questions
Question 1: How often should I test my Automatic Fire Extinguishing System Controller without triggering discharge?
Answer: According to NFPA 72 and most local codes, a full functional test that includes non-discharge verification should be performed every six months for high-risk environments (server rooms, chemical storage) and annually for general applications. Monthly visual inspections of the control panel LEDs and fault indicators are also recommended. Wzonpa controllers automatically log test dates and remind you when the next test is due, helping you maintain compliance without missed intervals.
Question 2: Will repeatedly testing the Automatic Fire Extinguishing System Controller in non-discharge mode wear out the components?
Answer: No, provided you use proper test methods. Wzonpa controllers are rated for over 10,000 test cycles on all electronic circuits. The only components that experience mechanical wear are physical relays used for agent release, but in test mode these remain de-energized. To maximize lifespan, always use the controller’s built-in test function rather than manually shorting circuits. Solenoids and actuators should be physically disconnected during high-frequency testing. With correct procedures, your controller will outlast the suppression system itself.
Question 3: What should I do if my Automatic Fire Extinguishing System Controller fails the non-discharge test?
Answer: First, document the specific failure – for example, no alarm output, incorrect delay timing, or a stuck fault indicator. For Wzonpa systems, consult the on-board diagnostic menu which displays error codes in plain text. Common fixes include: replacing a faulty smoke detector on the zone, re-terminating loose wiring at the end-of-line resistor, or updating the firmware via USB. If these steps do not resolve the issue, engage a certified fire protection technician immediately. Never bypass safety circuits as a temporary fix. Wzonpa offers 24/7 technical support for certified installers.
Final Checklist for Safe Testing
-
Always notify monitoring stations and building occupants before testing
-
Use a Wzonpa test key or password-protected test mode
-
Physically disconnect the agent release circuit for absolute safety
-
Restore all connections and verify normal standby status after test
