How Do Circuit Breakers Improve Efficiency in Large-Scale Industrial Operations?

An energy manager at a large chemical plant reviews the annual downtime report. The plant experienced four unplanned shutdowns in the previous year. Three were caused by downstream electrical faults that should have been isolated by the branch circuit breaker. Instead, the main High Voltage Circuit Breaker tripped, shutting down the entire plant. The fourth shutdown was caused by a failure of the main breaker itself. The total cost of the four events was $6.8 million in lost production, raw material waste, and restart labor. The energy manager realizes that the circuit breakers are not just protective devices. They are efficiency assets. A well-coordinated breaker system isolates faults to the smallest possible section, keeping the rest of the plant running. A poorly coordinated system turns a minor fault into a plant-wide outage. This guide explains how circuit breakers improve efficiency in large-scale industrial operations.

1. What Is the Cost of an Unplanned Shutdown and How Does Selective Protection Reduce It?

The cost of an unplanned shutdown includes lost production, raw material waste, restart energy, labor, and equipment damage. For a large chemical plant, the cost can be $50,000 to $500,000 per hour, depending on the process. Selective protection is the coordination of circuit breakers so that the breaker closest to the fault trips first, isolating only the faulted section. The upstream breakers remain closed, and the rest of the plant continues to operate. The table below shows the difference in shutdown scope with and without selective protection.

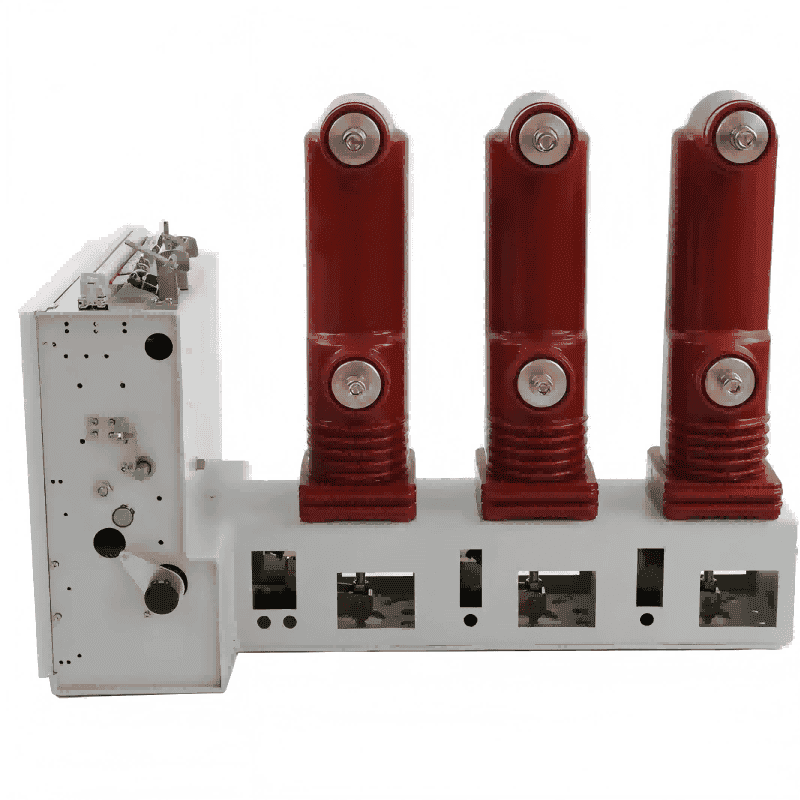

In our factory, we manufacture High Voltage Circuit Breaker units with adjustable protection settings that allow the system designer to achieve full selectivity. The settings include the long-time pickup, the short-time pickup, the instantaneous pickup, and the time delay. Lugao Power Co.,Ltd. has been manufacturing circuit breakers for over 15 years and provides coordination studies for large industrial projects.

2. How Does Breaker Reliability Affect Overall Equipment Effectiveness?

Overall Equipment Effectiveness (OEE) is a measure of how well a manufacturing operation is utilized. It is calculated as availability multiplied by performance multiplied by quality. A circuit breaker failure reduces availability directly. If the main breaker fails, the entire plant is unavailable until the breaker is repaired or replaced. The reliability of the High Voltage Circuit Breaker is therefore a direct contributor to OEE. The table below shows the effect of breaker reliability on availability and OEE.

3. How Does Predictive Maintenance of Breakers Reduce Unplanned Downtime?

Circuit breakers degrade over time. The contacts erode, the insulation ages, and the operating mechanism wears. If these degradations are not detected, the breaker can fail when it is called upon to operate. Predictive maintenance uses sensors and diagnostic tools to monitor the condition of the breaker and to schedule maintenance before a failure occurs. The table below shows the parameters that can be monitored and their alarm thresholds.

In our factory, we integrate monitoring sensors into our High Voltage Circuit Breaker units. The sensors transmit data to a local control unit or to a cloud platform. The maintenance team receives an alert when a parameter exceeds the normal range. This allows the team to schedule maintenance during a planned outage rather than reacting to a failure. Lugao Power Co.,Ltd. provides the monitoring system as an optional feature for new breakers and as a retrofit kit for existing installations.

4. How Does Breaker Selection Affect Energy Efficiency and Power Quality?

The circuit breaker itself does not consume significant energy. However, the selection of the breaker affects the energy efficiency of the system in two ways. The first is the contact resistance. A breaker with low contact resistance has lower power loss. The power loss is I²R, where I is the current and R is the contact resistance. For a 2000 A breaker with a contact resistance of 20 µΩ, the power loss is 80 W. Over a year, this is 700 kWh, which costs $84. The second is the breaker's ability to support power factor correction and harmonic filtering. A breaker with a higher interrupting rating and a faster response time can protect the capacitors and filters that improve power quality. The table below shows the power loss for different contact resistances.

In our factory, we test the contact resistance of every High Voltage Circuit Breaker before shipment. The contact resistance must be below 50 µΩ for our standard models. This ensures that the breaker contributes minimally to the plant's energy losses. Lugao Power Co.,Ltd. provides the contact resistance test report with each breaker.

Summary for Energy Managers and Plant Engineers

Circuit breakers improve efficiency in large-scale industrial operations by reducing the scope of unplanned shutdowns through selective protection, by contributing to overall equipment effectiveness through high reliability, by enabling predictive maintenance that prevents failures, and by minimizing energy losses through low contact resistance. The energy manager should evaluate the breaker system as a strategic asset, not just a protective device. The coordination study, the maintenance schedule, and the monitoring system are the tools that ensure the breaker system delivers its full efficiency benefit. Lugao Power Co.,Ltd. has been manufacturing High Voltage Circuit Breaker units for over 15 years and provides full coordination and monitoring support for large industrial plants.

Lugao Power Co.,Ltd. manufactures High Voltage Circuit Breaker units with adjustable protection settings, low contact resistance, and optional monitoring sensors. We provide coordination studies, maintenance schedules, and retrofit kits for industrial efficiency projects.
