How Do Digital Protection Relays Work Within a Switchgear Assembly
2026-03-13

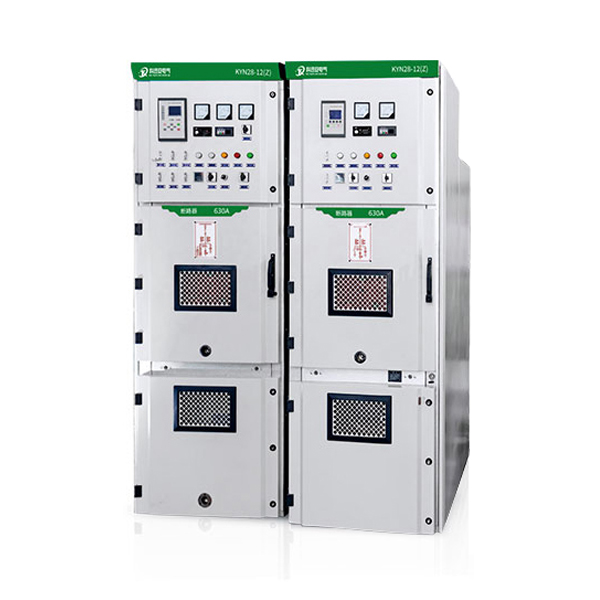

In the realm of electrical distribution, the integration of digital protection relays has fundamentally transformed how a Switchgear assembly operates. At FATO, we recognize that these intelligent devices are the brains of the operation, working tirelessly within the Switchgear to monitor, measure, and isolate faults. Unlike old electromechanical systems, a digital relay constantly analyzes current and voltage waveforms. When it detects an anomaly, such as an overcurrent or short circuit, it sends a trip command to the circuit breaker embedded in the Switchgear, effectively safeguarding downstream equipment and personnel.
The Core Workflow of Digital Relays
To understand how these relays function, it is essential to break down their operational workflow within the assembly. The process is continuous and occurs in milliseconds.
| Step | Component Interaction | Function Performed |
|---|---|---|
| 1 | Current Transformers (CTs) | Step down high primary currents to safe, measurable levels for the relay. |
| 2 | Digital Relay Processor | Converts analog signals to digital data and compares them against preset protection curves. |
| 3 | Trip Circuit | If a fault is detected, the relay closes its output contact, sending power to the breaker trip coil. |
| 4 | Circuit Breaker | The breaker mechanism opens, interrupting the fault current and isolating the circuit. |
Key Advantages of Digital Technology
The shift to digital within a Switchgear assembly offers distinct operational advantages. Primarily, it provides unparalleled accuracy and coordination. Engineers can program complex protection schemes that communicate across the entire network. Furthermore, digital relays offer event recording and diagnostics, which are invaluable for post-incident analysis. FATO integrates these advanced relays to ensure that your electrical infrastructure remains both resilient and intelligent, reducing downtime and maintenance costs.
Communication Protocols and Integration
Modern Switchgear relies on seamless data exchange. Digital protection relays utilize standard protocols such as Modbus, IEC 61850, or Profibus to communicate with higher-level control systems. This integration allows for remote monitoring and control. By choosing FATO solutions, you ensure that your low-voltage and medium-voltage assemblies are compatible with modern Industrial Internet of Things (IIoT) architectures, providing real-time data directly to your facility management team.
Switchgear FAQ: Common Inquiries Answered
What is the primary function of a digital relay in a Switchgear?
The primary function is protective monitoring. It continuously measures electrical parameters like current, voltage, and frequency. If these values exceed predefined thresholds (indicating a fault), the relay initiates a trip command to isolate the faulty section. This prevents damage to transformers, cables, and motors connected to the Switchgear while ensuring the safety of operational staff.
How does a digital relay differ from an electromechanical relay in a Switchgear assembly?
The difference lies in operation and functionality. Electromechanical relays use physical coils and moving parts, which are prone to wear and offer basic protection. Digital relays are microprocessor-based. They provide multi-function protection (overcurrent, earth fault, etc.) in a single device, offer high accuracy, and include communication capabilities for remote monitoring. FATO utilizes digital relays to enhance the compactness and reliability of modern Switchgear.
Can digital relays be retrofitted into an existing Switchgear system?
Yes, retrofitting is a common practice to modernize aging infrastructure. Old relays can be replaced with new digital units without completely overhauling the Switchgear housing. This process significantly improves protection coordination and adds monitoring features. However, it requires careful engineering to ensure compatibility with existing Current Transformers (CTs) and wiring. FATO provides comprehensive retrofit kits and support to upgrade your legacy systems efficiently.
Conclusion and Call to Action
The integration of digital protection relays ensures that your Switchgear operates with maximum precision and safety. Whether you are designing a new distribution network or upgrading an existing facility, the technology you choose dictates your operational uptime. Do not leave your critical infrastructure to chance. For expert guidance on selecting the right components for your Switchgear needs, contact FATO today to speak with our engineering team.
