How Do Double Throw Safety Switches Ensure Reliable Power Transfer and Electrical Protection?

In modern electrical systems, reliability, safety, and performance are crucial — especially in facilities where continuous power is non-negotiable. From industrial plants to commercial buildings, the demand for uninterrupted electricity flow and secure switching mechanisms has made Double Throw Safety Switches indispensable.

How Do Double Throw Safety Switches Work?

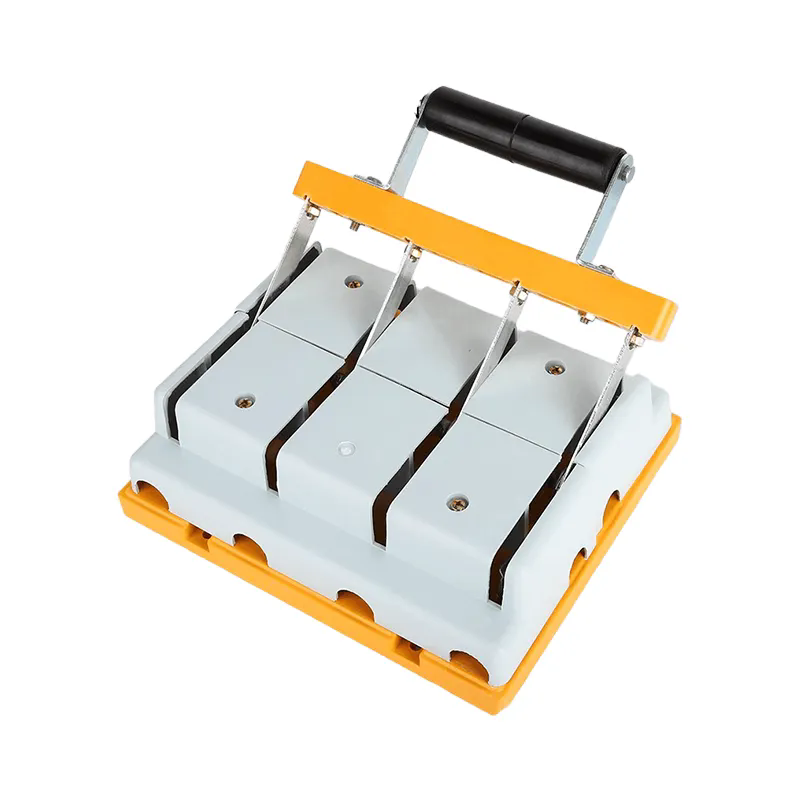

A Double Throw Safety Switch is a specialized type of switch designed to transfer electrical loads between two power sources — typically between the main utility and a backup generator. Unlike single-throw switches that connect power in only one direction, double throw switches enable two-way switching. This means the system can safely isolate one power source and engage another without risk of short-circuiting or back-feeding.

The mechanism involves a manual or automatic lever system that physically moves internal contacts from one position (source A) to another (source B). This ensures that only one source is connected to the load at a time, thereby maintaining safety, preventing arc faults, and protecting both personnel and equipment.

Key Working Principle

When power from the main source fails, the operator (or an automated system) activates the Double Throw Safety Switch to shift the load to a secondary source, such as a generator. The process happens within seconds, providing uninterrupted power supply while ensuring all live circuits remain properly isolated.

In industrial and commercial environments, these switches are often installed in motor control centers, data centers, hospitals, and power distribution panels, where continuity and safety are vital.

Why Are Double Throw Safety Switches Critical for Electrical Safety?

The role of Double Throw Safety Switches extends beyond load transfer. They act as a protective barrier that prevents electrical hazards, minimizes downtime, and enhances the overall stability of a power system. Here’s why they are indispensable:

1. Prevention of Power Backfeed:
   A double throw mechanism ensures that power from the generator doesn’t flow back into the main grid — a scenario that could cause fatal accidents or equipment damage.

2. Enhanced Safety for Maintenance Teams:
   During maintenance, electricians can isolate circuits with a simple switch action. This guarantees a zero-energy state in the system, reducing the risk of electric shock.

3. Reliable Load Management:
   Double Throw Safety Switches allow smooth transitions between power sources, keeping critical systems like HVAC, emergency lighting, or control panels running seamlessly.

4. Fire and Arc Protection:
   Designed with arc-resistant housing, these switches reduce risks of electrical arcs and thermal hazards, particularly in high-load environments.

5. Compliance with Safety Standards:
   High-quality models are designed according to UL, IEC, and CE certifications, meeting stringent international standards for safety and performance.

What Are the Technical Specifications and Features of Double Throw Safety Switches?

Every power system has unique requirements. To help engineers select the right model, here are the core parameters and technical data that define professional-grade Double Throw Safety Switches:

Additional Features

• Padlock Provision: Ensures secure lockout/tagout during maintenance.

• Visible Blade Design: Allows operators to visually verify disconnection.

• Compact Design: Saves space while providing full operational functionality.

• Heavy-Duty Contacts: Built for long service life and high endurance.

Such specifications make Double Throw Safety Switches not only powerful but also adaptable to a variety of installations — from industrial automation systems to renewable energy setups and commercial backup power systems.

How to Select and Maintain Double Throw Safety Switches for Optimal Performance

Choosing the right Double Throw Safety Switch depends on several factors including application, voltage, environmental conditions, and compliance needs. Below are expert recommendations for selection and maintenance.

Selection Guidelines

1. Determine Load Capacity:
   Always choose a switch with a current rating slightly higher than your system’s maximum load to avoid overheating or voltage drops.

2. Consider Environmental Conditions:
   Outdoor installations require weatherproof models (e.g., NEMA 3R or 4X). For corrosive environments, stainless steel enclosures are ideal.

3. Ensure Compatibility:
   Verify that the switch matches the system’s voltage and phase requirements.

4. Check Safety Certifications:
   Use only UL or CE-certified products to guarantee compliance and long-term reliability.

5. Opt for Visible Blade or Interlock Features:
   These provide visual confirmation of circuit isolation, an essential safety requirement in industrial applications.

Maintenance Tips

• Inspect Regularly: Perform visual inspections every 3–6 months for signs of corrosion, dust buildup, or loose terminals.

• Lubricate Moving Parts: Use electrical-grade lubricants to ensure smooth mechanical operation.

• Tighten Connections: Vibration and temperature fluctuations may loosen terminal connections over time.

• Test Functionality: Operate the switch periodically to confirm that transfer between sources occurs smoothly and without delay.

• Replace Worn Components: Contacts and handles are subject to mechanical stress; replace them as needed to maintain efficiency.

Frequently Asked Questions (FAQ)

Q1: How does a Double Throw Safety Switch differ from an Automatic Transfer Switch (ATS)?
A1: While both devices transfer power between sources, a Double Throw Safety Switch is typically manual or semi-automatic, giving the operator full control over switching actions. An ATS, on the other hand, performs the switch automatically when it detects a power outage. Double Throw Switches are often more cost-effective, easier to maintain, and ideal for systems where controlled manual intervention is preferred.

Q2: Can Double Throw Safety Switches be used for both residential and industrial applications?
A2: Yes. These switches are versatile and come in various current ratings suitable for both residential backup systems (e.g., 100A–200A) and large-scale industrial facilities (up to 1200A or more). Their rugged design, safety features, and compliance with major standards make them adaptable across multiple environments — from generator changeover systems in homes to power control in manufacturing plants.

Choosing a Reliable Partner for Long-Term Safety and Performance

In today’s high-demand electrical landscape, Double Throw Safety Switches stand as a cornerstone of dependable power management. They safeguard systems, prevent dangerous backfeeds, and maintain uninterrupted operations — all while ensuring the safety of personnel and equipment.

When selecting your next power transfer solution, choose a brand that embodies engineering precision, safety assurance, and global quality standards. Laijian has built a strong reputation in electrical components manufacturing, offering robust, certified, and durable Double Throw Safety Switches designed for industrial excellence.

If you’re looking to enhance your power reliability and ensure long-term system protection, contact us today for expert consultation, detailed product specifications, and customized solutions that match your exact requirements.
