How Do Engineers Test the Efficiency of a Power Transformer

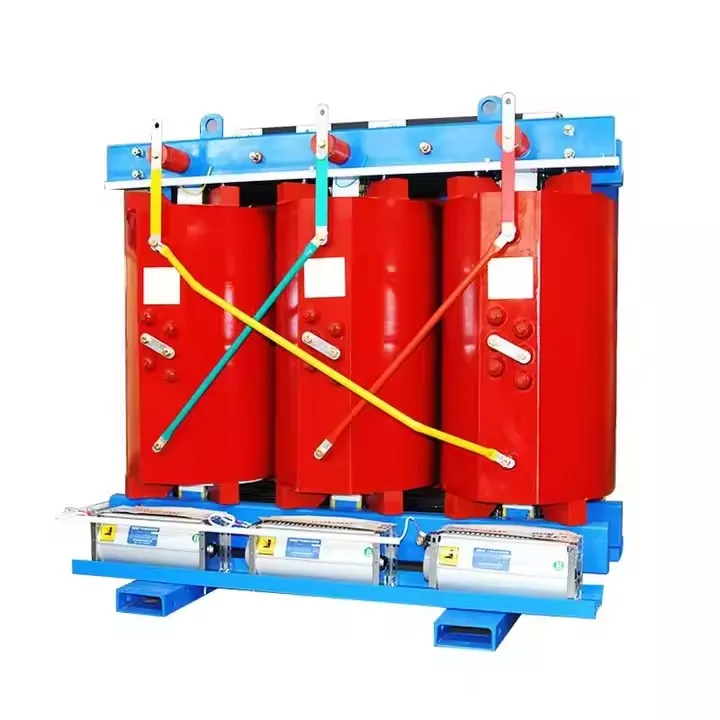

Ensuring the reliability of electrical networks begins with verifying the performance of a Power Transformer. At Lugao Power, we understand that rigorous testing is not just a regulatory requirement but a critical step in guaranteeing long-term operational success. Efficiency testing determines how much energy is lost during voltage transformation, which directly impacts operational costs and system stability.

Engineers employ a series of standardized procedures to measure these losses. The primary goal is to quantify the difference between input and output power under controlled conditions. This process typically involves two fundamental tests: the Open-Circuit Test and the Short-Circuit Test.

Core Testing Methodologies

The following table outlines the primary methods used to evaluate Power Transformer efficiency:

These tests provide the raw data required to calculate the efficiency percentage. Engineers apply the formula: Efficiency = (Output Power / Input Power) x 100%. By analyzing these losses, experts can determine if a Power Transformer meets the design specifications and international standards such as IEC or IEEE.

Beyond these basic tests, modern diagnostic tools are utilized to ensure comprehensive analysis:

• Frequency Response Analysis (FRA): Detects mechanical deformations in the windings.

• Dissolved Gas Analysis (DGA): Analyzes oil samples to identify internal arcing or overheating.

• Thermal Imaging: Identifies hot spots in connections and cooling systems under load.

Interpreting the Results

Once the data is collected, it is compared against the design specifications. A high-efficiency Power Transformer will exhibit minimal losses, often exceeding 99% for large utility units. Lugao Power prioritizes designs that minimize total ownership cost by reducing these loss values.

Frequently Asked Questions

What is the difference between core losses and load losses in a Power Transformer?
Core losses, also known as iron losses, occur in the magnetic core due to hysteresis and eddy currents. They are constant and exist whenever the transformer is energized, regardless of the electrical load. Load losses, or copper losses, occur in the windings due to the resistance of the conductors. These losses increase with the square of the current, meaning they vary significantly based on how much power is being drawn from the transformer.

How often should efficiency testing be performed on a Power Transformer?
The frequency depends on the criticality of the asset and its operating environment. A new Power Transformer should undergo comprehensive efficiency testing during factory acceptance and commissioning. After installation, routine maintenance schedules often include diagnostic tests every 3 to 5 years. If a transformer experiences a fault, through-fault event, or shows signs of distress, immediate testing is recommended to verify its integrity and efficiency.

Can a Power Transformer lose efficiency over time?
Yes, a Power Transformer can lose efficiency due to aging of its internal components. Degradation of insulation paper can slightly alter winding geometry, while thermal cycling may loosen connections, increasing resistance. Magnetic properties of the core can also degrade due to vibration or DC offset in the grid. Regular testing helps track these gradual changes, allowing engineers to predict potential failures and plan maintenance before a catastrophic loss occurs.

Conclusion

Accurate testing is the cornerstone of a reliable power system. By understanding and applying these rigorous methodologies, Lugao Power ensures that every unit delivers optimal performance. Protecting your electrical infrastructure starts with choosing equipment that is proven to perform.

For detailed specifications or to schedule a consultation on your next project, contact us today to speak with our engineering team.
