How Do I Choose a High Voltage Ring Main Unit That Actually Reduces My Lifetime Risk

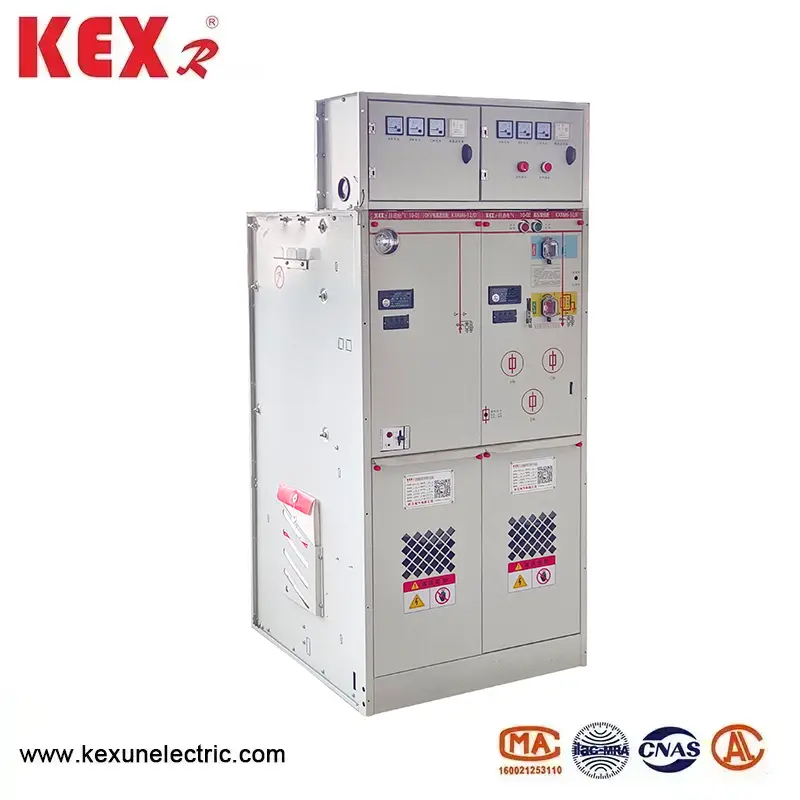

I have spent the last decade helping utilities and facility owners deploy medium-voltage switchgear, and along the way my team at KEX learned a simple truth—good engineering is quiet and reliable. When I talk with planners about a High Voltage Ring Main Unit, I’m solving for uptime, safety, and total cost. In this guide I’ll share how I evaluate, specify, and commission a High Voltage Ring Main Unit for 10–20 kV networks, the same approach we bring to compact RMU designs used in city grids, industrial parks, and data centers. If you’re comparing vendors, use these questions and checklists to cut through the noise and pick the right High Voltage Ring Main Unit for your site.

What Exactly Do I Expect A Ring Main Unit To Do In My Network?

In a looped medium-voltage system, the High Voltage Ring Main Unit connects incoming and outgoing feeders and protects downstream loads. I look for four coordinated blocks working as one:

• Switchgear functions — load break switches for sectionalizing, vacuum circuit breakers for fault clearing, and visible isolation where maintenance needs proof of disconnection.
• Protection and control — fuse-switch combinations or relay-controlled breakers matched to the fault level and transformer size.
• Sealed, arc-resistant enclosure — metal-clad or gas/solid insulated modules with extensible busbars for future bays.
• Intelligent accessories — feeder RTU/DTU for SCADA, sensors for temperature and humidity, plus condition indicators that make field checks fast and safe.

Why Do Project Teams Choose An RMU Over A Traditional Switchboard?

• Uptime by design — ring topology keeps supply available from the alternate side during faults or maintenance.
• Compact footprint — modular RMUs sit closer to the load, freeing valuable indoor space for production or IT racks.
• Safer operations — interlocks, visible isolation, and arc-rated compartments reduce operator exposure.
• Predictable life-cycle cost — fewer moving parts, sealed insulation systems, and standardized spares simplify O&M.

Which Insulation System Fits My Site And Budget?

I benchmark options with the matrix below before I draft a spec. It clarifies trade-offs early and anchors total-cost discussions.

How Do I Match Ratings And Protection Without Over-Specifying?

1. Short-circuit current — align breaker/fuse interrupting capacity to the worst-case fault at the RMU terminals, not just the transformer nameplate.
2. Transformer pairing — select fuse curves or relay settings that protect the transformer while avoiding nuisance trips during inrush.
3. Feeder selectivity — coordinate upstream/downstream protection so the smallest possible section trips first.
4. Busbar growth — choose an extensible bus so future bays can be added without outage on healthy feeders.

Where Do Installation Details Quietly Make Or Break Reliability?

• Cable terminations — consistent torque, stress-cone quality, and sheath bonding prevent partial discharge and heat pockets.
• Environmental control — desiccant packs, anti-condensation heaters, and a humidity controller protect live parts in coastal or monsoon climates.
• Grounding strategy — a low-impedance earth grid, bonded doors, and equipotential mats protect people and assets during faults.
• Digital readiness — a DTU with open protocols (IEC 60870-5-104/IEC 61850/Modbus) keeps your High Voltage Ring Main Unit visible to SCADA from day one.

What Buying Mistakes Quietly Increase Lifetime Cost?

• Chasing the lowest first price while ignoring spares, tools, and crew training.
• Skipping a factory routine test and accepting “ship as is”.
• Ordering a non-extensible design, then paying for disruptive rebuilds when loads grow.
• Under-rating thermal capacity, forcing hot spots during seasonal peaks.

How Do I Compare Vendors Without Getting Lost In Brochures?

When I shortlist suppliers, including my own team at KEX, I ask for evidence, not adjectives:

• Type-tested modules and routine-test checklists tied to standards for the target voltage class.
• Sample protection settings and coordination study for one feeder and the main transformer.
• Commissioning plan and punch-list template that field crews actually use.
• Real photos of installed High Voltage Ring Main Unit projects with similar space, climate, and load profiles.

What Does A Practical Specification Look Like For My Application?

For an urban substation or a data hall, my baseline spec calls for a compact, arc-rated, extensible High Voltage Ring Main Unit with vacuum interrupters, motorized switching, and a DTU that integrates with existing SCADA. I include visible isolation for lock-out/tag-out, factory-fitted cable test points, and environmental monitoring that flags abnormal temperature or moisture long before it becomes a failure. This way the High Voltage Ring Main Unit supports operations today and expansion tomorrow without rewriting the one-line.

Would A Kiosk Or Indoor Line-Up Serve Me Better?

Outdoor kiosks shine when space is tight and civil works must be minimal; indoor line-ups win when you want walk-in maintenance and simplified cable pulls. I select enclosure IP rating, paint system, and heater sizing to match local weather and airborne contaminants so the High Voltage Ring Main Unit stays healthy without constant attention.

Can I Turn This Into A Simple Pre-Bid Checklist?

• Target voltage class, fault level, and thermal ratings confirmed.
• Insulation system chosen with life-cycle and EHS in mind.
• Protection selectivity study included in scope.
• Extensible bus with reserved bays for growth.
• DTU protocol and SCADA points list agreed upfront.
• Factory acceptance test plus site acceptance test defined.
• Spare kits, tools, and training embedded in the PO.

Where Do We Go From Here?

If you want a quiet network that just works, I’m happy to help you size and specify the right High Voltage Ring Main Unit for your project. Share your one-line, transformer data, and fault levels, and I’ll return a focused configuration that balances safety, uptime, and cost.

Ready To Talk?

Tell me about your site and timeline—I’ll respond with a tailored RMU proposal and a commissioning path that keeps risk low. If you’re comparing options and need a second set of eyes, I’m here for that too. Please contact us with your drawings and questions so we can move quickly from discussion to a dependable build.
