How Do Isolation Transformers Differ from Autotransformers in Electrical Systems?

2026-10-15

Choosing between an Isolation Transformer and an autotransformer affects electrical safety, power quality, installation cost, and the way equipment interacts with the supply network. Although both devices transfer electrical energy through electromagnetic induction, their winding configurations create a fundamental difference. An isolation transformer uses separate primary and secondary windings to provide galvanic isolation, while an autotransformer uses a shared winding for both input and output. For industrial control panels, sensitive electronic equipment, testing laboratories, and general voltage conversion, understanding this distinction helps engineers match transformer design to the actual operating requirements. Zhejiang Yibaling Technology Co., Ltd. provides transformer and voltage regulation solutions for applications where voltage compatibility, electrical protection, and dependable power delivery must be considered together.

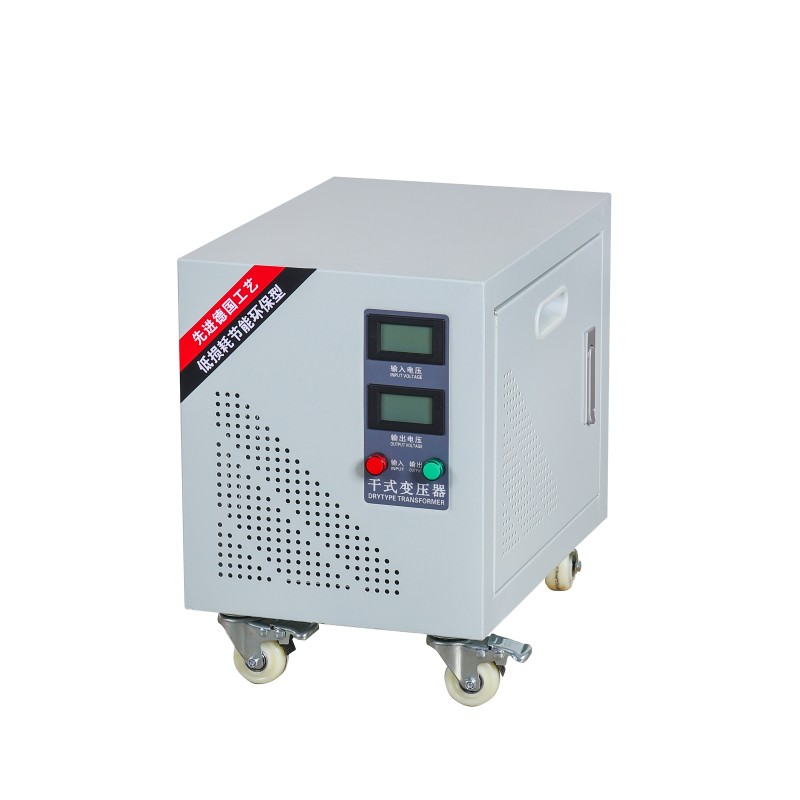

DG Isolation Transformer


What Makes the Two Transformer Designs Electrically Different?

The defining feature of a conventional isolation transformer is the electrical separation between its primary and secondary windings. Energy passes from one winding to the other through a magnetic field rather than through a direct conductive connection. This arrangement can interrupt a direct conductive path between the supply circuit and the secondary circuit, provided the insulation system and installation are designed correctly.

An autotransformer takes a different approach. Its primary and secondary circuits share part of the same winding, with the output voltage obtained from a selected tap. Because some winding turns are common to both circuits, the input and output do not have galvanic isolation. This shared-winding design can reduce copper usage, overall size, and winding losses for suitable voltage ratios and power ratings.

Technical characteristic Isolation transformer Autotransformer
Winding configuration Separate primary and secondary windings Primary and secondary share a common winding section
Galvanic isolation Normally provided by separate windings and an appropriate insulation system Not provided between input and output
Voltage conversion Can provide step-up, step-down, or a 1:1 ratio Can provide step-up or step-down voltage conversion within its design limits
Typical size at comparable ratings Generally larger when other design conditions are similar Often smaller for suitable voltage ratios
Material usage Requires separate primary and secondary winding conductors Can use less winding material because part of the winding is shared
Electrical fault considerations Isolation can reduce certain conductive fault paths but does not eliminate all shock hazards Supply-side voltage and faults can be transferred directly through the common winding connection
Typical applications Control circuits, test equipment, sensitive electronics, and isolation requirements Voltage adjustment, motor starting, and systems requiring efficient voltage conversion

The distinction is not simply a matter of efficiency. Separate windings allow an isolation transformer to establish a secondary circuit that can be configured according to the system's grounding and protection requirements. However, isolation alone does not guarantee that the secondary is safe to touch. Earthing, protective devices, insulation integrity, and the applicable electrical code remain essential.

Autotransformers are particularly attractive when the input and output voltages are relatively close. Because part of the transferred power is conducted directly through the shared winding, the magnetic component can be smaller than a comparable two-winding transformer under suitable design conditions. This can make an autotransformer an economical choice for voltage matching, but its lower material requirement must be weighed against the absence of galvanic separation.


How Do Voltage Rating, Capacity, and Efficiency Affect Selection?

Transformer selection begins with the supply voltage, required output voltage, connected load, and operating duty. A transformer rated for the correct voltage but insufficient power capacity may overheat or experience excessive voltage drop. Engineers should therefore consider both the electrical conversion ratio and the continuous apparent power rating, normally expressed in volt-amperes or kilovolt-amperes.

For our transformer solutions, the specification should identify the rated primary voltage, secondary voltage, frequency, rated capacity, phase configuration, insulation requirements, and intended operating environment. These parameters determine the basic electrical design and help establish the necessary thermal performance and protection arrangements.

Specification parameter What the buyer should confirm Why it matters
Rated input voltage Nominal supply voltage and permitted variation Ensures compatibility with the available electrical supply
Rated output voltage Required secondary voltage or adjustment range Matches the load's operating voltage
Rated capacity VA or kVA rating and continuous duty requirements Prevents undersizing and excessive temperature rise
Frequency 50 Hz, 60 Hz, or another specified frequency Affects magnetic flux, losses, and permissible operating conditions
Phase configuration Single-phase or three-phase input and output requirements Determines winding arrangement and system compatibility
Insulation system Rated insulation level, dielectric test requirements, and applicable standards Supports electrical integrity under the specified operating conditions
Cooling method Natural air cooling or another specified arrangement Influences thermal management and installation requirements
Enclosure and environment Indoor or outdoor installation, ambient temperature, humidity, dust, and ingress protection requirements Helps protect the transformer against environmental stress

Efficiency depends on winding resistance, core material, magnetic design, operating load, and manufacturing quality. Autotransformers often achieve a higher efficiency than comparable two-winding transformers when the voltage ratio is close to unity, because less winding material is required and a larger proportion of the transferred power passes through the conductive connection. However, actual efficiency must be established from the design and test conditions rather than assumed from the transformer type alone.

Isolation transformers incur losses in both their primary and secondary windings, along with core losses. These losses contribute to temperature rise and operating costs. For equipment that remains energized for long periods, comparing no-load losses, load losses, temperature rise, and expected loading can be more useful than considering purchase price alone.

Our factory specifications should be reviewed against the actual load profile, including starting current, inrush current, harmonic content, and any expected overload conditions. Motors, switching power supplies, and electronic equipment can present very different electrical demands even when their nominal power ratings appear similar. Adequate design margin should follow the equipment manufacturer's requirements and applicable engineering standards.


Which Transformer Is More Suitable for Industrial Safety and Equipment Protection?

Electrical isolation is often the primary reason for selecting a separate-winding transformer. In maintenance workshops, electrical test benches, industrial control systems, and selected medical or laboratory installations, a suitably designed isolation arrangement can help separate a load circuit from the supply's direct conductive path. Its protective effect depends on the complete system, not simply on the presence of a transformer.

For example, a correctly specified isolation transformer may be used to supply test equipment where the engineer needs a defined secondary circuit. The installation must still address exposed conductive parts, protective earthing where required, overcurrent protection, and the possibility of simultaneous contact with different conductive parts. A secondary circuit can become hazardous if its design or installation permits an unsafe current path.

An autotransformer is generally better suited to applications where voltage conversion is the main requirement and galvanic isolation is not necessary. Typical examples include adjusting voltage between compatible distribution levels, supplying certain industrial loads, and motor-starting arrangements designed for that purpose. The shared winding makes it unsuitable wherever the design specifically requires electrical separation between input and output.

In our engineering assessment, we distinguish between voltage regulation, electrical isolation, and surge protection. These functions are not interchangeable. A transformer may change voltage or provide winding isolation, but it does not automatically regulate the output against every supply fluctuation or protect equipment from every transient event. Where stable output voltage is required despite changing input conditions, a suitable voltage regulator or other power-conditioning device may be necessary.

Zhejiang Yibaling Technology Co., Ltd. offers transformer-related solutions that should be evaluated according to the actual system requirements. Before choosing a configuration, engineers should identify the nominal supply, load sensitivity, grounding arrangement, expected fault conditions, and required compliance standards. This approach helps prevent a common specification error: purchasing a compact voltage-conversion unit when the application actually depends on galvanic isolation.


What Installation and Maintenance Factors Influence Long-Term Reliability?

Correct installation protects both performance and service life. The selected unit should be mounted in a location with adequate ventilation, suitable mechanical support, and sufficient clearance for inspection and maintenance. Ambient temperature, dust accumulation, moisture, vibration, and restricted airflow can increase thermal stress or contribute to insulation deterioration.

Before commissioning, the installer should verify the nameplate data, input and output connections, protective devices, earthing arrangements, terminal tightness, and compatibility with the system frequency. Insulation resistance and dielectric tests should be performed only according to the manufacturer's instructions and applicable safety procedures. Test voltages and methods must be appropriate for the equipment and must not damage connected electronics or accessories.

During routine maintenance, technicians should look for unusual humming, abnormal temperature rise, discoloured insulation, loose terminals, damaged cables, contamination, and signs of moisture ingress. Any abnormal condition should be investigated before the equipment returns to service. Maintenance intervals should reflect operating conditions, manufacturer guidance, and the consequences of an unexpected outage.

Autotransformers require particular attention to input-output circuit relationships because the shared winding means that the output remains conductively connected to the input circuit. Isolation transformers also require correct protective arrangements; a separate secondary winding does not remove the need to manage fault current, grounding, or accidental contact.

For industrial purchasing teams, documentation is part of reliability management. The technical file should record the model, rated capacity, voltage ratio, frequency, phase arrangement, insulation specifications, applicable test reports, and any installation restrictions. Where the application requires a defined standard or certification, confirm that the supplied product and its documentation meet that requirement rather than relying on a general product description.


Frequently Asked Questions About Transformer Selection

Can an autotransformer replace an isolation transformer when only a different output voltage is required?

An autotransformer may be suitable when the only requirement is voltage conversion and the application does not require galvanic isolation. However, the decision must account for the equipment's safety requirements, grounding arrangement, fault protection, and applicable electrical codes. If the load specification explicitly requires electrical separation from the supply, an autotransformer is not an equivalent substitute. The complete installation should be assessed before selecting a replacement.

Why is an isolation transformer often preferred for electrical testing and sensitive equipment?

A properly designed isolation transformer separates the primary and secondary windings, helping prevent a direct conductive connection between the supply and the secondary circuit. This can be useful in specified testing and equipment-protection arrangements. It does not automatically eliminate electric shock hazards, suppress all voltage transients, or guarantee clean power. Appropriate grounding, protective devices, test procedures, and any additional filtering or regulation must be selected according to the equipment and applicable safety requirements.

What information is needed to specify an industrial transformer accurately?

Provide the input voltage, required output voltage, VA or kVA rating, frequency, phase configuration, load characteristics, duty cycle, installation environment, insulation requirements, and any required standards or certifications. Also state whether galvanic isolation is mandatory and whether voltage regulation is needed. These details allow the supplier to assess winding configuration, thermal requirements, protection provisions, and the suitability of the proposed transformer for the intended application.


How Can the Right Transformer Configuration Support Your Electrical System?

The practical difference between these transformer types comes down to the relationship between electrical isolation, voltage conversion, efficiency, and system safety. A separate-winding isolation transformer is appropriate when galvanic separation is a defined requirement, while an autotransformer can provide a compact and efficient solution for compatible voltage-conversion applications that do not require isolation. The correct selection depends on the operating conditions and the relevant electrical standards, not simply on size or purchase price.

Zhejiang Yibaling Technology Co., Ltd. can help evaluate transformer requirements based on voltage, rated capacity, frequency, phase configuration, and installation conditions. Contact our team with your technical specifications or equipment requirements to discuss a suitable transformer configuration and confirm the parameters that should be included in your quotation.
