How Do Thermal Magnetic Trip Units Work in Molded Case Circuit Breakers
2026-01-29

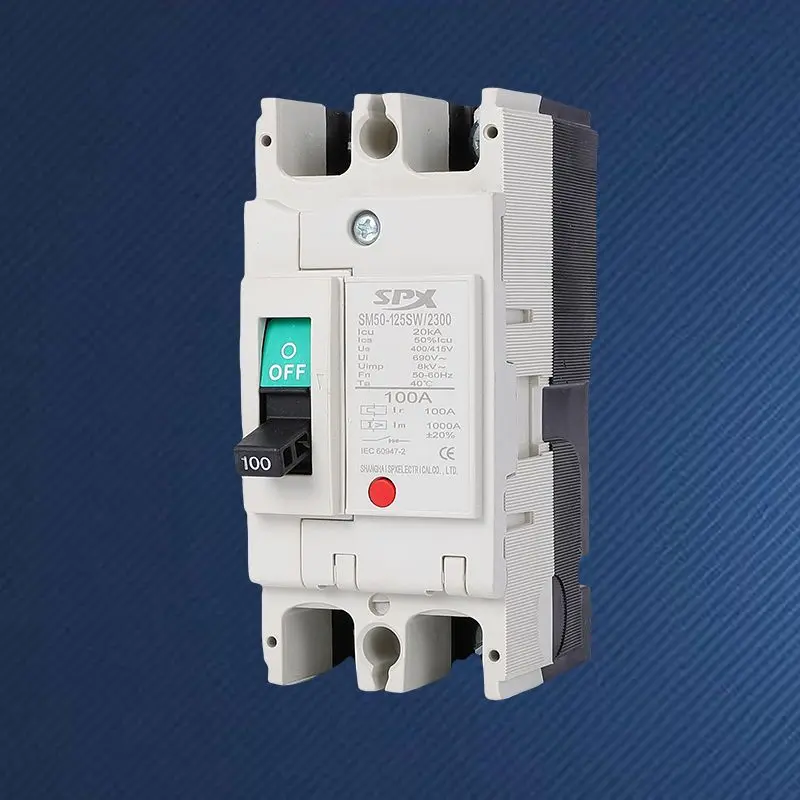

At the heart of every reliable electrical protection system lies a critical component: the trip unit. In Molded Case Circuit Breakers (MCCBs), the thermal-magnetic trip unit is the intelligent mechanism that silently guards against two primary electrical faults: overloads and short circuits. Understanding its operation is key to ensuring system safety and selecting the right protection for your application. Companies like SPX, with a deep commitment to engineering excellence, leverage this fundamental technology to create robust and dependable circuit protection solutions.
This dual-function unit operates through two distinct but complementary mechanisms:
-
The Thermal Trip (for Overload Protection):
This section responds to sustained overcurrents, typically 1.05 to 10 times the breaker's rated current. It utilizes a bimetallic strip that heats and bends as excessive current flows through it. The bending action, after a deliberate time delay, unlatches the mechanism to trip the breaker. This delay is crucial, as it allows harmless temporary surges (like motor startups) to pass without causing a nuisance trip. -
The Magnetic Trip (for Short Circuit Protection):
This section provides instantaneous protection against massive overcurrents from short circuits (usually 3 to 20 times the rated current). It features a solenoid (electromagnetic coil). During a short circuit, the sudden, extreme current generates a strong magnetic field that instantly pulls in a plunger, striking the trip mechanism and opening the contacts within milliseconds to prevent catastrophic damage.
The synergy of these elements can be summarized in their response characteristics:
| Fault Type | Mechanism | Response Characteristic | Primary Purpose |
|---|---|---|---|
| Overload | Thermal (Bimetallic Strip) | Inverse-Time Delay | Protect conductors from overheating |
| Short Circuit | Magnetic (Solenoid) | Instantaneous | Prevent damage from high-energy faults |
Molded Case Circuit Breakers FAQ
Q: Can the trip settings on a thermal-magnetic MCCB be adjusted?
A: Yes, many Molded Case Circuit Breakers offer adjustability. The magnetic trip (short circuit) setting is often adjustable via a dial, allowing you to set the instantaneous trip point. The thermal trip (overload) is typically fixed in standard breakers but may be adjustable in more advanced models or through interchangeable heater elements in some designs.
Q: Why does my MCCB trip intermittently under normal load?
A: Intermittent tripping under presumed normal load often points to a weak thermal connection. Loose terminals, degraded conductors, or poor contact resistance can generate excess heat within the breaker enclosure. This heat adds to the thermal effect of the load current, causing the bimetallic strip to bend and trip prematurely. A thorough inspection of connections is recommended.
Q: What is the difference between a thermal-magnetic and an electronic trip unit?
A: A thermal-magnetic unit is an electromechanical device with fixed curves and limited adjustability. An electronic (or digital) trip unit uses current sensors and microprocessors to provide highly accurate, configurable protection with features like programmable curves, ground fault protection, and communication capabilities for system monitoring. SPX offers solutions across this spectrum to meet diverse application needs.
Choosing the correct Molded Case Circuit Breaker with the appropriate trip unit characteristics is vital for electrical safety and operational continuity. The proven design of the thermal-magnetic trip unit offers a robust and cost-effective solution for a wide range of applications.
