How Do You Maintain and Test a 167 kVA Pole-Mounted Transformer
2026-10-20

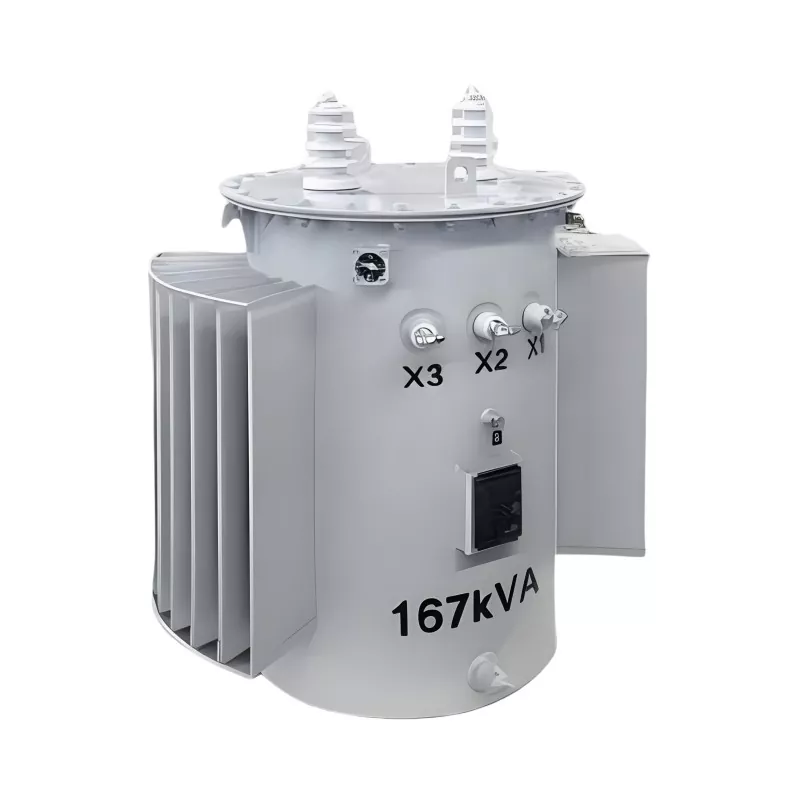

Regular inspection and testing are the foundation of reliable distribution service, and Guangbian has supported utilities and industrial users with dependable transformer solutions for decades. A 167KVA Pole-Mounted Transformer sits at the heart of many overhead distribution networks, feeding small commercial sites, farms, and residential clusters. Because these units are exposed to weather, load fluctuation, and fault currents, a structured maintenance and testing routine is essential to extend service life and prevent unplanned outages. The guidance below reflects field-proven practice for keeping a 167KVA Pole-Mounted Transformer in safe, efficient operation.
Routine Maintenance Schedule
Maintenance intervals depend on loading, environment, and utility policy, but the following schedule is a practical baseline for a 167KVA Pole-Mounted Transformer.
| Interval | Activity | Purpose |
|---|---|---|
| Monthly | Visual inspection from ground level | Detect leaks, corrosion, damaged bushings, and vegetation intrusion |
| Quarterly | Infrared thermography | Identify loose connections and overheating terminals |
| Annually | Oil level and dielectric strength check | Confirm insulation integrity |
| Every 2–3 years | Full oil dissolved gas analysis (DGA) | Detect incipient faults |
| Every 3–5 years | Bushing, gasket, and arrester inspection | Prevent moisture ingress |
| After any fault | Turns ratio and insulation resistance test | Verify winding health |
Key Maintenance Steps
-
Visual and mechanical inspection. Check the tank for oil seepage, inspect welds and paint, and confirm the pole bracket and grounding connections are tight and corrosion-free.
-
Oil system checks. Verify oil level against the sight gauge or temperature indicator, and sample oil for dielectric strength and moisture content.
-
Bushing and arrester care. Clean porcelain surfaces, inspect for cracks or tracking, and confirm surge arrester function.
-
Connection torque verification. Loose primary or secondary connections raise resistance and heat; re-torque to manufacturer specification.
-
Grounding integrity. Measure ground resistance and repair any degraded conductor or clamp.
-
Load and temperature review. Compare recorded loading against nameplate rating to confirm the 167KVA Pole-Mounted Transformer is not operating beyond design limits.
Electrical Testing Procedures
| Test | Method | Acceptance Indicator |
|---|---|---|
| Insulation resistance | Megger at prescribed voltage | Stable reading above manufacturer minimum |
| Turns ratio | Ratio bridge across windings | Within ±0.5% of nameplate ratio |
| Winding resistance | DC resistance measurement | Balanced across phases |
| Oil dielectric strength | Oil test set | Above utility minimum kV |
| Dissolved gas analysis | Laboratory DGA | No abnormal gas generation trend |
| Power factor / capacitance | Bushing test set | Within specified tolerance |
Record every result in a unit-specific history file. Trending matters more than a single reading: a slowly declining insulation resistance or rising moisture content signals intervention before failure. Guangbian recommends maintaining a digital test log for each 167KVA Pole-Mounted Transformer so comparisons across years are immediate and auditable.
Safety and Documentation
De-energize and lock out the unit before any internal or connection work, verify absence of voltage, and use appropriate PPE. Document every inspection, test result, and corrective action. A complete record supports regulatory compliance and helps justify repair-versus-replace decisions.
Frequently Asked Questions
How often should a 167KVA Pole-Mounted Transformer be tested? Perform visual inspections monthly, oil screening annually, and full electrical testing every three to five years, or immediately after any fault or lightning event.
What oil test results indicate a problem in a 167KVA Pole-Mounted Transformer? Falling dielectric strength, rising moisture content, or abnormal dissolved gas levels such as elevated acetylene or hydrogen indicate insulation distress and require prompt investigation.
Can a 167KVA Pole-Mounted Transformer be repaired in the field? Minor issues such as gasket replacement, bushing cleaning, and connection re-torquing can be handled on site, while winding or core faults generally require workshop repair or replacement.
What load level is safe for continuous operation? Operating at or below nameplate rating with attention to ambient temperature and harmonic content keeps the 167KVA Pole-Mounted Transformer within thermal limits and preserves insulation life.
A disciplined maintenance and testing program protects asset life, reduces outage risk, and supports regulatory compliance. Guangbian supplies 167KVA Pole-Mounted Transformer units built for dependable overhead service and backs them with technical guidance on inspection, testing, and lifecycle care. Contact us today to discuss your distribution transformer requirements, request specifications, or arrange a consultation with our engineering team.
