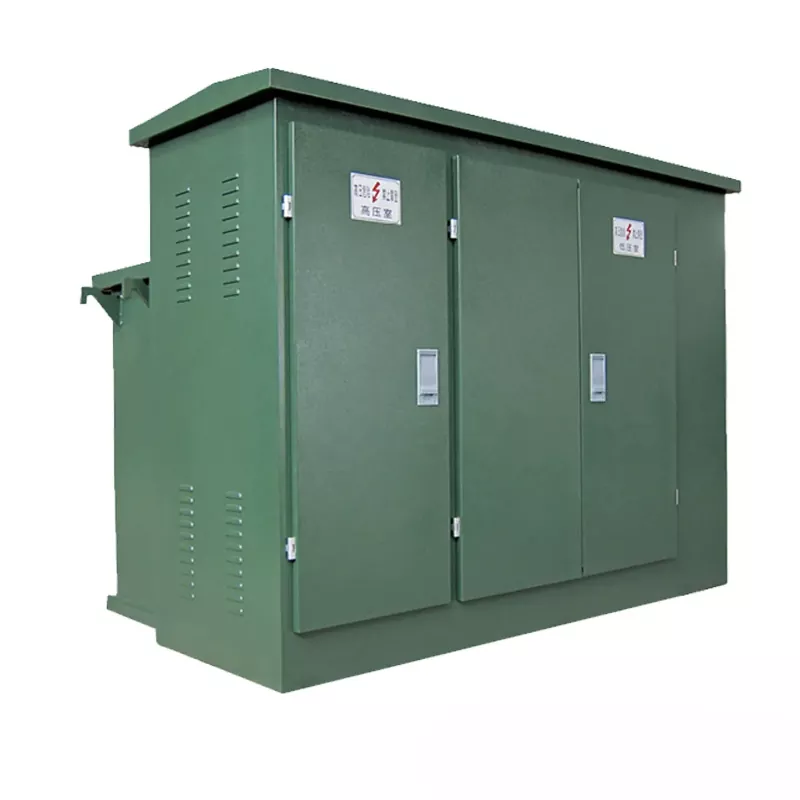

How do you select the right box type substation for your project
2026-01-09
Selecting the correct Box Type Substation is a critical decision that impacts the safety, reliability, and long-term cost of your power distribution project. As a cornerstone of modern electrical infrastructure, a prefabricated, compact substation must be carefully matched to specific requirements. With decades of experience in the field, TOONICE understands that a one-size-fits-all approach doesn't work. This guide outlines the key professional considerations to ensure you invest in the optimal solution for your needs.
A strategic selection process involves evaluating several core technical and operational parameters. Focus on these essential factors:
-
Voltage and Power Rating: Precisely define your input (primary) and output (secondary) voltage levels (e.g., 11kV/433V) and the required transformer capacity (kVA). This is the fundamental starting point.
-
Location & Environment: Assess the installation site. Will the Box Type Substation be placed indoors, outdoors, in a coastal, industrial, or high-ambient-temperature area? This dictates the required ingress protection (IP) rating, corrosion resistance, and cooling method.
-
Layout and Footprint: Measure the available space meticulously. Compact designs like those from TOONICE offer significant advantages, but internal configuration (ring main unit, breaker types, metering) must align with your network layout.
-
Future Expansion: Consider potential load growth. Can the chosen design accommodate future transformer or panel upgrades?
-
Standards and Compliance: Ensure the design and components meet all relevant local and international safety and performance standards.
The table below compares two common scenarios to illustrate how requirements influence the specification:
| Selection Factor | Industrial Application | Commercial/Residential Complex |
|---|---|---|
| Primary Voltage | 22kV or 33kV | 11kV |
| Transformer Rating | High (e.g., 2000 kVA+) | Moderate (e.g., 800-1250 kVA) |
| Key Switchgear | Vacuum Circuit Breaker for high durability | SF6 or Vacuum Insulated Load Break Switch |
| Environmental Focus | Corrosion-resistant coating for polluted air | Low-noise fans for noise-sensitive areas |
| Typical Layout | Single transformer with redundant feeders | Compact ring-main unit (RMU) configuration |
Box Type Substation FAQ
What is the typical lifespan of a Box Type Substation?
A well-designed and properly maintained Box Type Substation from a quality manufacturer like TOONICE can have a service lifespan exceeding 25-30 years. Longevity depends on the quality of components, environmental conditions, and adherence to a scheduled maintenance plan.
How long does it take to install a Box Type Substation?
One of the primary advantages is significantly reduced on-site installation time. Since the unit is factory-assembled and pre-tested, installation typically takes just a few days to a week for site preparation, placement, and final cable connections, compared to weeks or months for conventional site-built substations.
Can a Box Type Substation be relocated after initial installation?
Yes, a key benefit of the modular design is relative mobility. While it requires careful planning and professional handling, a Box Type Substation can be disconnected, transported, and recommissioned at a new site, offering excellent flexibility for evolving project needs.
Choosing the right Box Type Substation is an investment in your project’s operational stability. By methodically analyzing your technical data, environmental challenges, and future plans, you can specify a unit that delivers performance and value for decades. Partnering with an expert ensures every detail is considered.
Contact us today at TOONICE. Our engineering team is ready to help you analyze your project specifications and recommend the perfect, reliable Box Type Substation solution tailored to your precise requirements. Let's power your project forward.
