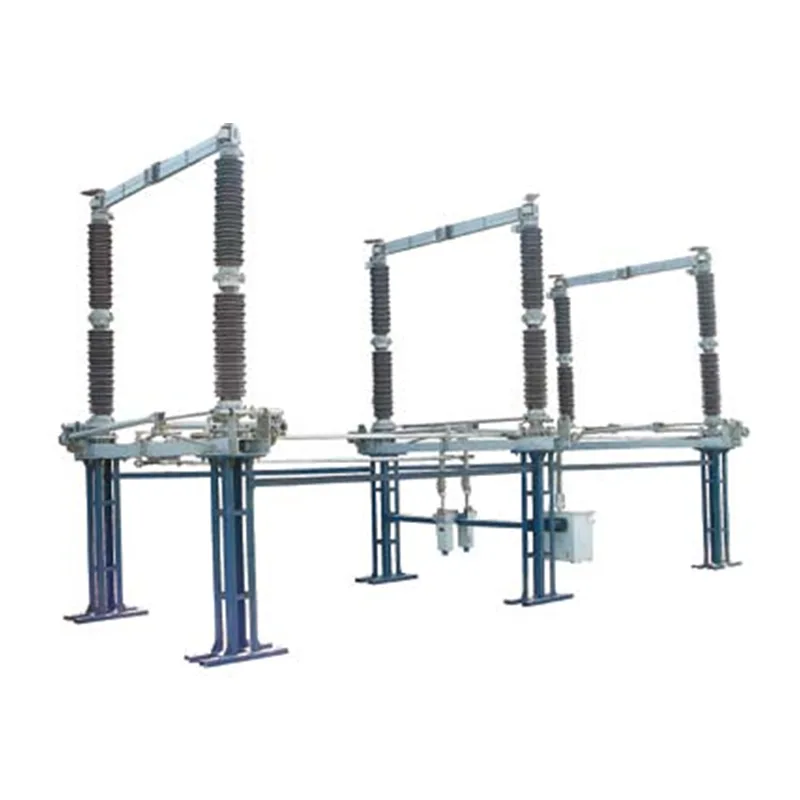

How Do You Select the Right High Voltage Disconnector for Outdoor Substations
2026-09-08
Selecting the appropriate High Voltage Disconnector for an outdoor substation is a critical engineering decision that directly impacts system reliability, personnel safety, and long-term operational costs. Unlike circuit breakers, a High Voltage Disconnector does not interrupt fault currents but provides visible isolation points for maintenance and emergency switching. For over a decade, Huixing has supplied utility and industrial clients with robust disconnector solutions tailored to diverse environmental and electrical demands. This guide breaks down the selection process into measurable criteria, common pitfalls, and practical FAQs to help engineers make informed choices.
1. Electrical Parameters – The Non‑Negotiable Foundation
Every selection starts with the substation’s primary electrical ratings. Missing these specifications often leads to premature failures or safety violations.
| Parameter | Typical Range | Selection Rule |
|---|---|---|
| Rated Voltage (kV) | 72.5 – 800 kV | Must match or exceed system maximum operating voltage |
| Rated Current (A) | 630 – 4000 A | Base on maximum continuous load + future expansion (120% margin recommended) |
| Short‑time Withstand Current (kA) | 20 – 63 kA | Equal to or greater than the substation’s symmetrical fault level (1‑3 s duration) |
| Peak Withstand Current (kA) | 1.5 × short‑time value | Accounts for asymmetrical transient peaks during faults |
| Insulation Level (BIL) | 325 – 2100 kV | Determined by system voltage and altitude (derate above 1000 m) |
Huixing recommends always requesting a short‑circuit dynamic verification report from the manufacturer, as mechanical stresses from fault currents often exceed electrical ratings in importance.
2. Environmental Suitability – Outdoor Realities
Outdoor substations face rain, ice, salt fog, sandstorms, and extreme temperatures. A High Voltage Disconnector that performs well in a desert may fail prematurely in a coastal humid zone.
-
Pollution Class (IEC 60815) : Choose at least Class IV for industrial/coastal areas – requires longer creepage distances (≥ 31 mm/kV).
-
Ambient Temperature Range: Standard is -25°C to +55°C. For cold regions below -40°C, special grease and heater kits are mandatory.
-
Wind Load & Seismic Zone: Calculate static and dynamic wind pressures per ASCE 7 or IEC 62271‑2. Huixing offers seismic‑rated versions for Zone 4 areas.
-
Ice Coating (up to 20 mm): Require high‑breakaway torque operating mechanisms and heated motor drives.
3. Mechanical Design & Operating Mechanism
Reliability in outdoor service depends heavily on moving parts, contact pressure, and bearing seals.
| Mechanical Feature | Why It Matters | Huixing Standard |
|---|---|---|
| Contact Material | Silver‑plated copper ensures low resistance and anti‑welding properties | Double‑leaf silver‑plated contacts with stainless steel springs |
| Bearing Seals | IP67 or higher prevents moisture ingress that freezes in winter | Triple‑lip silicone seals with drainage channels |
| Operating Mechanism | Manual (local) vs. Motor‑operated (remote) – choose based on switching frequency | Modular motor drive with manual override and position indicators |
| Number of Breaks | Single‑break (up to 245 kV) or double‑break (≥ 300 kV) for shorter overall length | Double‑break design reduces bending moment on support insulators |
For automated substations, select a motor‑operated High Voltage Disconnector with PLC‑compatible auxiliary contacts and anti‑pumping logic. Huixing integrates condition‑monitoring sensors (contact temperature, motor current) as an option.
4. Earthing Switch Integration – Interlocking Logic
Most outdoor disconnectors include a separate earthing switch on the load side. The interlocking scheme must prevent closing the earthing switch unless the main contacts are fully open.
-
Mechanical interlocking (key‑based) – simple but not fail‑safe against human error.
-
Electrical interlocking (auxiliary contacts + logic controller) – mandatory for remote operation.
-
Huixing employs a dual‑channel interlocking system that satisfies both IEC 62271‑102 and IEEE C37.30.1 requirements, with visible open‑gap indicators readable from 50 meters.
5. Lifecycle Costs – Not Just Purchase Price
A cheaper High Voltage Disconnector often incurs higher maintenance, spare parts, and outage costs. Evaluate:
-
Maintenance interval: Grease‑free bearings and anti‑corrosion coatings extend intervals from 2 to 6 years.
-
Spare parts availability: Standardised components (operating rods, insulators) reduce inventory.
-
Warranty & technical support: Huixing provides 10‑year spare part commitment and on‑site commissioning supervision.
6. FAQ – Common Questions About High Voltage Disconnector Selection
Q1: Can a High Voltage Disconnector be used to break load current in an emergency?
A1: No. A High Voltage Disconnector is designed exclusively for making and breaking negligible currents (≤ 0.5 A for capacitive currents, ≤ 5 A for inductive currents under specific conditions). It lacks arc‑quenching chambers. Attempting to interrupt load or fault current will cause severe arcing, contact welding, and potential explosion. Always use a circuit breaker for load interruption. The disconnector operates only after the breaker has opened and the line is de‑energised. For emergency situations, install a dedicated load‑break switch or recloser upstream.
Q2: How do I determine the required creepage distance for a High Voltage Disconnector in a highly polluted area?
A2: Creepage distance is calculated as: System voltage (kV) × Specific Creepage Distance (mm/kV). For severe pollution (class IV), IEC 60815 specifies 31 mm/kV for 50 Hz systems. Example: for 245 kV, required creepage = 245 × 31 = 7,595 mm minimum. This distance is measured along the insulator surface between the high‑voltage terminal and the earthed mounting flange. Huixing offers extended‑creepage polymeric insulators with hydrophobic silicone rubber sheds that self‑clean during rain, reducing flashover risk even when washing intervals exceed 12 months.
Q3: What type testing should I request from the manufacturer to verify a High Voltage Disconnector’s outdoor durability?
A3: Request full type‑test reports per IEC 62271‑102 or ANSI C37.32, including: (1) Temperature‑rise test at rated current, (2) Short‑time withstand and peak current tests, (3) Mechanical endurance – 5,000 open‑close cycles without maintenance, (4) IP enclosure tests for operating mechanisms, (5) Rain test (vertical and angled) with water resistivity ≤ 100 Ω·m, (6) Ice test (20 mm ice coverage with 10 % conductivity) ensuring opening force ≤ 1.5× rated torque, and (7) Seismic qualification (if applicable). Always verify that these tests were performed on the exact pole‑configuration you intend to purchase – not just a scaled‑down version. Huixing provides full test certificates with each shipment and can arrange witnessed factory acceptance tests upon request.
7. Final Checklist Before Ordering
-
□
Voltage, current, fault levels match your substation’s one‑line diagram.
-
□
Creepage distance ≥ site pollution class requirement.
-
□
Operating mechanism voltage (AC/DC) and control scheme compatible with your SCADA.
-
□
Interlocking logic fully verified with earthing switch and circuit breaker.
-
□
Spare parts kit (contacts, springs, heaters) included in the quotation.
-
□
Installation manual and special tools provided.
