How Does a 125A Adjustable Moulded Case Circuit Breaker Improve Electrical Protection?
2026-07-20
Electrical systems in commercial buildings, industrial facilities, and power distribution networks require reliable protection devices to ensure safety, efficiency, and stable operation. Overcurrent, short circuits, and unexpected electrical faults can cause equipment damage, production downtime, and even serious safety hazards. A 125A Adjustable Moulded Case Circuit Breaker is designed to provide flexible and accurate circuit protection by allowing users to adjust protection parameters according to different application requirements. Compared with fixed-setting breakers, adjustable MCCBs offer better adaptability, improved operational reliability, and longer service life. As a professional electrical solution provider, Shanghai DaDa Electric Co., Ltd. focuses on supplying high-quality circuit protection products that meet the needs of modern power systems.
What Is a 125A Adjustable Moulded Case Circuit Breaker?

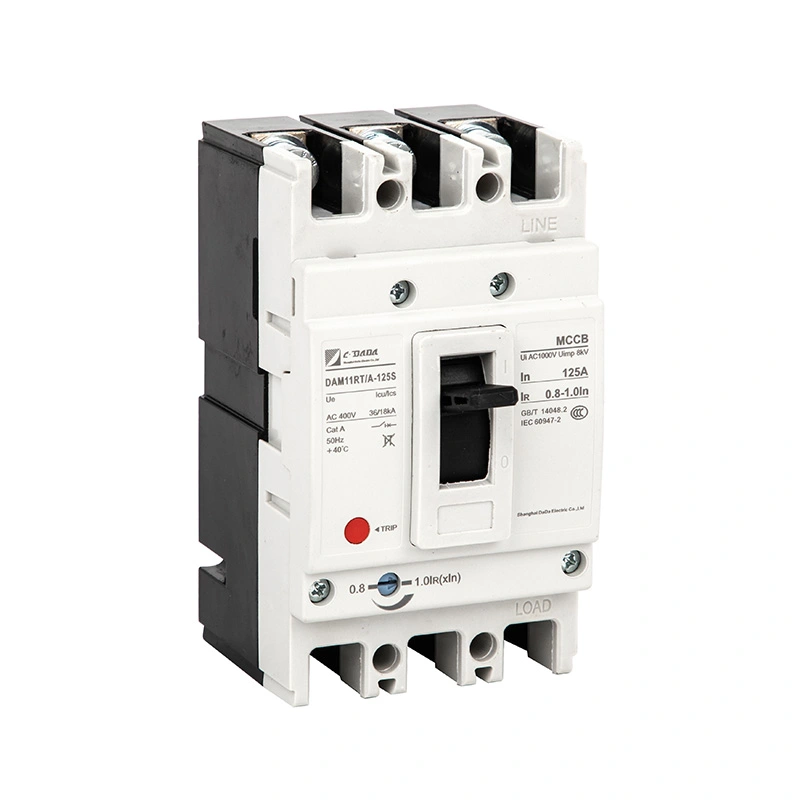

A 125A Adjustable Moulded Case Circuit Breaker is a type of low-voltage protection device designed to protect electrical circuits from overloads and short-circuit currents. The rated current capacity is 125A, while the adjustable trip function allows users to modify protection settings based on actual electrical loads.
Unlike traditional circuit breakers with fixed parameters, adjustable MCCBs provide greater flexibility. Engineers can optimize current protection levels during installation, system upgrades, or changing operating conditions without replacing the entire breaker.
The moulded case design provides strong insulation and mechanical protection. The external housing protects internal components from dust, moisture, and environmental impacts, making the breaker suitable for demanding industrial and commercial environments.
Why Is Adjustable Protection Important in Electrical Systems?
Electrical loads are rarely constant. Different machines, production lines, and commercial facilities may experience different operating currents depending on their working conditions. A fixed circuit breaker may not always provide the ideal balance between safety and operational continuity.
The adjustable function of a 125A Adjustable Moulded Case Circuit Breaker solves this problem by providing customized protection.
Main advantages include:
| Feature | Benefit |
|---|---|
| Adjustable current settings | Matches different electrical load requirements |
| Overload protection | Prevents equipment damage caused by excessive current |
| Short circuit protection | Quickly disconnects dangerous fault currents |
| High mechanical strength | Supports long-term operation |
| Easy maintenance | Reduces downtime during inspections |
Adjustable MCCBs help prevent unnecessary power interruptions while ensuring that circuits remain protected under abnormal conditions.
Key Features of a 125A Adjustable MCCB
A high-quality 125A Adjustable Moulded Case Circuit Breaker usually includes several important functions that improve system performance.
1. Adjustable Thermal Protection
The thermal protection function detects overload conditions caused by excessive current over a period of time. Users can adjust the trip level according to the rated capacity of connected equipment.
This feature is especially useful in applications where electrical loads change frequently.
2. Magnetic Short Circuit Protection
The magnetic trip mechanism responds quickly when a short circuit occurs. It helps disconnect faulty circuits immediately, reducing the risk of equipment damage and electrical accidents.
3. Durable Moulded Case Structure
The moulded case construction provides excellent insulation performance and physical protection. It allows the breaker to operate reliably in factories, power distribution rooms, and commercial buildings.
4. High Breaking Capacity
A reliable MCCB should have sufficient breaking capacity to safely interrupt fault currents. This ensures that electrical systems remain protected even under severe fault conditions.
5. Compact Installation Design
The compact structure allows efficient use of electrical cabinet space while maintaining excellent protection performance.
Applications and Usage Effects
A 125A Adjustable Moulded Case Circuit Breaker is widely used in various electrical applications because of its flexibility and reliability.
Common application areas:
- Industrial manufacturing equipment
- Factory power distribution systems
- Commercial buildings
- Data centers
- Renewable energy systems
- Motor control systems
- Infrastructure projects
Usage Effects
| Application | Protection Effect |
|---|---|
| Industrial equipment | Prevents motor and machine damage |
| Commercial power systems | Ensures stable electricity supply |
| Distribution panels | Improves circuit management |
| Renewable energy projects | Provides reliable overload protection |
| Automation systems | Supports continuous operation |
For industries where downtime can result in significant financial losses, choosing an adjustable MCCB can greatly improve system stability.
125A Adjustable MCCB vs Fixed MCCB
Choosing between adjustable and fixed circuit breakers depends on the complexity of the electrical system.
| Comparison | Adjustable MCCB | Fixed MCCB |
|---|---|---|
| Protection settings | Adjustable according to requirements | Pre-set values |
| Flexibility | High | Limited |
| System upgrades | Easier adaptation | May require replacement |
| Installation cost | Higher initial investment | Lower initial cost |
| Long-term value | Better for changing loads | Suitable for simple applications |
A fixed MCCB can meet basic protection requirements, but an adjustable model provides better performance for projects requiring precise electrical management.
How Does a 125A Adjustable Moulded Case Circuit Breaker Work?
The working principle of an adjustable MCCB involves monitoring electrical current and disconnecting the circuit when abnormal conditions occur.
During normal operation, current flows through the breaker without interruption. When the current exceeds the preset value, the thermal or magnetic protection mechanism activates.
The breaker then opens its contacts, cutting off the power supply and protecting connected devices.
The adjustable trip settings allow engineers to define suitable protection parameters according to:
- Equipment rated current
- Starting current requirements
- Environmental conditions
- Load characteristics
- Safety standards
This customized protection capability makes adjustable MCCBs an essential component in modern electrical distribution systems.
How to Choose the Right 125A Adjustable MCCB?
Selecting the correct breaker requires consideration of several technical factors.
Important selection criteria:
-
Rated Current
Ensure the breaker matches the electrical system requirements. A 125A rating is suitable for medium-level power distribution applications.
-
Breaking Capacity
Select a model capable of safely handling possible fault currents.
-
Trip Adjustment Range
Confirm that the adjustment range meets current and future system requirements.
-
Installation Environment
Consider temperature, humidity, dust, and other environmental factors.
-
Quality Certification
Choose products manufactured according to recognized electrical standards to ensure safety and reliability.
Shanghai DaDa Electric Co., Ltd. provides professional circuit protection solutions designed for different industrial and commercial applications. With advanced manufacturing capabilities and strict quality control, the company is committed to delivering dependable MCCB products that support safe and efficient electrical operations.
Importance and Role of a 125A Adjustable Moulded Case Circuit Breaker
The importance of an adjustable MCCB goes beyond simple circuit interruption. It plays a critical role in maintaining electrical safety and improving energy system reliability.
Major roles include:
- Protecting expensive electrical equipment
- Reducing electrical accident risks
- Improving system operation efficiency
- Minimizing maintenance costs
- Supporting flexible power distribution designs
In modern industries, electrical systems continue to become more complex. A reliable protection device helps companies maintain productivity while ensuring workplace safety.
Frequently Asked Questions (FAQ)
1. What is the main advantage of a 125A Adjustable Moulded Case Circuit Breaker?
The main advantage is adjustable protection settings, allowing users to customize overload and short-circuit protection according to different electrical requirements.
2. Where can a 125A Adjustable MCCB be used?
It can be used in industrial facilities, commercial buildings, distribution systems, automation equipment, and renewable energy applications.
3. How is an adjustable MCCB different from a standard circuit breaker?
An adjustable MCCB allows users to modify trip parameters, while standard fixed breakers usually operate with predetermined protection values.
4. Why should businesses choose a reliable MCCB supplier?
A professional supplier ensures product quality, stable performance, technical support, and solutions that meet different application requirements.
Conclusion
A 125A Adjustable Moulded Case Circuit Breaker is an essential electrical protection solution for modern power distribution systems. Its adjustable protection functions, durable construction, and flexible application capability make it ideal for industries requiring reliable and efficient circuit management.
Shanghai DaDa Electric Co., Ltd. is dedicated to providing high-performance electrical protection products that help customers improve safety, reduce operational risks, and achieve stable power system performance. Whether for industrial projects, commercial facilities, or customized electrical applications, choosing the right MCCB can make a significant difference.
For more information about high-quality 125A Adjustable Moulded Case Circuit Breaker solutions and professional electrical protection services, contact us today. Shanghai DaDa Electric Co., Ltd. is ready to provide reliable products and expert support for your electrical projects.
