Article Summary
A reliable power distribution network requires equipment that can quickly respond to electrical faults while maintaining stable operation. A 24kV Pole Mounted High Voltage Circuit Breaker is an essential protection device used in medium-voltage overhead distribution systems. It helps utilities, industrial facilities, and commercial power users reduce downtime, improve safety, and protect electrical assets from damage caused by overloads, short circuits, and abnormal current conditions.
This article explains how a 24kV Pole Mounted High Voltage Circuit Breaker works, why it is important, what challenges it solves, and how advanced solutions from Anqiang help customers build safer and more efficient power distribution systems.
Article Outline
-
Understanding the structure and function of pole mounted high voltage circuit breakers
-
Analyzing the working principle and protection mechanism
-
Identifying common power distribution challenges
-
Exploring product benefits and application fields
-
Choosing and maintaining suitable equipment

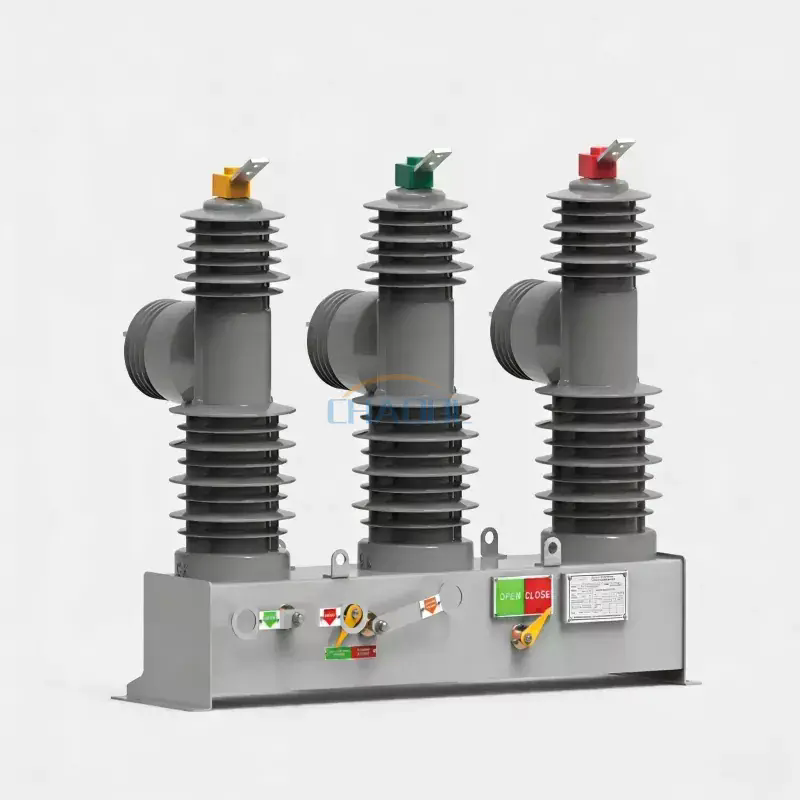

What Is a 24kV Pole Mounted High Voltage Circuit Breaker?
A 24kV Pole Mounted High Voltage Circuit Breaker is a switching and protection device designed for medium-voltage overhead distribution networks. It is commonly installed on utility poles to control and protect electrical lines operating at up to 24kV voltage levels.
Unlike traditional indoor switching equipment, this type of circuit breaker is designed to withstand outdoor environments, including temperature variations, humidity, dust, and weather exposure. Its compact structure allows installation directly on distribution poles, making it suitable for rural grids, industrial areas, renewable energy systems, and urban power networks.
The main purpose of the equipment is to automatically disconnect faulty sections of the power system. When abnormal current conditions occur, the circuit breaker interrupts the electrical circuit quickly, preventing damage to transformers, cables, and other important components.
Main Components of a 24kV Pole Mounted High Voltage Circuit Breaker:
-
Vacuum interrupter for reliable arc extinguishing
-
Operating mechanism for fast switching actions
-
Insulating housing for electrical isolation
-
Current and voltage sensing components
-
Control system for intelligent protection
-
Mounting structure for pole installation
How Does a 24kV Pole Mounted High Voltage Circuit Breaker Work?
The operating principle of a 24kV Pole Mounted High Voltage Circuit Breaker is based on detecting abnormal electrical conditions and interrupting current flow before serious damage occurs.
During normal operation, electrical current passes through the circuit breaker without interruption. When the system detects conditions such as short circuits, overloads, or ground faults, the protection system sends a signal to the operating mechanism.
The mechanism quickly separates the internal contacts inside the vacuum interrupter. Because the vacuum environment prevents sustained electrical arcs, the current can be interrupted safely and efficiently.
The complete protection process usually includes the following steps:
-
Fault Detection: Sensors monitor current changes and identify abnormal conditions.
-
Signal Processing: The controller analyzes whether protection action is required.
-
Contact Separation: The operating mechanism opens the circuit contacts rapidly.
-
Arc Elimination: The vacuum interrupter extinguishes the electrical arc.
-
System Recovery: After inspection, the breaker can be reset and returned to operation.
This fast response capability is one of the main reasons why pole mounted circuit breakers are widely used in modern distribution networks.
What Problems Can It Solve in Power Distribution?
Power distribution systems face many challenges, including unexpected faults, equipment aging, and increasing electricity demand. A properly designed 24kV Pole Mounted High Voltage Circuit Breaker helps solve several critical problems.
-
Reducing Power Outages: The breaker isolates fault areas quickly, allowing unaffected sections of the grid to continue operating.
-
Protecting Expensive Equipment: By interrupting excessive current, it prevents damage to transformers, cables, and distribution equipment.
-
Improving Operational Safety: Automatic protection reduces the need for manual intervention during dangerous electrical faults.
-
Supporting Smart Grid Development: Advanced control functions allow remote monitoring and intelligent power management.
-
Lowering Maintenance Costs: Reliable vacuum switching technology reduces maintenance frequency compared with traditional systems.
For power companies and industrial users, these benefits directly improve network reliability and operational efficiency.
Key Advantages of Using a 24kV Pole Mounted High Voltage Circuit Breaker
Selecting the right circuit protection equipment can significantly influence the performance of a distribution network. A high-quality 24kV Pole Mounted High Voltage Circuit Breaker provides several important advantages.
-
High Electrical Reliability: Vacuum interruption technology provides stable performance under frequent switching and fault conditions.
-
Excellent Outdoor Adaptability: The sealed design protects internal components from environmental influences.
-
Fast Fault Response: Quick interruption helps minimize damage and reduce downtime.
-
Compact Installation: Pole-mounted installation saves space and simplifies deployment.
-
Long Service Life: Durable materials and optimized mechanical structures support continuous operation.
-
Flexible Control Options: The equipment can be integrated with automation systems for modern grid management.
Anqiang focuses on providing reliable medium-voltage electrical solutions that meet different distribution requirements. Through professional design and manufacturing processes, Anqiang helps customers improve power system safety and stability.
How to Select the Right Circuit Breaker for Your Application?
Choosing a suitable 24kV Pole Mounted High Voltage Circuit Breaker requires careful consideration of electrical parameters, installation conditions, and operational requirements.
-
Rated Voltage: Ensure the breaker matches the system voltage level.
-
Rated Current: Select a model capable of handling the expected continuous load.
-
Breaking Capacity: The breaker must safely interrupt possible short-circuit currents.
-
Environmental Conditions: Outdoor applications require strong resistance against moisture, dust, and temperature changes.
-
Control Requirements: Consider whether remote operation and automation functions are needed.
A professional supplier can help analyze the actual working environment and recommend a suitable configuration to achieve better performance and cost efficiency.
Maintenance Tips for Long-Term Reliable Operation
Although modern pole mounted circuit breakers are designed for durability, regular inspection and maintenance are essential to ensure long-term reliability.
-
Check mechanical operating performance regularly.
-
Inspect insulation components for damage or contamination.
-
Verify control system communication and protection settings.
-
Monitor abnormal noise, vibration, or switching delays.
-
Keep installation areas free from excessive pollution and external damage.
Preventive maintenance helps identify potential issues before they develop into serious failures, improving system safety and reducing unexpected repair costs.
Frequently Asked Questions
Q1: What is the main function of a 24kV Pole Mounted High Voltage Circuit Breaker?
A 24kV Pole Mounted High Voltage Circuit Breaker protects overhead distribution networks by automatically disconnecting faulty electrical sections caused by overloads, short circuits, or other abnormal conditions.
Q2: Why are vacuum interrupters commonly used in these circuit breakers?
Vacuum interrupters provide efficient arc extinguishing, high reliability, low maintenance requirements, and long operational life.
Q3: Where can a 24kV Pole Mounted High Voltage Circuit Breaker be installed?
It is widely used in utility distribution systems, industrial power networks, renewable energy projects, and outdoor medium-voltage applications.
Q4: How does this equipment improve power system reliability?
By quickly isolating faults, the breaker prevents widespread outages and protects critical electrical equipment from serious damage.
Q5: Why choose Anqiang for medium-voltage circuit breaker solutions?
Anqiang provides professionally designed electrical protection products with a focus on reliability, safety, and customer application requirements.
Conclusion
A 24kV Pole Mounted High Voltage Circuit Breaker plays an important role in creating safer, more reliable, and more efficient power distribution networks. By providing fast fault protection, reducing downtime, and supporting intelligent grid management, it has become an essential component for modern electrical infrastructure.
With advanced manufacturing capabilities and professional electrical solutions, Anqiang continues to help customers improve distribution system performance and achieve reliable power operation. If you need a dependable 24kV Pole Mounted High Voltage Circuit Breaker solution tailored to your application, please contact us for professional support and customized service.
