How Does a 36KV Vacuum Interrupter For Outdoor VCB Improve Medium Voltage Switching Performance?
2026-07-31
In modern power distribution systems, reliable switching equipment plays a critical role in ensuring electrical safety, operational stability, and long service life. A vacuum interrupter is one of the most important components inside a vacuum circuit breaker (VCB), especially for outdoor medium-voltage applications. The 36KV Vacuum Interrupter For Outdoor VCB is designed to provide excellent arc extinguishing performance, strong insulation capability, and dependable operation under harsh environmental conditions. With advanced manufacturing technology and customized solutions, Sunway Hanguang Electric Manufacturing Limited Co., Ltd. provides high-quality vacuum interrupter products that meet different customer requirements, including customized porcelain and structural designs for various outdoor VCB applications.
What Is a 36KV Vacuum Interrupter For Outdoor VCB?

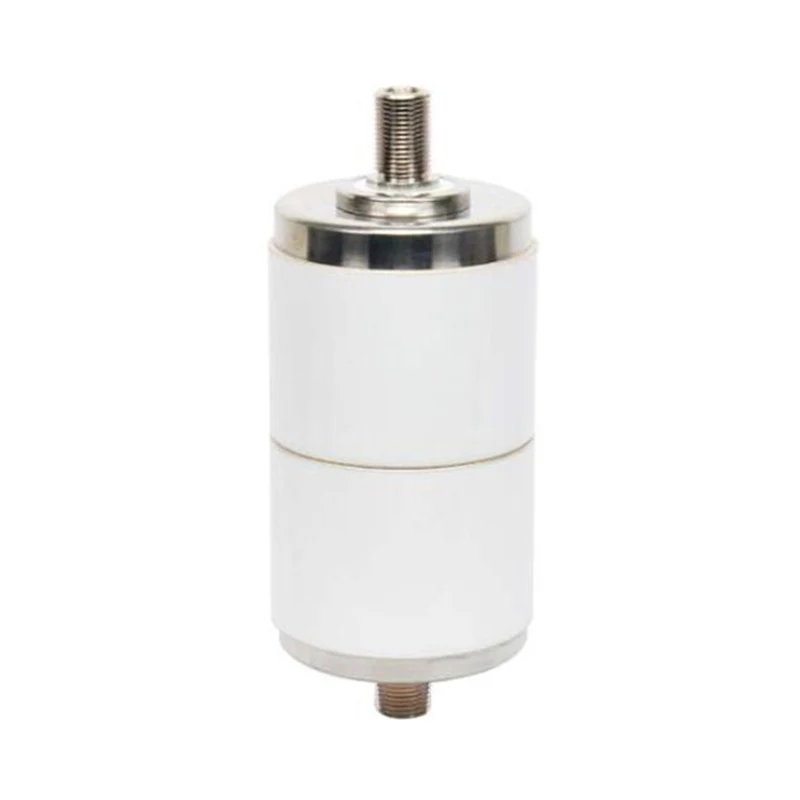

A 36KV Vacuum Interrupter For Outdoor VCB is a specialized switching component that uses a high-vacuum environment to interrupt electrical current. When the circuit breaker operates, the vacuum interrupter quickly separates electrical contacts and extinguishes the arc generated during current interruption. This process helps prevent equipment damage and improves the safety of power systems.
Compared with traditional interruption technologies, vacuum interruption offers better insulation recovery, lower maintenance requirements, and longer mechanical endurance. It is widely used in outdoor power distribution networks, substations, industrial facilities, renewable energy systems, and other medium-voltage electrical applications.
The main components of a vacuum interrupter include:
| Component | Function |
|---|---|
| Fixed Contact | Provides stable electrical connection during operation |
| Moving Contact | Performs opening and closing actions |
| Ceramic Insulator | Ensures high insulation performance |
| Metal Shield | Controls electric field distribution and protects internal parts |
| Bellows Assembly | Maintains vacuum conditions while allowing movement |
Why Is a 36KV Vacuum Interrupter Important for Outdoor VCB Applications?
Outdoor electrical equipment often operates in challenging environments, including temperature changes, humidity, dust, and pollution. Therefore, the reliability of the vacuum interrupter directly affects the overall performance of the vacuum circuit breaker.
The 36KV Vacuum Interrupter For Outdoor VCB offers several important advantages:
1. Excellent Arc Extinguishing Performance
The high-vacuum environment inside the interrupter allows the arc to disappear quickly when the contacts separate. This improves interruption speed and reduces electrical stress on the system.
2. High Electrical Safety
Vacuum technology provides excellent insulation recovery after current interruption. This helps reduce the possibility of electrical faults and ensures safer operation in medium-voltage networks.
3. Long Service Life
A vacuum interrupter has fewer wearing parts compared with conventional switching technologies. Its strong mechanical structure supports frequent operation and reduces replacement frequency.
4. Low Maintenance Requirements
Because the internal environment is sealed and protected, vacuum interrupters require minimal maintenance during their service life. This helps customers reduce operation costs and improve system efficiency.
How Does It Improve Outdoor VCB Working Effects?
The performance of an outdoor vacuum circuit breaker depends heavily on the quality of its vacuum interrupter. A high-performance 36KV Vacuum Interrupter For Outdoor VCB can improve the complete switching system in several ways.
| Performance Feature | Application Effect |
|---|---|
| Fast current interruption | Reduces damage caused by fault currents |
| Strong insulation ability | Improves system reliability |
| Compact structure | Allows flexible VCB design |
| High mechanical durability | Supports repeated switching operations |
| Environmental resistance | Suitable for outdoor installation |
For outdoor power distribution systems, these improvements mean fewer unexpected shutdowns, safer equipment operation, and better power supply continuity.
Customized Design Advantage for Different Outdoor VCB Requirements
Different power projects may require different vacuum interrupter structures, installation dimensions, contact materials, and insulation designs. Recognizing these needs, Sunway Hanguang Electric Manufacturing Limited Co., Ltd. provides professional customization services to meet various application requirements.
The company supports customized porcelain shell design and structural customization, allowing customers to select suitable solutions according to their specific outdoor VCB models and technical specifications.
Customization advantages include:
- Customized external dimensions according to customer equipment design
- Flexible contact structure solutions for different switching requirements
- Customized insulation materials and configurations
- Support for OEM and special project requirements
- Professional technical communication and product optimization
This ship-type customization capability helps customers obtain vacuum interrupters that match their unique equipment structures, improving installation compatibility and overall system performance.
36KV Vacuum Interrupter For Outdoor VCB vs Traditional Switching Components
Choosing the right interruption technology is important for improving power equipment reliability. Compared with traditional switching components, vacuum interrupters provide better long-term performance.
| Comparison | Vacuum Interrupter | Traditional Interruption Technology |
|---|---|---|
| Arc extinguishing method | Vacuum arc extinction | Gas or mechanical methods |
| Maintenance requirement | Low | Higher |
| Service life | Long operational lifespan | More frequent maintenance needed |
| Environmental impact | Clean and stable | May require additional protection |
| Switching reliability | Excellent | Depends on operating conditions |
The advantages of vacuum technology make it an ideal choice for modern medium-voltage outdoor VCB systems.
Main Applications of 36KV Vacuum Interrupter For Outdoor VCB
The product is widely applied in different industries and power projects, including:
- Outdoor medium-voltage distribution networks
- Power substations
- Industrial power supply systems
- Renewable energy facilities
- Railway and infrastructure power systems
- Mining and heavy industrial equipment
- Commercial electrical distribution projects
These applications require stable switching performance, and reliable vacuum interrupters help maintain continuous and safe electrical operation.
Key Factors When Selecting a 36KV Vacuum Interrupter For Outdoor VCB
When choosing a suitable vacuum interrupter, customers should consider several technical factors:
-
Rated Voltage and Current Capacity
Ensure the interrupter matches the electrical requirements of the VCB system. -
Contact Material Quality
High-quality contact materials improve switching performance and reduce contact wear. -
Vacuum Level Stability
A stable vacuum environment ensures reliable arc interruption. -
Mechanical Compatibility
The interrupter design should match the circuit breaker structure. -
Customization Capability
Professional customization support allows better integration with special outdoor VCB designs.
Sunway Hanguang Electric Manufacturing Limited Co., Ltd. focuses on providing reliable vacuum interrupter solutions with advanced manufacturing processes and customized production capabilities.
Conclusion
The 36KV Vacuum Interrupter For Outdoor VCB is an essential component for improving the safety, reliability, and efficiency of medium-voltage electrical systems. With outstanding arc extinguishing performance, long service life, low maintenance requirements, and strong environmental adaptability, it provides an effective solution for outdoor vacuum circuit breaker applications.
Sunway Hanguang Electric Manufacturing Limited Co., Ltd. combines professional manufacturing experience with flexible customization capabilities to deliver vacuum interrupter solutions suitable for different customer projects. Whether customers need standard products or specially designed ship-type customized solutions, the company can provide reliable technical support and high-quality products.
For more information about customized 36KV Vacuum Interrupter For Outdoor VCB solutions, please contact us today. Sunway Hanguang Electric Manufacturing Limited Co., Ltd. is ready to provide professional service, customized designs, and dependable electrical components for global power applications.
