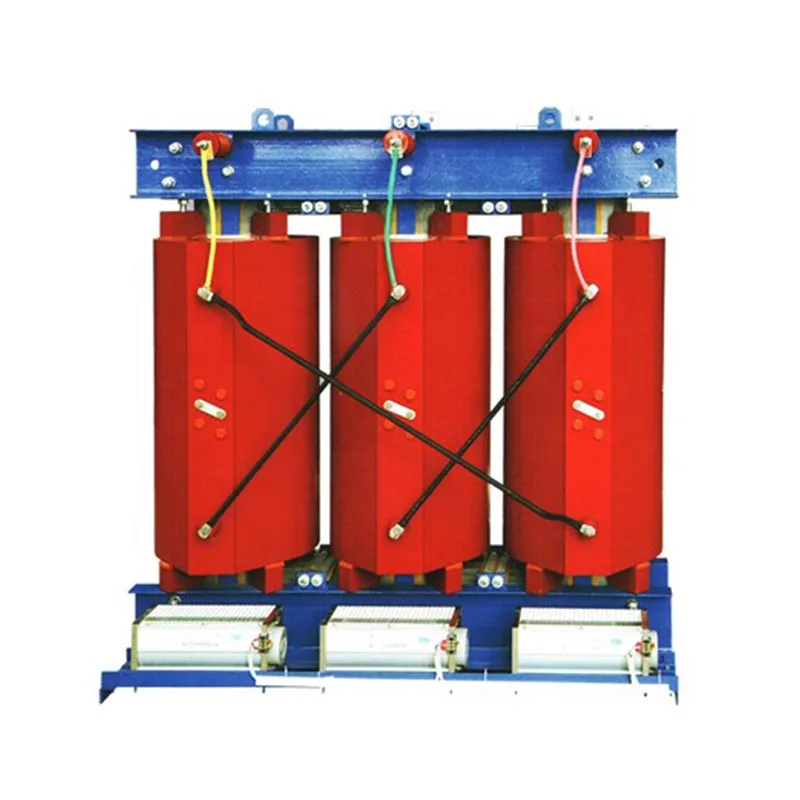

How Does a 630kVA Epoxy Resin Dry Type Transformer Improve Power Distribution?

A 630kVA Epoxy Resin Dry Type Transformer is designed for power distribution applications where safety, reliability, compact installation, and reduced maintenance are important. Compared with oil-immersed transformers, its epoxy-resin insulation system eliminates insulating oil and reduces risks associated with leakage and fire. The 630kVA capacity also provides a practical balance between power demand and equipment size for many commercial and industrial projects. Zhejiang Usune Electric Co., Ltd. develops dry-type transformer solutions with customized electrical parameters and project-oriented configurations, making the equipment suitable for different power distribution requirements.

What Is a 630kVA Epoxy Resin Dry Type Transformer?

A 630kVA Epoxy Resin Dry Type Transformer is a static electrical device that transfers electrical energy between voltage levels through electromagnetic induction. Instead of using insulating oil, its windings are encapsulated with epoxy resin, while air is used for insulation and heat dissipation.

The 630kVA rating indicates the transformer's apparent power capacity. Depending on the project, input and output voltage, frequency, impedance, winding material, connection group, enclosure, and cooling configuration can be specified according to system requirements.

Typical configurations may include:

Actual parameters should be confirmed according to the local grid and project design.

Why Is Epoxy Resin Insulation Important?

The insulation system directly affects transformer reliability and service life. Epoxy resin encapsulation protects the windings against moisture, dust, and other environmental influences while providing strong electrical insulation.

For industrial and commercial users, this design can provide several practical benefits:

• Oil-free operation: No insulating oil is required.
• Fire safety: The absence of transformer oil reduces oil-related fire hazards.
• Low maintenance: There is no need for routine oil inspection or oil replacement.
• Environmental advantages: Oil leakage and associated contamination risks are avoided.
• Compact installation: Dry-type designs can be installed close to electrical loads where project conditions permit.
• Stable operation: Properly designed epoxy insulation supports dependable electrical performance.

These characteristics make dry-type transformers particularly useful in facilities where safety and indoor installation are major considerations.

How Does It Improve Power Distribution?

The main function of a 630kVA Epoxy Resin Dry Type Transformer is to step voltage up or down while maintaining efficient and reliable electrical energy transfer.

For example, a medium-voltage distribution system can supply the transformer's high-voltage winding. Through electromagnetic induction, the transformer transfers energy to the low-voltage winding at the required voltage level. The converted power can then be distributed to production equipment, lighting, HVAC systems, pumps, control systems, or other electrical loads.

For facilities with concentrated electrical demand, locating the transformer closer to the load can help simplify the distribution structure and reduce unnecessary cable runs.

Zhejiang Usune Electric Co., Ltd. combines transformer manufacturing with customized electrical design, allowing parameters such as voltage ratio, impedance, frequency, and other configuration requirements to be considered during project planning.

What Are Its Practical Effects in Industrial Applications?

In industrial environments, transformer performance directly influences production continuity. A properly selected 630kVA transformer can support stable power distribution for factories, workshops, warehouses, commercial buildings, transportation facilities, and other electrical infrastructure.

Its practical effects include:

1. More secure power distribution
   Oil-free construction is advantageous where fire-safety requirements are strict.
2. Reduced routine maintenance
   Compared with oil-filled equipment, users do not need to manage transformer oil as part of normal maintenance.
3. Better environmental adaptability
   Epoxy-resin encapsulation helps protect windings from moisture and dust under appropriate operating conditions.
4. Efficient space utilization
   The compact dry-type structure can be advantageous when installation space is limited.
5. Flexible project integration
   Electrical parameters and enclosure configurations can be customized according to project requirements.

How Does Customization Benefit Different Projects?

Not every electrical system has the same voltage, installation environment, load characteristics, or space limitations. Therefore, standardized transformer specifications may not always be sufficient.

Zhejiang Usune Electric Co., Ltd. provides customized production for specific voltage, impedance, capacity, and other electrical requirements.

Support for Ship-Type Customization

One important advantage for specialized projects is support for ship-type customization. For marine and ship-related applications, transformer dimensions, installation position, environmental conditions, voltage requirements, enclosure design, and connection arrangements can differ significantly from conventional building projects.

A customized 630kVA Epoxy Resin Dry Type Transformer can therefore be considered according to:

• Ship or vessel electrical system requirements
• Restricted installation space
• Customized dimensions and structural arrangements
• Marine environmental conditions
• Required voltage and frequency
• Cable and terminal positioning
• Protection and enclosure requirements
• Project-specific cooling and monitoring configurations

This capability is particularly valuable for shipbuilding, marine engineering, offshore facilities, and other specialized power-distribution projects where equipment cannot simply follow a standard land-based configuration.

630kVA Dry Type Transformer vs. Oil-Immersed Transformer

The choice between dry-type and oil-immersed technology depends on the project's electrical, environmental, and installation requirements.

For indoor commercial, industrial, infrastructure, and specialized applications, dry-type construction can offer an attractive combination of safety, maintenance convenience, and installation flexibility.

Why Choose Zhejiang Usune Electric Co., Ltd.?

Zhejiang Usune Electric Co., Ltd. specializes in power transformers and power distribution equipment. The company states that it maintains quality-control procedures from components through finished products and operates under ISO 9001 and ISO 14001 management systems. Its product portfolio includes dry-type transformers, oil-type transformers, power transformers, and other distribution equipment.

For buyers, the value of working with a manufacturer is not limited to purchasing a standard transformer. Project-specific requirements can be discussed before production, helping align the transformer with the electrical system, installation environment, and application.

For international projects, Usune also provides customized solutions for voltage and other transformer parameters, supporting customers from specification confirmation through manufacturing and delivery.

Final Considerations

Selecting a transformer should involve more than simply comparing rated capacity. Buyers should evaluate voltage ratio, frequency, impedance, insulation class, cooling method, installation environment, enclosure requirements, expected load, safety requirements, and long-term maintenance needs.

A 630kVA Epoxy Resin Dry Type Transformer can provide a practical oil-free solution for commercial, industrial, infrastructure, and specialized applications. With epoxy-resin insulation, flexible electrical configurations, and the possibility of customized construction—including ship-type customization—it can be adapted to projects where standard transformer configurations may not be sufficient.

For a customized transformer solution based on your voltage, installation conditions, load requirements, or marine project specifications, contact us at Zhejiang Usune Electric Co., Ltd. to discuss your requirements and obtain a suitable 630kVA transformer configuration.
