How Does a 7.2KV Vacuum Interrupter For Contactor Improve Medium Voltage Switching Performance?
2026-07-09
In modern power systems, reliable switching equipment plays a critical role in ensuring electrical safety, operational efficiency, and equipment protection. Medium voltage contactors are widely used in industries such as power distribution, mining, metallurgy, chemical processing, transportation, and renewable energy systems. Among the key components that determine the performance of medium voltage contactors, the vacuum interrupter is one of the most important parts. A high-quality 7.2KV Vacuum Interrupter For Contactor provides excellent arc extinguishing performance, long service life, and stable electrical insulation, helping contactors operate safely under demanding working conditions. Sunway Hanguang Electric Manufacturing Limited Co., Ltd. specializes in manufacturing advanced vacuum interrupters designed to meet the requirements of modern medium voltage electrical applications.

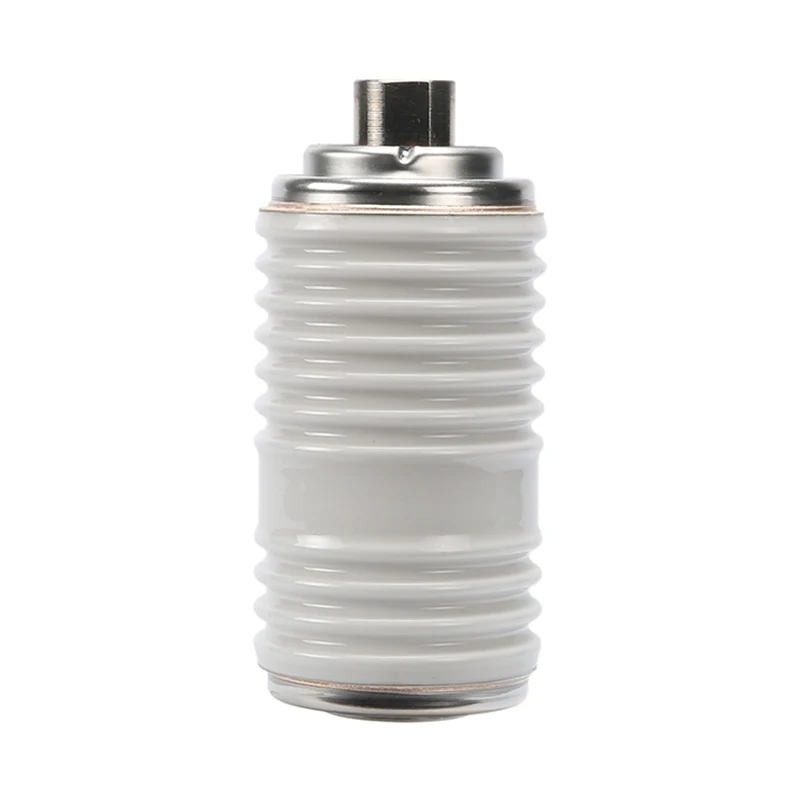

What Is a 7.2KV Vacuum Interrupter For Contactor?
A 7.2KV Vacuum Interrupter For Contactor is a high-performance switching component designed for medium voltage contactors. It uses a vacuum environment inside a sealed ceramic or glass chamber to interrupt electrical current by extinguishing arcs generated during switching operations.
Unlike traditional air or oil-based interruption technologies, vacuum interruption technology eliminates the need for additional arc extinguishing mediums. When the contacts inside the vacuum interrupter separate, the metal vapor generated by the arc quickly condenses, allowing the current path to be interrupted efficiently.
The 7.2KV rating indicates that the vacuum interrupter is suitable for electrical systems with a rated voltage of up to 7.2 kilovolts, making it ideal for medium voltage applications requiring frequent switching and high reliability.
A typical vacuum interrupter consists of several important components:
| Component | Function |
|---|---|
| Ceramic Insulator | Provides electrical insulation and mechanical strength |
| Fixed Contact | Maintains stable electrical connection |
| Moving Contact | Performs switching operation |
| Shield System | Controls metal vapor and improves insulation performance |
| Bellows Assembly | Allows contact movement while maintaining vacuum sealing |
| End Cover | Ensures structural protection and vacuum integrity |
Why Is a 7.2KV Vacuum Interrupter Important?
The performance of a medium voltage contactor depends heavily on the quality of its vacuum interrupter. A poor-quality interrupter may cause excessive arcing, contact damage, overheating, and unexpected equipment downtime.
A reliable 7.2KV Vacuum Interrupter For Contactor provides several important benefits:
1. Excellent Arc Extinguishing Capability
During electrical switching, an arc is created between separated contacts. If the arc is not controlled effectively, it can damage electrical components and reduce equipment lifespan.
The vacuum environment inside the interrupter allows the arc to disappear quickly, reducing contact wear and improving switching reliability.
2. Longer Electrical Service Life
Compared with conventional switching technologies, vacuum interrupters experience significantly less contact erosion. This makes them suitable for applications requiring frequent switching operations.
For industries where equipment availability is essential, longer service life means:
- Reduced maintenance frequency
- Lower replacement costs
- Improved production efficiency
- Increased system reliability
3. Enhanced Electrical Safety
Safety is a major concern in medium voltage systems. Vacuum interrupters help prevent electrical failures by providing:
- Stable insulation performance
- Reliable current interruption
- Reduced risk of fire caused by switching arcs
- Better protection for connected equipment
How Does a Vacuum Interrupter Work?
The operating principle of a vacuum interrupter is based on controlling and eliminating electrical arcs in a vacuum environment.
The working process includes the following steps:
Step 1: Normal Current Flow
When the contactor is closed, the fixed and moving contacts remain connected, allowing electrical current to flow through the circuit.
Step 2: Contact Separation
When switching occurs, the moving contact separates from the fixed contact. An electrical arc forms between the contacts because current continues flowing momentarily.
Step 3: Arc Control in Vacuum
Inside the vacuum chamber, there are almost no gas molecules to support continuous arc development. The arc quickly becomes unstable and weakens.
Step 4: Current Interruption
The arc disappears when the current reaches zero point, completely interrupting the electrical circuit and restoring insulation between contacts.
This process happens within milliseconds, ensuring fast and reliable switching performance.
Main Features and Performance Advantages
A premium 7.2KV Vacuum Interrupter For Contactor offers multiple advantages compared with traditional switching components.
| Feature | Benefit |
|---|---|
| High Vacuum Environment | Provides fast arc extinction |
| Compact Structure | Saves installation space |
| High Mechanical Strength | Supports frequent operations |
| Excellent Insulation | Improves electrical safety |
| Low Maintenance Requirement | Reduces operating costs |
| Long Service Life | Ensures stable system performance |
High Reliability Under Frequent Switching Conditions
Medium voltage contactors often operate repeatedly in industrial environments. Vacuum interrupters are designed to withstand thousands of switching cycles without significant performance degradation.
Environmentally Friendly Operation
Because vacuum interrupters do not use oil or harmful gases for arc extinguishing, they offer a cleaner and safer solution for modern electrical systems.
Low Energy Consumption
The efficient switching mechanism requires less operating energy, contributing to improved overall system efficiency.
Applications of 7.2KV Vacuum Interrupters
The 7.2KV Vacuum Interrupter For Contactor is widely applied in many industries where medium voltage switching reliability is required.
| Industry | Application |
|---|---|
| Power Distribution | Medium voltage switching systems |
| Mining Industry | Motor control and heavy equipment protection |
| Metallurgy | Industrial power control systems |
| Chemical Industry | Production equipment switching |
| Railway Transportation | Electrical traction systems |
| Renewable Energy | Wind and solar power facilities |
| Manufacturing Plants | Motor starters and control equipment |
These applications require components that can handle high electrical stress, frequent operation, and harsh working environments.
Technical Parameters Overview
The exact specifications may vary depending on design requirements, but a typical 7.2KV vacuum interrupter includes the following characteristics:
| Parameter | Typical Value |
|---|---|
| Rated Voltage | 7.2KV |
| Application | Medium Voltage Contactor |
| Insulation Medium | Vacuum |
| Contact Material | Copper-Chromium Alloy |
| Installation Type | Embedded / Fixed Installation |
| Switching Frequency | High Operation Capability |
| Service Life | Long Mechanical and Electrical Durability |
Sunway Hanguang Electric Manufacturing Limited Co., Ltd. focuses on precision manufacturing and strict quality control to ensure every vacuum interrupter delivers consistent performance in demanding applications.
7.2KV Vacuum Interrupter For Contactor vs Traditional Switching Technology
Compared with traditional air and oil switching solutions, vacuum interrupters provide clear advantages.
| Comparison Item | Vacuum Interrupter | Traditional Switching Technology |
|---|---|---|
| Arc Extinguishing Speed | Very Fast | Relatively Slow |
| Maintenance Requirement | Low | Higher |
| Environmental Impact | Low | May require additional materials |
| Service Life | Long | Limited |
| Switching Reliability | Excellent | Depends on conditions |
For modern industries requiring stable and efficient power management, vacuum technology has become the preferred solution.
Why Choose Sunway Hanguang Electric Manufacturing Limited Co., Ltd.?
Sunway Hanguang Electric Manufacturing Limited Co., Ltd. is committed to providing high-quality vacuum interrupter solutions for medium voltage electrical equipment.
The company combines advanced manufacturing technology, professional engineering experience, and strict quality management to deliver reliable electrical components.
Key advantages include:
- Professional vacuum interrupter manufacturing experience
- Advanced production equipment
- Strict quality inspection procedures
- Customized solutions according to customer requirements
- Stable performance for industrial applications
Whether customers need standard products or customized vacuum switching solutions, Sunway Hanguang Electric Manufacturing Limited Co., Ltd. can provide professional support.
Frequently Asked Questions
1. What is the main function of a 7.2KV Vacuum Interrupter For Contactor?
The main function is to safely interrupt electrical current by extinguishing switching arcs inside a vacuum chamber. It improves contactor reliability, safety, and service life.
2. Why are vacuum interrupters better than traditional arc extinguishing methods?
Vacuum interrupters provide faster arc extinction, lower maintenance requirements, higher reliability, and longer operating life compared with many traditional technologies.
3. Where are 7.2KV vacuum interrupters commonly used?
They are widely used in medium voltage contactors, industrial motor control systems, power distribution equipment, mining facilities, transportation systems, and renewable energy applications.
4. Can Sunway Hanguang Electric Manufacturing Limited Co., Ltd. provide customized vacuum interrupter solutions?
Yes. The company can develop and manufacture vacuum interrupter products according to different voltage levels, installation requirements, and application conditions.
Conclusion
A reliable 7.2KV Vacuum Interrupter For Contactor is essential for improving the safety, efficiency, and durability of medium voltage electrical systems. With excellent arc extinguishing performance, low maintenance requirements, and long operational life, vacuum interrupter technology has become a key solution for modern power control applications.
Sunway Hanguang Electric Manufacturing Limited Co., Ltd. continues to provide high-quality vacuum interrupter products designed to meet global industrial requirements. For professional vacuum switching solutions, customized products, and technical support, please contact us today and discover how Sunway Hanguang Electric Manufacturing Limited Co., Ltd. can support your medium voltage electrical projects.
