How Does a Box Type Substation Work?
2025-08-06
Introduction to Box Type Substations

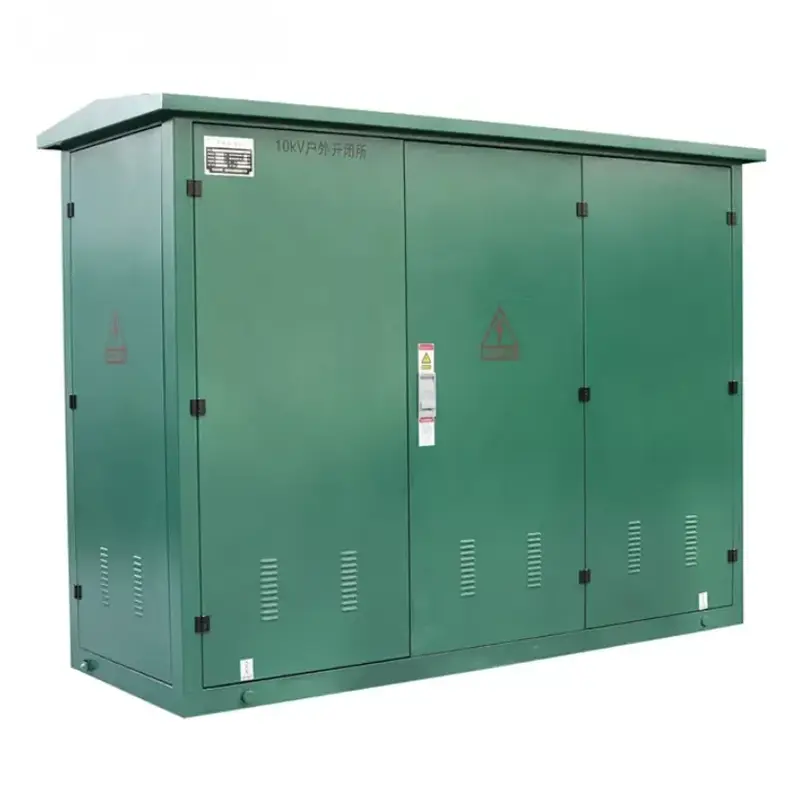

A Box Type Substation is a compact, prefabricated power distribution unit that integrates high-voltage switchgear, transformers, and low-voltage distribution equipment into a single enclosure. As a leading manufacturer at TOONICE, we specialize in designing and producing high-efficiency Box Type Substations that ensure reliable power distribution for urban, industrial, and renewable energy applications.
This guide will cover:
✔ Working principle of a Box Type Substation
✔ Key components and their functions
✔ TOONICE product specifications and advantages
✔ Applications in different industries
✔ FAQ for common technical questions
How Does a Box Type Substation Work?
A Box Type Substation performs three primary functions:
-
Step-down voltage transformation (High Voltage → Low Voltage)
-
Power distribution to multiple circuits
-
Protection & monitoring of electrical systems
Power Flow Process
-
High-voltage input (10kV-35kV) enters through ring main unit
-
Transformer reduces voltage to 400V/230V for consumer use
-
Low-voltage switchgear distributes power to end users
-
Protection devices (circuit breakers, relays) ensure safety
Key Components of a Box Type Substation
| Component | Function | TOONICE Specifications |
|---|---|---|
| HV Switchgear | Controls incoming high-voltage power | SF6 or vacuum circuit breaker |
| Distribution Transformer | Steps down voltage | Oil-immersed or dry-type (≤2500kVA) |
| LV Distribution Panel | Allocates power to circuits | IEC 61439 compliant |
| Enclosure | Weatherproof protection | Stainless steel/Galvanized (IP33-IP54) |
| Monitoring System | Real-time power analytics | Smart SCADA compatible |
TOONICE Box Type Substation Product Line
Technical Specifications Comparison
| Model | Voltage Rating | Transformer Capacity | Protection Class | Dimensions (L×W×H) |
|---|---|---|---|---|
| TN-BTS-500 | 11kV/0.4kV | 500kVA | IP54 | 2500×1800×2200mm |
| TN-BTS-1000 | 33kV/0.4kV | 1000kVA | IP54 | 3000×2200×2400mm |
| TN-BTS-2000 | 35kV/0.4kV | 2000kVA | IP55 | 3500×2500×2600mm |
Advanced Features
✔ Modular design for easy expansion
✔ Corrosion-resistant coastal variants available
✔ Energy-efficient amorphous metal transformers
✔ Remote monitoring via IoT integration
Applications of Box Type Substations
Urban Power Distribution
-
Residential complexes
-
Shopping malls
-
Hospitals
Industrial Use Cases
-
Manufacturing plants
-
Mining operations
-
Oil & gas facilities
Renewable Energy Integration
-
Solar farms
-
Wind power stations
FAQ: How Does a Box Type Substation Work?
Q: What maintenance does a Box Type Substation require?
A: Proper maintenance includes:
-
Quarterly inspections of circuit breakers and connections
-
Annual oil testing for oil-immersed transformers
-
Thermal imaging scans to detect hotspots
-
Enclosure integrity checks for weatherproofing
-
Protective relay testing every 2 years
TOONICE substations feature maintenance-free designs with self-diagnostic systems to minimize downtime.
Why Choose TOONICE Box Type Substations?
✔ 30% more compact than conventional substations
✔ 5% lower energy losses through optimized design
✔ 20-year design lifespan with premium materials
✔ Custom configurations for special applications
✔ Global certifications (IEC, ANSI, GB standards)
