How Does a DC Isolator Switch Work?

Article Summary: A DC isolator switch is a critical safety component in photovoltaic systems and other direct current applications. It ensures safe disconnection of electrical circuits during maintenance, emergencies, or system faults. This article explains how a DC isolator switch works, its structure, key features, selection criteria, and common user concerns. The goal is to provide a clear, practical understanding to help buyers and engineers make informed decisions.

Table of Contents

• 1. What Is a DC Isolator Switch?
• 2. How Does a DC Isolator Switch Work?
• 3. Key Components and Structure
• 4. Main Application Scenarios
• 5. Core Features and Advantages
• 6. How to Choose the Right DC Isolator Switch
• 7. DC vs AC Isolator Switch Comparison
• 8. Frequently Asked Questions
• 9. Contact Us

1. What Is a DC Isolator Switch?

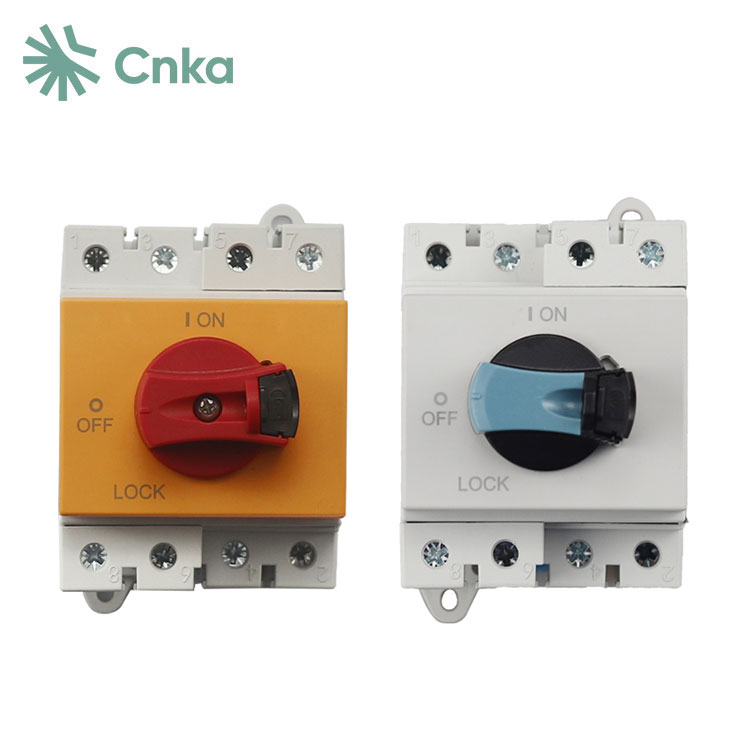

A DC isolator switch is a mechanical switching device designed to safely disconnect direct current (DC) circuits from a power source. It is widely used in solar photovoltaic (PV) systems, battery storage systems, and industrial DC power setups.

Unlike circuit breakers, which automatically interrupt current during faults, a DC isolator switch is typically operated manually. Its primary function is to ensure that maintenance personnel can safely work on electrical systems without exposure to live current.

In solar systems, it is commonly installed between the solar panels and the inverter, as well as between the inverter and the battery system.

2. How Does a DC Isolator Switch Work?

The working principle of a DC isolator switch is based on physically separating electrical contacts to interrupt the current flow.

Step-by-step operation:

• When the switch is in the ON position, internal contacts are closed, allowing current to flow through the circuit.
• When switched OFF, the contacts separate, breaking the circuit.
• Special arc suppression mechanisms extinguish electrical arcs generated during disconnection.

One of the main challenges in DC systems is that current does not naturally cross zero, unlike AC. This makes arc extinguishing more difficult. High-quality products, such as those provided by CNKA, incorporate advanced arc-extinguishing chambers to ensure safe disconnection.

Key technical point: DC isolator switches are specifically designed with longer contact gaps and magnetic arc blowout systems to safely interrupt DC current.

3. Key Components and Structure

A typical DC isolator switch consists of several essential parts:

• Switch Handle: Used for manual operation
• Fixed and მოძრable Contacts: Conduct or interrupt current
• Arc Chute: Extinguishes electrical arcs
• Enclosure: Provides environmental protection (IP-rated)
• Terminal Connectors: Ensure stable wiring connections

These components work together to ensure reliable performance even under high voltage DC conditions.

4. Main Application Scenarios

DC isolator switches are essential in multiple industries:

• Solar Photovoltaic Systems: Disconnect panels from inverters
• Energy Storage Systems: Isolate batteries during maintenance
• Electric Vehicle Charging: Provide safe circuit isolation
• Industrial DC Equipment: Protect machinery and operators

In solar installations, safety regulations often require both rooftop and ground-level isolators to ensure full system shutdown capability.

5. Core Features and Advantages

Products from CNKA are engineered to meet international safety standards, ensuring reliable operation even in harsh environmental conditions.

6. How to Choose the Right DC Isolator Switch

Selecting the correct DC isolator switch is critical for system safety and efficiency. Consider the following factors:

• Rated Voltage: Must match or exceed system voltage
• Rated Current: Should handle maximum load current
• Number of Poles: Typically 2-pole or 4-pole configurations
• Environmental Rating: Choose IP-rated enclosures for outdoor use
• Certification: Ensure compliance with IEC or relevant standards

Improper selection may lead to overheating, arc faults, or system failure, which are common concerns among buyers.

7. DC vs AC Isolator Switch Comparison

This comparison highlights why DC isolator switches require more advanced engineering.

8. Frequently Asked Questions

Q1: Why is a DC isolator switch necessary in solar systems?
A: It ensures safe disconnection of the DC circuit during maintenance or emergencies, protecting both equipment and personnel.

Q2: Can an AC isolator be used in a DC system?
A: No. AC isolators are not designed to handle continuous DC arcs and may fail or cause safety hazards.

Q3: Where should a DC isolator switch be installed?
A: Typically between the solar panels and inverter, and sometimes near the inverter output for complete isolation.

Q4: How often should a DC isolator switch be inspected?
A: Regular inspection every 6–12 months is recommended to ensure proper operation and safety.

9. Contact Us

Choosing the right DC isolator switch is essential for ensuring system safety, efficiency, and long-term reliability. CNKA provides high-performance DC isolator switches designed for demanding applications, including solar and industrial systems.

If you are looking for a dependable solution tailored to your project requirements, our team is ready to assist. We offer professional guidance, product customization, and fast response support.

Contact us today to get detailed product information and a competitive quote for your next project.
