How Does a GZDW DC Power Supply Panel Support Battery Backup and Charging

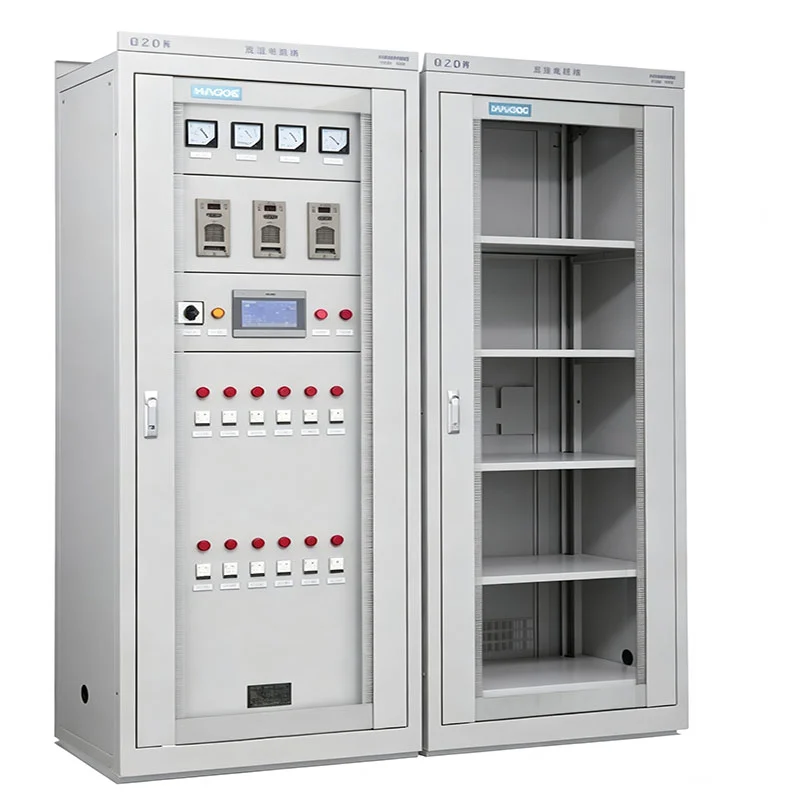

In modern substations, industrial facilities, and critical infrastructure, maintaining an uninterrupted DC power source is essential for protection relays, circuit breakers, emergency lighting, and control systems. A GZDW DC Power Supply Panel from HAGOE is engineered to manage battery banks, charging modules, and distribution circuits in a coordinated way, ensuring that backup power remains stable, reliable, and ready at all times. This article explains the technical mechanisms behind battery backup and charging support, and why HAGOE solutions are trusted in demanding environments.

Core Functions of a GZDW DC Power Supply Panel

A GZDW DC Power Supply Panel integrates several subsystems into one coordinated unit. Its primary role is to convert AC input into regulated DC output while simultaneously managing battery charging and backup discharge. The panel typically includes:

• Rectifier/Charging Modules – Convert AC to DC and supply both load and battery charging current.

• Battery Bank – Stores energy for backup operation during AC loss.

• Monitoring Unit – Tracks voltage, current, temperature, and insulation status.

• Distribution Feeders – Deliver DC power to protective and control loads.

• Alarm and Communication Interfaces – Provide remote signaling and fault diagnostics.

HAGOE designs these components to operate as an intelligent system, reducing manual intervention and improving overall reliability.

How Battery Backup and Charging Are Supported

The GZDW DC Power Supply Panel supports battery backup and charging through a continuous, automated process. The following table summarizes the key operational stages:

The charging process typically follows a three-stage profile: constant current, constant voltage, and float charge. This prevents overcharging while ensuring the battery remains fully ready. When AC power is lost, the GZDW DC Power Supply Panel immediately switches to battery supply, maintaining voltage within acceptable limits for sensitive loads.

Key Technical Advantages

• Redundant Charging Modules – If one module fails, others continue to charge the battery.

• Temperature Compensation – Adjusts charging voltage based on battery temperature for longer life.

• Automatic Battery Management – Includes periodic boost charging and capacity testing.

• Remote Monitoring – Supports SCADA and Ethernet communication for real-time visibility.

• Modular Design – Simplifies maintenance and expansion.

HAGOE incorporates these features into every GZDW DC Power Supply Panel, ensuring compatibility with VRLA, flooded, and lithium battery technologies.

Frequently Asked Questions

Q: What is the typical backup time of a GZDW DC Power Supply Panel?
A: Backup time depends on battery capacity and load current. Standard configurations provide 1 to 8 hours, while larger systems can support 24 hours or more for critical loads.

Q: How does the GZDW DC Power Supply Panel prevent battery overcharging?
A: It uses a multi-stage charging algorithm with voltage and current limits, temperature compensation, and automatic transition to float mode once the battery reaches full charge.

Q: Can the GZDW DC Power Supply Panel be integrated with existing SCADA systems?
A: Yes. HAGOE panels support Modbus, IEC 61850, and Ethernet protocols, allowing seamless integration with most SCADA and monitoring platforms.

Conclusion

A GZDW DC Power Supply Panel is more than a power converter—it is an intelligent battery management and backup system. By combining advanced charging control, real-time monitoring, and robust protection, it ensures that critical DC loads remain powered even during extended AC outages. HAGOE delivers these capabilities with proven engineering and reliable performance.

Contact us today to discuss your DC power requirements and discover how a HAGOE GZDW DC Power Supply Panel can strengthen your backup power strategy.
