How Does a Low Voltage Series Reactor Improve Electrical Systems?

Abstract: Low voltage series reactors play a crucial role in enhancing the stability and efficiency of electrical systems. By mitigating harmonic distortions, limiting short-circuit currents, and improving overall power quality, these reactors provide reliable solutions for industrial and commercial applications. This article explores the functionality, benefits, selection criteria, installation tips, and maintenance practices of low voltage series reactors, helping engineers and system designers make informed decisions.

Table of Contents

• Introduction to Low Voltage Series Reactors
• Key Benefits of Using Low Voltage Series Reactors
• Types of Low Voltage Series Reactors
• Selection Criteria
• Installation and Best Practices
• Maintenance and Troubleshooting
• FAQ

Introduction to Low Voltage Series Reactors

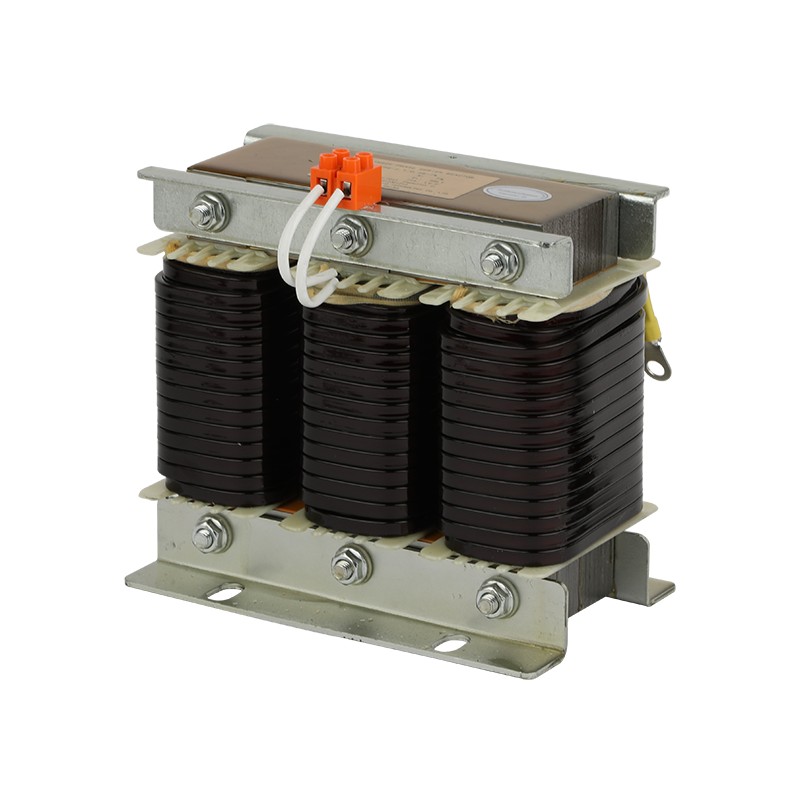

Low voltage series reactors, also known as line reactors, are inductive devices installed in series with electrical circuits. Their primary function is to limit short-circuit currents, reduce harmonics, and prevent voltage spikes that can damage sensitive equipment. Industries with variable frequency drives (VFDs), power converters, or critical electrical loads often rely on these reactors for enhanced power system reliability.

• Protection of equipment against voltage transients
• Reduction of harmonic distortion in the system
• Improvement of motor and drive longevity

Key Benefits of Using Low Voltage Series Reactors

Implementing a low voltage series reactor provides multiple advantages for electrical systems:

Types of Low Voltage Series Reactors

Low voltage series reactors can be categorized based on installation and design:

• Line Reactors: Installed at the input of VFDs to protect drives and motors.
• Load Reactors: Connected at the output of drives or converters to reduce voltage peaks and motor stress.
• Phase Reactors: Designed for three-phase systems to balance load and reduce harmonic interference.

Selection Criteria

Choosing the right low voltage series reactor is crucial for optimal performance. Consider the following factors:

1. Rated Current: Must match the load current to prevent overheating.
2. Voltage Rating: Ensure the reactor voltage rating meets system requirements.
3. Impedance Level: Determines harmonic mitigation and short-circuit current limitation.
4. Cooling Method: Air-cooled vs. oil-cooled, depending on installation environment.
5. Physical Size and Mounting: Ensure compatibility with available space and enclosure.

Installation and Best Practices

Proper installation is essential to maximize the lifespan and efficiency of low voltage series reactors:

• Install as close as possible to the equipment being protected.
• Ensure proper grounding to prevent electrical noise.
• Follow manufacturer torque specifications for all connections.
• Provide adequate ventilation to prevent overheating.
• Regularly inspect connections and insulation for wear or damage.

Maintenance and Troubleshooting

Routine maintenance ensures long-term reliability:

• Visual inspection for signs of overheating, discoloration, or insulation damage.
• Check for loose terminals and tighten connections as needed.
• Measure temperature rise under load to detect abnormal heating.
• Monitor harmonic levels to verify reactor performance.

Common troubleshooting scenarios:

• Excessive Noise: May indicate core vibration or loose laminations.
• Overheating: Could be caused by overcurrent, poor ventilation, or incorrect impedance selection.
• Voltage Spikes Persist: Reactor may be undersized for system requirements.

FAQ

• Q: Can a low voltage series reactor be used with all types of VFDs?
  A: Yes, but it must be sized appropriately for the drive's current and voltage ratings.
• Q: How often should a reactor be inspected?
  A: Visual inspection is recommended at least annually, with additional checks after high-load periods.
• Q: Does adding a reactor reduce energy efficiency?
  A: The voltage drop is minimal, and the benefits in equipment protection usually outweigh any minor losses.
